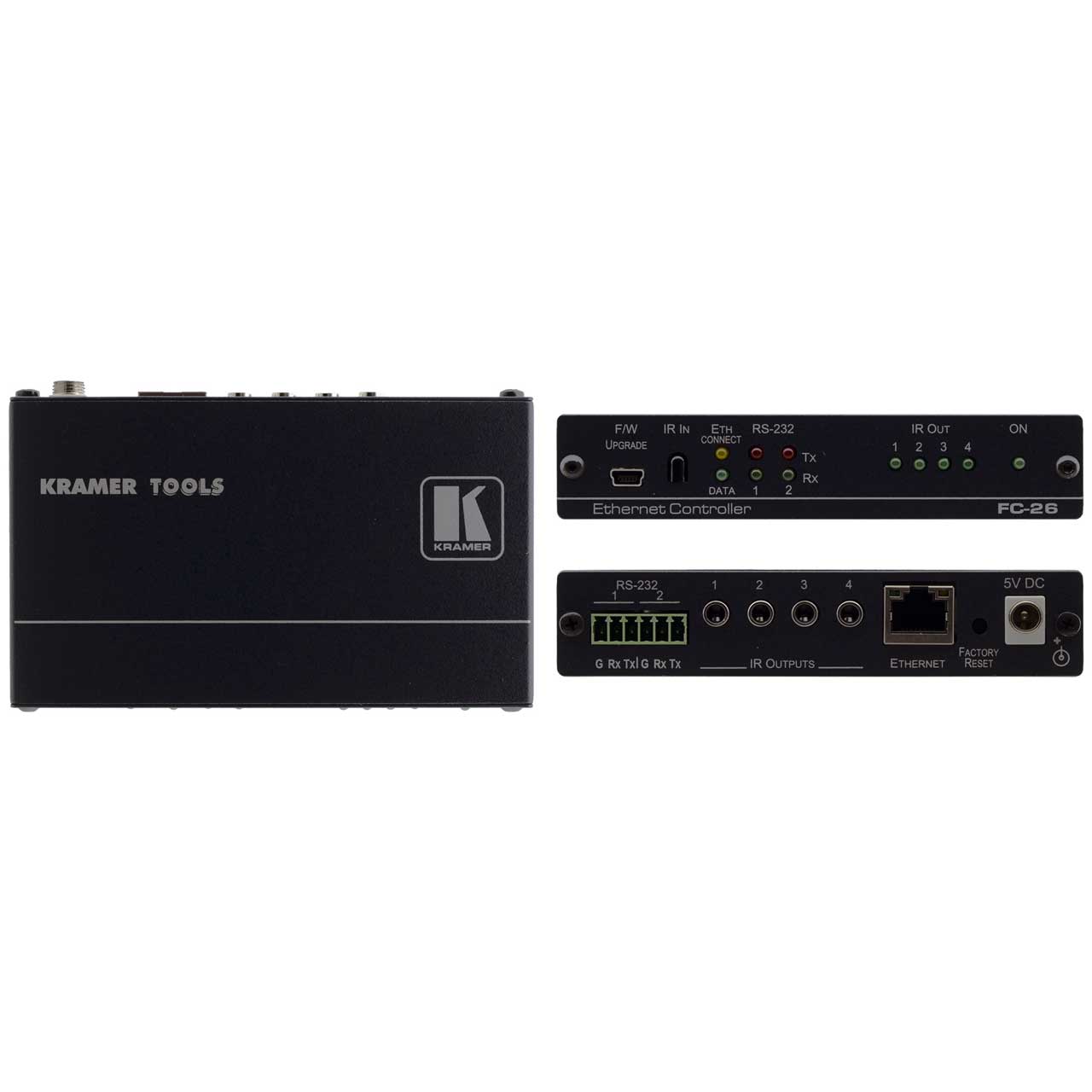

Kramer Control FC-26 Six port Serial and IR PoE Control Gateway

FC-26 - Overview

PoE-powered control gateway

• Features:

  • 2 Bidirectional RS-232 ports
  • 4 IR emitter ports
  • 1 IR sensor for learning
  • 1 Ethernet port
  • PoE powering
  • Built-in control & support web pages
  • Supported by: Kramer Control, K-Touch and K-Config


• Specifications:

  • OUTPUTS
  • 4 IR on 3.5mm mini jacks


  • PORTS
  • 2 RS-232 serial on 3-pin terminal blocks, 1 Ethernet on an RJ-45 connector, 1 mini USB connector for local services, 1 built-in IR sensor (for learning)


  • SUPPORTED SERIAL PORT BAUD RATES
  • 1200, 2400, 4800, 9600, 19200, 38400, 57600, 15200bps


  • RS-232 COMMUNICATION
  • Transparent up to 115200bps


  • IR EMITTER CABLE RANGE
  • 80m (260ft)


  • SUPPORTED IR INPUT FREQUENCIES
  • 20kHz to 60kHz


  • SUPPORTED IR OUTPUT FREQUENCIES
  • 20kHz to 1.2MHz


  • MAXIMUM DATA HANDLING OF DEVICE
  • Up to 150kbps summed on all ports


  • POWER CONSUMPTION
  • 5V DC, 230mA


  • OPERATING TEMPERATURE
  • 0° to +40°C (32° to 104°F)


  • STORAGE TEMPERATURE
  • -40° to +70°C (-40° to 158°F)


  • HUMIDITY
  • 10% to 90%, RHL non-condensing


  • COOLING
  • Convection


  • ENCLOSURE TYPE
  • Aluminum


  • RACK MOUNT
  • With optional rack adapter


  • VIBRATION
  • ISTA 1A in carton (International Safe Transit Association)


  • SAFETY REGULATORY COMPLIANCE
  • CE


  • ENVIRONMENTAL REGULATORY COMPLIANCE
  • Complies with appropriate requirements of RoHs and WEEE


• Item Includes:

  • FC-26 Gateway
  • Power adapter
  • IR Cable C-A35M/IRE-10


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063073138
