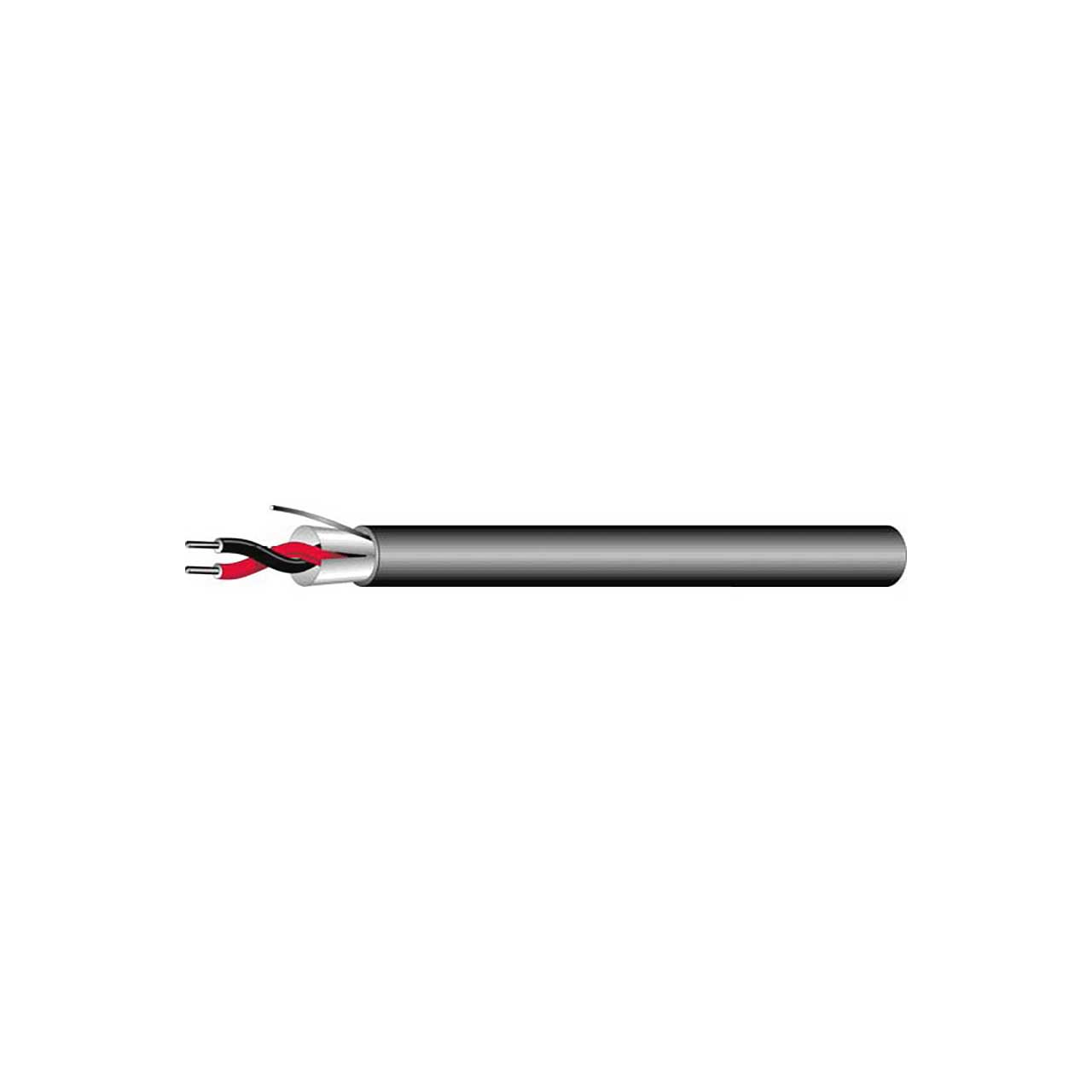

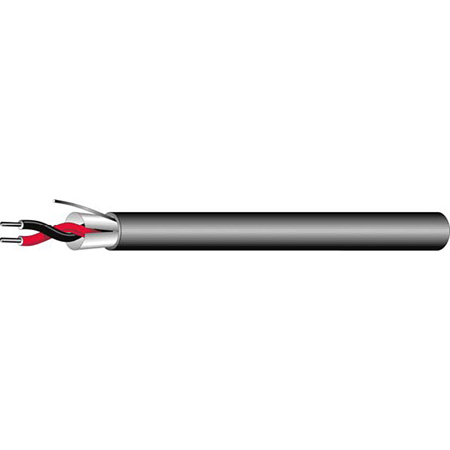

West Penn 25291B 1 Pair 22GA Plenum Control Cable Per Ft Black

25291B - Overview

• Specifications:

  • Conduction Parameter
  • Number of Conductors: 2
  • AWG Size: 22
  • Conductor Stranding: 7X30
  • Conductor Type: Bare copper
  • Nominal DCR: 17 Ohm/1000ft
  • Cabling Lay Length: 2.5 in
  • Twists/Foot 4.8 twist/f
    Insulation Parameter
  • Insulation Type: Plenum PVC
  • Insulation Thickness: 0.008 in
  • Insulation Color Code: 1. Black 2.Red
    Shielding Parameter
  • Shield Type: Overall 100% Aluminum Foil
  • Drain Wire Type: Tinned Copper
  • Drain Wire AWG: 24 AWG
    Electrical Characteristics
  • Nom. Cap. Between Conductors: 54 pF/ft
  • Nom. Cap. Conductor to Shield: 97 pF/f
    Overall Construction
  • Jacket Type: Flexible Plenum
  • Jacket Thickness: 0.015 in
  • Nominal Cable O.D.: 0.116 in
  • Plenum: Yes
  • NEC UL Rating: CMP
  • RoHS Compliant: Yes
  • Pull Tension: 28 lbs
  • Bend Radius: 1.044 in
  • Cable Weight: 11 lbs
    Overall Electrical & Optical Characteristics
  • UL Flammability: NFPA 262 Plenum
  • Operating Range: -0 to 60 Deg C
  • UL Voltage Rating: 300


• GTIN:

  0612825047094
