Certified SFP+ optical modules

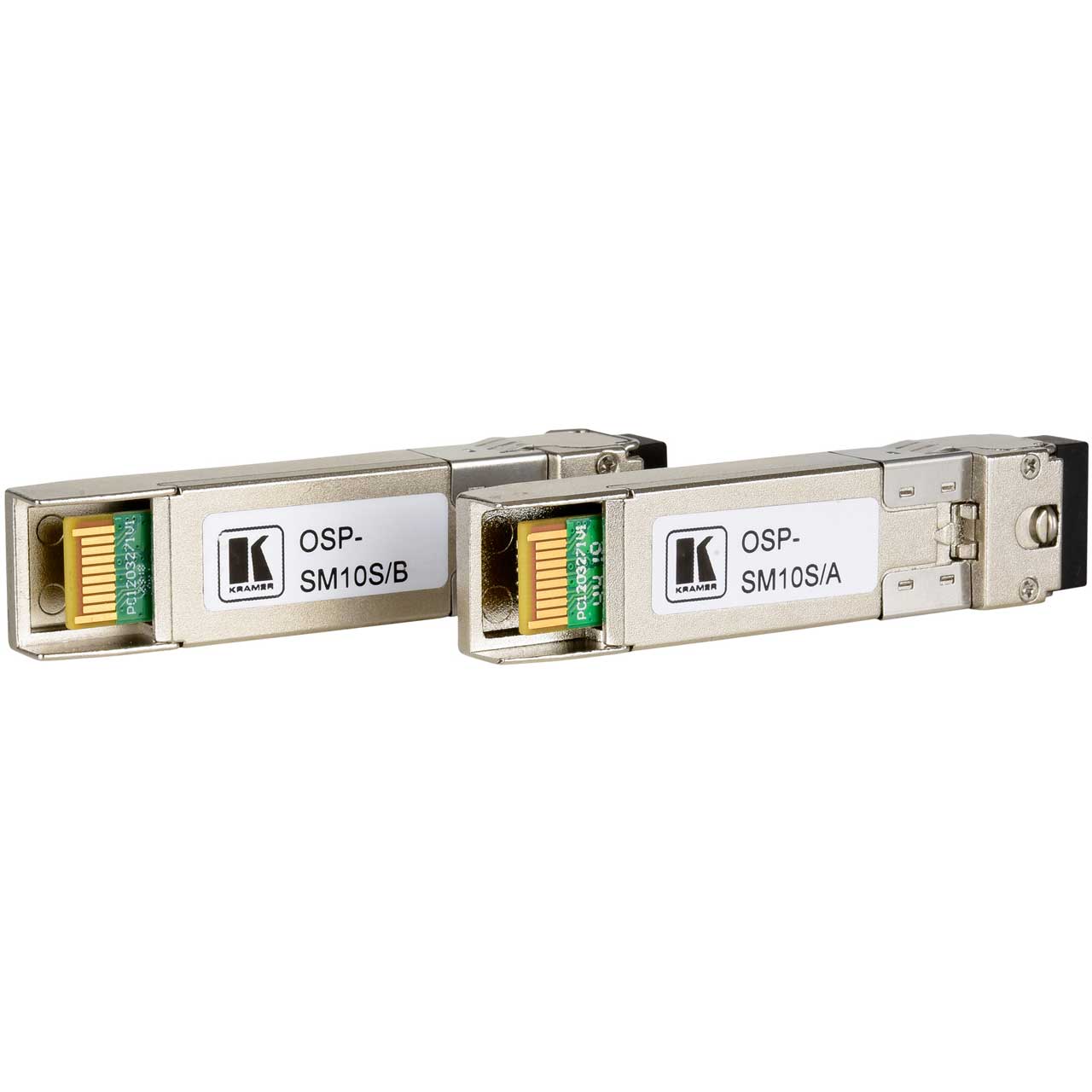

Kramer's OSP-SM10S is a pair of fiber optic transceivers for 1270/1330nm single-mode signals. These standard pluggable SFP+ optical modules have one LC connector for reception and transmission of signals over one strand of single-mode optical fiber.
-
- Certified Transceiver - Kramer certified, hot-pluggable, simplex SFP+ optical modules, for high-quality transmission of 10.2Gbps signal over single-mode fiber cable, connecting 1 single-mode fiber strand via LC PC/UPC connector.
-
- GENERAL
- Optical Line: Single-mode G.652D compliant OFNR fiber
- Nominal Peak Wavelength: Module A: 1270 transmitter /1330nm receiver
- Module B: 1330 transmitter /1270nm receiver
- Max. Data Rate: 10.2Gbps
- Transmitter Type: DFB
- Optical Typical Transmission Power: -5dBm
- Optical Typical Maximum Receiver Sensitivity: -14dBm
- Optical Typical Maximum Loss Budget: 9dB
- PORTS

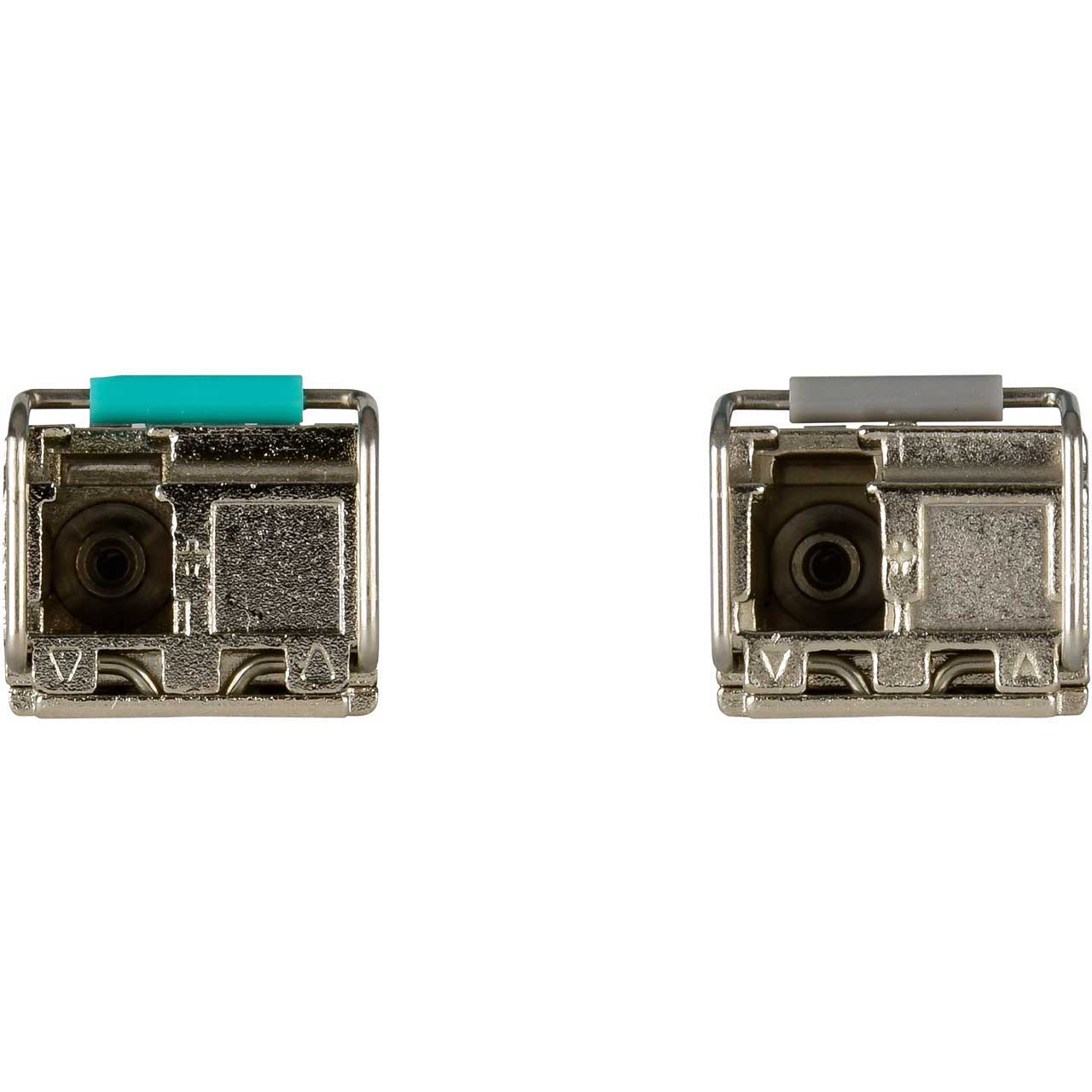

- 1 Optical: On single-strand LC-connected single-mode fiber
- Note: Do not use with LC(APC) cable connectors
- EXTENSION LINE
- Max. Reach: 20Km (12.4 miles) reach over OS1 SM fiber
- REGULATORY COMPLIANCE (STANDARDS COMPLIANCE)
- Quality: IEEE 802.3ae, SFF-8431, SFF-8472
- Laser Safety: Laser Class I
- Safety: FDA CDRH 1040.10, TUV EN60950-1 and EN60825-1/2, UL and CSA EN60950-1, RoHS, EMC EN 55032 and EN 55024
- POWER
- Consumption: 1W
- ENVIRONMENTAL CONDITIONS
- Operating Temperature: 0° to 70°C
- Storage Temperature: -40° to 85°C
- Humidity: 5% to 95% RH
-

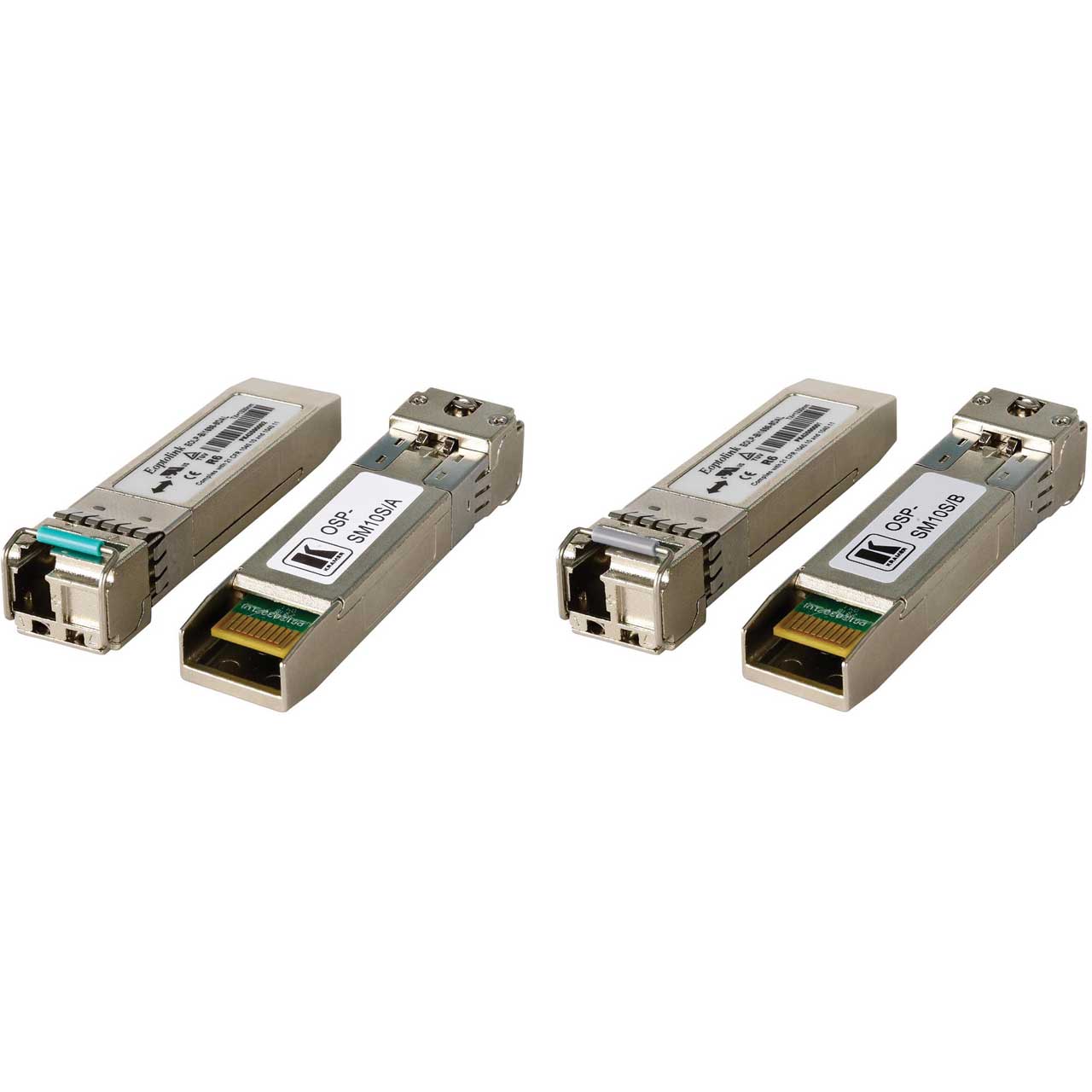

- OSP-SM10S 10G SFP+ Simplex Transceiver pair (A and B)
-
- Standard one (1) year warranty
-
