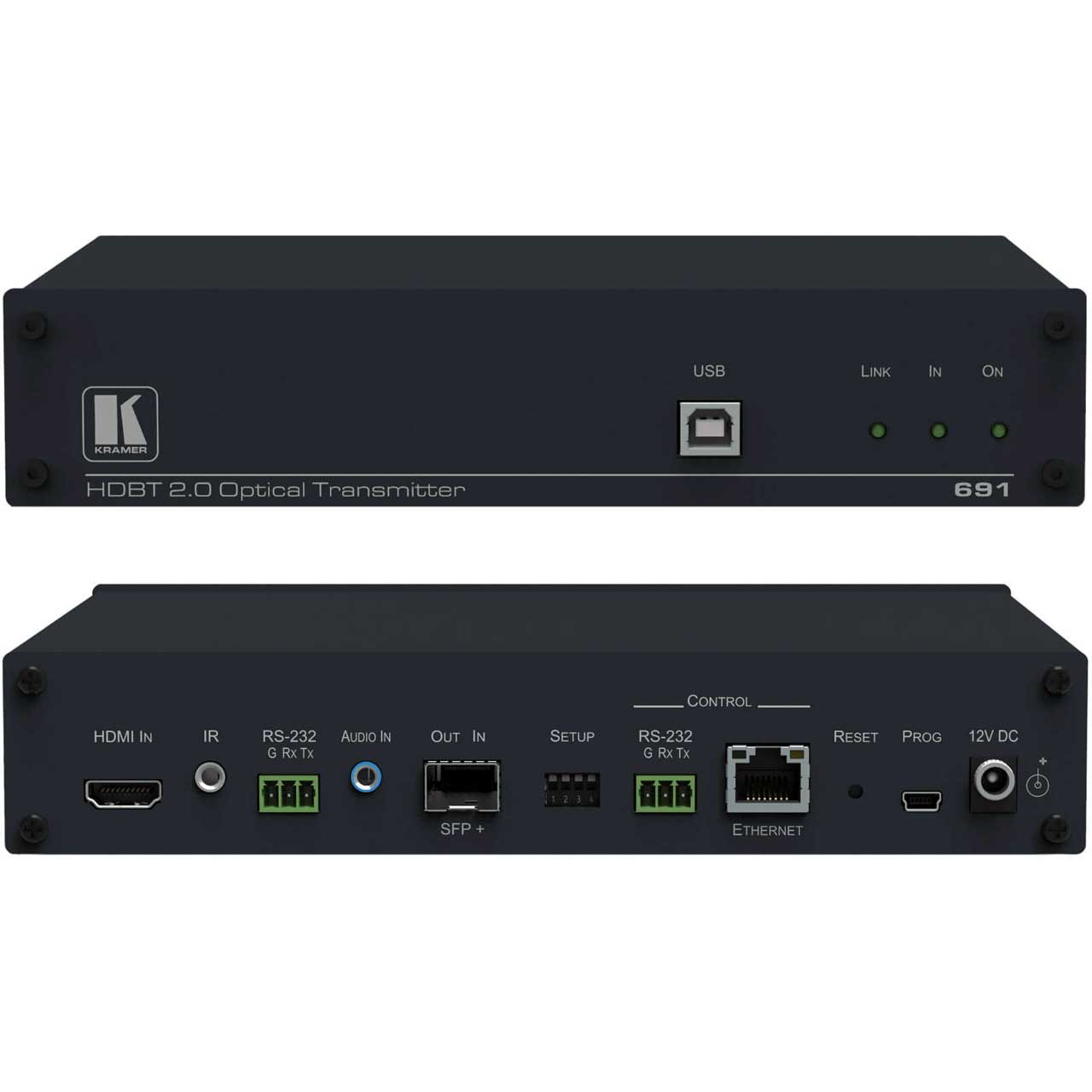

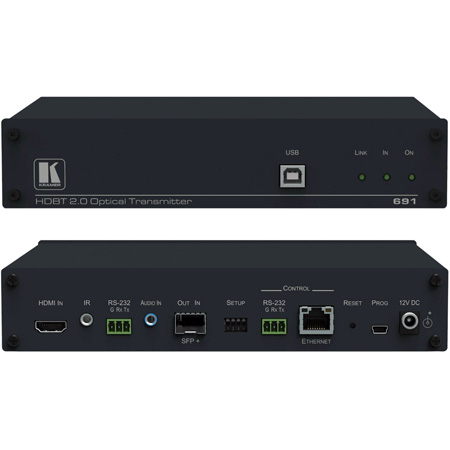

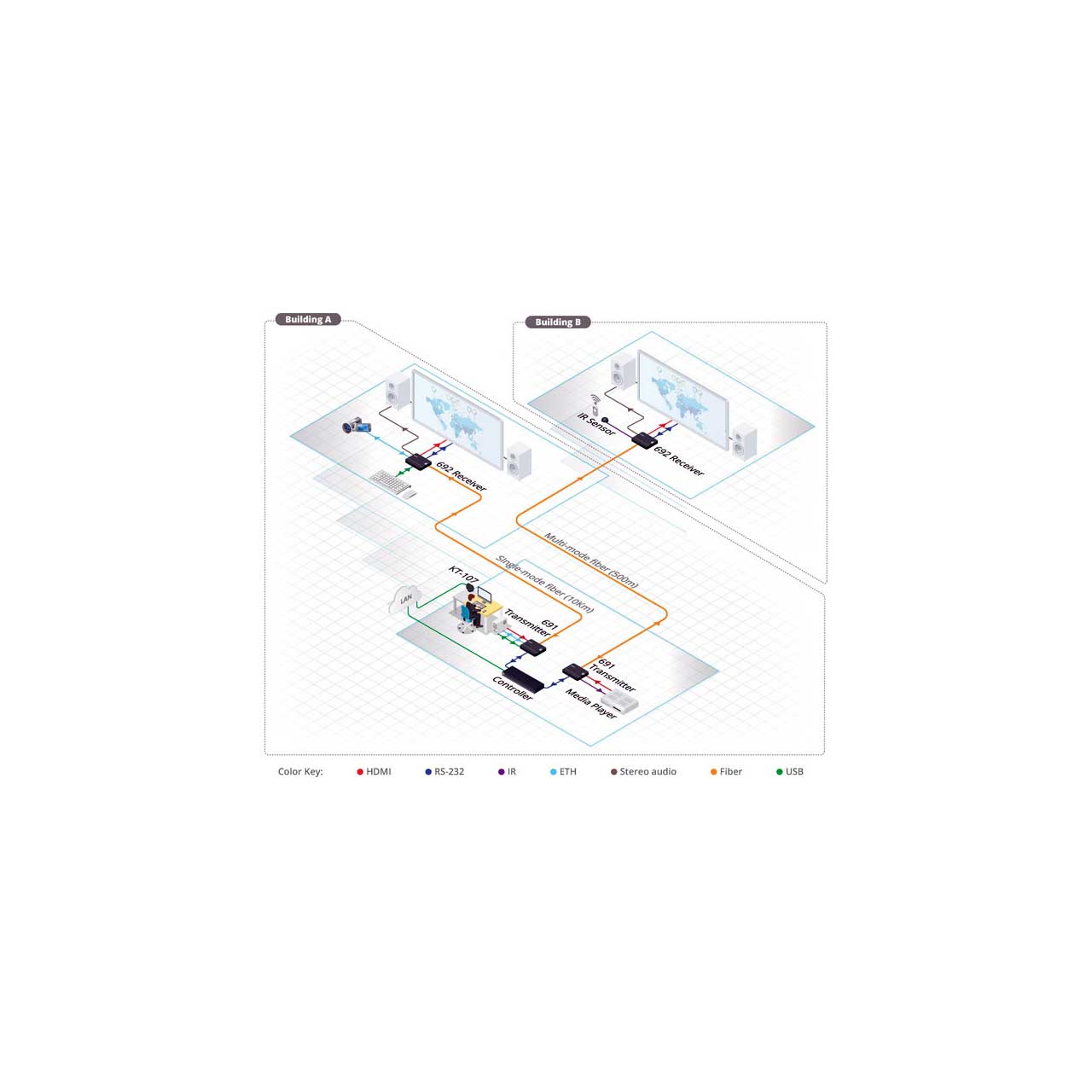

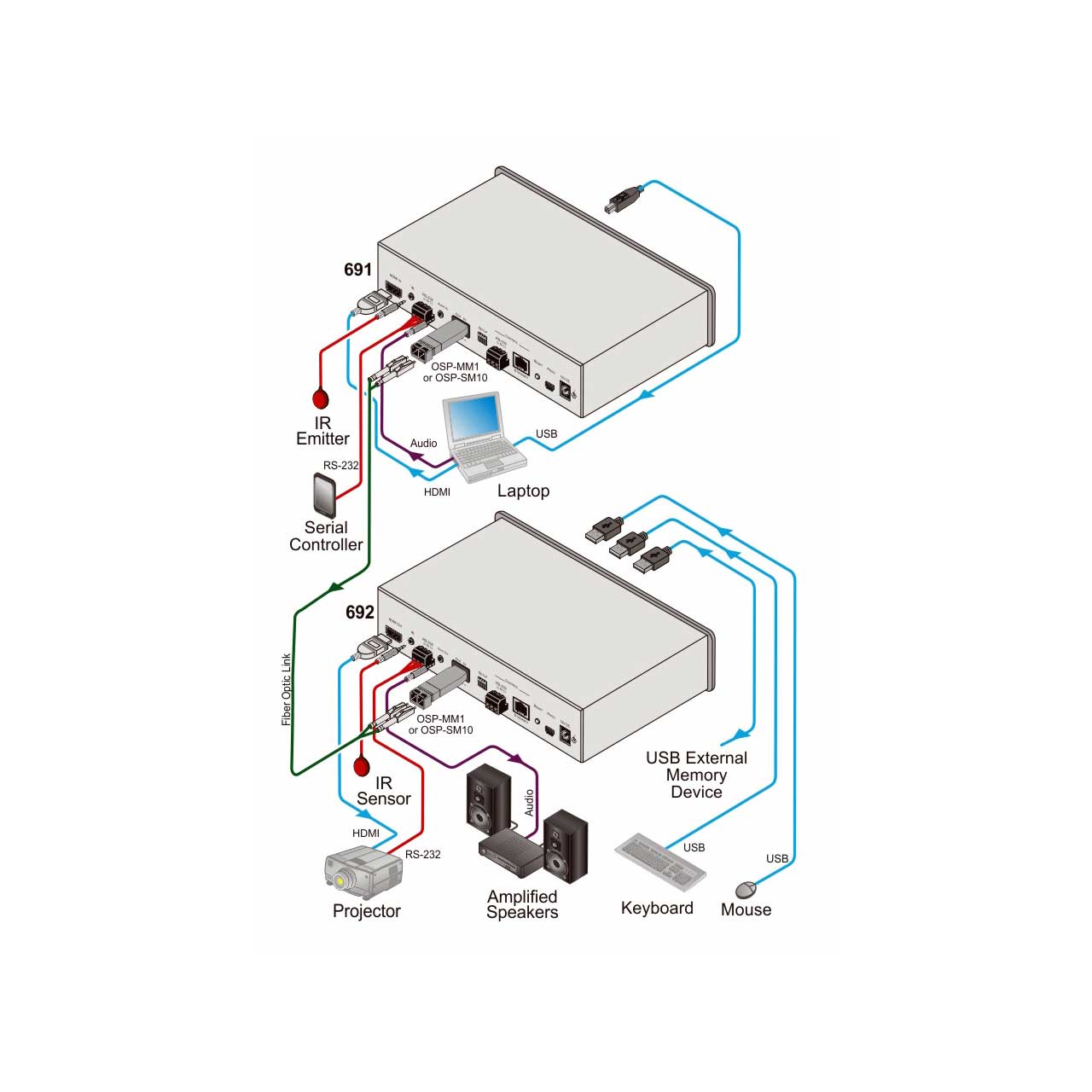

Kramer 691 4K60 4:2:0 HDMI MM/SM Fiber Optic Transmitter w/USB/Ethernet/RS-232/IR & Stereo Audio Embedding

691 - Overview

HDBaseT 2.0 multi / single mode optical transmitter

• Features:

  • High Performance Standard Fiber Extender - HDBaseT 2.0 fiber transmitter for providing ultra-reach signals over either multi-mode or single-mode optical fiber infrastructures, using Kramer pluggable OSP SFP+ units. 691 is a standard fiber extender that can be connected to any market-available HDBaseT-compliant extension product.
  • Note: To ensure specified performance, support, and warranty of this product, use only Kramer's certified hi-performance OSP SFP+ pluggable optical units.
  • HDMI Signal Extension - HDCP 1.4 compliant. Supports deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0. EDID and CEC signals are passed through from the source to the display.
  • I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling, processing and pass-through algorithm that ensures Plug and Play operation for HDMI source and display systems.
  • USB Extension - USB 2.0 interface data flows in both directions, allowing extension of HID (Human Interface Devices) peripheral devices, such as a mouse or a keyboard. High-bandwidth USB peripheral devices, such as USB isochronous streaming cameras and audio devices, transfer data continuously and periodically.
  • Note: Delivery of their transferred data is not guaranteed by the USB standard and is subject to both USB and HDBaseT line bandwidth management limitations. When such devices are connected, check their functionality to ensure bandwidth limitations are not exceeded.
  • Ethernet Extension - Ethernet interface data flows in both directions allowing extension of up to 100Mbps Ethernet connectivity for LAN communication and device control.
  • Bidirectional RS-232 Extension - Serial interface data flows in both directions allowing data transmission and device control.
  • Bidirectional Infrared Extension - IR interface data flows in both directions allowing remote control of peripheral devices located at either end of the extended line.
  • Audio Embedding (Adding) - A selectable analog unbalanced stereo audio input is converted into a digital signal and embedded (added) to the transmitted HDMI signal, replacing the embedded HDMI audio input signal. This enables embedding a selectable audio source over HDMI. For example, a presenter can display a video clip and temporarily override the audio of the source media with another audio source, such as from a microphone.
  • Cost-Effective Maintenance - Status LED indicators for the HDMI input and HDBT output link facilitate easy local troubleshooting. Remote device management via built-in web UI and RS-232 connection enable simple device maintenance. Local and remote firmware upgrade via mini-USB, RS-232 or Ethernet connection and the K-Upload tool ensure lasting, field-proven deployment.
  • Easy Installation - Half 19" 1U rack mountable fan-less enclosure enables side-by-side mounting of 2 units in a 1U rack space


• Specifications:

  • INPUTS
  • 1 HDMI: On HDMI connector,
  • 1 Stereo Analog Unbalanced Audio: On a 3.5mm mini jack


  • OUTPUTS
  • 1 fiber optic: On a 10Gbps SFP+ LC connector complying with IEEE 802.3ae


  • PORTS
  • 1 IR: On a 3.5mm mini jack for IR link extension
  • 1 USB: On on a female USB-B connector for USB link extension
  • 1 RS-232: On on a 3-pin terminal block for serial link extension
  • 1 RS-232: On on a 3-pin terminal block for transmitter control
  • 1 100BaseT Ethernet: On on an RJ-45 female connector for device control and LAN extension


  • EXTENSION LINE
  • Optical Fiber: Multi-mode (MM) or single-mode (SM)
  • Optical Module: Kramer 10Gbps SFP+ IEEE 802.3ae compliant modules (MM is included)
  • Compliance: HDBaseT 2.0


  • MULTI-MODE LINE
  • Compliance: G.651.1 OFNR fiber
  • Nominal Peak Wavelength: 850 nm
  • Typical Optical Transmission Power: -2.5dBm
  • Typical Optical Maximum Loss Budget: 8.6dB
  • Max Reach over OM3 MM Fiber: 3km (1.8 miles)


  • SINGLE-MODE LINE
  • Compliance: G.652D OFNR fiber
  • Nominal Peak Wavelength: 1310 nm
  • Typical Optical Transmission Power: -2.5dBm ,
  • Typical Optical Maximum Loss Budget: 11.9dB
  • Max Reach over OS1 SM Fiber: 33km (20.5 miles)


  • VIDEO
  • Max Data Rate: 10.2Gbps bandwidth (3.4Gbps per graphic channel)
  • Max Resolution: 4K UHD @60Hz (4:2:0) 24bpp resolution
  • Content Protection: HDCP 1.4 signal compliance
  • HDMI Support: Deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0


  • AUDIO
  • Max Level: 1 Vrms, 0.03% THD + noise @1kHz at nominal level


  • EXTENDED USB
  • Compliance: 1.1 and 2.0 host compliance
  • Max Data Rate: 127Mbps (out of max 480 USB)
  • Maximum Number of Connected USB Devices: 7 devices
  • Maximum Number of Connected USB Hubs: 2, Up to 8 ports per hub


  • EXTENDED ETHERNET
  • Max Data Rate: 100Mbps


  • EXTENDED RS-232
  • Baud Rate: 300 to 115200


  • SUPPORTED PC WEB BROWSERS
  • Windows 7 and higher: Internet Explorer (32/64 bit) version 10, Firefox version 30, Chrome version 35
  • MAC: Chrome version 35, Firefox version 30, Safari version 7
  • Note: Minimum browser window size 1024 x 768


  • POWER
  • Source: 12V DC, 2A
  • Consumption: 1.3A


• Item Includes:

  • 691 Transmitter
  • OSP-MM1 Fiber Optic SFP+ Transceiver
  • Power supply (12V, 1.36A)
  • Rubber feet (4)
  • Quick start guide


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063076528
