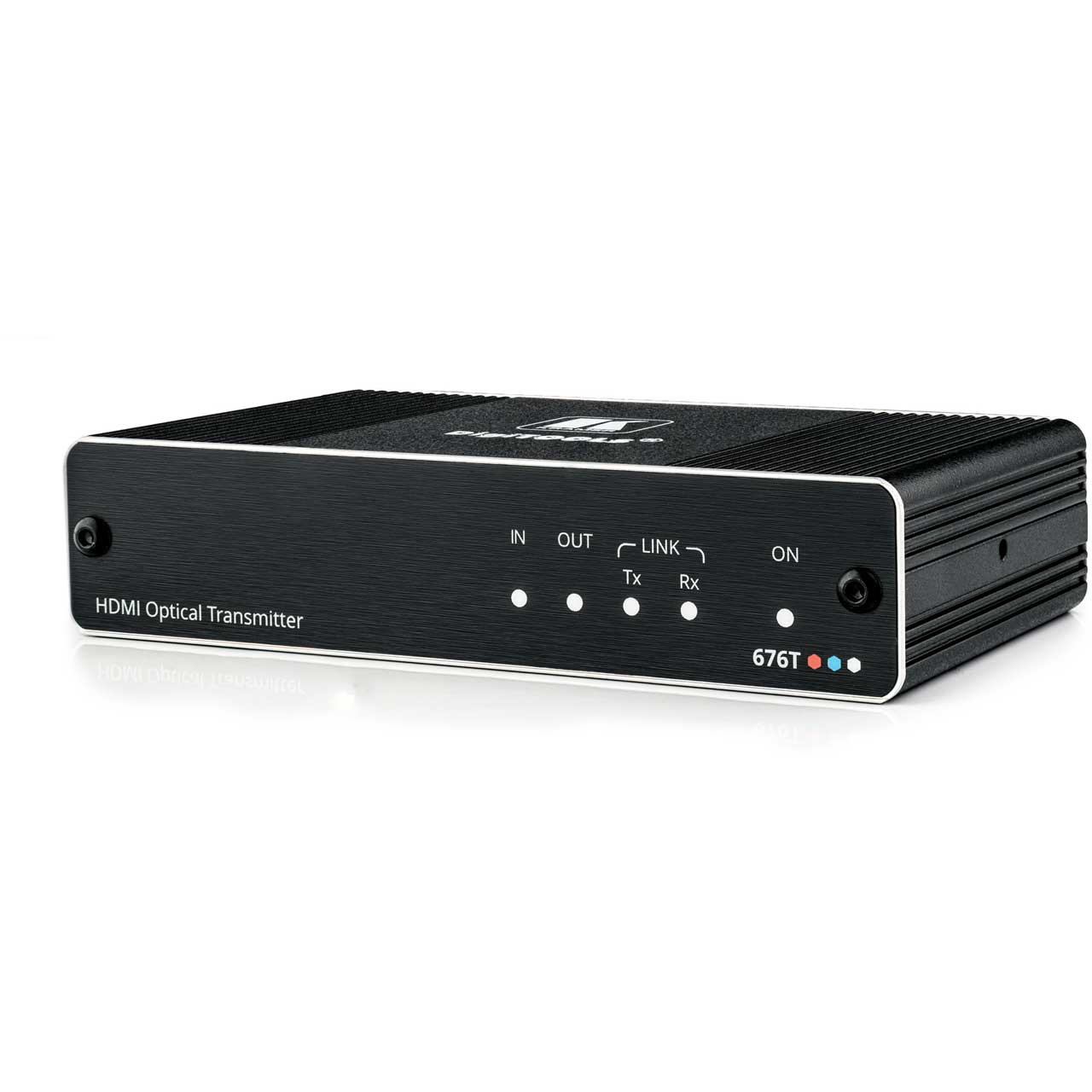

Kramer 676T 4K60 4:4:4 HDMI and RS-232 Transmitter over Ultra-Reach MM/SM LC Fiber Optic

676T - Overview

Multi-mode or single-mode LC fiber

• Features:

  • High Performance Standard Fiber Extender - HDMI fiber transmitter for providing ultra-reach signals over either multi-mode or single-mode optical fiber infrastructures, using Kramer pluggable OSP SFP+ units (multi-mode SFP+ included). Near-zero latency video chroma sub-sampling conversion technology, is employed to auto-adapt above 10G HDMI signals to 10G optical link signal data-rate.
  • Please Note: To ensure specified performance, support, and warranty of this product, use only Kramer's certified hi-performance OSP SFP+ pluggable optical units.

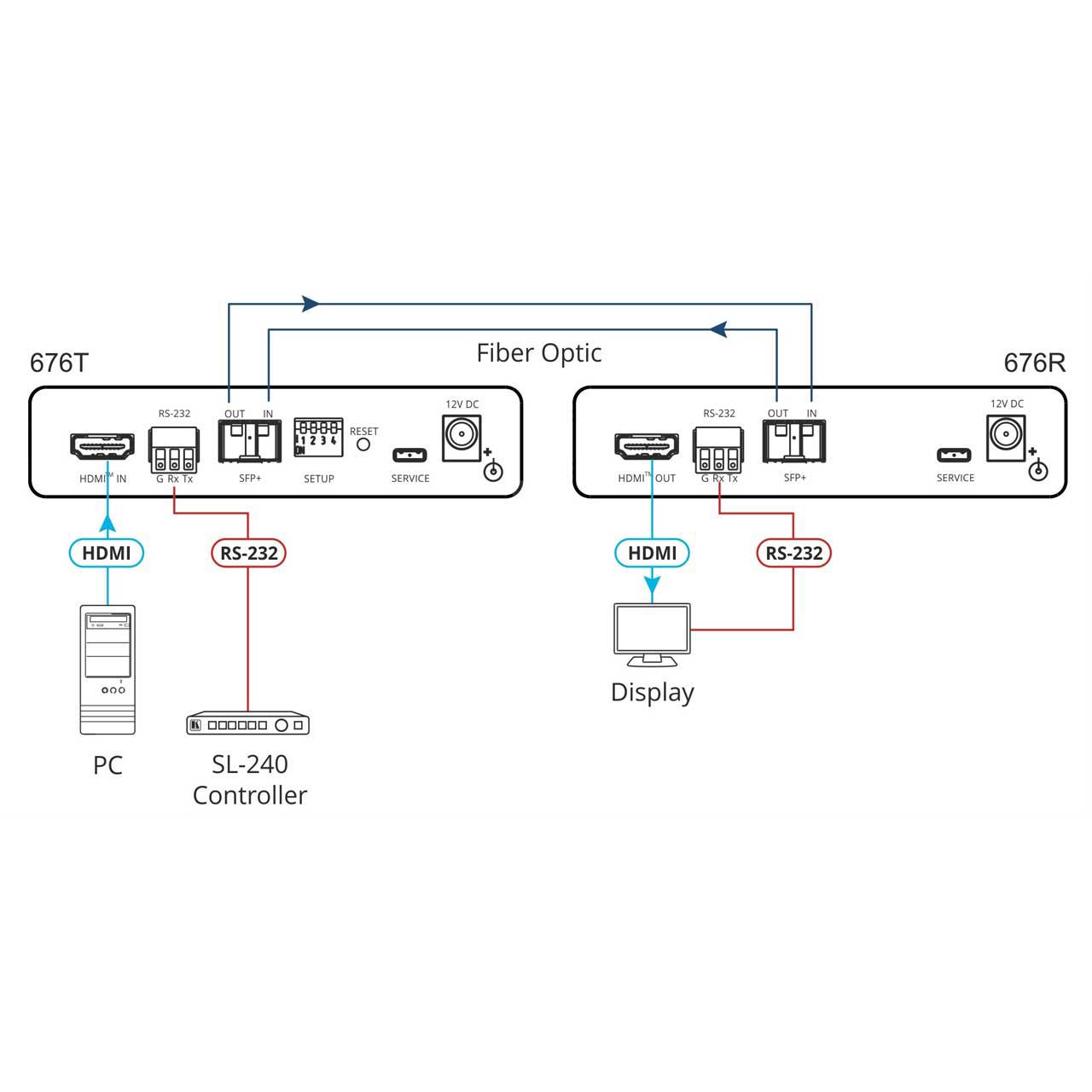

  • Multi-drop Signal Distribution - Use optical splitters to extend the input signals from a single transmitter to multiple receivers, for displaying the same content on multiple display devices using optical splitting only, with no need for AV distribution amplifiers.
  • HDMI Signal Extension - HDCP 2.2 compliant and supports up to 18G (6G per channel) data rate, LPCM 7.1, Dolby True HD, and DTS-HD as specified in HDMI 2.0.
  • Power Saving - With CEC ON/OFF function, shut down a display device automatically when not in use, and auto power it ON upon presentation start.
  • I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling, processing and pass-through algorithm that ensures Plug and Play operation for HDMI source and display systems.
  • Bidirectional RS-232 Extension - Serial interface data flows in both directions, to enable data transmission and control of devices.
  • Cost-Effective Maintenance - Status LED indicators for power, source, sink and fiber link connections detection facilitate easy local troubleshooting.

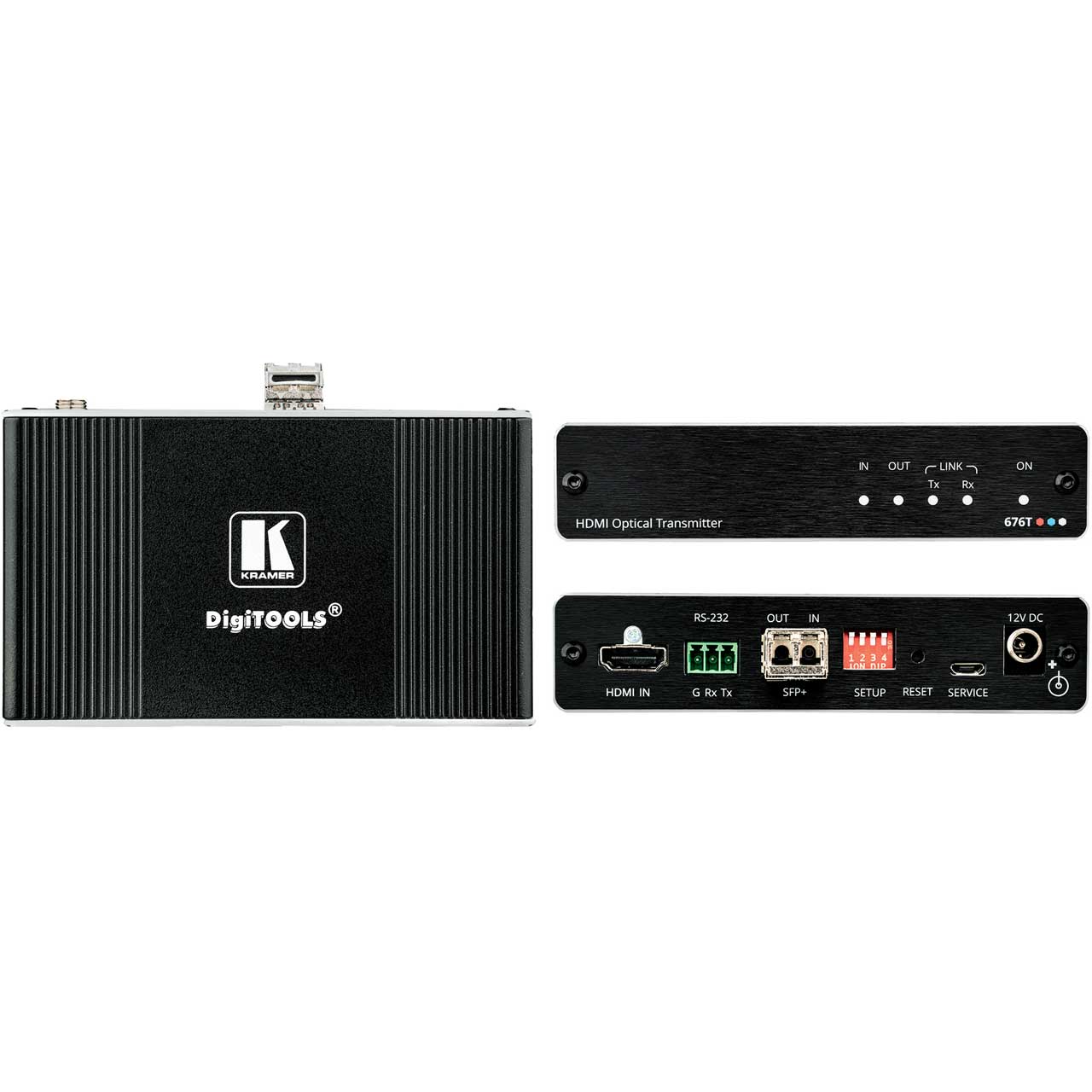

  • Easy Installation - DigiTOOLS® rack mountable fan-less enclosure enables side-by-side mounting of 3 units in a 1U rack space with the recommended rack adapter.


• Specifications:

  • INPUTS
  • HDMI: On a female HDMI connector


  • OUTPUTS
  • Fiber Optic: On LC connector(s)


  • PORTS
  • RS-232: On a 3-pin terminal block connector
  • USB: On a female micro USB connector for firmware upgrade


  • VIDEO
  • Max Bandwidth: 18Gbps
  • Max Resolution: 4096x2160@60Hz 4K@60 (4:4:4)
  • Compliance: HDMI 2.0 and HDCP 2.2


  • EXTENSION LINE
  • Optical Fiber: Multi-mode (MM) or single-mode (SM)
  • Optical Module: Kramer 10Gbps SFP+ IEEE 802.3ae compliant modules (MM is included)


  • MULTI-MODE LINE
  • Compliance: G.651.1 OFNR fiber
  • Max Reach over OM3 MM Fiber: 3km (1.8 miles)


  • SINGLE-MODE LINE
  • Compliance: G.652D OFNR fiber
  • Max Reach over OS1 SM Fiber: 33km (20.5 miles)


  • EXTENDED RS-232
  • Baud Rate: 300 to 115200


  • USER INTERFACE
  • Indicators: Source detection, sink detection, optical link and power LEDs
  • Controls: Reset button


  • POWER
  • Consumption: 480mA
  • Source: 12V DC, 2A


  • ENVIRONMENTAL CONDITIONS
  • Operating Temperature: 0° to +40°C (32° to 104°F)
  • Storage Temperature: -40° to +70°C (-40° to 158°F)
  • Humidity: 10% to 90%, RHL non-condensing


  • REGULATORY COMPLIANCE (STANDARDS COMPLIANCE)
  • Safety: CE, UL
  • Environmental: RoHs, WEEE


  • ENCLOSURE
  • Size: Tool
  • Type: Aluminum
  • Cooling: Convection ventilation


• Item Includes:

  • 1x MM SFP+ transceiver
  • 1x Power adapter
  • 1x Power cord
  • 1x Mounting bracket set


• Warranty:

  • Standard one (1) year warranty


• GTIN:

  7291063091712
