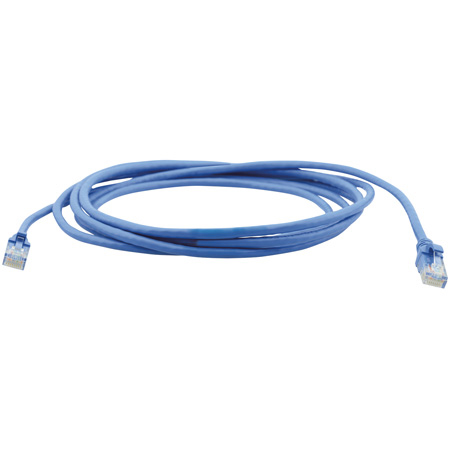

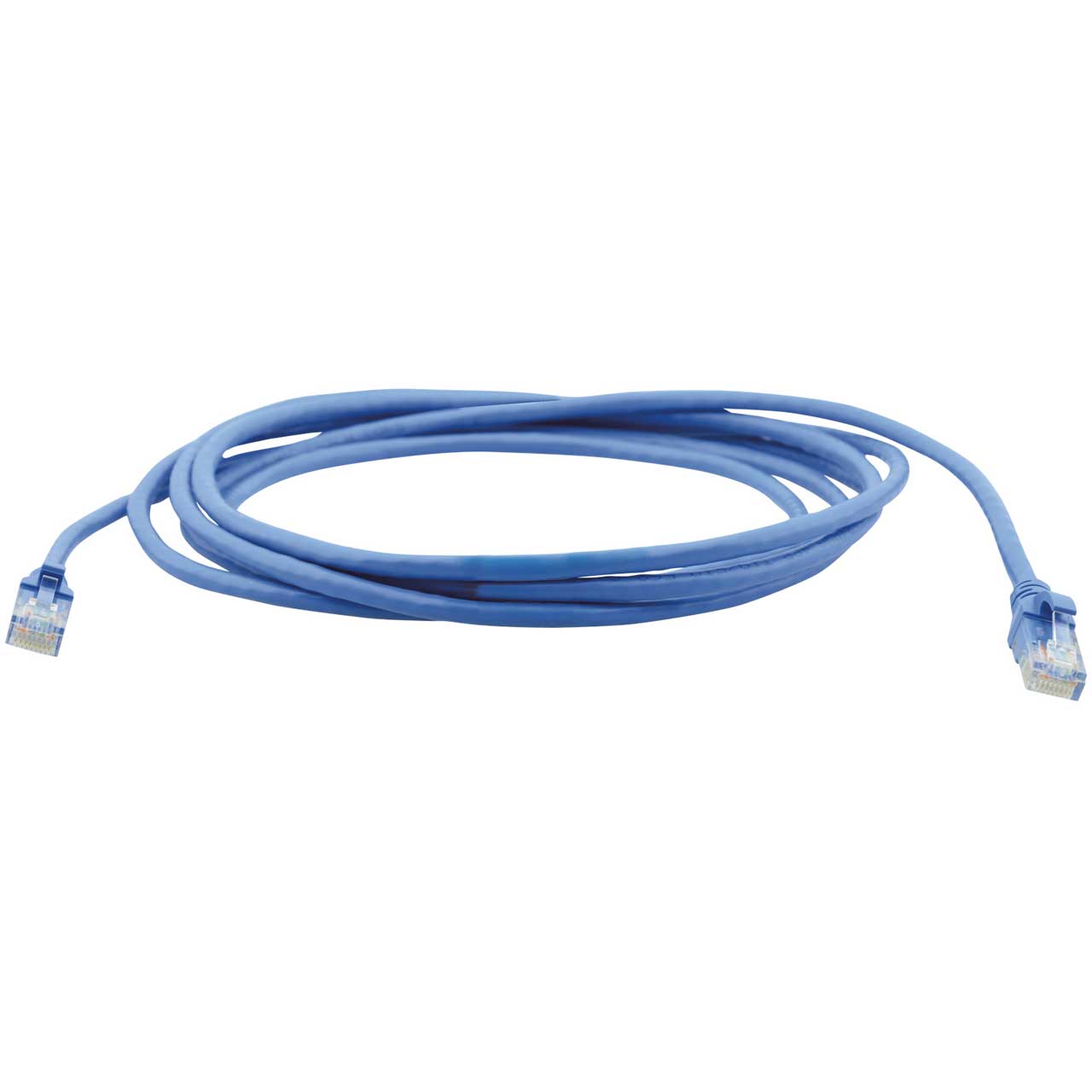

Kramer PC6-108-1 CAT6 UTP 250MHz CM 4X2X24AWG Patch Cord - 1 Foot

ITEM #: KR-PC6-108-1 MFG #: PC6-108-1

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$4.00

Our Price:

$3.20

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


PC6-108-1 - Overview

Kramer's PC6-108 CAT6 U/UTP patch cord is a high-quality PVC four pair twisted cable designed for LAN applications to ensure optimum performance.

  • Features:

    • Quality Construction - 4 twisted pairs (U/UTP) of 24AWG stranded copper.
    • RJ-45 Connector - Slim snagless RJ-45 connector, 50µ gold plated contacts.
    • Rated UL-CM.
    • Varied Selection of Lengths - 0.15 to 4.60m (0.5 to 15ft).

  • Specifications:

    • CONSTRUCTION
    • Conductor Material: Annealed copper
    • Conductor Diameter: 7x0.2 ±0.01mm
    • Insulation Material: HDPE
    • Insulation Diameter: 0.97 ±0.08mm
    • Color Code: Blue/white blue, brown/white brown, orange/white orange, green/white green
    • Sheath Material: PVC
    • Sheath Color: Blue RAL 5015
    • Sheath Diameter: 6.0 ±0.20mm

    • ELECTRICAL
    • Impedance: 1-100MHz 100±15Ω,
    • Impedance: 100-250MHz 100±20Ω
    • Max. Conductor DC Resistance: <94.7Ω/km
    • Propagation Velocity: 70%

    • PHYSICAL
    • Mechanical Characteristics: Bending radius - installed: 40mm, during installation: 50mm
    • Connector Type: Snagless RJ-45 UTP CAT5E
    • Wiring: EIA/TIA 568B
    • Contact Plating: Gold 50µ

    • REGULATORY
    • Compliant Standards - Electrical: EIA/TIA 568B, ISO/IEC 11801
    • Flammability: IEC 60332-1, UL CM
    • Environmental : RoHS (2011/65/EU)

  • Item Includes:

    • KR-PC6-108-1

  • Warranty:

    • Lifetime Warranty

  • GTIN:

    7291063081614
