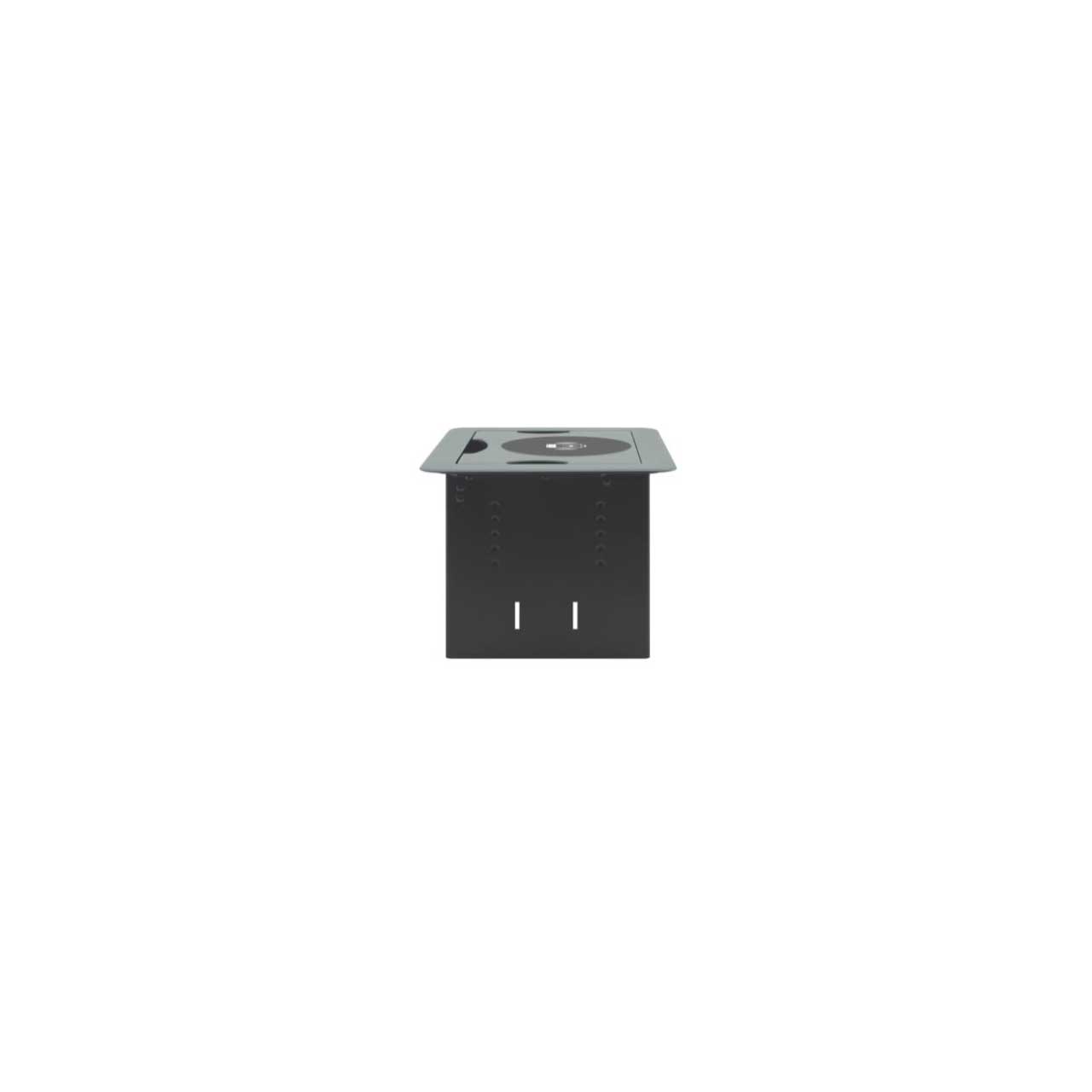

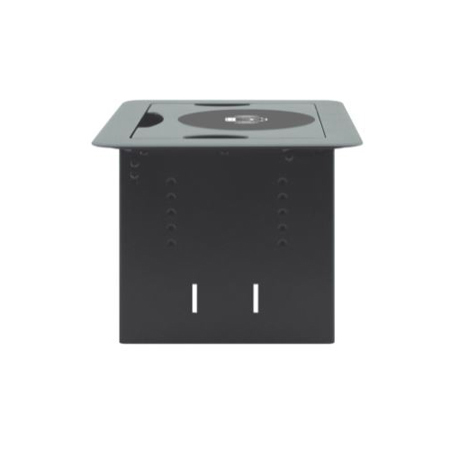

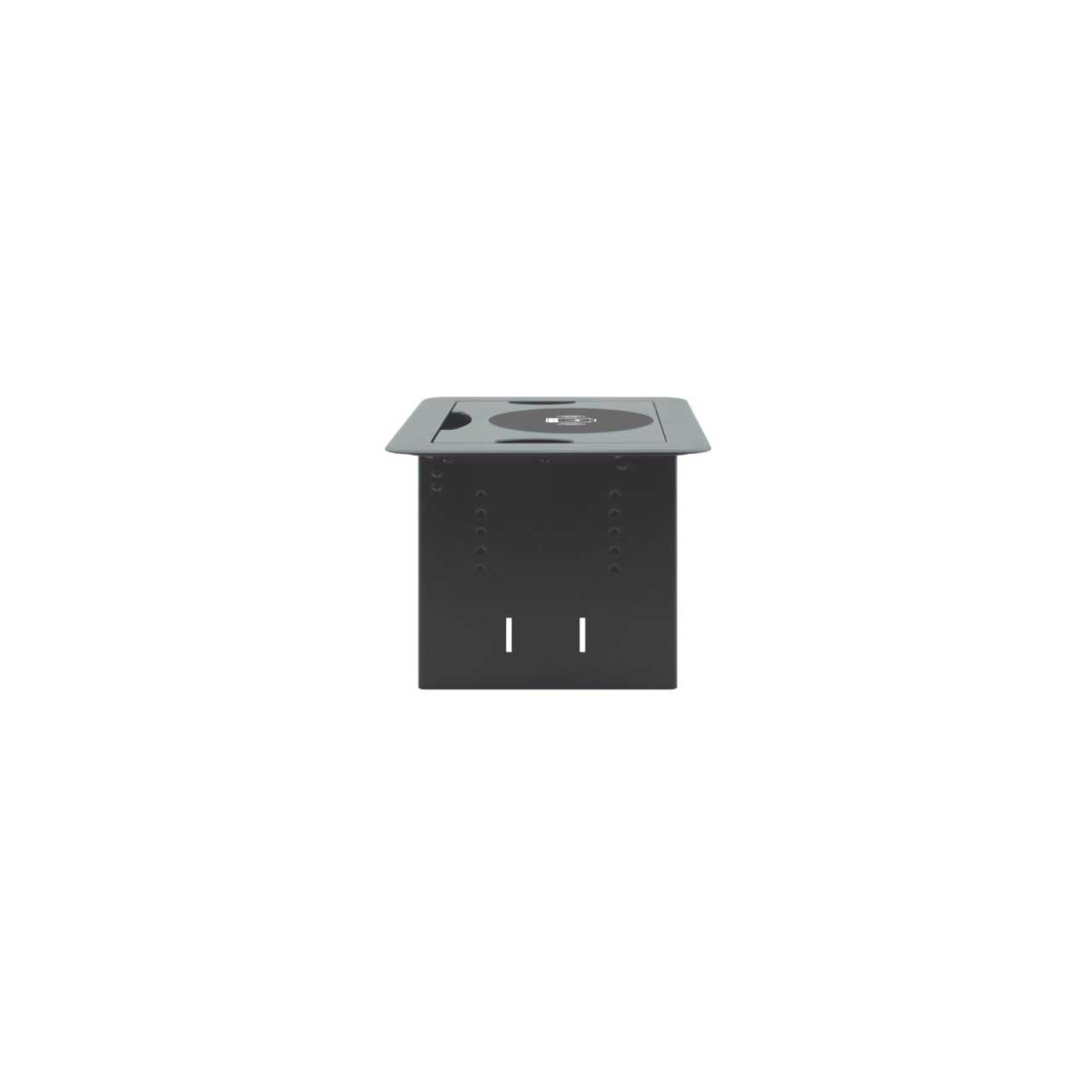

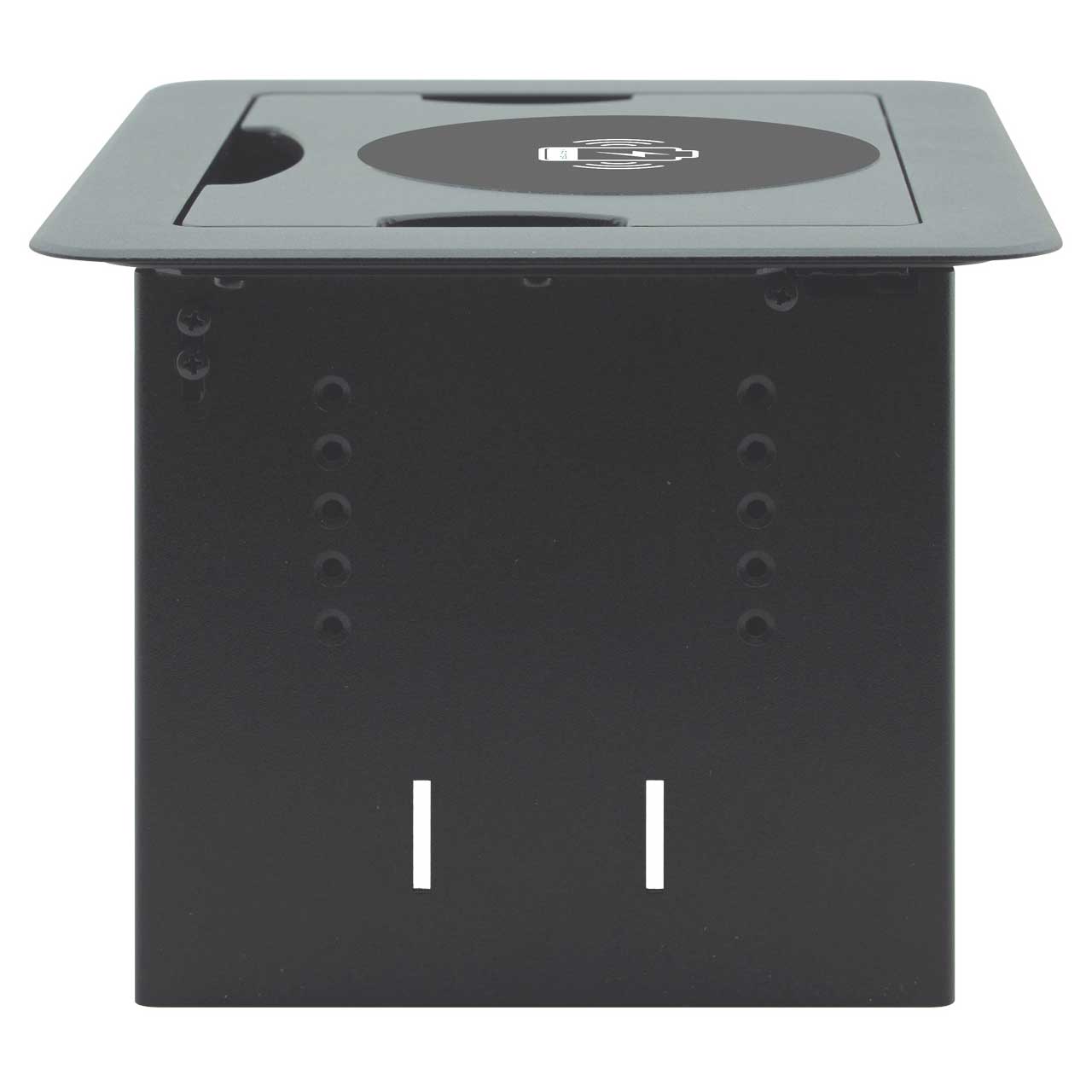

Kramer TBUS-1-KWC(BC) Table Connection Bus with Wireless Charging Spot for Smart Phones - Silver Sand Blasted Top

91-011690 - Overview

Integrated Wireless Charging Spot

• Features:

  • Integrated Wireless Charging Spot - For mobile phones integrated in the TBUS.
  • Flush Surface
  • Power Supply - Requires a supply voltage of 12V DC at 2.0A.
  • Current Input - 1A, IEEE 802.15.4 based RF channels.
  • Power Output - 6 to 15W.
  • Regulatory Compliance - PMA type 3 compliant
  • EMC Emission - EN5502/CISPR22
  • Safety - EN60950-1, EN60950-1, UL60950-1, IEC 60950-1, RoHS, REACH
  • Qi Standard Compliant
  • Cutout Dimensions - 152+2mm x 191+2mm (6+0.08in x 7.5+0.08in).


• Specifications:

  • POWER SOURCE
  • International power sockets available from 110V to 240V AC


  • FUSE RATING
  • T 6.3A 250V


  • POWER CONSUMPTION
  • Charging spot: 12V DC, 1.25A


  • CHARGING EFFICIENCY
  • 73%


  • CHARGING POWER OUTPUT
  • 900mA max


  • SAFETY REGULATORY COMPLIANCE
  • CE compliant


  • STANDARD
  • Qi


  • OPERATING TEMPERATURE RANGE
  • 0° to +40°C (32° to 104°F)


  • OPERATING HUMIDITY RANGE
  • 10 to 90% RHL, non-condensing


  • STORAGE TEMPERATURE RANGE
  • -40° to +70°C (-40° to 158°F)


  • STORAGE HUMIDITY RANGE
  • 5 to 95% RHL, non-condensing


• Item Includes:

  • TBUS-1-KWC Charging Spot
  • 12V DC Power Supply (1)
  • Self-locking ties (6)
  • Cutout template (1)

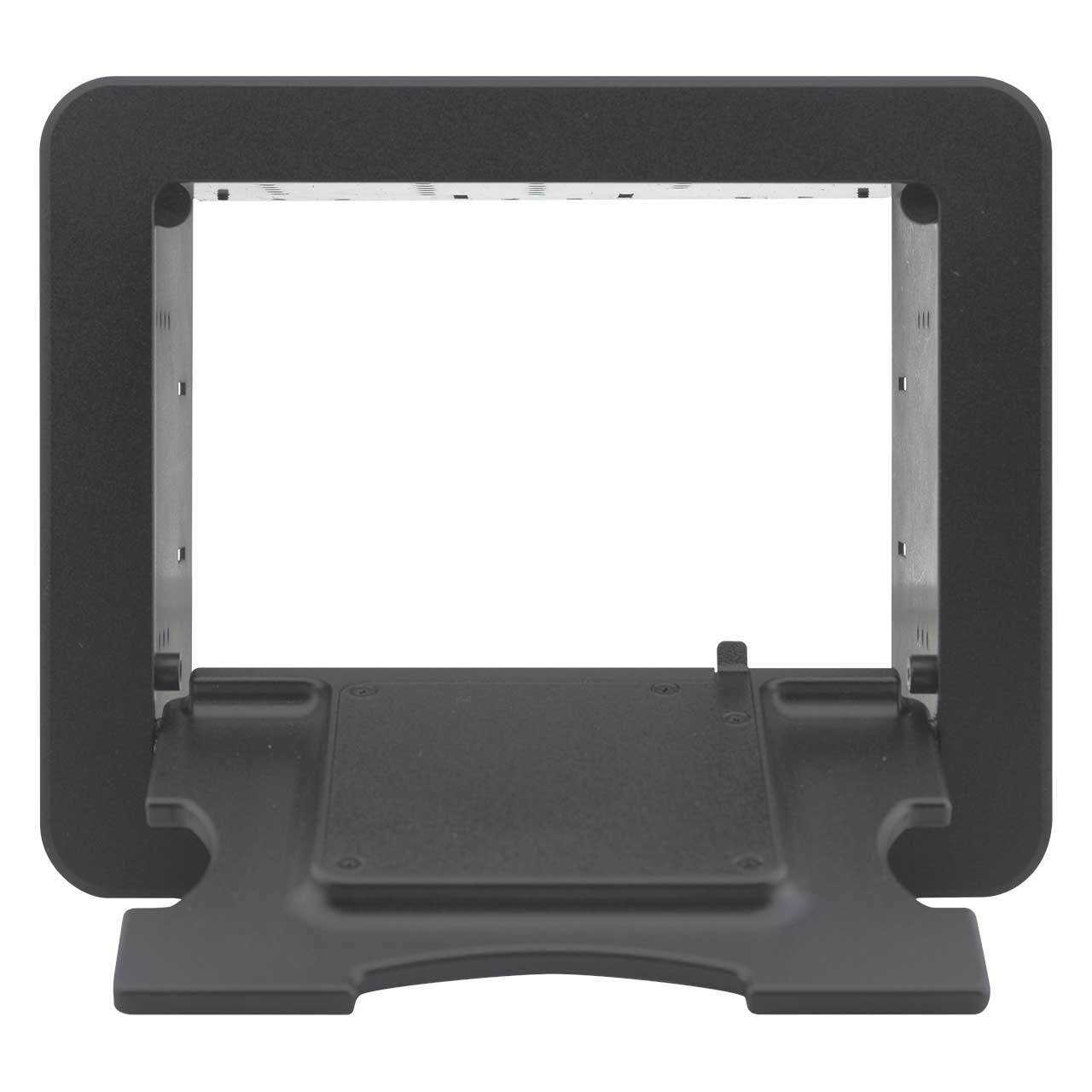

  • Power supply bracket (1)


• Warranty:

  • Standard one (1) year warranty


• GTIN:

  7291063074982
