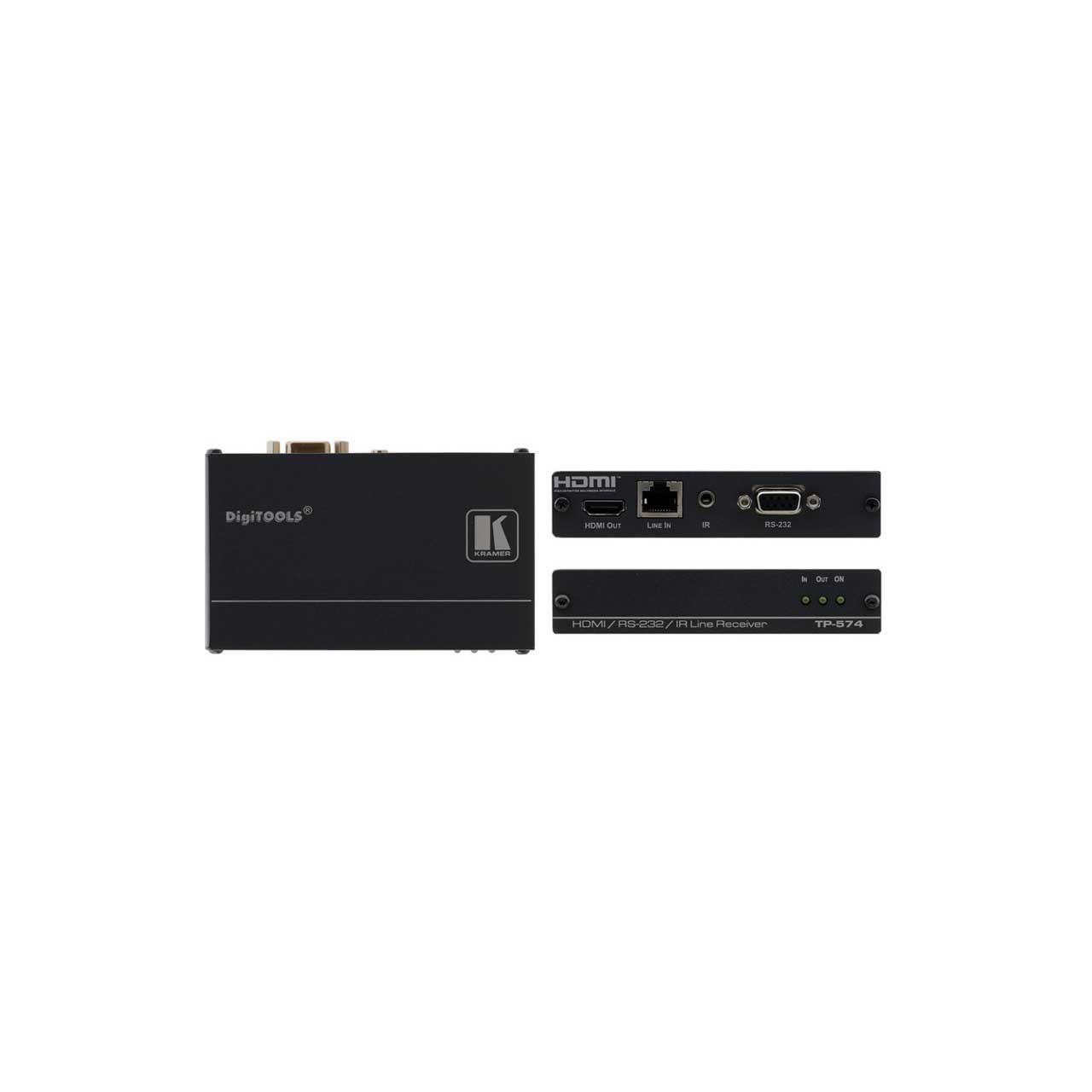

Kramer TP-574 HDMI HDCP 2.2 Receiver with RS-232 & IR over DGKat

TP-574 - Overview

HDMI HDCP 2.2 Transmitter with RS-232 & IR over PoC Long-Reach DGKat

• Features:

  • Max. Data Rate - 4.95Gbps (1.65Gbps per graphic channel).
  • HDTV Compatible.
  • HDCP Compliant.
  • HDMI Support - x.v.Color™, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS-HD.
  • 3D Pass-Through.
  • EDID PassThru - Passes EDID signals between the source and display.
  • Bidirectional RS-232 & IR Interface. - 38400 max baud rate.
  • System Range - Up to 90m (295ft) at 1080i @60hz or up to 70m (230ft) at 1080p @ 60hz when using Kramer DGKat cables. Note: Transmission range depends on the signal resolution, graphics card and display used. If using third-party shielded CAT cables, both ends of the shield must be soldered to the connectors for the products to function properly.
  • DGKat™ Signal Integration - Kramer's unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables.
  • Power Connect System™ - A single connection to the transmitter powers both units.
  • Compact DigiTOOLS® - 3 units can be rack mounted side-by-side in a 1U rack space with the recommended rack adapter


• Specifications:

  • INPUTS
  • 1 CAT 5 IN on an RJ-45 connector


  • OUTPUTS
  • 1 HDMI connector, 1 bidirectional IR port on a 3.5mm mini jack, 1 bidirectional RS-232 port on a 9-pin D-sub connector


  • BANDWIDTH
  • 4.95Gbps (1.65Gbps per graphic channel)


  • COMPLIANCE WITH HDMI STANDARD
  • Supports HDMI and HDCP


  • POWER CONSUMPTION
  • 12V DC from TP-573


• Item Includes:

  • TP-574


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063031091
