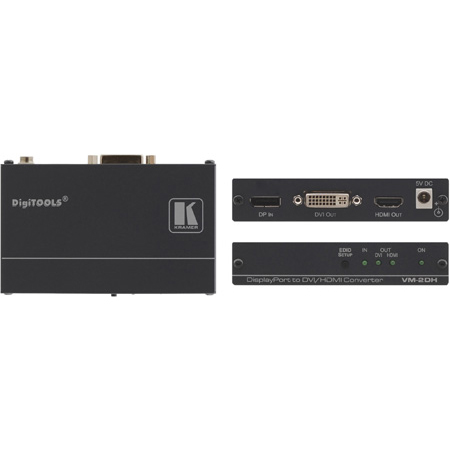

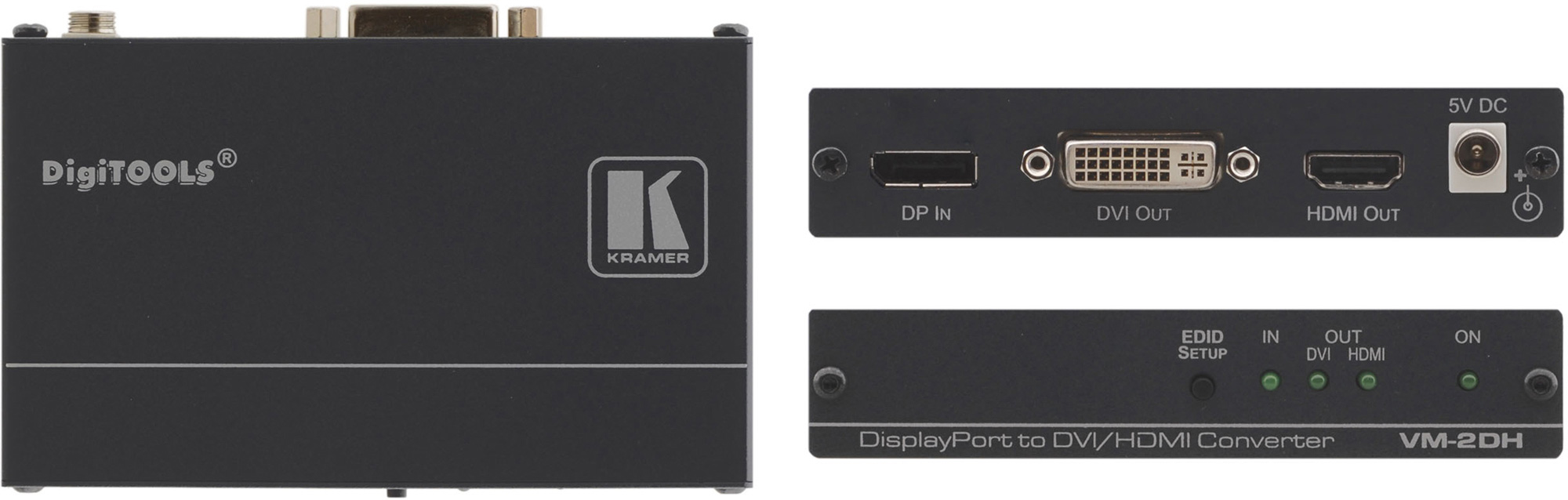

Kramer VM-2DH DisplayPort to DVI/HDMI Format Converter

VM-2DH - Overview

Resolution - WUXGA & 1080p

• Features:

  • Max. Data Rate - 4.95Gbps (1.65Gbps per graphic channel).
  • Resolution - Up to WUXGA a 1080p.
  • HDTV Compatible.
  • HDCP Compliant.
  • EDID Pass-through - Pass-through algorithm ensures Plug and Play operation for HDMI source and display systems.
  • Default EDID - For fast and efficient connection to the display.
  • Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal to travel longer distances.
  • Standards Compliance - HDMI, HDCP, DDWG DVI 1.0.
  • Supports Up to 8 Embedded Audio Channels.
  • Compact DigiTOOLS® - 3 units can be rack mounted side-by-side in a 1U rack space with the recommended rack adapter.


• Specifications:

  • INPUT
  • 1 DisplayPort connector


  • OUTPUTS
  • 1 DVI, 1.2Vpp on a 24-pin Molex female connector
  • DDC signal, 5Vpp (TTL)
  • 1 HDMI


  • STANDARDS COMPLIANCE
  • Supports DVI 1.1, HDCP and HDMI


  • RESOLUTION
  • Up to WUXGA (1920x1200), 1080p


  • MAX. DATA RATE
  • 4.95Gbps (1.65Gbps per graphic channel)


  • CONTROLS
  • EDID button for selecting and storing EDID information


  • POWER CONSUMPTION
  • 5V DC 800mA


  • OPERATING TEMPERATURE
  • 0° to +40°C (32° to 104°F)


  • STORAGE TEMPERATURE
  • -40° to +70°C (-40° to 158°F)


  • HUMIDITY
  • 10% to 90%, RHL non-condensing


• Item Includes:

  • VM-2DH Converter
  • Power supply (5V DC)
  • Bracket Set (1)
  • Rubber Feet (4)


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063010126
