Video to Computer Graphics Video ProScale Digital Scaler

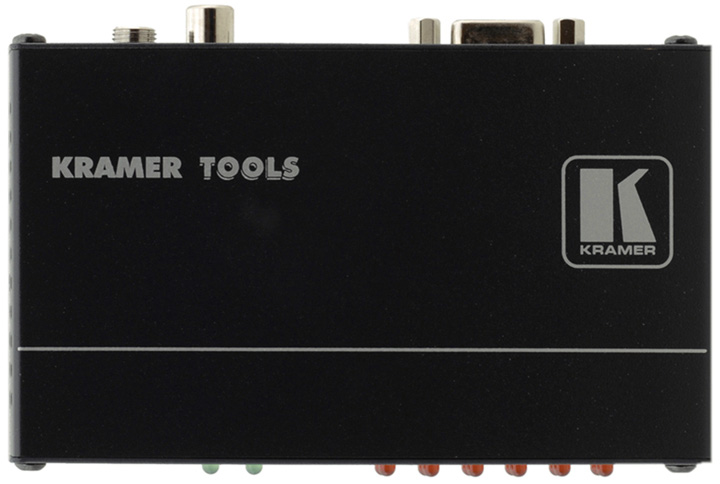

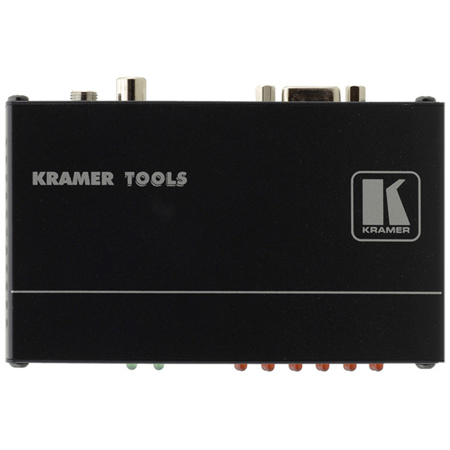

The Kramer VP-409 is a high-quality video scaler for composite and s-video (Y/C) video signals. The unit scales the video to a selectable computer graphics video output signal on a 15-pin HD connector.
-
- CV and Y/C Inputs.
- Multi-Standard - PAL (B/D/G/H/I) & NTSC (3.58/4.43).
- Output Resolutions - VGA, SVGA, XGA, 1280x800, 1366x768, WSXGA, SXGA, 1400x1050, 1680x1050, UXGA, 1920x1080, and WUXGA.
- Built-in De-interlacer and Comb Filter.
- Non-Volatile Memory - Retains last settings.

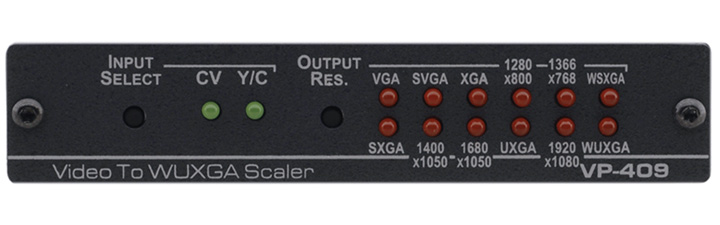

- Controls - Front panel buttons for choosing input signal and output resolution.
- External DC Power Source.
- Compact Kramer TOOLS™ - 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter.
-

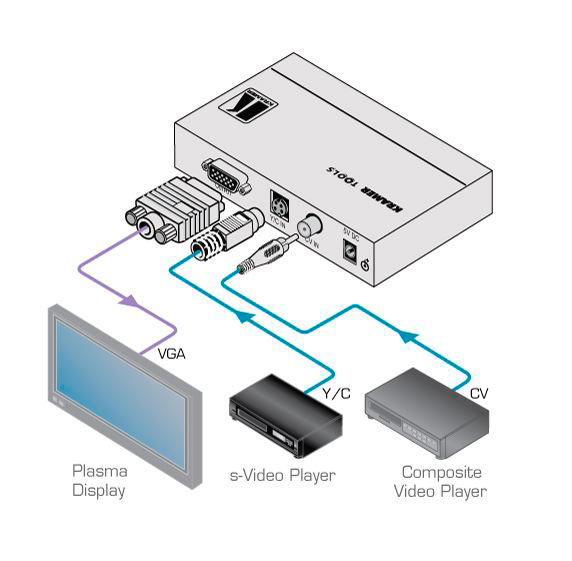

- INPUTS: 1 composite video, 1Vpp/75Ω on an RCA connector; 1 Y/C (s-Video), 1Vpp/75Ω
- (Y), 0.3Vpp/75Ω (C) on a 4-pin connector.
- OUTPUT: 1 VGA (VGA through WUXGA) on a 15-pin HD computer graphics video
- connector.
- OUTPUT RESOLUTIONS: VGA, SVGA, XGA, 1280x800, 1366x768, WSXGA, SXGA, 1400x1050, 1680x1050,
- UXGA, 1920x1080, and WUXGA.
- OUTPUT REFRESH RATE: 60Hz.
- CONTROLS: Pushbuttons and LEDs for selection of input source and output resolution.
- POWER CONSUMPTION: 5V DC, 550mA.
-
-
-
