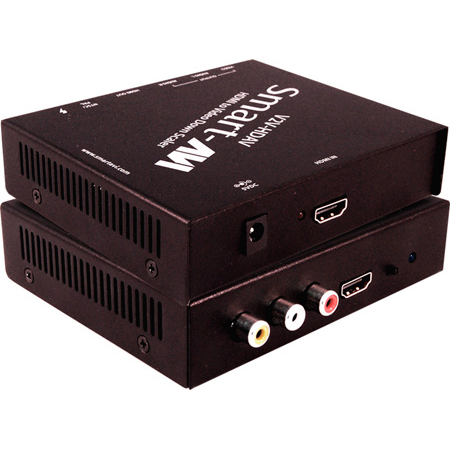

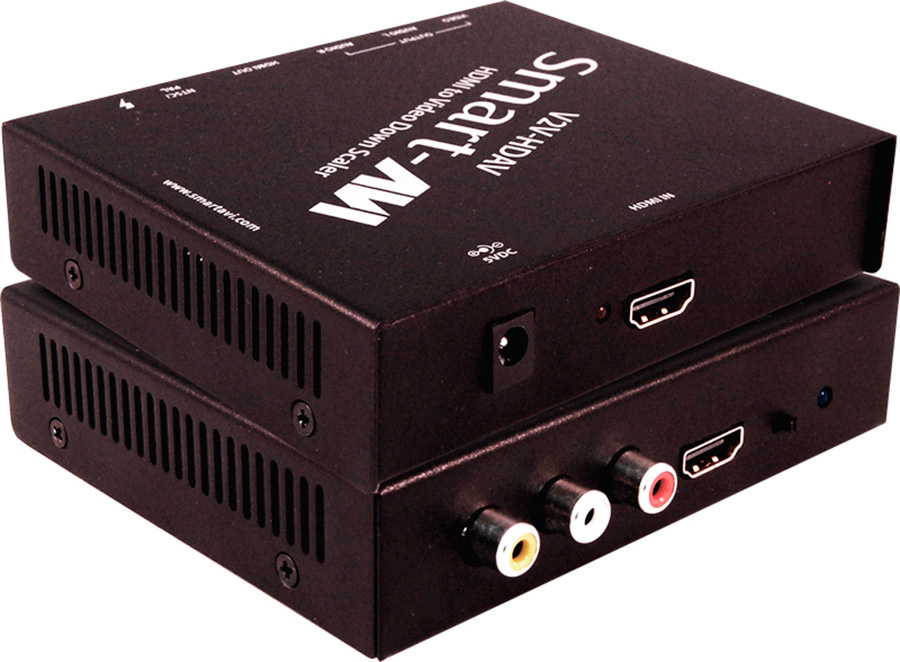

Smart-AVI V2V-HDAVS HDMI To Composite Downscaler with HDMI Local Loop

V2V-HDAVS - Overview

• Features:

  • Hardware conversion, plug and play without any software driver
  • HDMI1.3 compatible
  • Support NTSC and PAL two standard TV formats

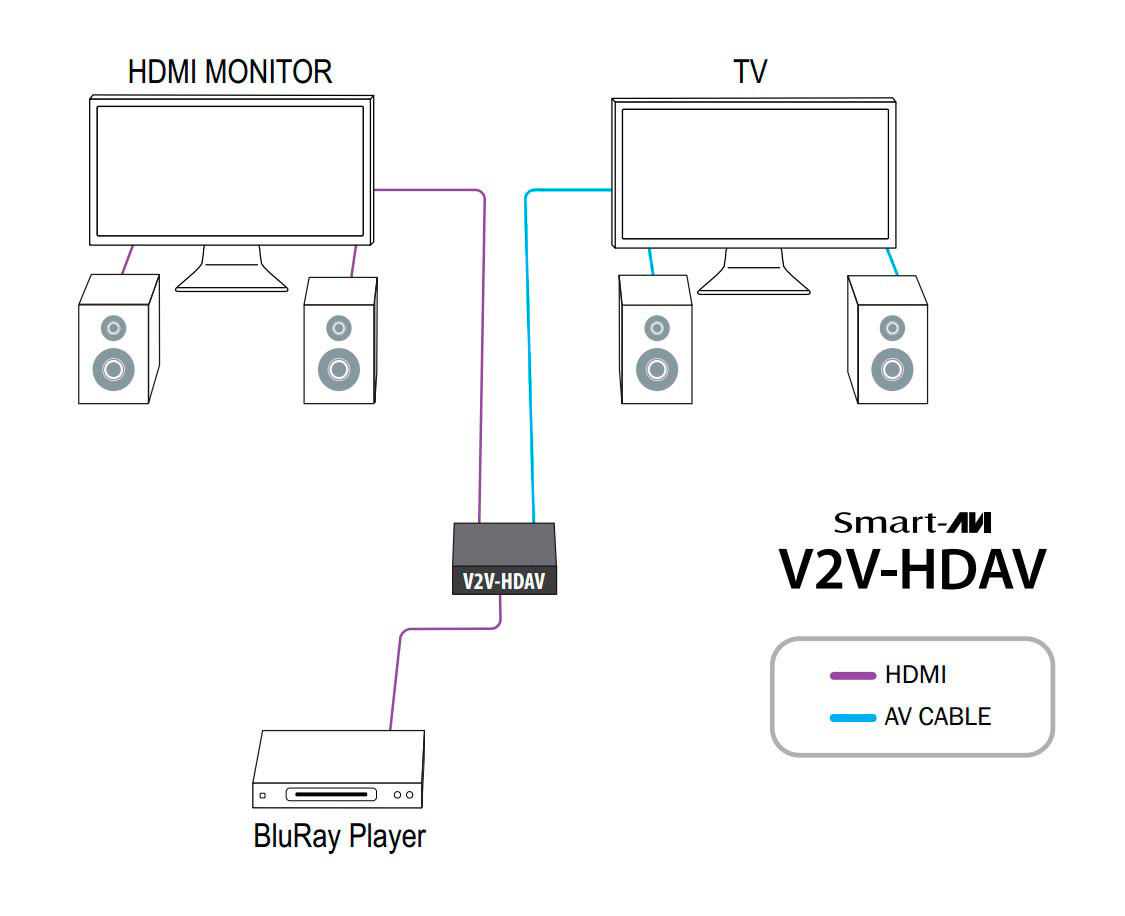

  • One HDMI input, one HDMI output, one AV output, one stereo output
  • HDMI input: 480P, 576P, 720P, 1080I, 1080P @ 60Hz
  • Compatible with DVI mode 800x600,1024x768,1280x,720,1280x1024,1920x1080/@60hz
  • Supports the HDCP protocol
  • Support for HDMI 1.3
  • CVBS output: 480i, 576i


• Specifications:

  • Video Amplifier Bandwidth: 3.2G

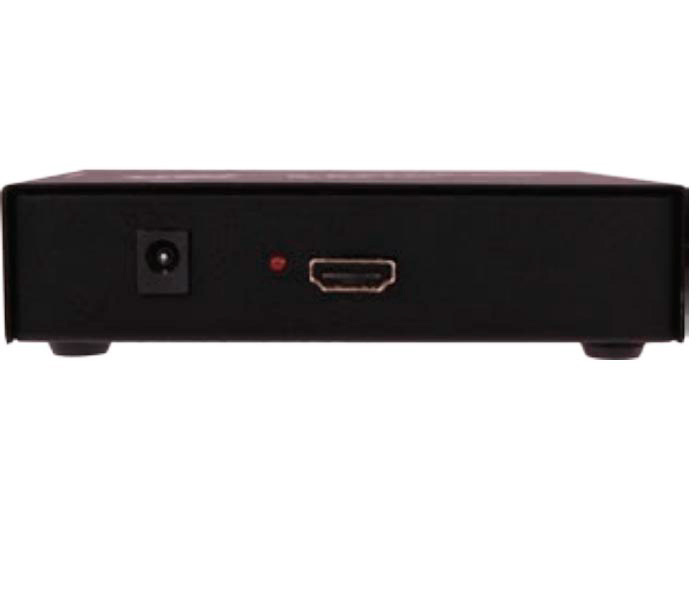

  • Input Ports: 1 X HDMI
  • Input Video Signal: Video (TMDS) 0.5~1.0Vpp

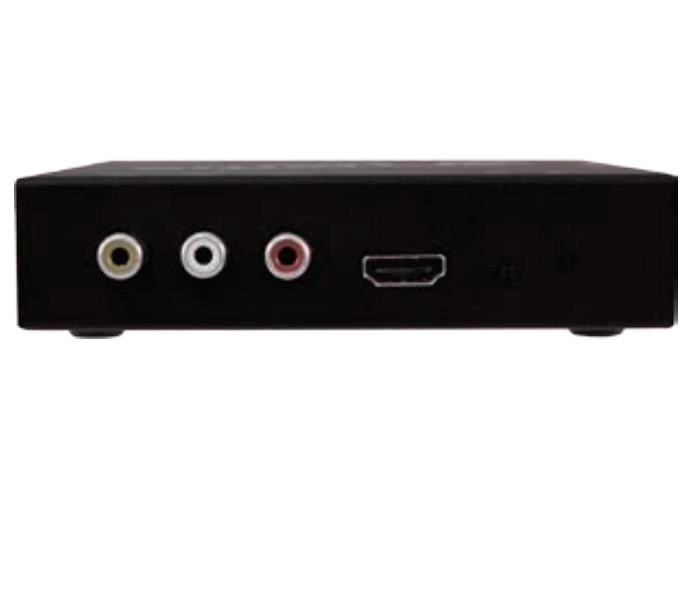

  • Output Ports: 3 X RCA, 1 X HDMI
  • Signal Supports: HDMI Standard, DVI and HDCP compliant
  • Pixel Rates: Clock frequency beyond 165Mpix/second
  • Input DDC Signa: 5 Volts
  • Format: 4:4:4 and 4:2:2 data input formats
  • Dimensions: 4.75” W x 1.125” H x 4” D
  • Resolution: 480, 720p, 1080i, 1080p HDMI formats
  • CBVS Output Resolutions: NTSC, PAL
  • Power: 5VDC 2A


• Item Includes:

  • V2V-HDAV & (PS5VD2A)
