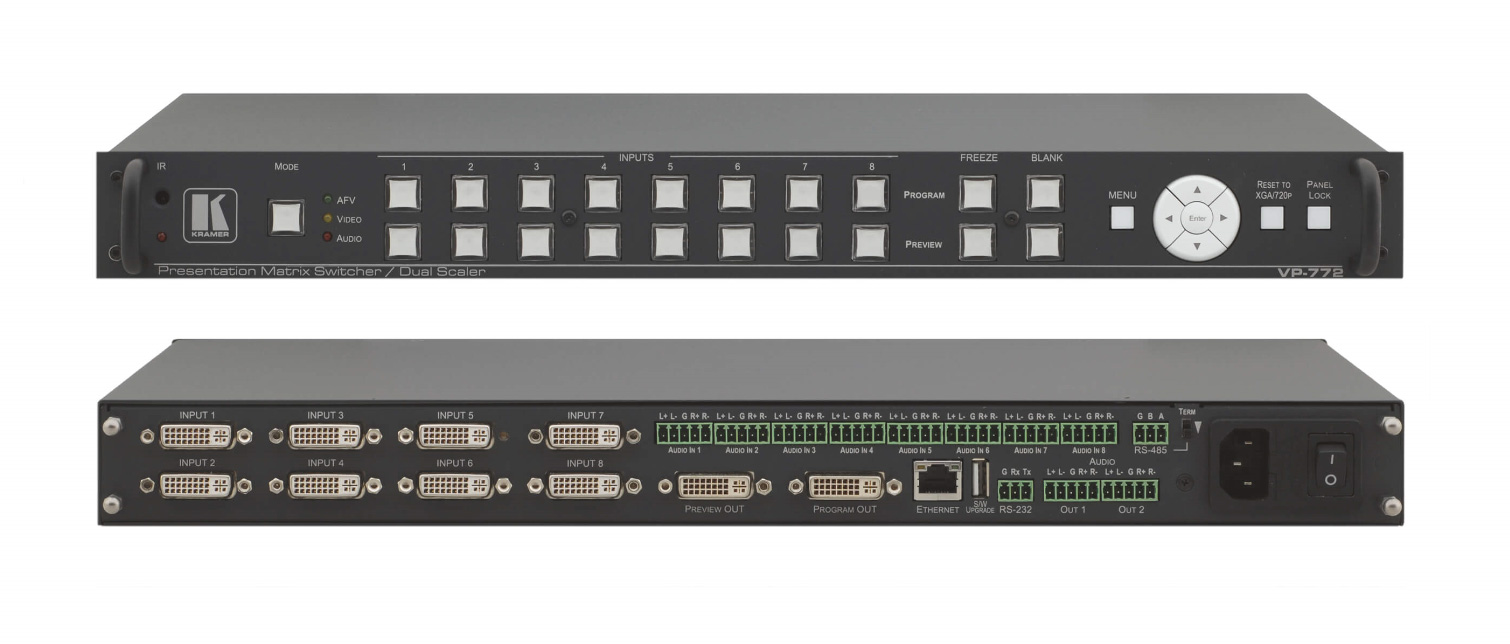

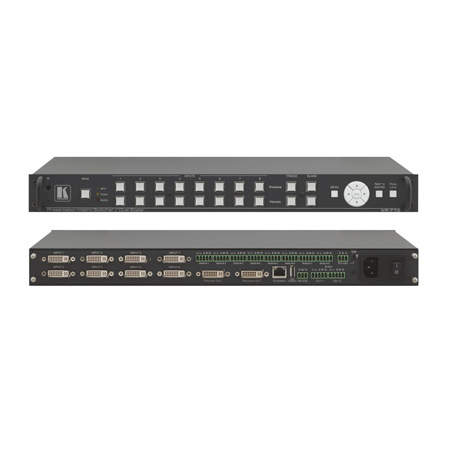

Kramer VP-772 8 Input ProScale Presentation Dual Scaler with FX & 4K Output Option

VP-772 - Overview

HDCP Compliant

• Features:

  • PixPerfect™ Scaling Technology - Kramer's extremely high performance, state-of-the-art scaling technology with extensive high-quality pull-down and de-interlacing algorithms, and full up-and down-scaling of the video inputs.
  • K-IIT XL™ Picture-in-Picture Image Insertion Technology - Ultra-stable picture-in-picture, picture-and-picture, and split screen capability. Any video source can be inserted into or positioned next to any other video source with full window positioning and sizing controls.
  • Seamless Video Switching - With cuts or built-in special effect transitions, including horizontal, vertical, diagonal circle and chessboard wipes, cross-fading, and more.
  • Dual Scalers - For "live" seamless transitions from one source to another with two independent outputs: a PREVIEW OUT and a PROGRAM OUT. The PREVIEW output, including an OSD menu for making adjustments, is used for determining how the scaled output looks before displaying live during a presentation.
  • 8 Preview Input Buttons - For switching a selected input to the PREVIEW output and 8 PROGRAM input buttons for switching a selected input to the PROGRAM output.
  • Output Resolutions - Up to 4K30 UHD (3840x2160) for single output mode (non-dual scaler); HDTV and computer graphics resolutions with selectable refresh rates.

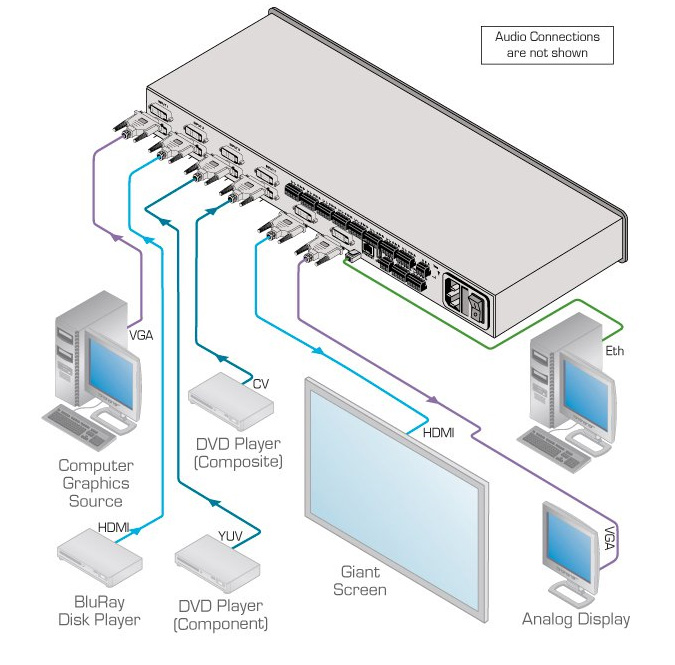

  • Multi-Format Operation - Selectable HDMI, VGA, YUV or CV on each DVI-U input and VGA or HDMI on each DVI-I output.
  • Audio-Follow-Video & Breakaway Options
  • Advanced De-interlacing Functions - Including 3D comb filtering, film mode, diagonal correction and motion detection.
  • Multiple Aspect Ratio Selections - Follow input, follow output, best fit, letterbox.
  • Built-in Proc-Amp - With enhanced functions such as color correction, gamma and dither.
  • Embedded HDMI Audio Support - As well as eight balanced stereo audio inputs and two balanced stereo outputs.
  • Input & Output Audio Level Adjustment.
  • Selectable Power Save Modes - For energy-efficient usage.
  • HDCP Compliant.
  • Luma & Chroma Keying.
  • Built-In Test Patterns - For screen setup and alignment.
  • Advanced EDID Management - Native resolution and color depth per input. Analyzes the connected output's EDID for optimal scaling.
  • Input & Output Color Space Control.
  • Supports HDMI Deep Color - For inputs and output.
  • On-Screen Display (OSD) - For easy setup and adjustment, accessible via the IR remote control and via the front-panel buttons.
  • Non-Volatile Memory - Saves last settings.
  • Firmware Upgrading - Via USB (via memory stick) and Ethernet.
  • Flexible Control Options - Front panel buttons, Ethernet, IR remote control transmitter, RS-485 (allowing future optional T-bar control), RS-232 serial commands transmitted by a touch screen system, PC, or other serial controller.
  • Worldwide Power Supply - 100-240V AC.


• Specifications:

  • INPUTS
  • 8 DVI-U (DVI-D, HDMI, PC, YPbPr and CV) on DVI-I connectors, 8 balanced stereo audio on 5-pin terminal block connectors


  • OUTPUTS
  • 2 DVI-I (DVI-D, HDMI and PC) on DVI-I connectors, 2 balanced stereo audio on 5-pin terminal block connector


  • COMPLIANCE WITH HDMI STANDARD
  • Supports HDMI (deep color) and HDCP


  • OUTPUT RESOLUTIONS
  • 640x480@60Hz, 640x480@75Hz, 800x600@50Hz, 800x600@60Hz, 800x600@75Hz, 1024x768@50Hz, 1024x768@60Hz, 1024x768@75Hz, 1280x768@50Hz, 1280x768@60Hz, 1280x800@60Hz, 1280x1024@50Hz, 1280x1024@60Hz, 1280x1024@75Hz, 1360x768@60Hz, 1366x768@50Hz, 1366x768@60Hz, 1400x1050@50Hz, 1400x1050@60Hz, 1600x900@60Hz, 1600x1200@50Hz, 1600x1200@60Hz, 1680x1050@60Hz, 1920x1200RB@60Hz, 480p@60Hz, 576p@50Hz, 720p@50Hz, [email protected], 720p@60Hz, [email protected], 1080p@24Hz, 1080p@25Hz, [email protected], 1080p@30Hz, 1080p@50Hz, [email protected], 1080p@60Hz, 1080i@50Hz, 1080i@60Hz, 2K@50Hz, 2K@60Hz, 4K2K@30Hz


  • CONTROLS
  • Front panel buttons, OSD, IR remote control, RS-232 on a terminal block connector, Ethernet


  • OPERATING TEMPERATURE
  • 0° to +40°C (32° to 104°F)


  • STORAGE TEMPERATURE
  • -40° to +70°C (-40° to 158°F)


  • HUMIDITY
  • 10% to 90%, RHL non-condensing


  • POWER CONSUMPTION
  • 100-240V AC, 42VA max


• Item Includes:

  • VP-772 Scaler
  • Power cord
  • Rack Ears (1 Set)
  • IR remote control
  • 2 DVIA (M) to 5 BNC (F) Adapter Cables (3ADCDMA/5BF1)
  • 2 DVI (M) to 15pin HD (F) adapters (ADDM/GF)


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063068493
