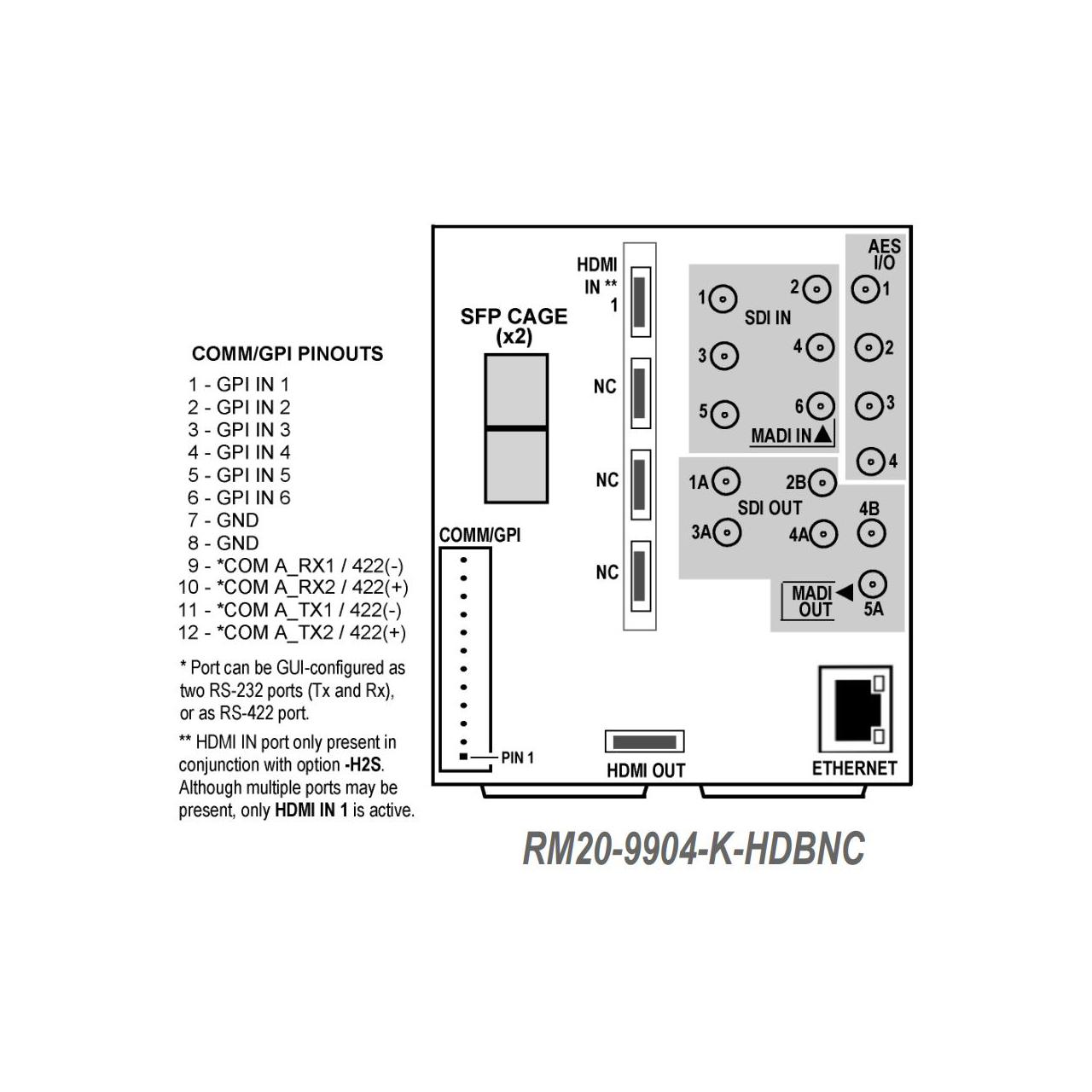

The Cobalt RM20-9904-K-HDBNC is a rear module for the Cobalt 9904-UDX-4K-DSP 12G/6G/3G/HD/SD UHD Up/Down/Cross Converter/Frame Sync with DSP Advanced Audio Processing. It's Cobalt's next generation of advanced scaler/frame synchronizers for the openGear® platform.

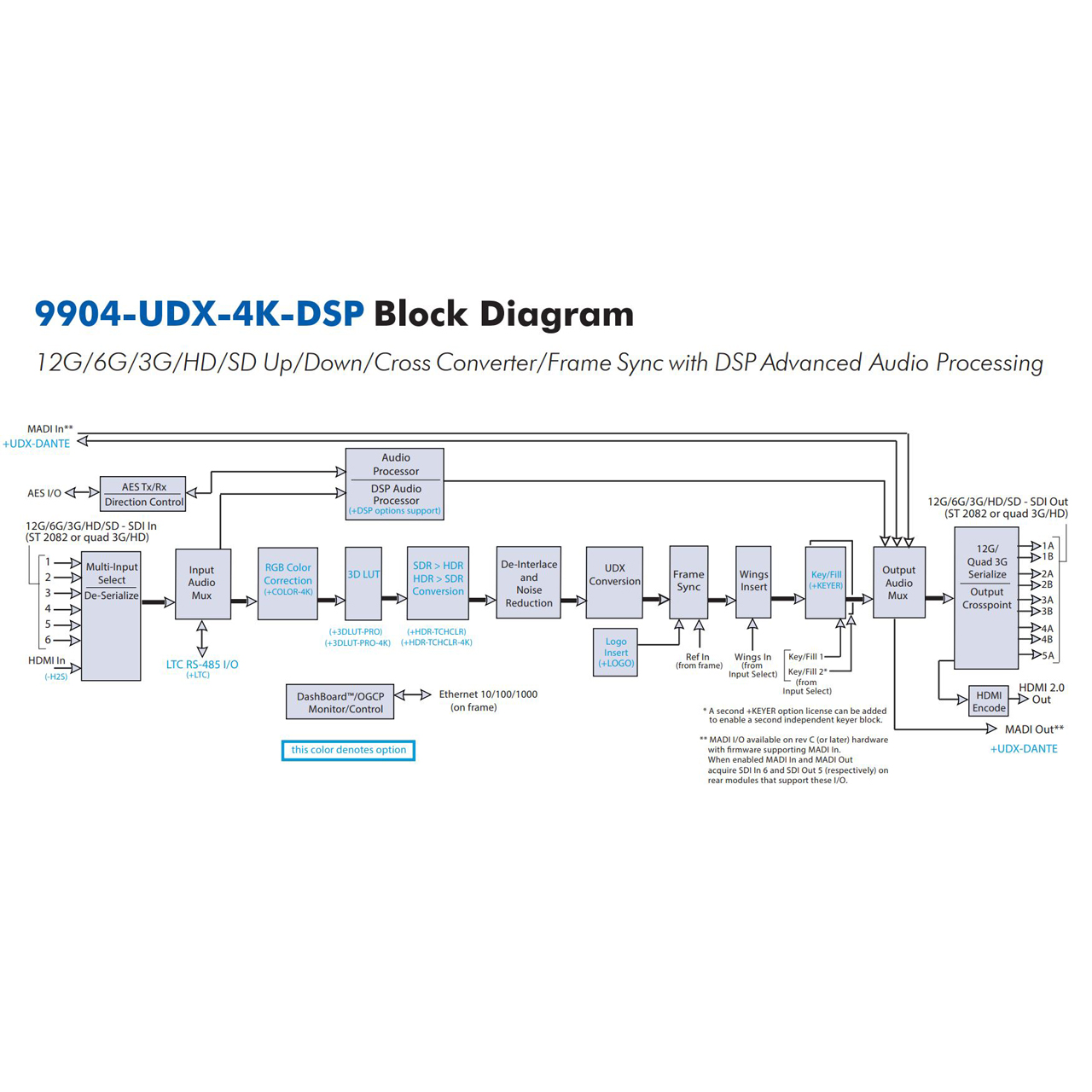

The 9904-UDX-4K-DSP upconverts 12G/6G/3G/HD/SD to either UHD1 3840x2160 Square DIvision Multiplex (SDM) or Two-Sample Interleave (2SI) quad 3G-SDI based formats, or can output ST 2082 12G-SDI for single-wire 4K transport. With both 12G-SDI and quad 3G-SDI inputs, the 9904-UDX-4K can downconvert 12G and quad UHD. The 9904-UDX-4K provides an HDMI 2.0 output for economical 4K video monitoring. The 9904-UDX-4K-DSP offers numerous options, including SDR-to-HDR conversion and color correction.
The 9904-UDX-4K-DSP offers a DSP-based platform that supports multiple advanced audio DSP options, including Dolby® Real-Time Loudness Leveling automatic loudness processing, Dolby®E/D/D+ encode/decode, and Linear Acoustic® UPMAX™ automatic upmixing. Embedded audio and metadata are properly delayed and re-embedded to match any video processing delay, with full adjustment available for audio/video offset.
The high-density openGear® design allows for up to five 9904-UDX-4K-DSP cards to be installed in one 2RU openGear® frame. Card control/monitoring is available via DashBoard user interface or Cobalt's RESTful-based Reflex protocol.
