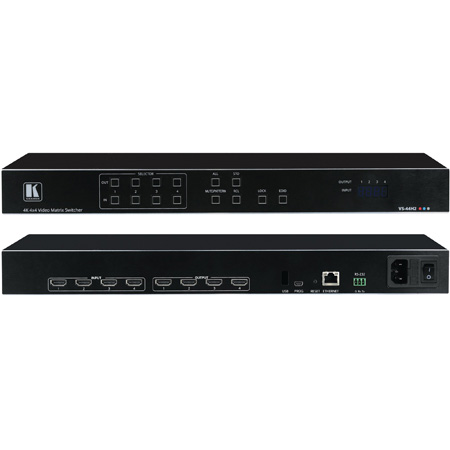

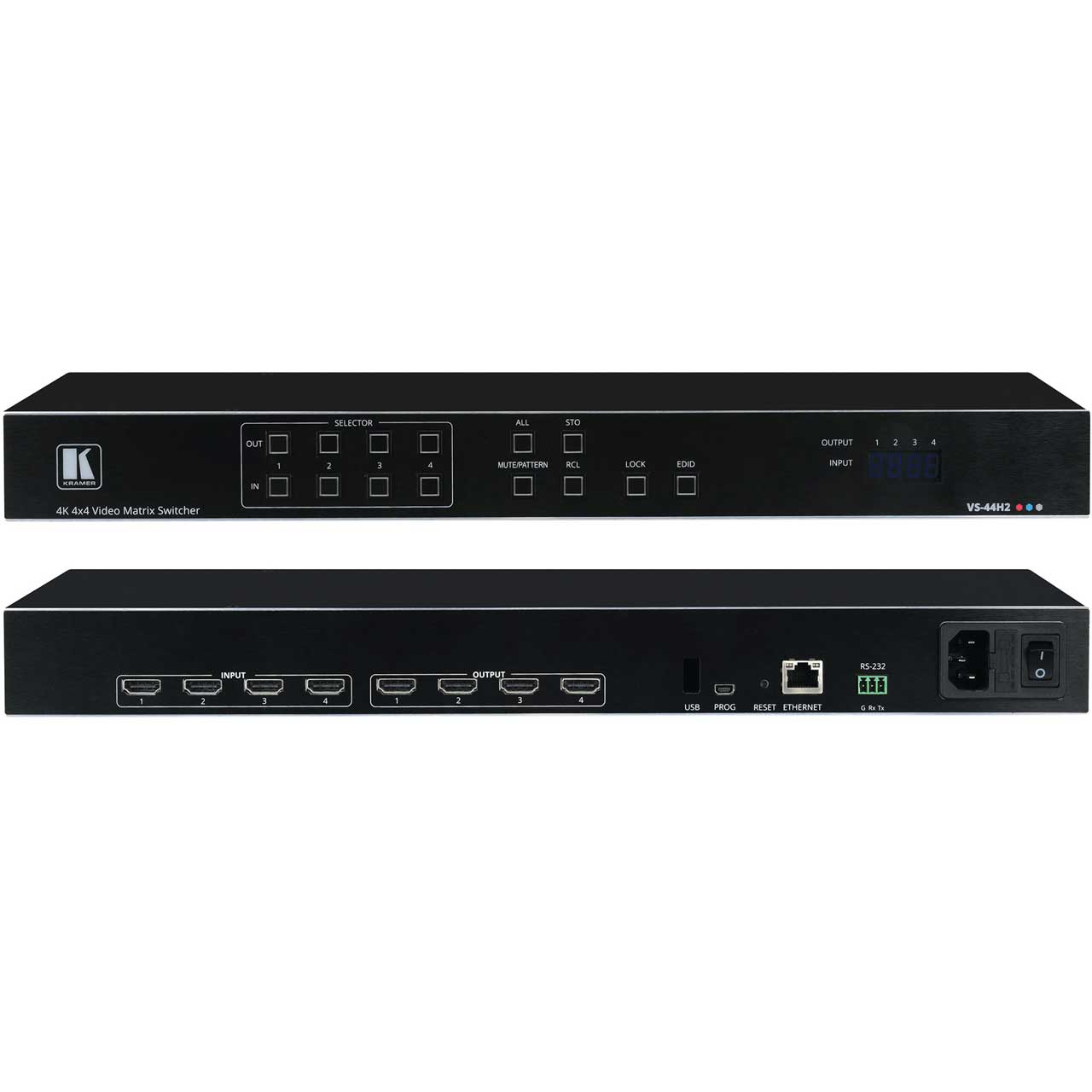

Kramer VS-44H2 4x4 4K HDR HDMI HDCP 2.2 Matrix Switcher - Resolutions up to 4K60 UHD (4:4:4)

VS-44H2 - Overview

High-Performance AV Matrix

• Features:

  • High-Performance AV Matrix - Switches 4 4K@60Hz (4:4:4), HDR, HDMI, HDCP (2.2/1.4)-compliant signals to 4 4K@60Hz (4:4:4), HDR, HDMI, HDCP (2.2/1.4)-compliant outputs at up to 18G data rate. Featuring Kramer re-Klocking™ and Equalization Technology that rebuilds the digital signal to travel longer distances. Note: For optimum range and performance, use recommended Kramer cables.
  • HDMI Support - Deep Color, 3D, up to 7.1 uncompressed audio channels as specified in HDMI 2.0.
  • EDID Management - Individual EDID management per input. Captures and stores the EDID from a display device.
  • Flexible Content Protection - Selectable HDCP per input.
  • Quick Access to Common Configurations - Save up to 8 preset configurations.
  • Simple and Powerful Maestro Room Automation - Intuitive user interface enables you to fully automate your meeting room elements. Configure lights, shades, devices and more to be activated by an extensive range of triggers, including scheduling, input/output connectivity, routing, and button pressing. By minimizing user intervention, Maestro room automation saves meeting prep time and minimizes human error before presentations.
  • Smart Switching - Active source & acceptor detection. Automatic input selection based on priority selection or last connected input.
  • Embedded Pattern Generator - With selectable patterns.
  • Convenient Unit Control and Configuration Options - Local control via front panel switching, memory, lock and EDID buttons, and Input/Output LED display. Distance control via user-friendly embedded web pages via the Ethernet, Protocol 3000 API, and RS-232 serial commands transmitted by a PC, touch screen system or other serial controller.
  • Cost-Effective Maintenance - Input selection indicators facilitate easy local maintenance and troubleshooting. Firmware upgrade via Ethernet.
  • Easy Installation - 19" enclosure for rack mounting in a 1U rack space with included rack ears and universal 100-240V AC power supply.


• Specifications:

  • INPUTS
  • 4 HDMI: On female HDMI connectors

    OUTPUTS
  • 4 HDMI: On female HDMI connectors

    PORTS
  • 1 USB: On a Mini-USB connector for device control
  • 1 RS-232: On a 3-pin terminal block connector for device control
  • 1 Ethernet: On an RJ-45 connector
  • 1 USB: On a USB-type A connector for powering an external device

    VIDEO
  • Max. Resolutions: 4K@60Hz (4:4:4)
  • HDMI Support: Deep Color, 3D, ARC, up to 7.1 uncompressed audio channels as specified in HDMI 2.0
  • Content Protection: HDCP 1.4 and 2.2

    USER INTERFACE
  • Indicators: Input/output LCD display
  • Control: Input/output selection, mute, test pattern, memory, front panel lock, buttons. RS-232 and USB connections for sending serial commands via PC, touch screen system or other serial controller. Embedded web pages via LAN for configuration and control

    POWER
  • Source: 100-240V AC, 50-60Hz
  • Consumption: 54VA

    ENVIRONMENTAL CONDITIONS
  • Operating Temperature: 0° to +40°C (32° to 104°F)
  • Storage Temperature: -40° to +70°C (-40° to 158°F)
  • Humidity: 10% to 90%, RH (non-condensing)


• Item Includes:

  • Kramer VS-44H2 Matrix Switcher
  • Rack ears (1 set)
  • Power cord (1)
  • Rubber feet (4)


• Warranty:

  • The standard limited warranty for Kramer products is seven (7) years from the date of original purchase.


• GTIN:

  7291063089146
