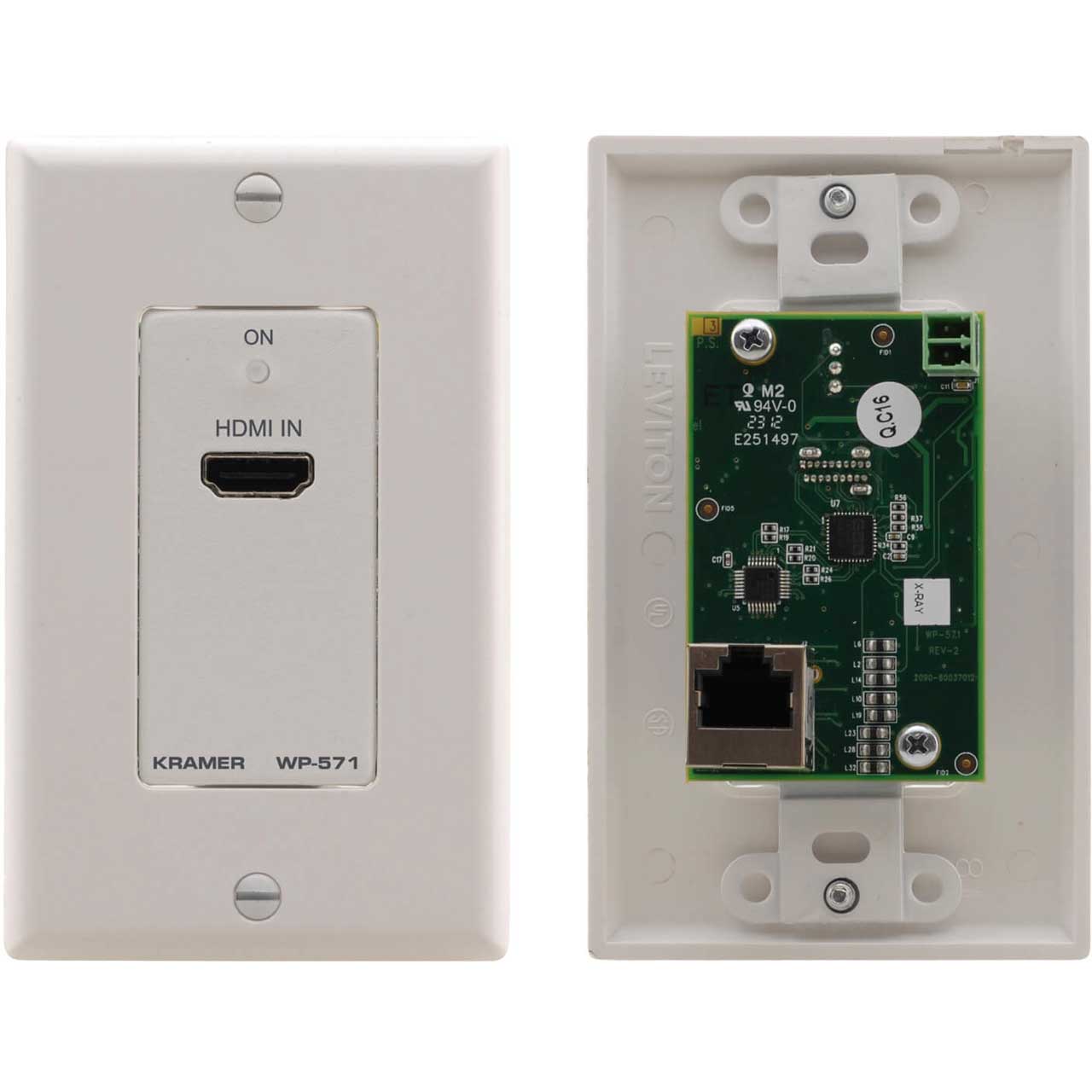

Kramer WP-571 HDMI HDCP 2.2 Wall Plate PoC Transmitter over Long-Reach DGKat- White

WP-571/US(W) - Overview

HDTV Compatible & HDCP Compliant

• Features:

  • Requires Shielded Twisted Pair Cable
  • Max. Data Rate - 4.95Gbps (1.65Gbps per graphic channel).
  • HDTV Compatible.
  • HDCP Compliant.
  • DGKat™ Signal Integration - Kramer's unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables.
  • HDMI Support - HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS-HD.
  • 3D Pass-Through.
  • System Range - Up to 90m (295ft) at 1080i @60hz or up to 70m (230ft) at 1080p @ 60hz when using Kramer DGKat cables.
  • Note: Transmission range depends on the signal resolution, graphics card and display used. If using third-party shielded CAT cables, both ends of the shield must be soldered to the connectors for the products to function properly.
  • EDID PassThru - Passes EDID signals between the source and display.
  • Active Power Indication - The ON LED lights red when receiving power only, orange when either input or output and power are attached, and green when both an active input and output are attached.
  • Power Connect™ System - A single connection to the transmitter or the receiver powers the system when the devices are within 90m (295ft) of each other.


• Specifications:

  • INPUTS
  • 1 HDMI connector


  • OUTPUTS
  • 1 DGKat™ twisted pair on a RJ-45 connector


  • BANDWIDTH
  • Up to 4.95Gbps data rate (1.65Gbps per graphics channel)


  • COMPLIANCE WITH HDMI STANDARD
  • Supports HDMI and HDCP


  • POWER CONSUMPTION
  • US: 12V DC, 190mA (single device)
  • 360mA total (when one device supplies the power to both devices). UK, BG: 12V DC, 150mA (single device)
  • 310mA total (when one device supplies the power to both devices)


• Item Includes:

  • WP-571 in White
  • Power Supply


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063051846
