Canare L-2.5CHWS Ultra-Slim Mini RG-59 12G-SDI/4K UHD Mobile Video Cable - Black - Per Foot

ITEM #: L-2-5CHWS-FT MFG #: L-2.5CHWS-FT

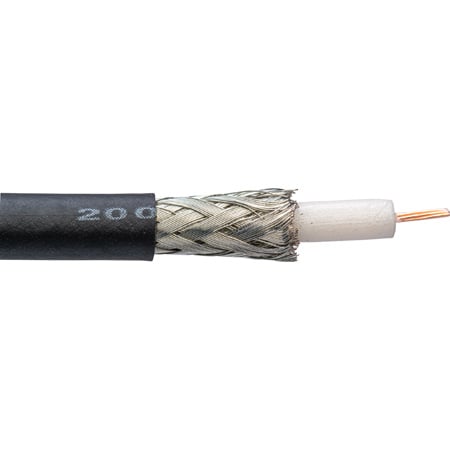

Primary Image

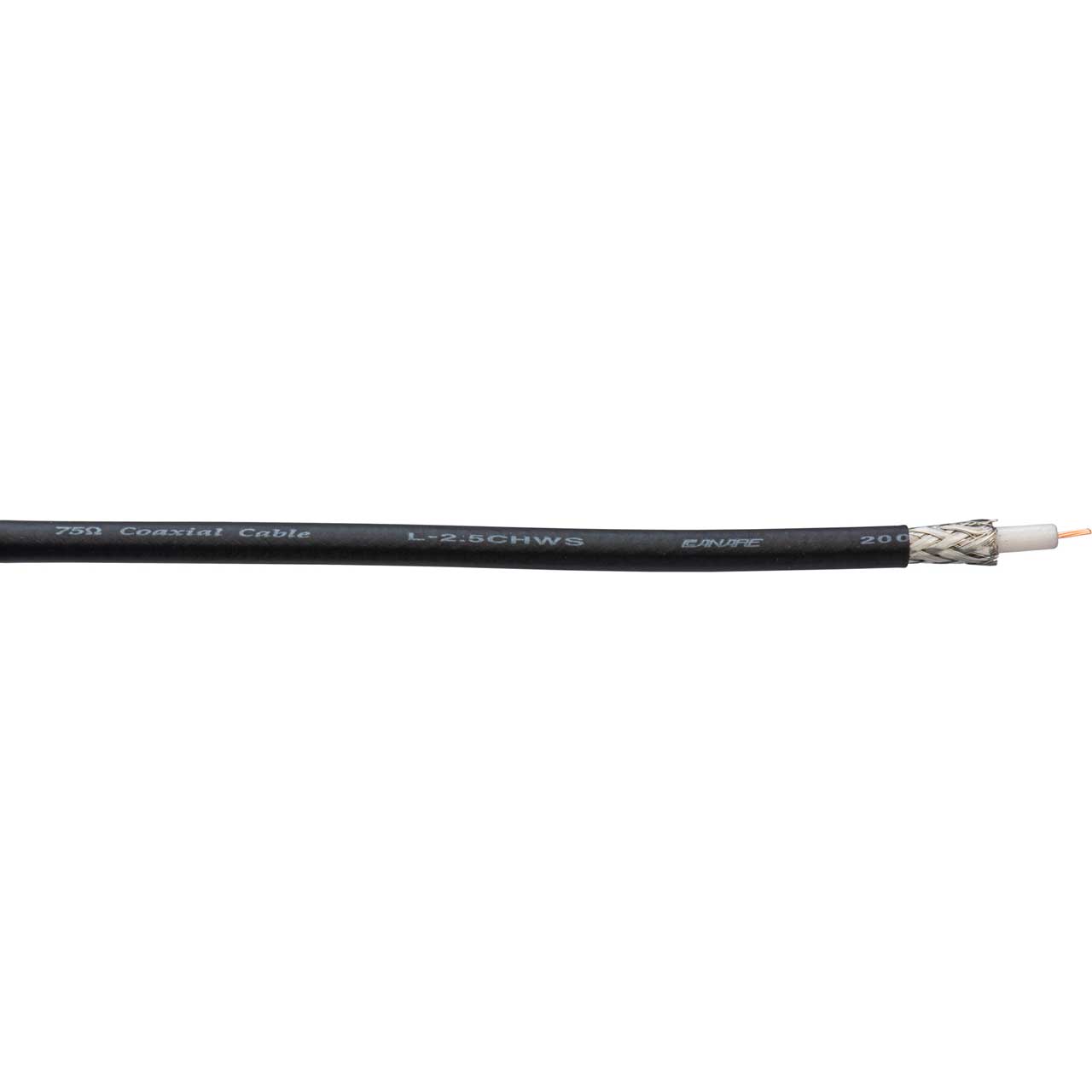

  • Product Image Thumbnail 1 of 2

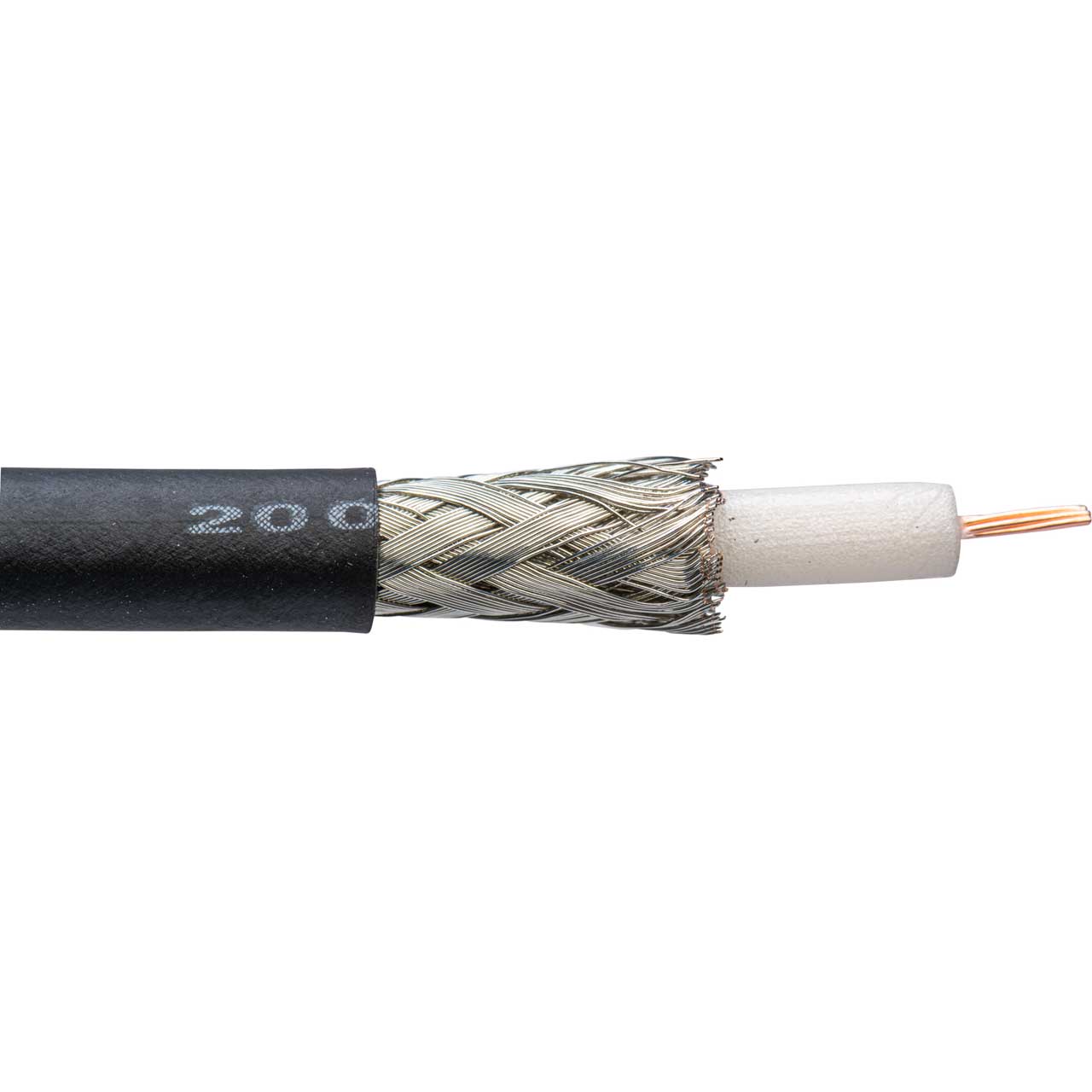

  • Product Image Thumbnail 2 of 2
Canare
Free Shipping with $49 Minimum Order

Our Price:

$0.55

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

L-2.5CHWS-FT - Overview

The Canare L-2.5CHWS 12G-SDI rated coaxial features a stranded center conductor which makes it ideal for use in mobile HD applications where repeated bending may be a factor. Its high-density double braided shield and 75 Ohm Coaxial construction deliver low loss performance for the most demanding broadcast applications. It is also one of Canare's thinnest and lightest 12G-SDI coaxial cables with a nominal O.D. of 0.165".

Note: cable stripper TS100E cannot be used with this cable.

  • Features:

    • Mini-RG59 Equivalent 12G-SDI Coax Video Cable
    • Flexible and durable: Best suited to mobile HD application.
    • Designed for withstanding repeated bending.
    • Stranded center conductor.
    • High-density double-braided shield.
    • Highly-foamed insulation.


  • Specifications:

    • Length: Per foot
    • Nominal O.D. 0.165 inch
    • Inner conductor comp (AWG): 24
    • Inner conductor O.D.: 0.02 inch
    • Insulation O.D.: 0.102 inch
    • Outer Conductors Shield Coverage & Comp: 0.10A/8/16(95% or more); 0.10A/9/16(94% or more)
    • Static capacity: 53 pF/m
    • Characteristic impendance: 75 Ω
    • Attenuation: 37.4 dB/100m (328ft 750MHz)
    • Jacket: PVC dielectric strength: 1000V AC/min
