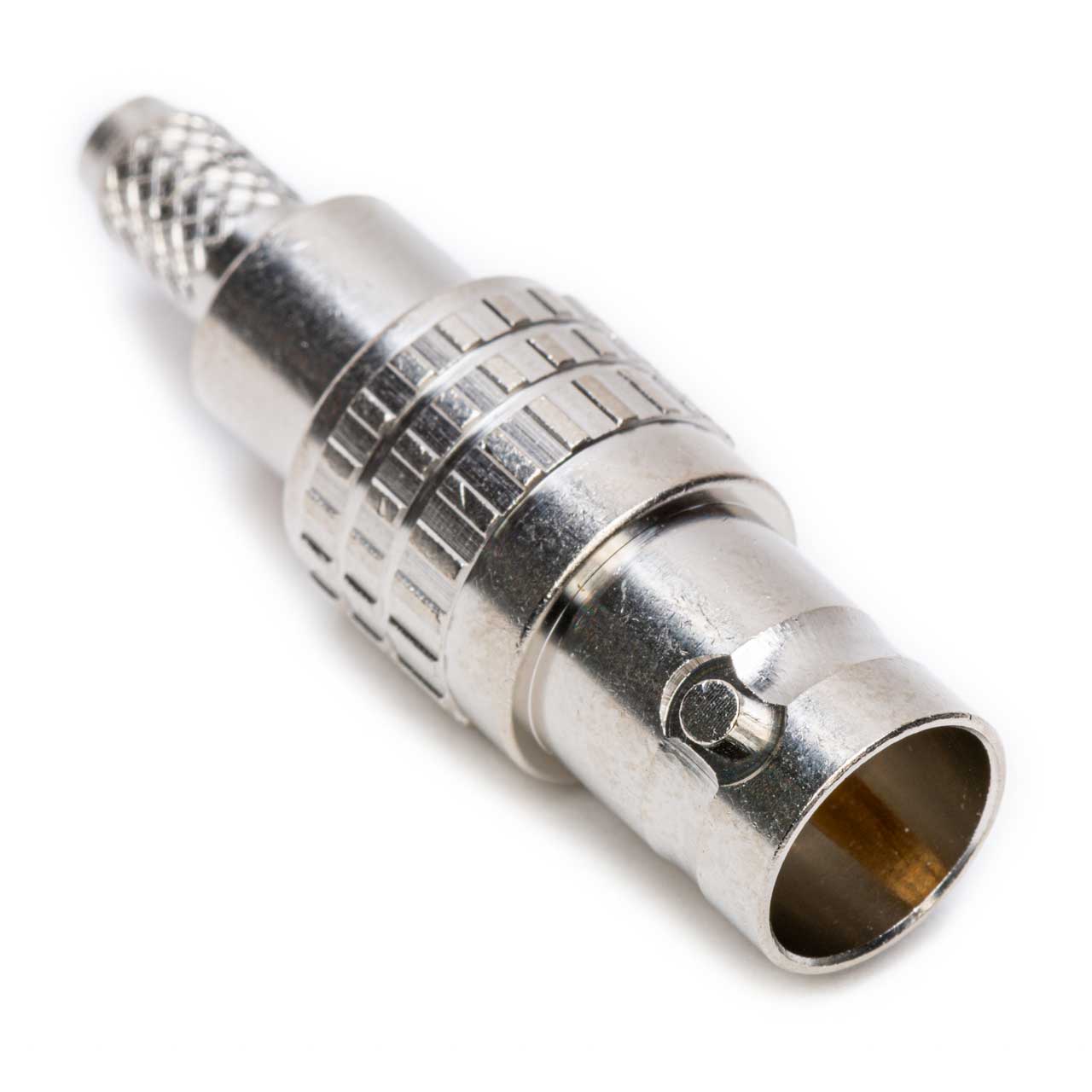

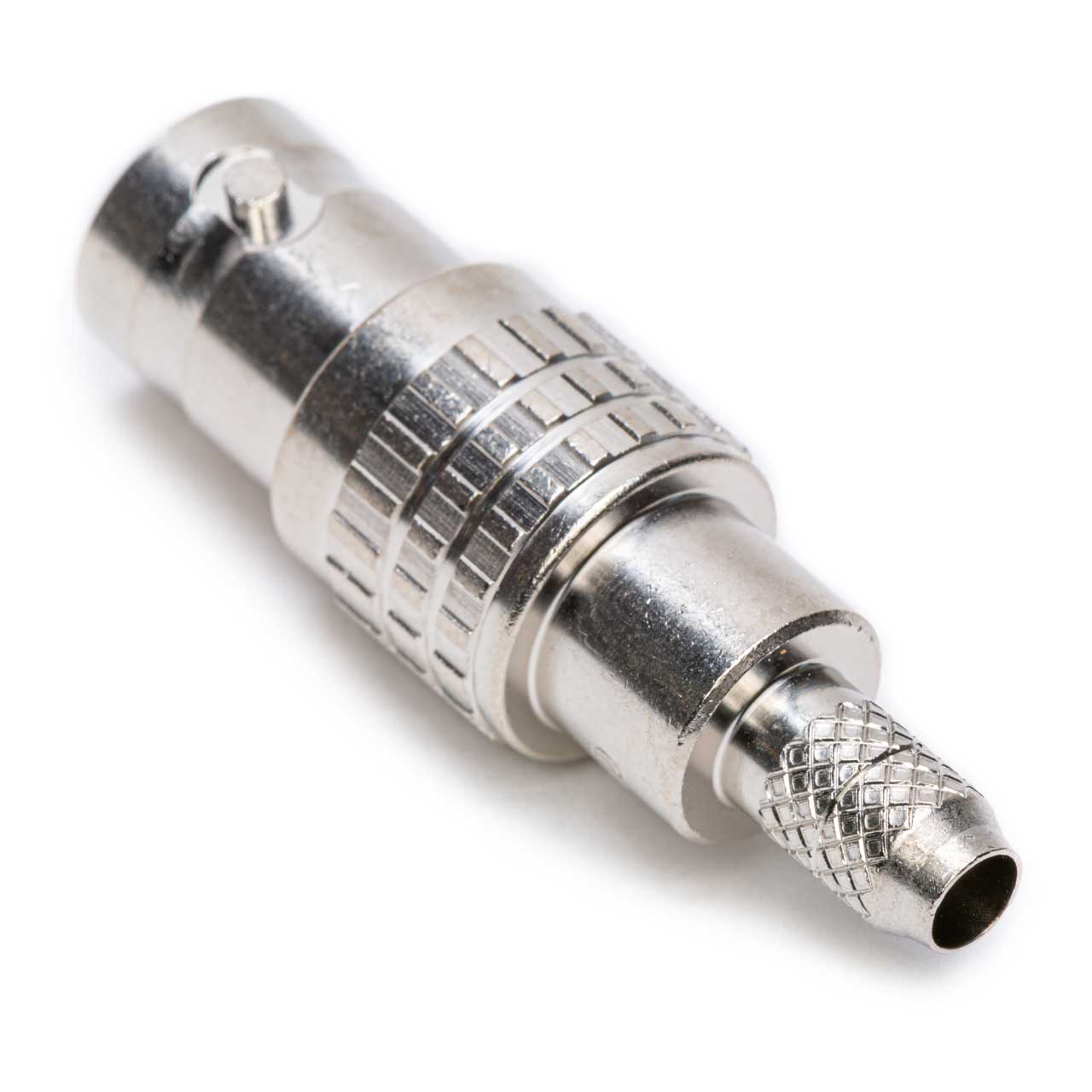

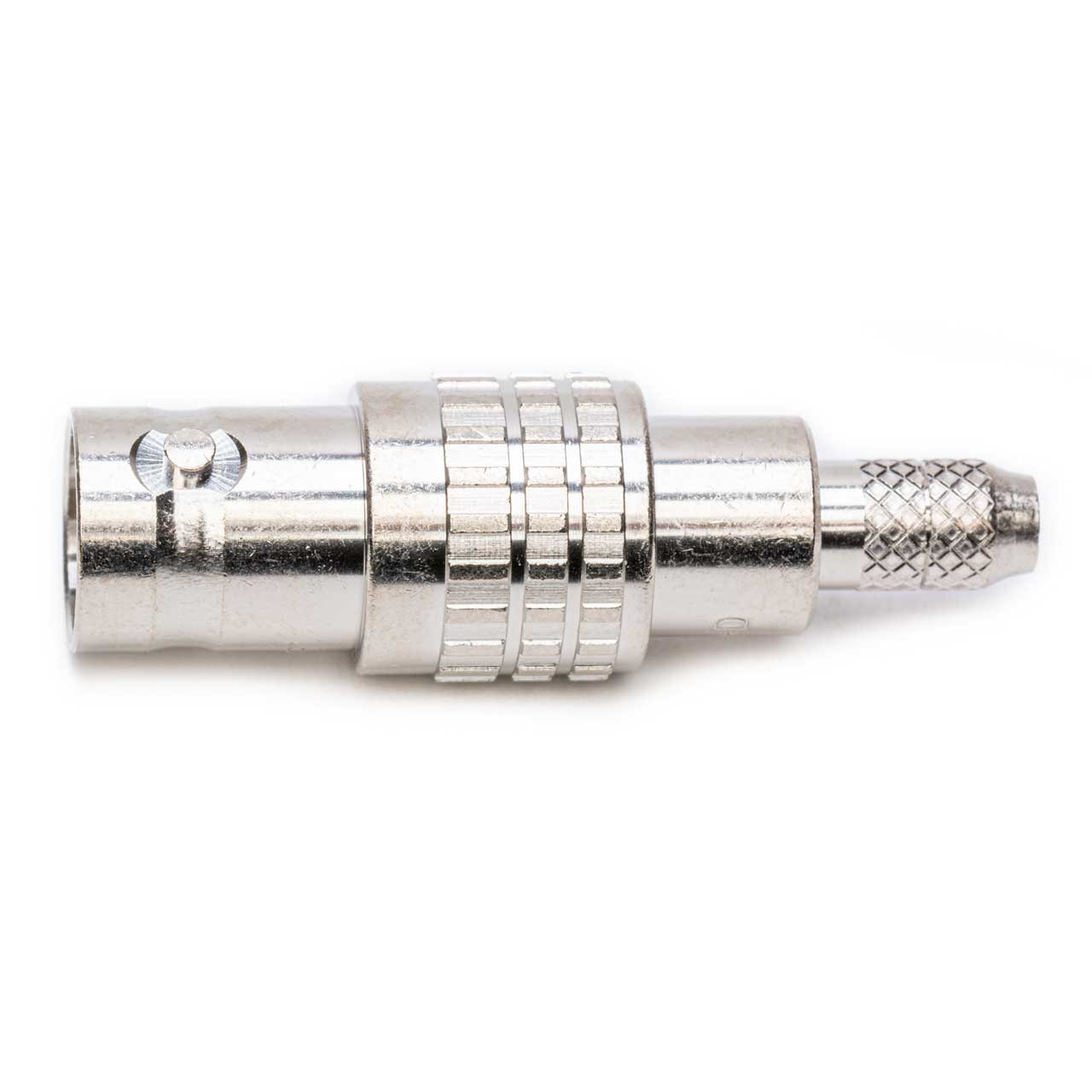

Canare BCJ-D25HW 75ohm Female Cable Mount BNC Connector - for use with L-2.5CHWS Cable

ITEM #: BCJ-D25HW MFG #: BCJ-D25HW

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Canare
Free Shipping with $49 Minimum Order

List Price:

$12.52

Our Price:

$11.82

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

BCJ-D25HW - Overview

The Canare BCJ-D25HW is a BNC 75Ω female cable mount. This crimp design ensures quick and reliable installation. It has a gold plated "snap lock" center pin and beryllium copper outer contact as well as an elongated body that was designed for a better grip.

Suitable cable Canare: L-2.5CHWS, center pin BN1024 and BN7158 sleeve. Use TCD-D253F die set.

  • Features:

    • 12G-SDI 4K UHD Capable
    • Canare crimp design ensures quick and reliable installation
    • Gold plated "snap lock" center pin and beryllium copper outer contact
    • Elongated body design for better grip
    • Ideal for Assembling Adapter Cables from DIN 1.0/2.3 or Micro (HD) BNC's to Female BNC's


  • Specifications:

    • Return Loss:
      3GHz: >20dB
      6GHz: >15dB
      12GHz: >10dB
