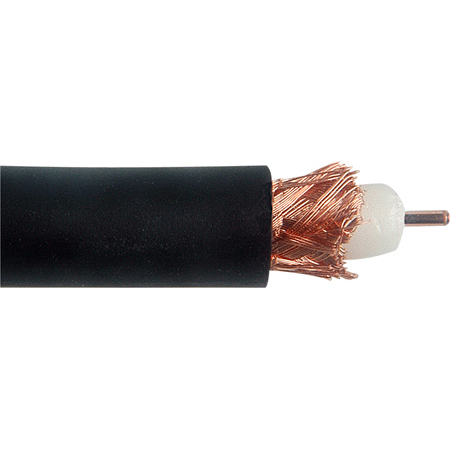

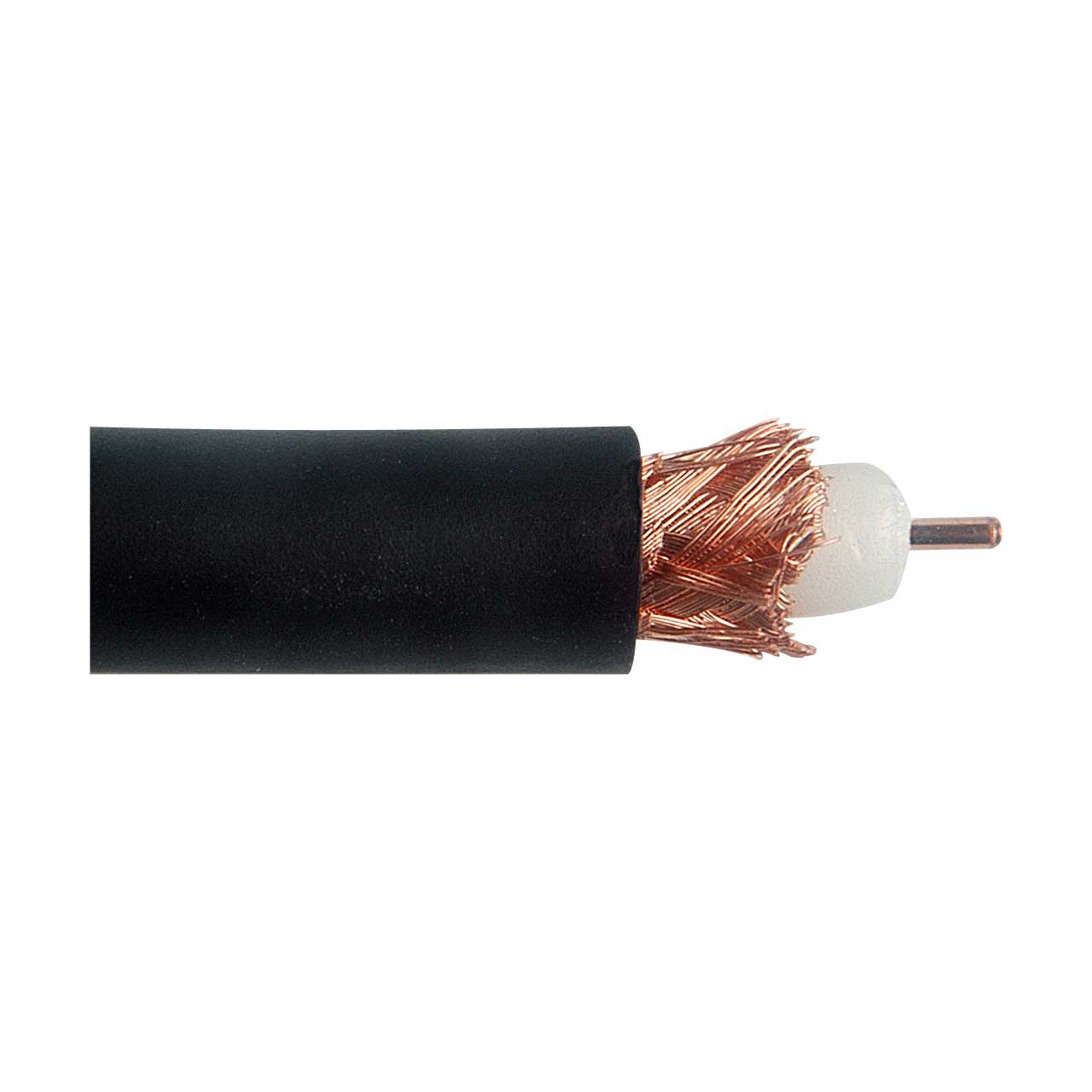

Canare L-5CFW 18 AWG 75 Ohm Digital Video Flexible Coaxial Cable - Black - 984 Feet

L-5CFW-BLACK300M - Overview

• Features:

  • Solid Copper Center Conductor
    Foam PE Dielectric
    Dual Copper Braid for Flexibility
    Precision Coax 100% Sweep Tested
    Overall Diameter: 0.303"
    Cond. Material AWG: Bare Copper #18
    Cond. O.D. (Inches): 0.041
    Dielectric Insulation Type: Foam PE
    Insulation O.D. (Inches): 0.193
    Capacitance (between conductors): 17.0 pF/ft
    Attenuation dB/1,000 Feet: 10Mhz / 10.4
    Shield Material Coverage (mm/ends/carriers): 0.12TA/7/24 (93% or more) / 0.12TA/9/24 (96% or more)
    Cond. D.C.R. (ohm/100m): 2.3

    Applications

    HD-Serial Digital Video
    Mobile Applications
    HDTV Upgrades
    Broadband Facilities
    SMPTE 259M, 292M,424M
    Suggested Connector: BCP-H31F
