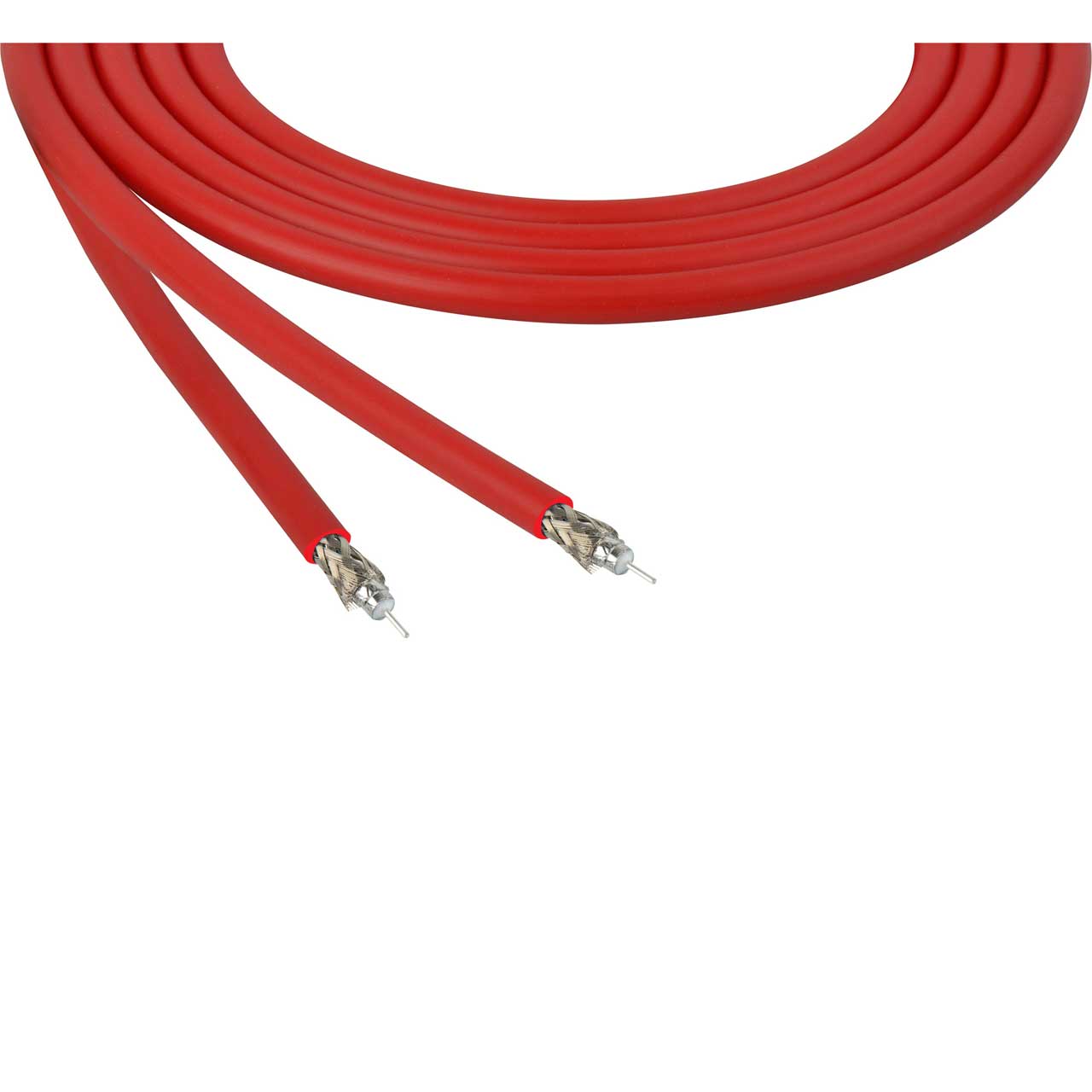

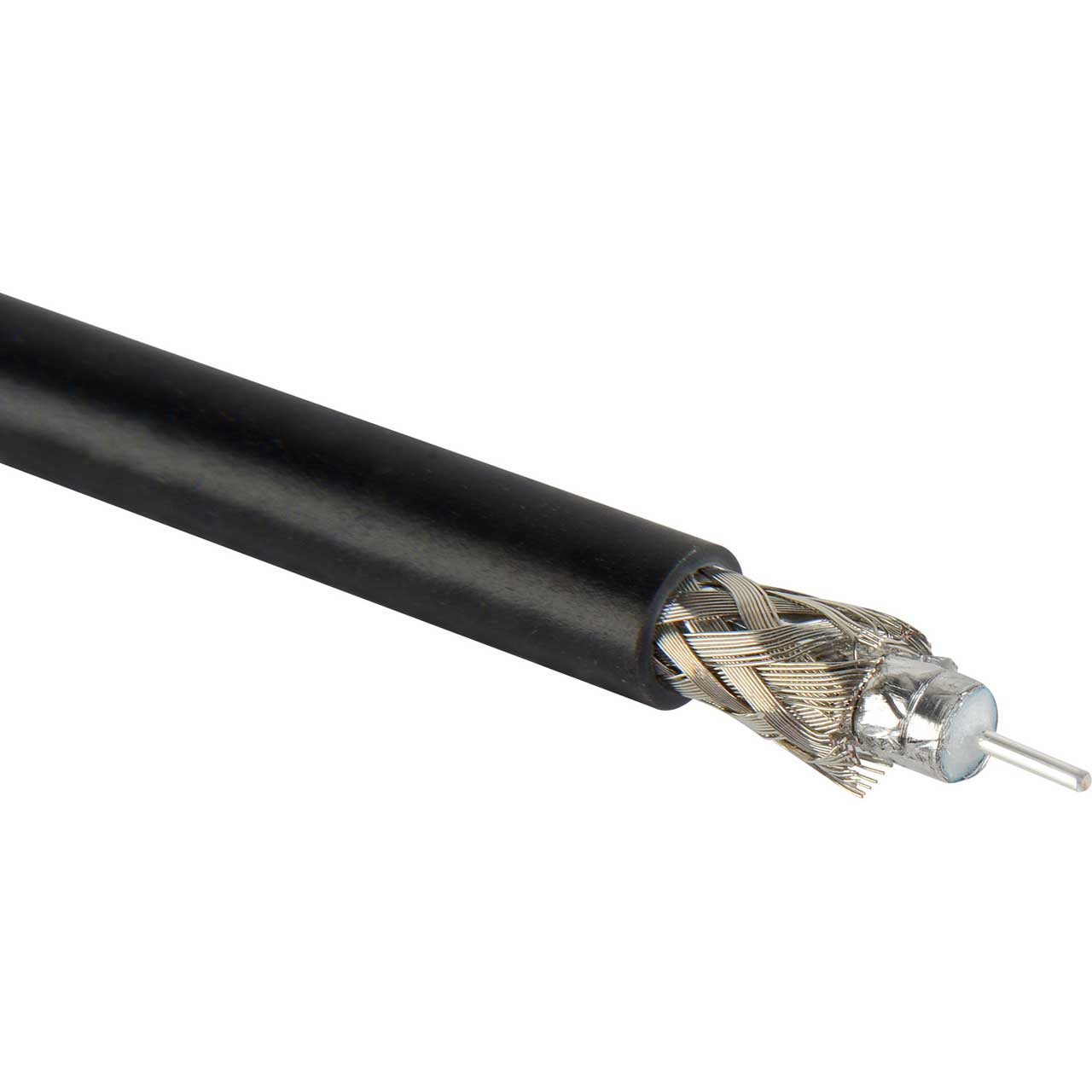

Belden 4505R 0021000 CMR Rated 12G-SDI 4K UHD RG59 75 Ohm Video Coax Cable 20 AWG - Red - Per Foot

4505R 0021000-FT - Overview

• Features:

  • Faster Installation: Using Belden's single-link solution saves time and is significantly lighter than dual or quad-link configurations
  • Optimized Design: On Belden 4K UHD Coax Cables for 12G-SDI, the inner foil is bonded to the core to eliminate bunching when installing 1-piece connectors. The outer foil is bonded to the jacket for a quicker, one-step stripping process
  • Superior Performance: The 4K UHD coax cable for 12G-SDI are superior in performance and engineered to optimize transmission distance, the cables exceed the SMPTE Return Loss (RL) specifications for UHDTV
  • Supports 12 GHz: Belden 4K UHD Coax Cables for 12G-SDI are capable of supporting 12 GHz bandwidth and enable a single-link configuration to transmit 4K


• Specifications:

  • Physical Characteristics
  • # Coax: 1
  • RG Type: 6
  • Conductor AWG: 20
  • Conductor Stranding: Solid
  • Conductor Nom. Diameter: 0.032 inches
  • Conductor Material: Silver Plated Copper
  • Insulation Material: Gas-injected FHDPE - Foam High Density Polyethylene
  • Nom. Insulation Diameter: .145
  • Outer Jacket Material: PVC - Polyvinyl Chloride
  • Overall Nominal Cable Diameter: 0.233 in.


  • Mechanical Characteristics
  • Operating Temperature Range: -30°C To +75°C
  • Bulk Cable Weight: 31 lbs/1000 ft.
  • Max. Recommended Pulling Tension: 52 lbs.
  • Min. Bend Radius/Minor Axis: 2.500 in.


  • Electrical Characteristics
  • Impedance (Ohm): 75
  • Inductance (µH/ft): 0.107
  • Capacitance (pF/ft): 16.100
  • Nominal Velocity of Propagation (%): 83.000
  • Nominal Delay (ns/ft): 1.220
  • Nom. Conductor DCR @ 20°C (Ohm/1000 ft): 10.200
  • Nominal Outer Shield DCR @ 20°C (Ohm/1000 ft): 3.400
  • Max. Operating Voltage - UL: 300 V RMS


• Item Includes:

  • 4505R 0021000 Video Coax 20 AWG - Red - Per Foot


• Warranty:

  • Limited 10 Year Warranty
