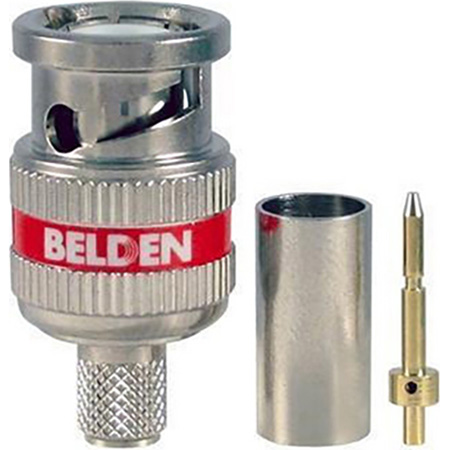

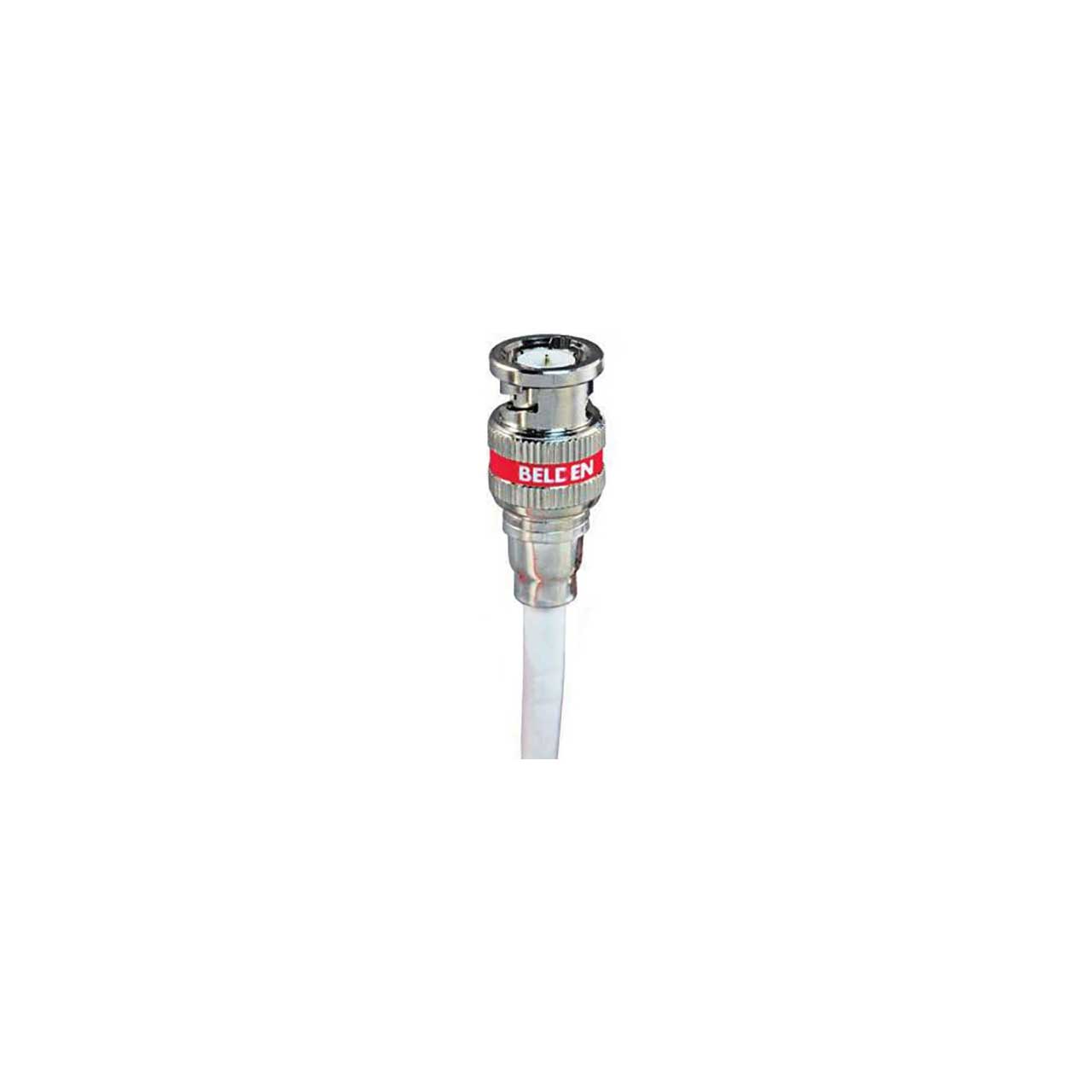

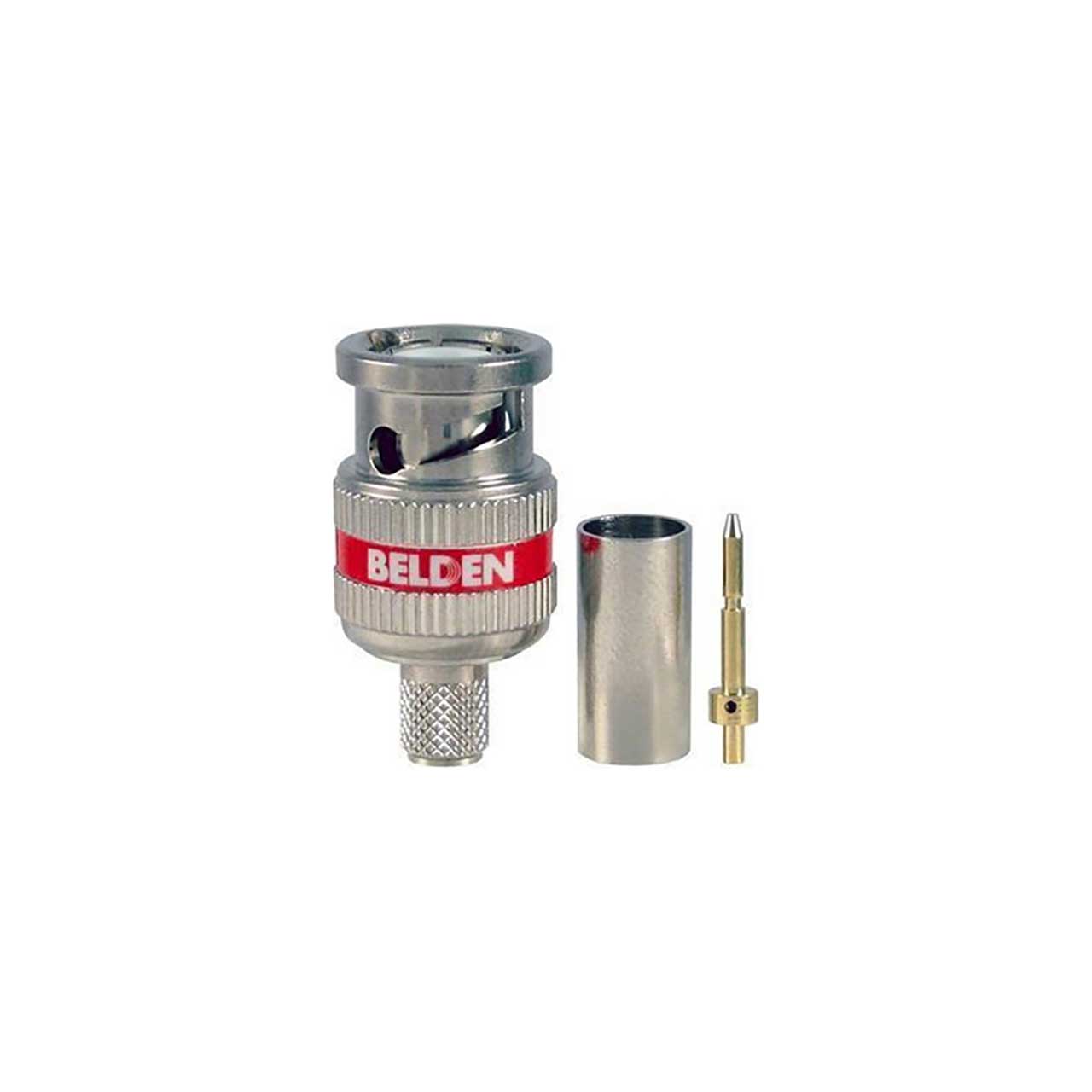

Belden 4505RBUHD3 12G-SDI 3-Piece UHD BNC Crimp Coaxial Connector for 4505R/RG59 Cable - Red Band - 50 Pack

4505RBUHD3 B50 - Overview

• Features:

  • 12 GHz UHD BNC
  • 3 Piece crimp connector
  • Indoor use
  • SMPTE 2082-1 Return Loss or better


• Specifications:

  • Connector Interface Type: BNC
  • Gender: Male - plug
  • Number of Pieces: 3
  • Termination Type: Crimp
  • RG Type: 59/U Type
  • Nominal Characteristic Impedance: 75Ω
  • Nut: Brass, Nickel Plated
  • Body: Brass, Nickel Plated
  • Contact: Brass, Gold Plated
  • Insulator: PTFE
  • Return Loss Frequency [MHz]: 5-1485 - Minimum Return (RL) 15 dB
  • Return Loss Frequency [MHz]: 1485-3000 - Minimum Return (RL) 10 dB
  • Return Loss Frequency [MHz]: 3000-6000 - Minimum Return (RL) 7 dB
  • Return Loss Frequency [MHz]: 6000-12000 - Minimum Return (RL) 4 dB
  • Electrical Characteristics Notes: SMPTE 2082-1 Return Loss or better
  • Cable Center Conductor Diameter Limits: 0.0295 - 0.0322 in
  • Cable Dielectric Diameter Limits: 0.1377 - 0.1456 in
  • Cable Outer Jacket Diameter Limits: 0.2342 - 0.2500 in
  • Environmental Space: Indoor
  • Plenum (Y/N): No
  • Footprint/Type: Coax
  • Connector Series Name: UHD
  • Color Band: Red
  • Locking: No


• Item Includes:

  • 4505RBUHD3 12GHz 3-Piece BNC Crimp Coax Connector for 4505R/RG59 Cable - Red Band - 50 Pack


• Warranty:

  • Limited Lifetime Connector Warranty when partnered with Belden Cable


• GTIN:

  0845671005523
