Belden 4505RBUHD1 B50 12G-SDI 1-Piece UHD BNC Compression Coaxial Connector for 4505R/RG59 Cable - Red Band - 50 Pack

ITEM #: BL-4505RBUHD1B50 MFG #: 4505RBUHD1 B50

Primary Image
Belden
Free Shipping with $49 Minimum Order

List Price:

$194.95

Our Price:

$185.00

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

4505RBUHD1 B50 - Overview

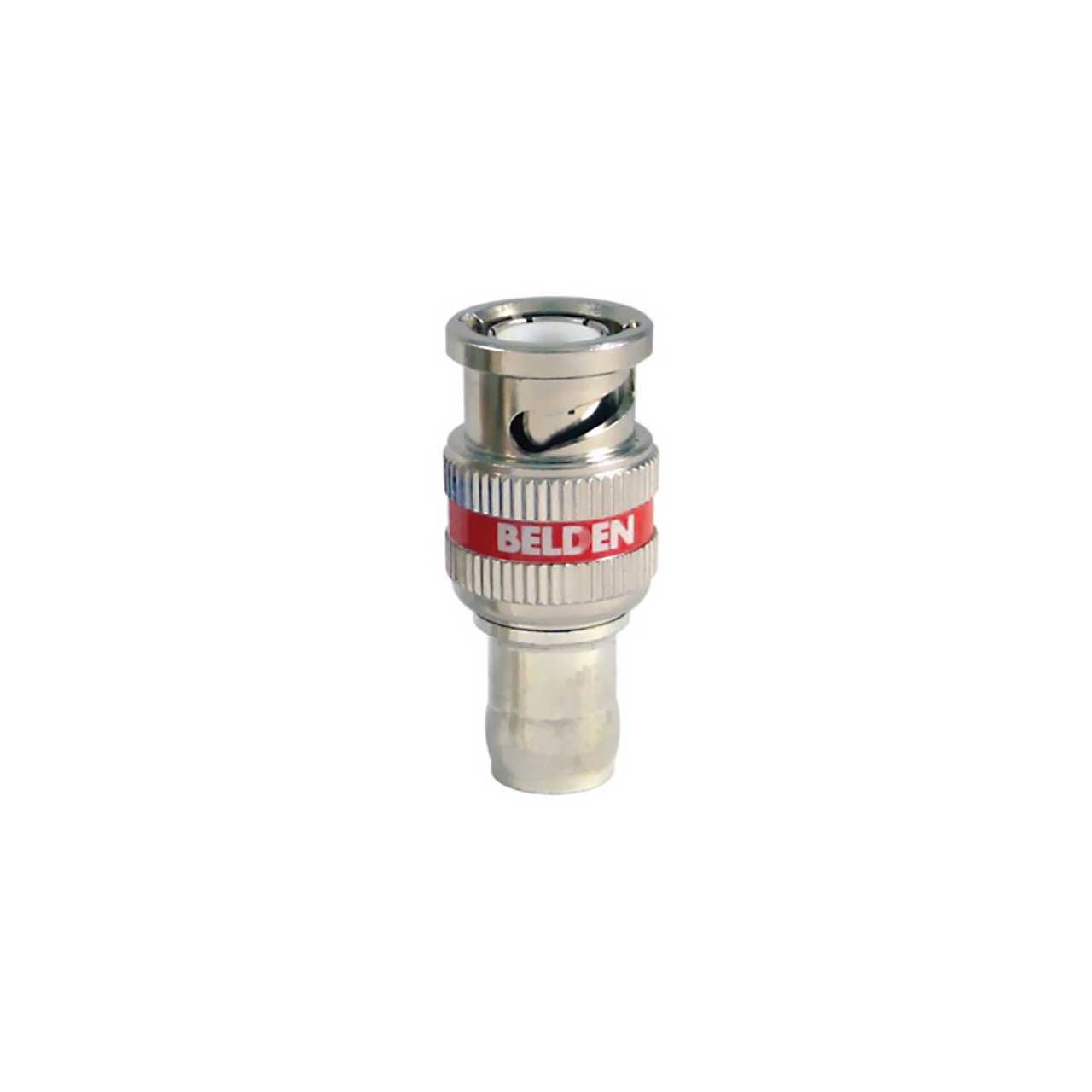

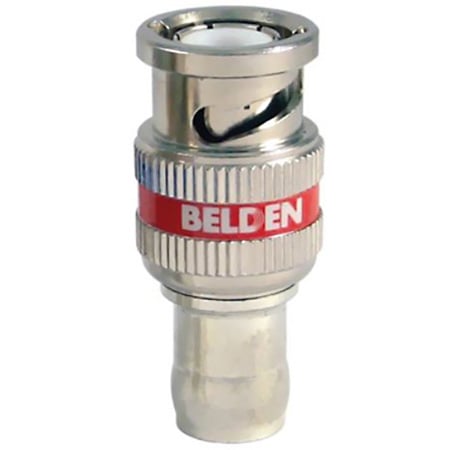

The 4505RBUHD1 B50 is a 50 pack of 12 GHz, 75 Ohm RG-59 UHD BNC 1-Piece compression style coax connectors for 4505R/RG59 Cable with a polished nickel body and a brass/gold plated contact.

BNC Connectors from Belden maximize broadcast signal integrity, quality, performance and durability. Rated for 12 GHz broadcast applications the connectors exceed SMPTE return loss standards, providing excellent headroom and 75 Ohm performance. Long-term durability is ensured through brass construction and patented compression rings with pullout forces that exceed 100 lbs.

Applications
HD-SDI
UHD-SDI
Video
Digital Video
SMPTE 2082-1 12 Gb/s UHDTV
SMPTE 2081-1 6 Gb/s UHDTV
SMPTE 424M 3 Gb/s HD-SDI 1080P

  • Features:

    • 12 GHz UHD BNC
    • 1 Piece compression connector
    • Indoor use
    • SMPTE 2082-1 Return Loss or better


  • Specifications:

    • Connector Interface Type: BNC
    • Gender: Male - plug
    • Number of Pieces: 1
    • Termination Type: Compression
    • RG Type: 59/U Type
    • Nominal Characteristic Impedance: 75Ω
    • Nut: Brass, Nickel Plated
    • Body: Brass, Nickel Plated
    • Contact: Brass, Gold Plated
    • Insulator: PTFE
    • Return Loss Frequency [MHz]: 5-1485 - Minimum Return (RL) 15 dB
    • Return Loss Frequency [MHz]: 1485-3000 - Minimum Return (RL) 10 dB
    • Return Loss Frequency [MHz]: 3000-6000 - Minimum Return (RL) 7 dB
    • Return Loss Frequency [MHz]: 6000-12000 - Minimum Return (RL) 4 dB
    • Electrical Characteristics Notes: SMPTE 2082-1 Return Loss or better
    • Cable Center Conductor Diameter Limits: 0.0295 - 0.0322 in
    • Cable Dielectric Diameter Limits: 0.1377 - 0.1456 in
    • Cable Outer Jacket Diameter Limits: 0.2342 - 0.2500 in
    • Environmental Space: Indoor
    • Plenum (Y/N): No
    • Footprint/Type: Coax
    • Connector Series Name: UHD
    • Color Band: Red
    • Locking: No


  • Item Includes:

    • Belden 4505RBUHD1 B50 12G-SDI 1-Piece BNC Compression Connector for 4505R/RG59 Cable - Red Band - 50 Pack


  • GTIN:

    0845671005530
