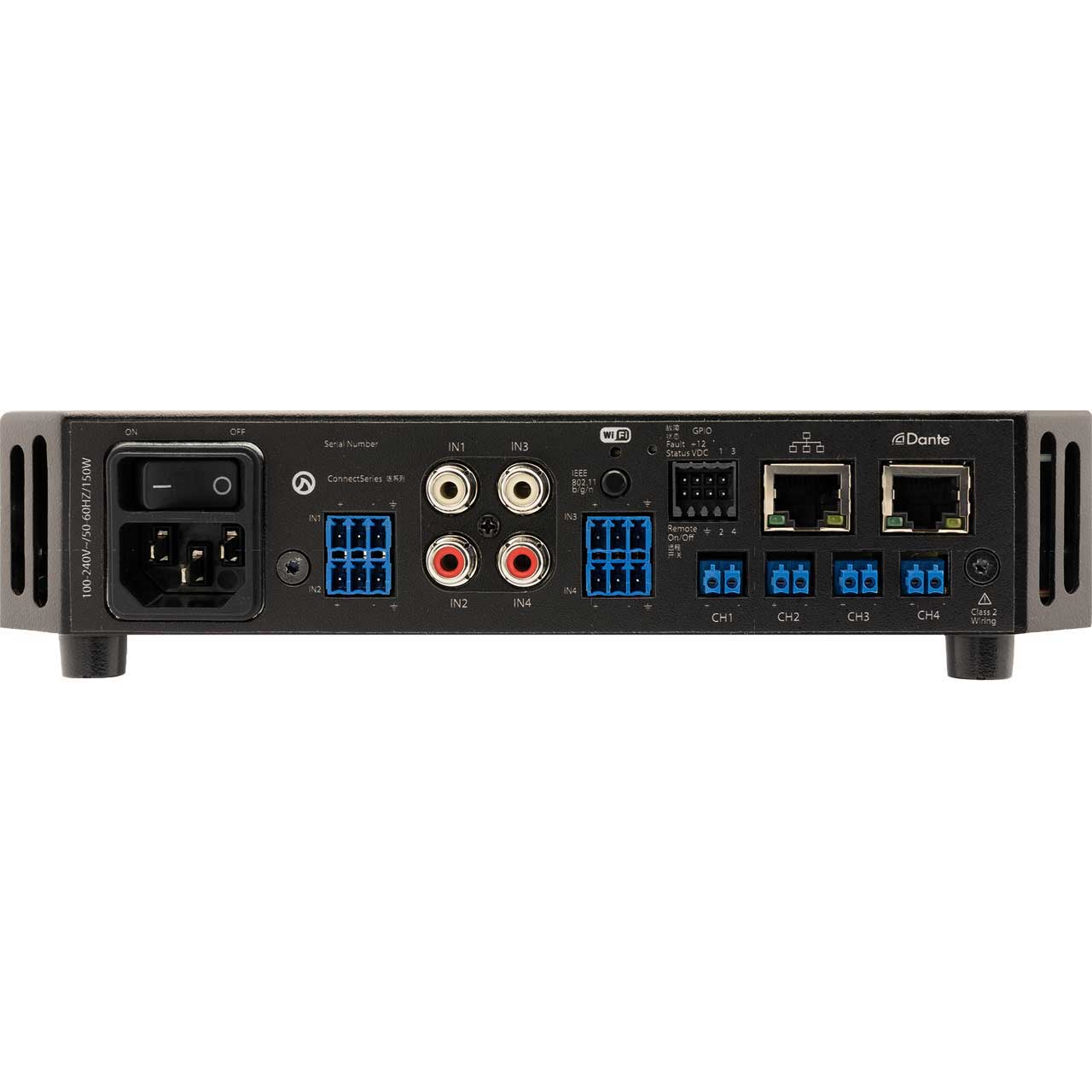

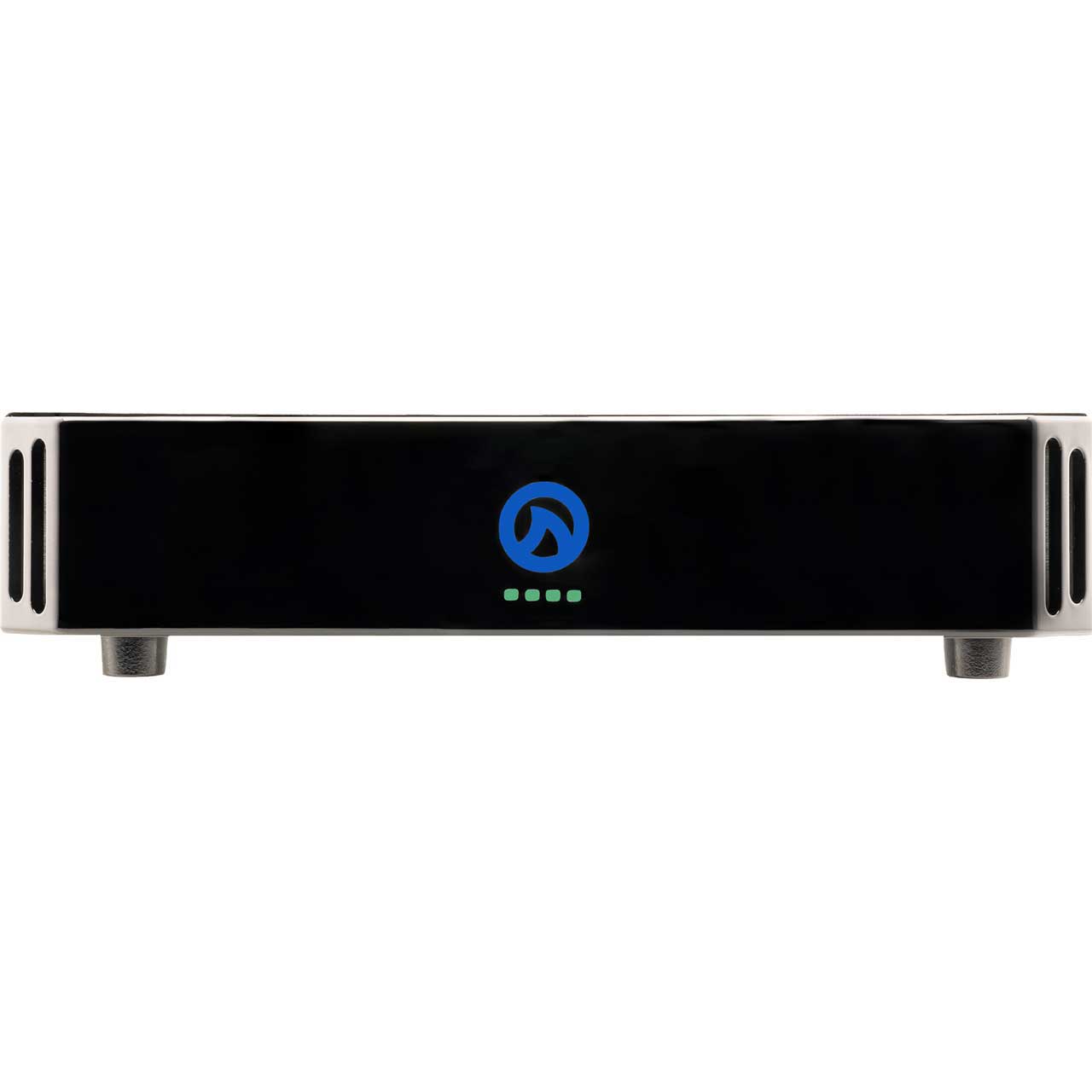

LEA Pro Dante CONNECTSERIES 124D 4-Channel 120-Watt Smart Amp with Cloud-Based IoT Functionality

Name: LEA Pro Dante CONNECTSERIES 124D 4-Channel 120-Watt Smart Amp with Cloud-Based IoT Functionality
Brand: LEA Professional
SKU: LEA-CONNECT124D
Price: 1800.00 USD
Availability: InStock

ITEM #: LEA-CONNECT124D MFG #: CONNECTSERIES 124D

LEA Professional

Our Price:

$1,800.00

Add to Wish List Leasing Options

Availability: Ships Factory Direct, Typically in 3-10 Business Days

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

CONNECTSERIES 124D - Overview

The CONNECTSERIES 124D is a 4-channel amplifier with 120 watts per channel in a ½ rack space form factor. As part of the Dante CONNECTSERIES, the world's first Internet of Things- (IoT) enabled professional-grade amplifiers, it is perfectly suited for small to medium-scale installations. The 124D features direct HiZ (70V or 100V) or LoZ selectable by channel. With three ways to connect, you can engage the built-in Wi-Fi access point, connect to the venue's Wi-Fi, or use the FAST Ethernet to connect to any local area network via Cat5 or Cat6 cable.

Then there's the Cloud…Dante CONNECTSERIES is the first professional amplifier family to feature Cloud connectivity. Harness the power of the Cloud for remote control, monitoring, notifications, and more from any of your personal devices. Just connect your amp to a network and start commanding your systems.

The Dante CONNECTSERIES also features analog inputs and Dante inputs.

Features:
- 3 Ways to Connect: Built-in Wi-Fi Access Point, Existing Wi-Fi Network, Local Area Network (LAN)
- Web Browser-Based UI: Works on any web browser on any device with no software downloads
- Cloud Control: Remote control and monitoring from anywhere in the world &emdash; no VPN needed.
- Direct Low-Z and Hi-Z: 70V or 100V selectable per channel
- Smart Power Bridge: Double the power any any single channel without sacrificing other amp channels
- Universal Switch-Mode Power Supply: Operation from 100VAC - 240VAC +/-15%
- Analog Balanced or Unbalanced Inputs: Fully routable balanced or unbalanced RCA analog inputs via input matrix and input mixer in Web UI, SharkWare, or Cloud platform
- 96 KHz Analog Devices DSP: Input Routing, 48dB/Oct crossover filters, 8 Parametric EQ filters, User-adjustable speaker limiters, Real-time load monitoring
- External I/O Port: For Remote ON/OFF and Fault Monitoring
- Highly Efficient Class-D Output Stage: For low AC Current Draw
Specifications:
- Audio Specifications:
- Inputs:
  Analog: 4 Balanced Inputs with user selectable 26dB, 34dB, and mic level input sensitivity, 4 unbalanced RCA inputs with user-selectable 26dB and 34dB input sensitivity
  Dante: 4 x 4 Dante at 48kHz, Multicast or Unicast
  AES 67: Configurable via the Dante Controller software
- THD+N: 0.1% (20Hz to 20kHz)
- Frequency Response: 20Hz to 20kHz, +/- 0.5 dB @ 4Ω, 8Ω, 70V, 100V, -2.5dB @ 20kHz at 2Ω
- Signal to Noise Level: 102dB (20Hz to 20kHz referenced to 8Ω)
- Crosstalk: 70dB (20Hz to 20kHz)
- Amplifier Output Classification: Class D with Proprietary Smart Power Bridge Technology allowing bridged output functionality without sacrificing an amplifier channel

  DSP:
- DSP Architecture: Analog Devices Sigma 96kHz DSP Processor with 32-bit Core with Sample Rate Converters
- Input Matrix: Routable matrix; any input to any output with primary and secondary input priority
- Crossovers: Up to 48 dB/Octave IIR Filters (Linkwitz Riley and Butterworth)
- Parametric EQ: 8 Band Parametric EQ per channel
- Output Delay: 100ms per channel
- Output Protection: DC, VHF, and AC Mains Protection, Overtemp and Current Limiter, fan fault detection
- User Adjustable Limiting: Peak Voltage and RMS Voltage
- Load Monitoring: Realtime Load Monitoring and Pilot Tone Detection from Internal or External Sources

  Control, Monitoring, Networking:
- User Interface: Web Browser User Interface, 3rd Party API control, Cloud Control, or SharkWare
- External I/O:
  External I/O In: Toggles Remote On/Off
  External I/O Out: Indicates Amplifier Health
  4 general Purpose input and output pins for general input

  Operation:
- AC Mains: 100VAC - 240VAC +/- 15% 50Hz or 60Hz
- Power Supply: Universal Switch Mode Power Supply

  Physical Spec:
- Dimensions (L X W X H):
  Product: 11.82" x 8.58" x 1.71" (300.11mm x 218mm x 43.5mm)
  Shipping: 18" x 11" x 2.75" (457.2mm x 300mm x 69.85mm)
- Weight: 7lbs / 4.1kg
- Cooling:
  Front to Rear Variable Fan Speed Cooling
  Fan Noise at idle: 50dB @ 1m
  Fan Noise at 50%: 57dB @1m
  Fan Noise at full speed: 63dB @ 1m
Warranty:
- U.S. Customers can register your product to extend your warranty to 6 years, and 5 years internationally.
GTIN:
0850011348345
