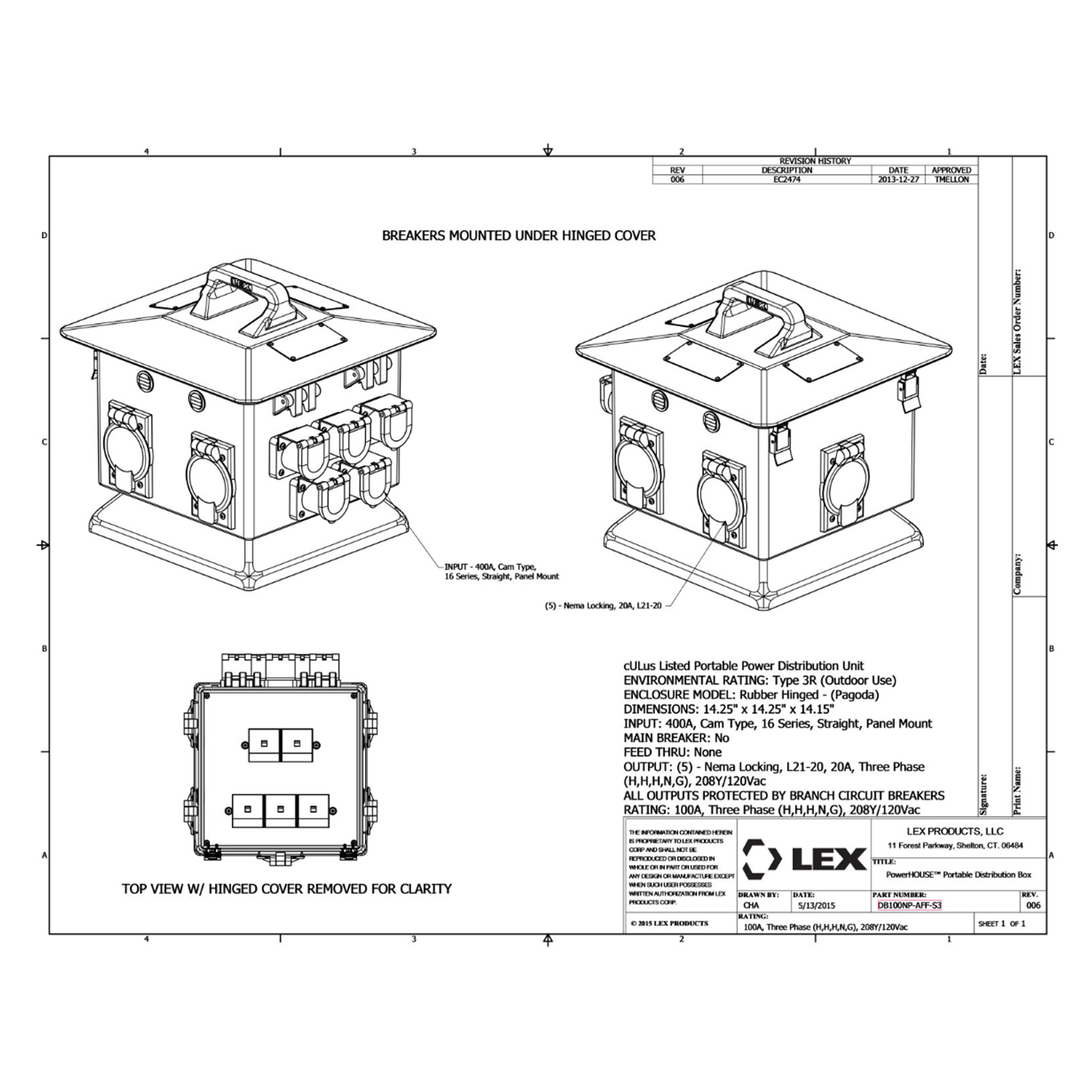

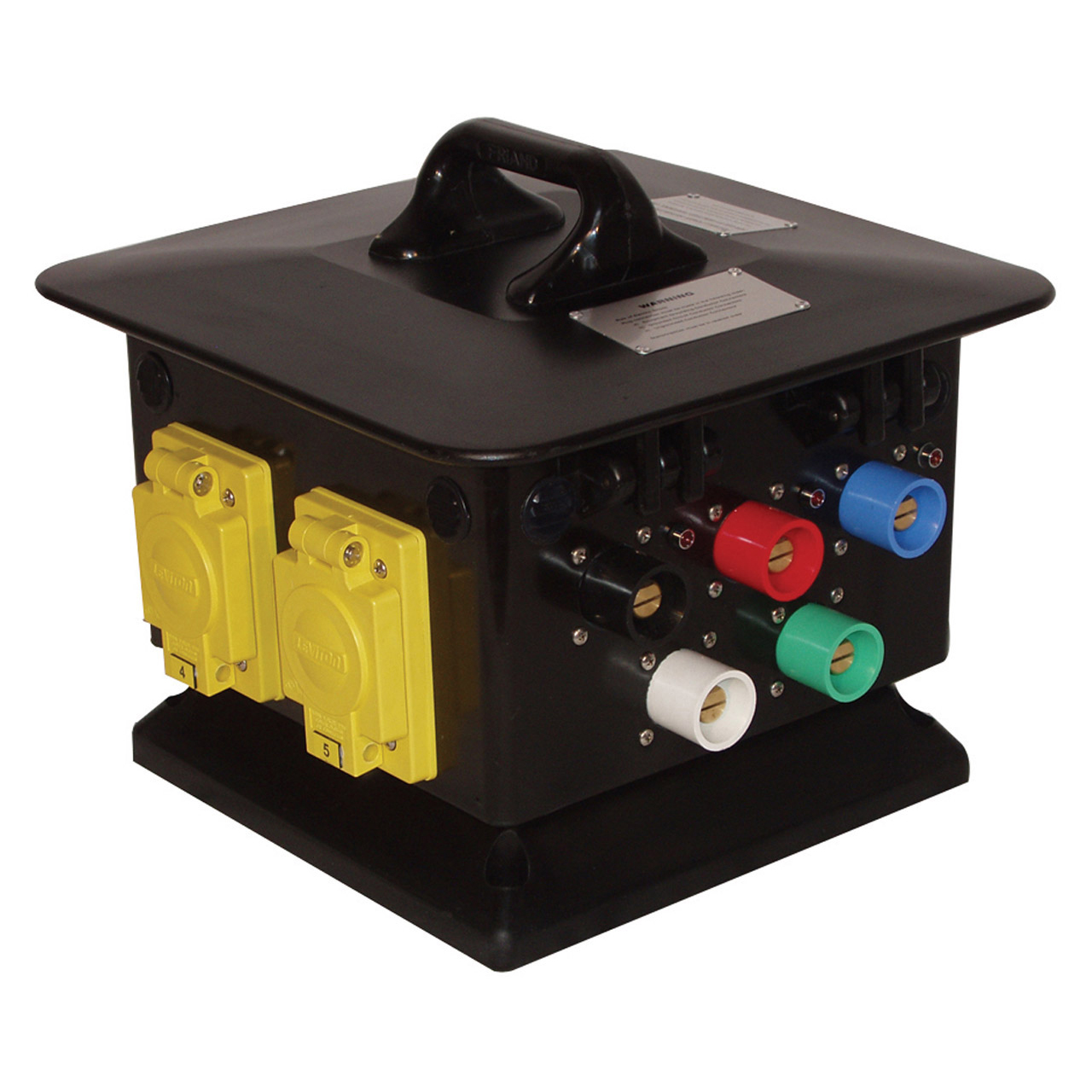

Lex DB100MP-AFF-S3 100 Amp Pagoda - Five 16 Series Cam Type to Five L21-20 Locking Receptacles - 120/208 VAC

DB100MP-AFF-S3 - Overview

• Features:

  • May be powered from a generator, a panel or a larger distribution box
  • Can be used at outdoor events to provide 20 Amp, 3-phase locking receptacle power
  • Locking receptacles help ensure positive connection and prevent disconnecting under load
  • Receptacles can be used to power lights, effects and audio equipment
  • Heavy duty molded rubber enclosure is fully insulated and resistant to shock, impact and corrosion

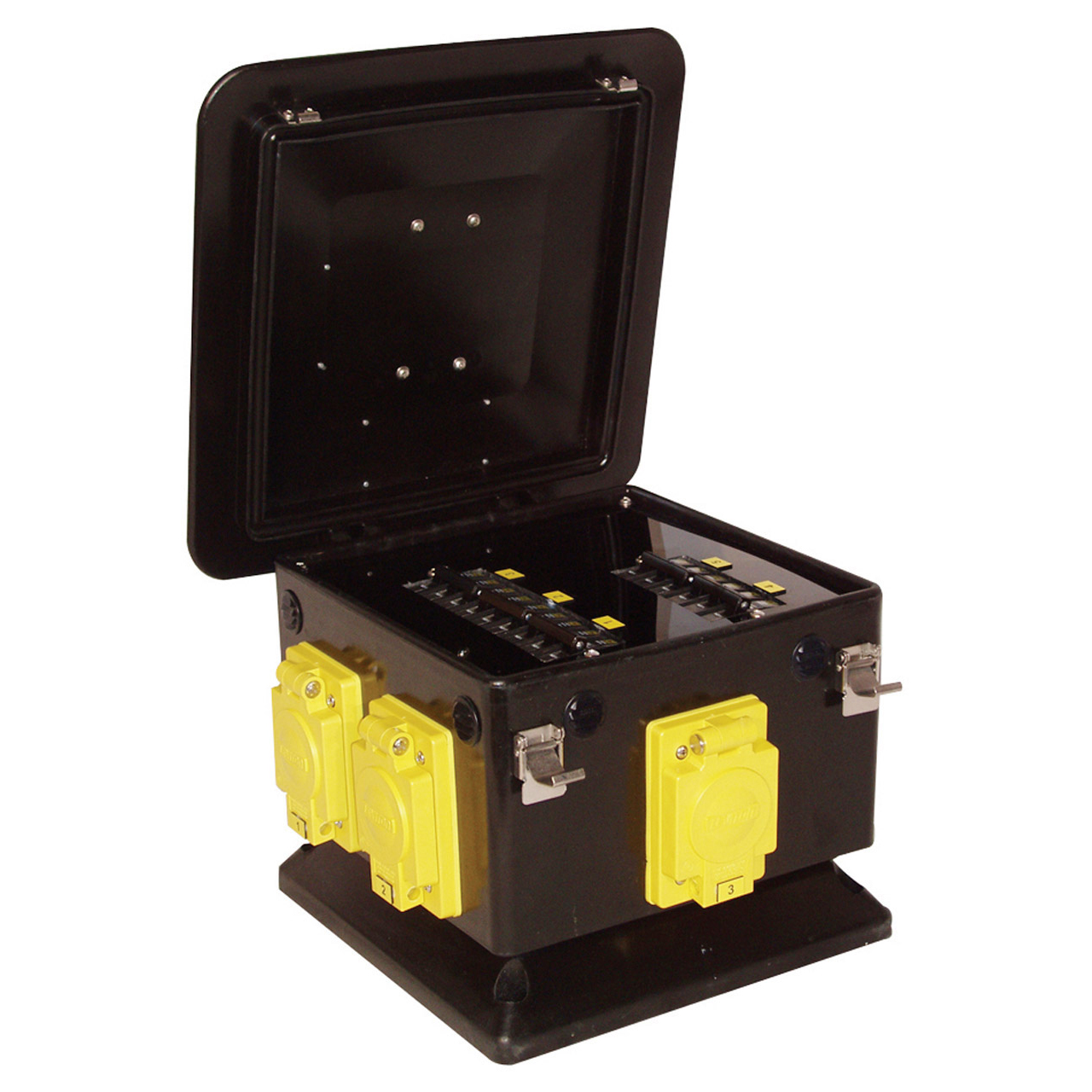

  • Circuit breakers are mounted under hinged lid for enhanced safety
  • Stackable and compact for easy storage and portability
  • Elevated base keeps receptacles above ground level


• Specifications:

  • Rating: 100 Amp, Three-phase (H,H,H,N,G), 4-pole, 5-wire, 120/208Y VAC, 60Hz
  • Environmental Rating: NEMA 3R (Weather Resistant)
  • Input: One set of 5x 16 Series Cam-type, 400 Amp, single pole, 600V, color-coded inlets, cover doors, panel mount
  • Feed Thru: None
  • Main Breaker: None
  • Output: 5x NEMA L21-20 , 20 Amp, 4-pole, 5-wire, 120/208Y VAC, locking receptacles, cover doors, panel mount
  • Overcurrent Protection: 5x 20 Amp, 120/208Y VAC, triple-pole, hydraulic magnetic, branch-rated circuit breakers
  • Enclosure Type: Pagoda™ A40
  • Dimensions (WxHxD): 14.25" x 14.15" x 14.25" (361.95mm x 359.41mm x 361.95mm)
  • Weight: 32.0lbs
  • Agency Approval: cULus Listed


• Item Includes:

  • 1x DB100MP-AFF-S3 portable power distribution box


• Warranty:

  • 1 Year Limited Warranty
