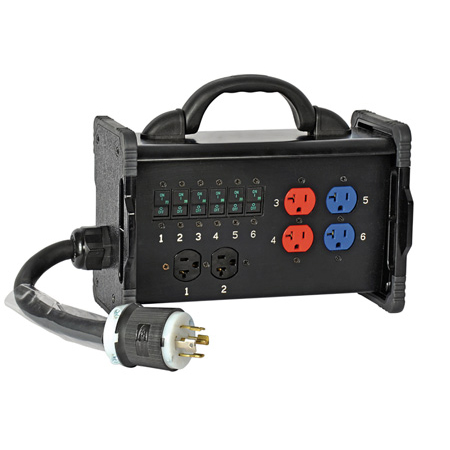

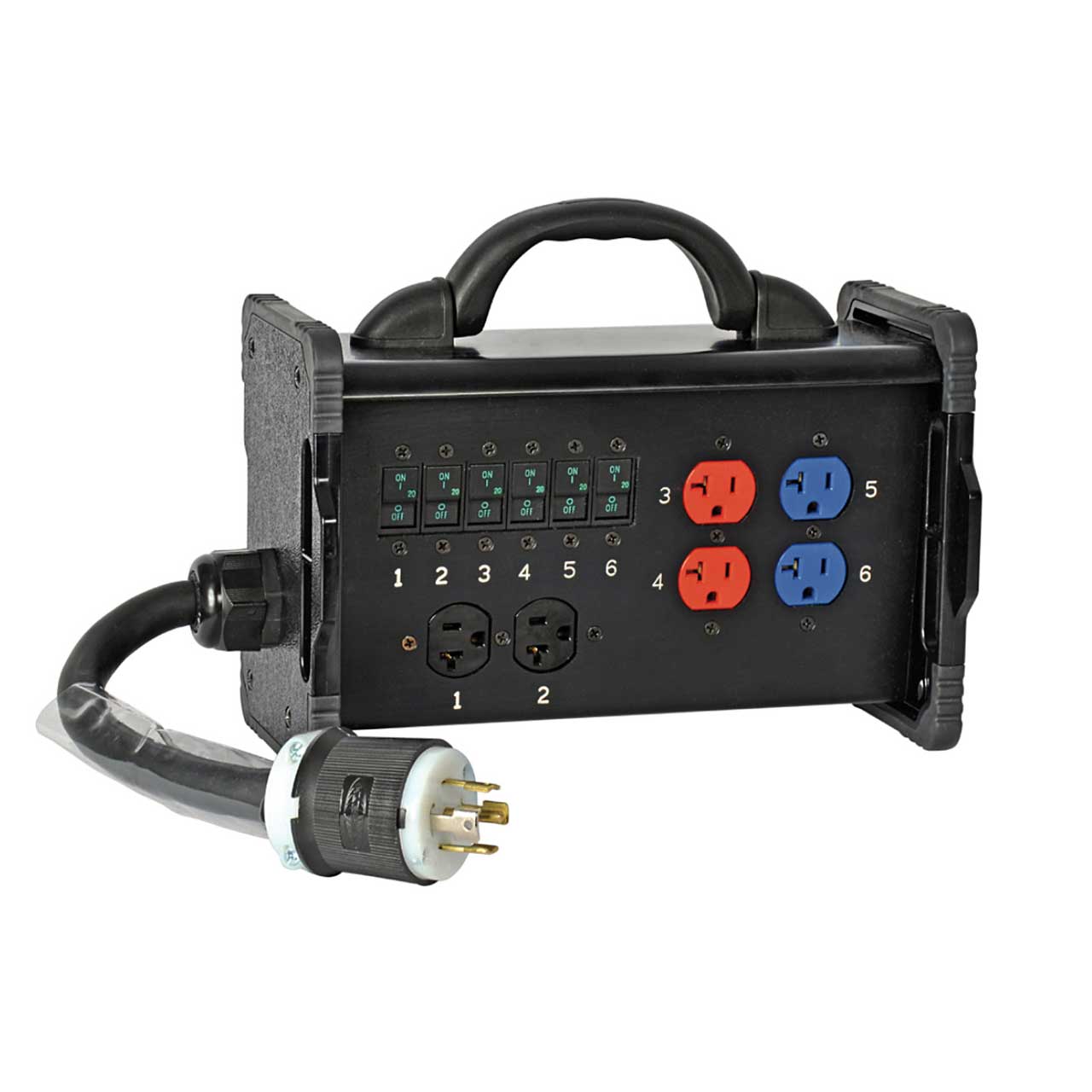

Lex BNB3-3B Tail Input 30 Amp Bento Box to (3) NEMA 5-20 Duplex Receptacle Power Distribution Box

ITEM #: LEX-BNB3-3B MFG #: BNB3-3B

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$1,402.80

Our Price:

$1,098.90

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


BNB3-3B - Overview

Adding the convenience of a locking 30 Amp plug on a 12 inch 10/5 SOW-A tail input, the Lex BNB3-3B Bento Box can be used in a variety of applications to distribute power to to three (3) NEMA 5-20, 20 Amp duplex receptacles. It's ideal for cameras, lights, effects, audio equipment and tools used in video production trailers, OB vans and similar outside production work. The BNB3-3B ensures overcurrent safety with its (6) 20 Amp hydraulic magnetic branch-rated circuit breakers.

  • Features:

    • Hydraulic magnetic circuit breakers help prevent nuisance tripping at higher temperatures
    • Stackable and compact for easy storage
    • Heavy-duty extruded engineered thermoplastic enclosure is electrically insulated and resistant to shock, impact and corrosion
    • Circuit breakers are mounted flush for easy access and numbered for easy circuit identification
    • Collapsible handle and end plate grips for easy handling in tight spaces
    • 30 Amp, 3 Phase, 4 Pole, 5 Wire, 120/208Y VAC
    • Bento Enclosure NEMA 1 Indoor Rated
    • NEMA L21-30, 30 Amp locking plug on 12 inch 10/5 SOW-A tail to (3) NEMA 5-20, 20 Amp color-coded duplex receptacles split wired for (6)
    • 20 Amp circuits

  • Specifications:

    • Rating: 30 Amp, 3 Phase (H,H,H,N,G), 4 Pole, 5 Wire, 120/208Y VAC
    • Environmental Rating: NEMA 1 Indoor
    • Input: (1) NEMA L21-30, 30 Amp, 3 Phase, 4 Pole, 5 Wire, 120/208Y VAC locking plug on 12 inch 10/5 SOW-A tail
    • Output: (3) NEMA 5-20, 20 Amp, 2 Pole, 3 Wire, 120 VAC color-coded duplex receptacles split wired for (6) 20 Amp circuits
    • Feed Thru: None
    • Overcurrent Protection: (6) 20 Amp hydraulic magnetic branch-rated circuit breakers
    • Dimensions: 11.5”L x 5.9”W x 7.6”H
    • Weight: 6.5 lbs
