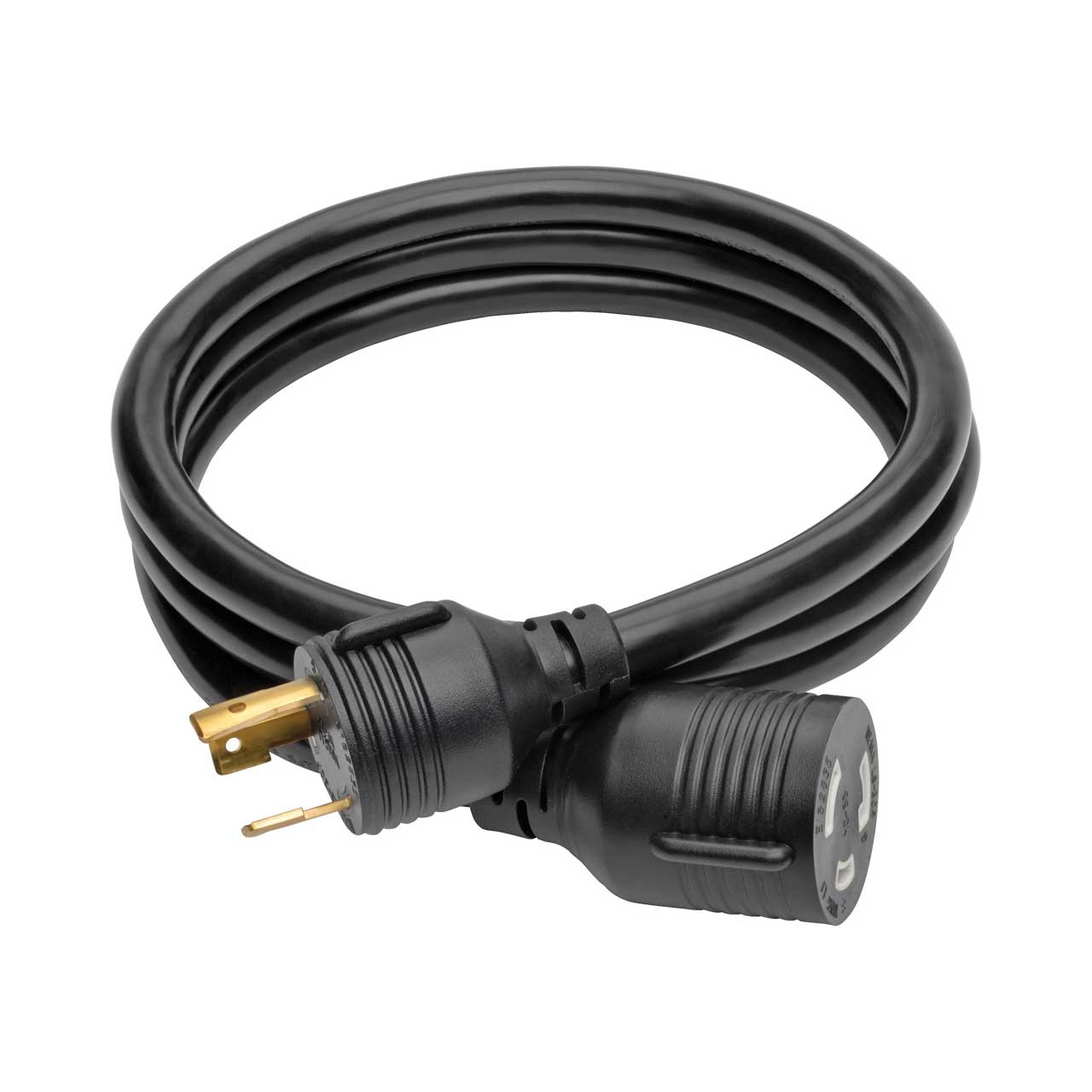

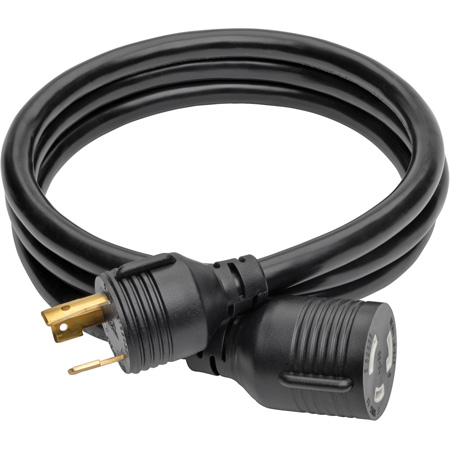

Tripp Lite P046-006-LL-30A Heavy Duty Power Extension Cord 30A 10 AWG L5-30P L5-30R - 6 Foot

P046006LL30A - Overview

• Features:

  • NEMA L5-30R receptacle at opposite end
  • Locking connectors prevent accidental disconnection
  • Molded locking connectors prevent accidental disconnection
  • Integral strain relief
  • 125V/30A rating
  • Durable PVC jacket
  • 6 ft. long


• Specifications:

  • Input
  • Maximum Input Amps: 30
  • Cable Length (ft.): 6
  • Cable Length (m): 1.8
  • Cable Length (in.): 72
  • Voltage Compatibility (VAC): 125
  • Cable Length (cm): 182.88

    Physical
  • Power Cord Jacket Type: SJT
  • Wire Gauge (AWG): 10
  • Wire Gauge (OD - mm): 5.26
  • Shipping Dimensions (hwd / in.): 11.50 x 9.00 x 0.50
  • Shipping Dimensions (hwd / cm): 29.21 x 22.86 x 1.27
  • Shipping Weight (lbs.): 1.90
  • Shipping Weight (kg): 0.86
  • Color: Black
  • Number of Conductors: 3

    Enviromental
  • Operating Temperature Range: 41 F to 95 F (5 C to 35 C)
  • Storage Temperature Range: 41 F to 95 F (5 C to 35 C)
  • Operating Humidity Range: 0-65% RH
  • Storage Humidity Range: 0-65% RH

    Connections

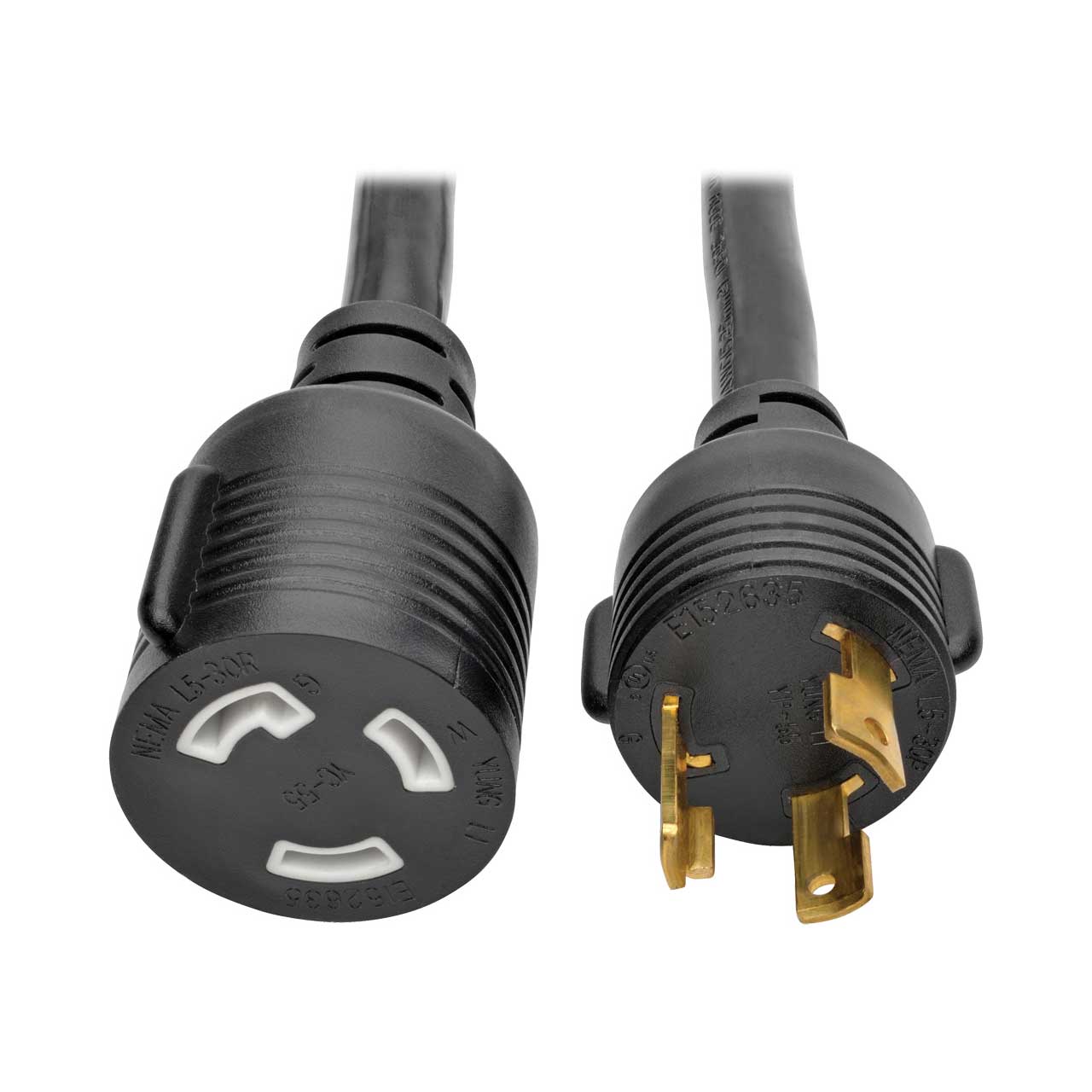

  • Side A - Connector: 1 NEMA L5-30P
  • Side B - Connector: 1 NEMA L5-30R


• Item Includes:

  • P046-006-LL-30A Heavy-Duty Power Extension Cord, 6 ft.


• GTIN:

  0037332200938
