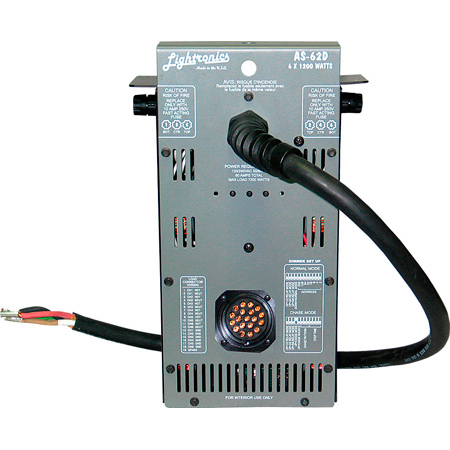

Lightronics AS62DCSL Portable Dimmer

AS62DCSL - Overview

• Features:

  • 6 Channels
  • 1200W per Channel
  • 2 - 30 Amp Circuits
  • 7200 Watts Total Capacity
  • 8 Built in Chases
  • DMX-512 & LMX-128
  • Relay Mode Switchable
  • Circuit Breakers
  • 19 Pin LINK© Socapex Output
  • 120V


• Specifications:

  • Channels: 6
  • Channel Capacity: 1200 Watts per Channel
  • Total Power: 7200 Watts
  • Control Protocol: DMX-512 and 3 Wire LMX-128
  • Control Connections: Dual 5 Pin XLR, DMX Dual 3 Pin XLR, LMX
  • Power Requirements: 120VAC, Two 30 Amp Circuits
  • Power Input: 4 Conductor 10 Gauge Pigtail
  • Frequency: 50 or 60Hz
  • Preheat Voltage: Soft Start Control
  • Response Curve: Modified Square Law
  • Filter Rise Time: 350 Microseconds
  • Filter Max. Rate of Rise: 105 Milliamps / Microsecond
  • Response Time: 8.3 Milliseconds
  • Full Load Voltage Drop: 3 Volts
  • Conduction Angle Range: 180 Degrees
  • Efficiency: 97%
  • Dimensions (LxWxD): 13.5 x 8.5 x 3 3/8"
  • Weight: 9Lbs
