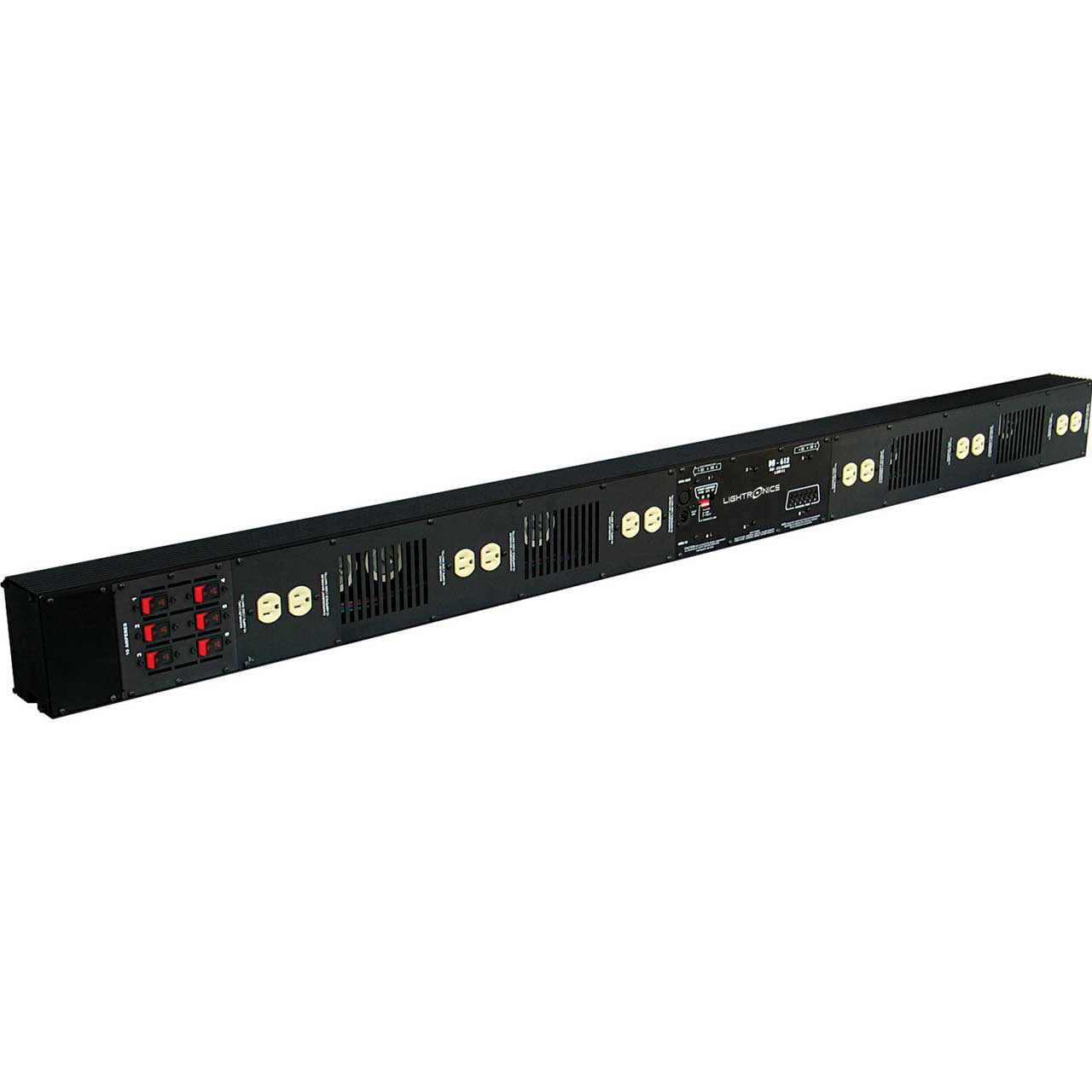

Lightronics DB-612-TL Distributed Dimming Bar - L5-20 Twistlock

ITEM #: LGT-DB-612-TL MFG #: DB-612-TL

Primary Image
Lightronics
Free Shipping with $49 Minimum Order

Our Price:

$1,629.25

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Shipped truck freight.
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

DB-612-TL - Overview

The DB-612 is a 6 channel dimmer with a capacity of 1,200 watts per channel giving a total of 7200 watts. The DB-612 is controlled by a control console using the USITT DMX-512 lighting control protocol. Individual channels may be set to operate in "relay" mode where channels are switched only on or off depending on console fader position.

  • Features:

    • 6 Channels
    • 1200W per Channel
    • DMX512
    • Integrated Accessory Mounting Track
    • Fast Acting 10 Amp Magnetic Circuit Breakers
    • 4 Position Terminal Strip Power Input
    • Twistlock Outputs
    • UL-508 Compliant


  • Specifications:

    • Channels / Capacity: 6 @ 1200 Watts each
    • Semiconductors: 40 Amp 400V Triacs, 300% overhead
    • Power Requirements: 120/240VAC Single Phase, 30 Amps / 120/208VAC Three Phase, 20 Amps
    • Control Protocol: DMX512
    • Filtering: 450 Usec. Minimum
    • Overload Protection: 10 Amp, Fast Acting Magnetic Circuit Breaker for each Channel
    • Addressing: Rotary switch addressing to any channel on DMX512 universe, 6 channel DMX profile
    • Local Control: On board test buttons for each channel
    • Relay Mode: Independently assigned by channel
    • Output Panel Options-
    • NEMA 5-15, 15A @ 120v, Edison Plug
    • 2 P&G 20 amp @ 120v, Stagepin
    • NEMA L5-20, 20amp @ 120V, Twistlock
    • Size: 72” (L) x 5” (W) x 3” (D)
    • Weight: 26 Pounds
