Lilliput A12 12.5 Inch 4K Broadcast Monitor

ITEM #: LIL-A12 MFG #: A12

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$659.00

Our Price:

$599.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


A12 - Overview

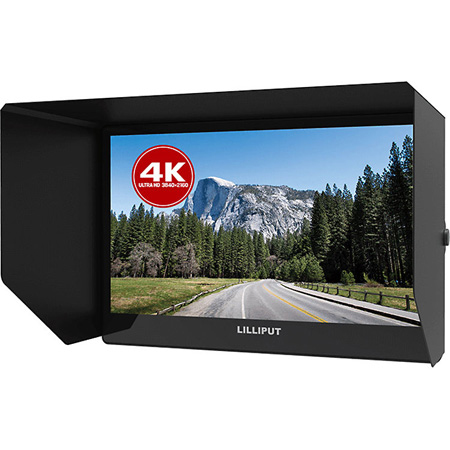

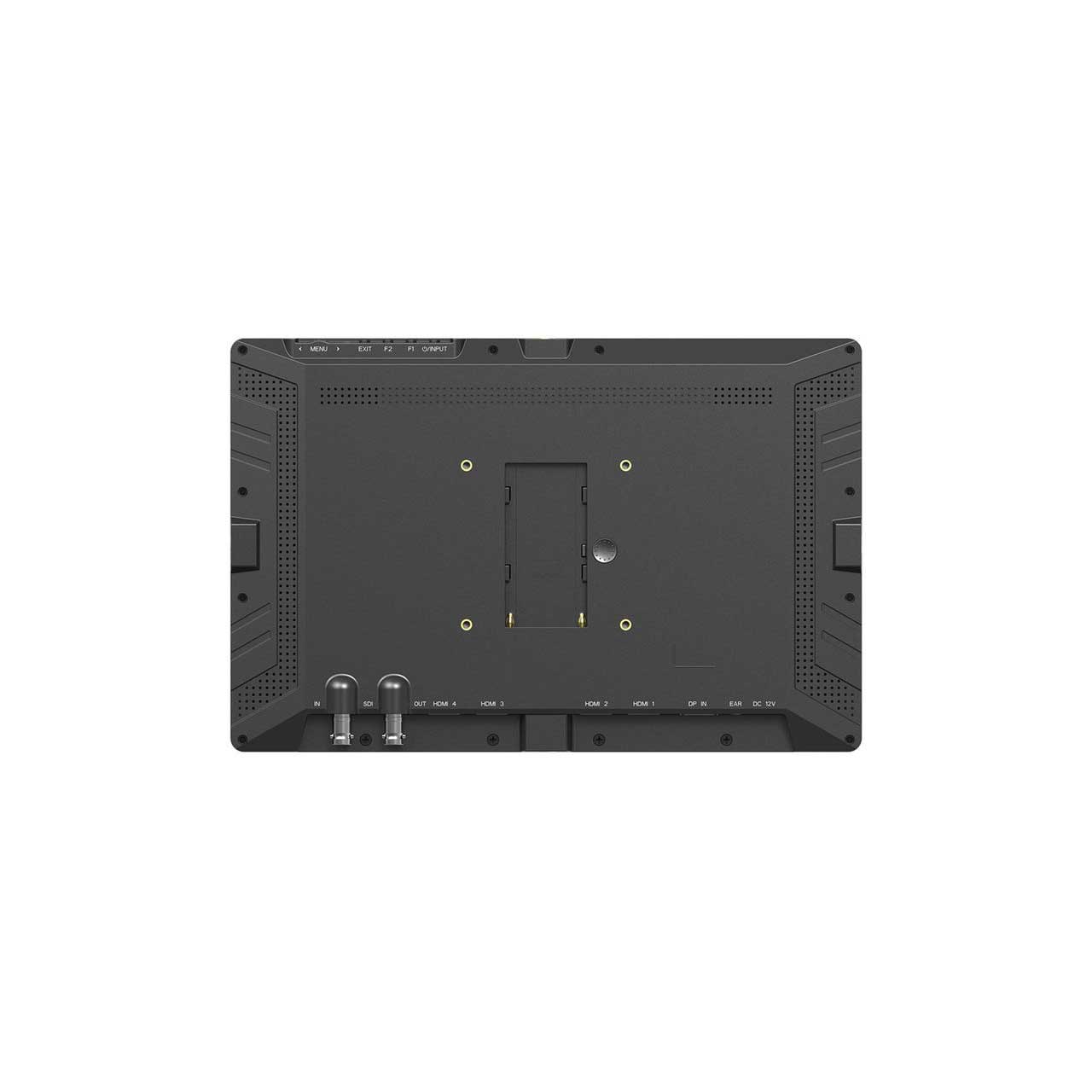

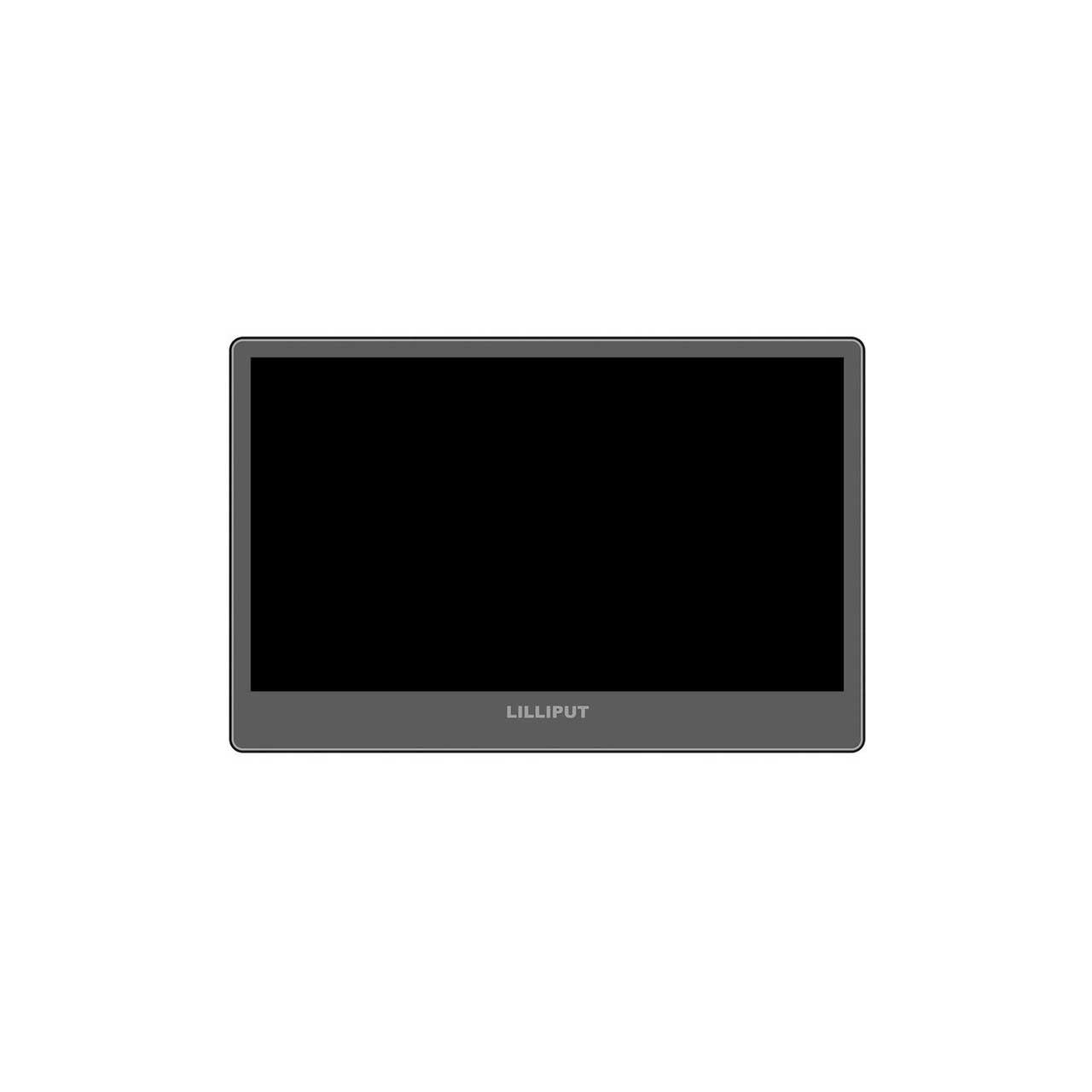

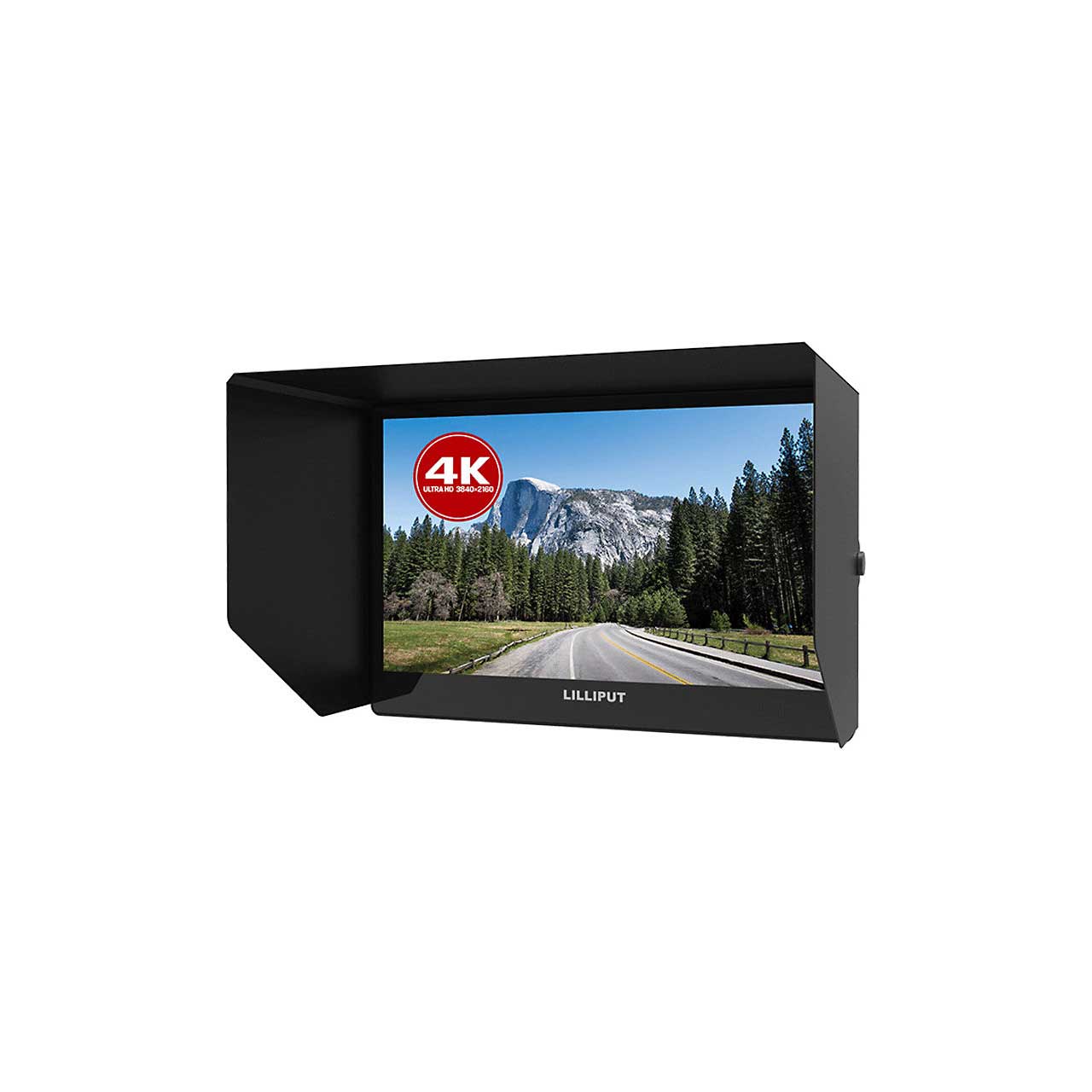

The Lilliput A12 is a compact Ultra HD 12.5 inch 4K Broadcast Monitor! HD and UHD 4K workflows become simpler with built in tools like Quad View, False Color, Peaking and Image Flip, Over and Underscan and more. The Lilliput A12 is input adaptable with Three HDMI 1.4 and one HDMI2.0 ins as well as 3G-SDI and Displayport 1.2. The 12.5 inch 8 bit IPS Display Screen has a 16:9 Aspect ratio, 1500:1 Contrast and a 400 cd/m2 Super Bright Screen with a physical resolution of 3840 x 2160! The A12 is equipped with four 1/4"-20 threads that are located around the edge of the monitor allowing for any number of mounting options. A V-mount battery plate is included to attach camera mounted batteries for long life operation when in the field.

  • Features:

    • Display Screen 12.5" 8bit IPS
    • Physical Resolution 3840 x 2160
    • Aspect Ratio 16:9
    • Brightness 400cd/m²
    • Contrast 1500:1
    • Viewing Angle 170°/ 170° (H/V)
    • 3G-SDI, HDMI 2.0 x1 / HDMI 1.4 x3 , Displayport 1.2
    • Quad view, false color, peaking, image flip
    • light and slim 21mm

  • Specifications:

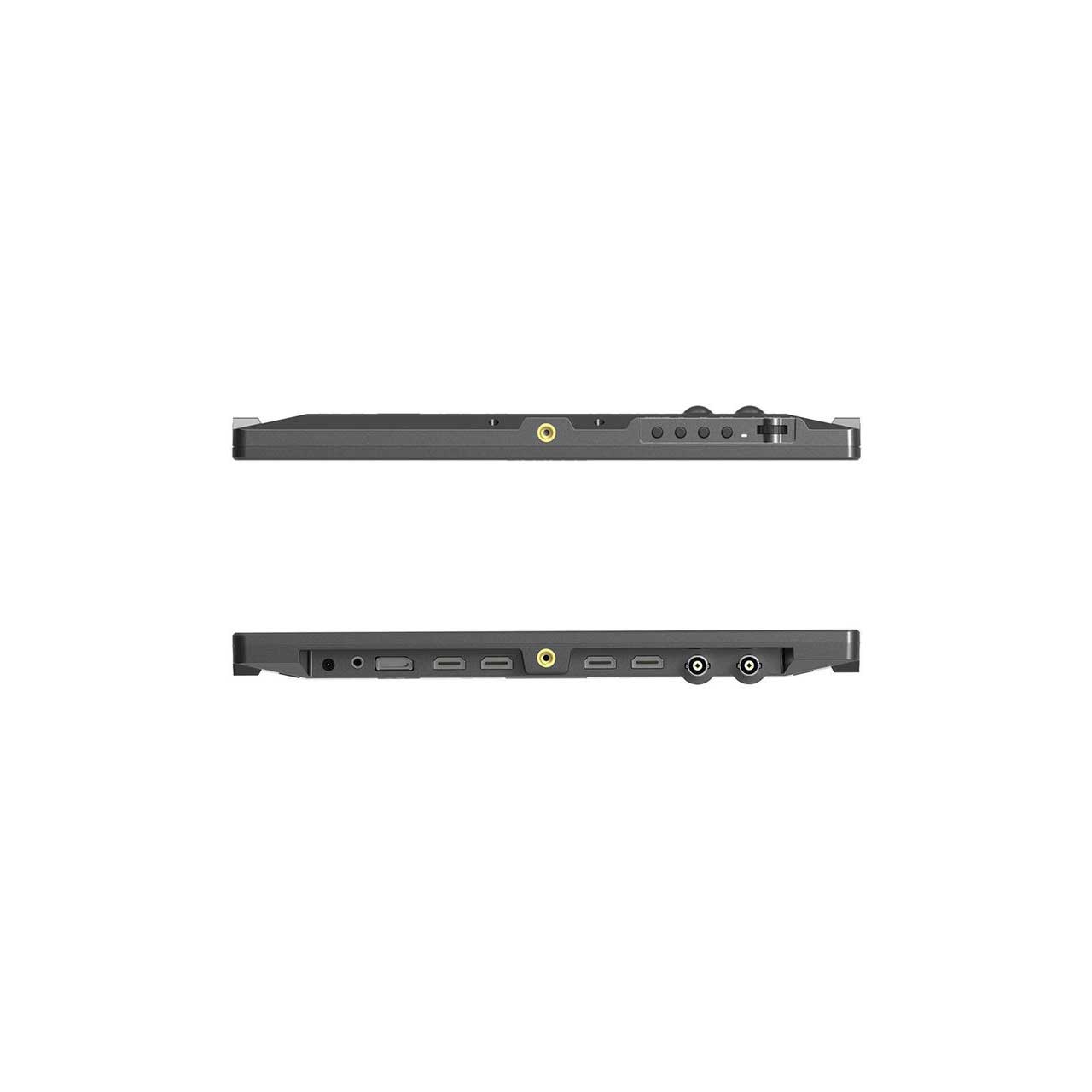

    • Video Inputs: 1 x BNC, 3G-SDI, 1 x HDMI type A, v2.0, 3 x HDMI type A, v1.4, 1 x DisplayPort, v1.2
    • Video Output: 1 x BNC, 3G-SDI
    • Audio Output: 1 x 3.5 mm, headphone, 2 x Speakers
    • Input Voltage: 7 to 20 VDC
    • Power Draw: 12 VDC, 1.3 A
    • Operating Temperature: -4 to 122°F / -20 to 50°C
    • Storage Temperature: -22 to 158°F / -30 to 70°C
    • Dimensions: 11.7 x 7.7 x 0.9" / 29.8 x 19.5 x 2.2 cm
    • Weight: 2.1 lb / 960 g
    • Screen Size (Diagonal): 12.5" / 31.8 cm
    • Aspect Ratio: 16:9
    • Resolution: 3840 x 2160
    • Viewing Angle:170°/170° (H/V)
    • Brightness: 400 cd/m2
    • Contrast Ratio: 1500:1
    • Backlight: LED

  • Item Includes:

    • Lilliput A12 12.5" 4K Monitor
    • Sun Hood
    • HDMI 2.0 Cable
    • Shoe Mount
    • D-Tap Power Cable
    • V-Mount Plate
    • Power Supply
    • Limited 1-Year Warranty

  • Warranty:

    • 1 Year

  • GTIN:

    0695082160140
