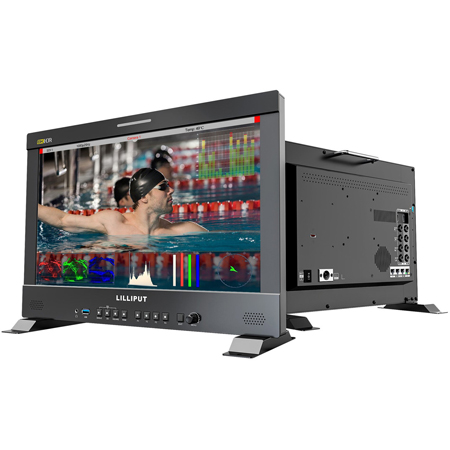

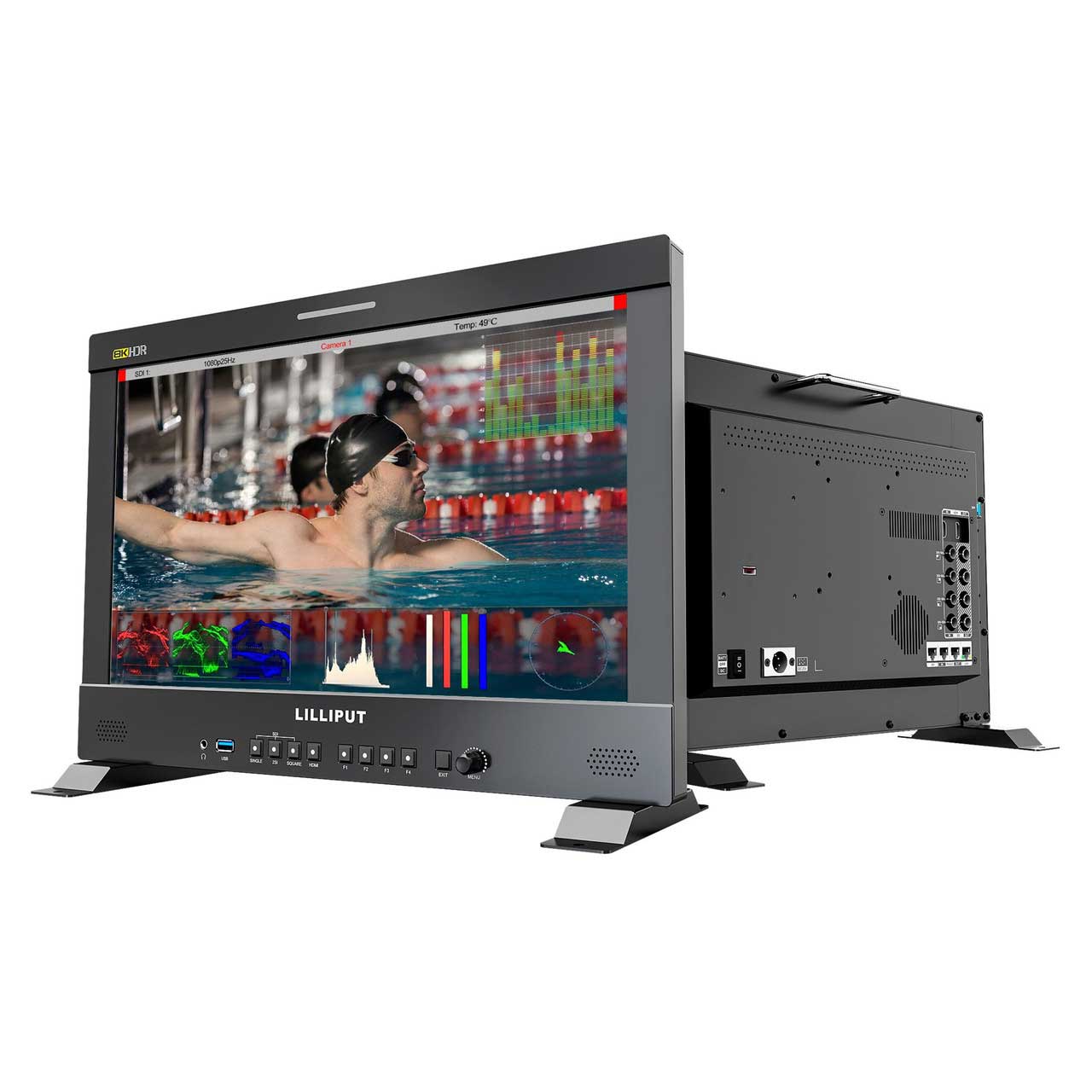

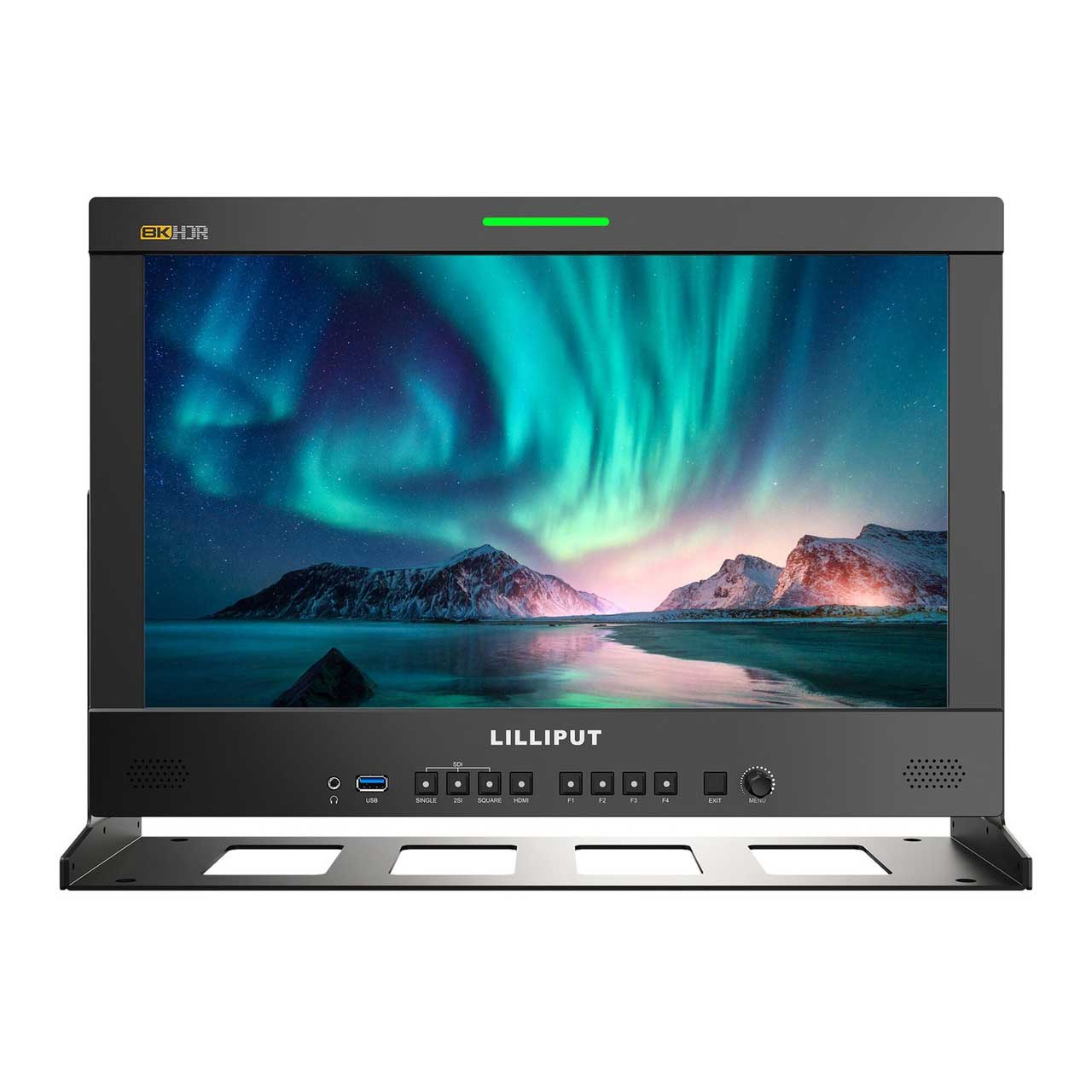

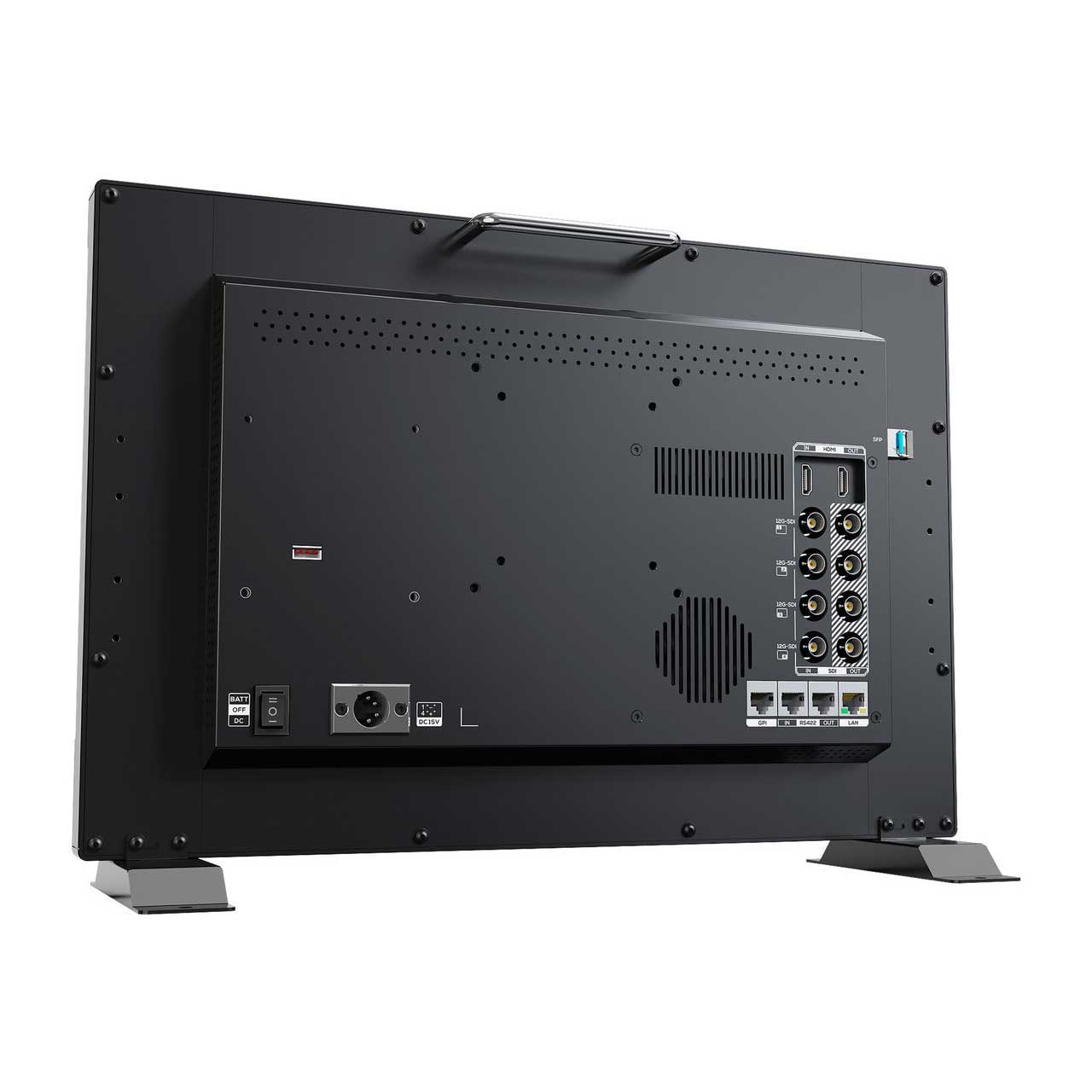

Lilliput Q-18-8K 8K 12G-SDI 17.3 In 3840 x 2160 Broadcast/Production Monitor w/ Gold Mount Battery Plate & Carrying Case

Q18-8KABBPCC - Overview

• Features:

  • Supports Standard 12G-SDI Input interface (x4)
  • Supports Single-Link, Dual-Link, and Quad-Link Signals
  • Supports HDMI 2.0/1.4 Inputs and Loop Outputs
  • Supports Quad Split Multiview
  • Monitor Control via GPI/RS422/LAN
  • Time Code: LTC/VITC
  • Customized Menu Knob
  • 12 Bits data processing and 12 bits data buffering
  • False Color: Default/Spectrum/ARRI/RED
  • Color Temperature: 3200K/5500K/6500K/7500K/9300K/User
  • HDR (High Dynamic Range) display supporting ST 2084/Hybrid Log Gamma


• Specifications:

  • Display
  • Panel: 17.3"
  • Physical Resolution: 3840x2160
  • Aspect Ratio: 16:9
  • Brightness: 400cd/m²
  • Contrast: 1200:1
  • Viewing Angle: 170°/170°(H/V)
  • HDR: ST2084 300/1000/10000/HLG
  • Supported Log Formats: SLog / SLog3 / CLog / NLog / ArriLog / JLog or User
  • Look Up Table (LUT) Support: 3D LUT (.cube format)
  • Calibration: Calibration to Rec.709 with optional calibration unit

    Video Input
  • SDI: 4x12G, (Supported 8K-SDI Formats Quad Link)
  • SFP: 1x12G SFP+(Fiber module for optional)
  • HDMI: 1xHDMI 2.0

    Video Loop Output
  • SDI: 4x12G (Supported 8K-SDI Formats Quad Link)
  • HDMI: 1xHDMI 2.0

    Supported Formats:
  • SDI: 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSPF 24/25/30, 1080i 50/60
  • SFP: 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSPF 24/25/30, 1080i 50/60, 720p 50/60
  • HDMI: 2160p 24/25/30/50/60. 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60

    Audio In/Out (48kHz PCM Audio)
  • SDI: 16ch 48kHz 24-bit
  • HDMI: 8ch 24-bit
  • Ear Jack: 3.5mm
  • Built-In Speakers: 2

    Remote Control
  • RS422: in/out
  • GPI: 1
  • LAN: 1

    Power
  • Input Voltage: DC 12-24V
  • Power Consumption: ≤40W (15V)
  • Compatible Batteries: V-Lock or Anton Bauer Mount
  • Input Voltage (Battery): 14.8V Nominal

    Environment
  • Operating Temperature: 0°C ~ 50°C (32°F ~ 122°F)
  • Storage Temperature: -20°C ~ 60°C (-4°F ~ 140°F)

    Other
  • Dimension(LWD): 433.9 x 294.2 x 45.7mm (19.1 x 11.6 x 1.8 In)
  • Weight: 3.9kg (8.6 lbs)


• Item Includes:

  • 1x 15V/4A DC Adapter
  • 1x VESA Mount Plate Bracket
  • 1x Gold Mount
  • 1x 8GB USB Flash Drive
  • 1x Carrying Case
  • 1 Pair of Base Brackets


• Warranty:

  • 1 Year Warranty


• Applications:

  • Video Post Production
  • Movies


• GTIN:

  6950821602898
