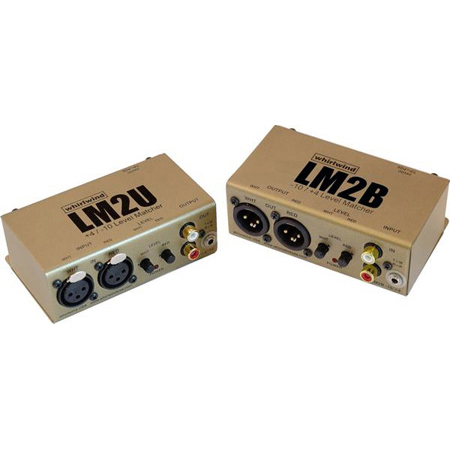

Whirlwind LM2U Balanced to Unbalanced Converter

ITEM #: LM2U MFG #: LM2U

Primary Image
Whirlwind
Free Shipping with $49 Minimum Order

List Price:

$176.69

Our Price:

$174.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

LM2U - Overview

These handy boxes can be used to match consumer grade audio devices (-10dB) to pro equipment (+4dB). These units convert the level and provide the conversion from balanced to unbalanced operation and vice-versa.

  • Features:

    • XLR, TRS mini and RCA phono jacks
    • Level controls
    • Active circuitry, power by Whirlwind PS24 supply (included)


  • Specifications:

    • Frequency Response 20-20 kHz at unity gain, +/- .1 dBv
    • Total Harmonic Distortion +noise < .0015% 20-20kHz at unity gain; < .0024% 20-20 kHz, +4 to -10 levels
    • Phase Shift < 11.4 degrees 20-20 kHz; < 2 degrees 100-4 kHz
    • Dynamic range 95.7 dB @ .1% thd
    • Total Gain 40 dBv
    • Range of level pot -40 to + 40 dBv
    • Maximum Input level +17 dBv
    • Input Impedance 20 k Ohms balanced
    • Maximum output level +17 dBv
    • Output Impedance 100 Ohms unbalanced
    • Noise at 20 dBv of gain -87.4 dBv 20-20 kHz
    • Noise at unity gain -103.4 dBv 20-20 kHz
    • Noise at 40 dBv of gain -68.1 dBv
    • Power consumption 34 mA DC max.
    • Stereo Separation 94 dB at 20 kHz; 110 dB at 1 kHz; 120 dB at 20 Hz


  • GTIN:

    0692465016254
