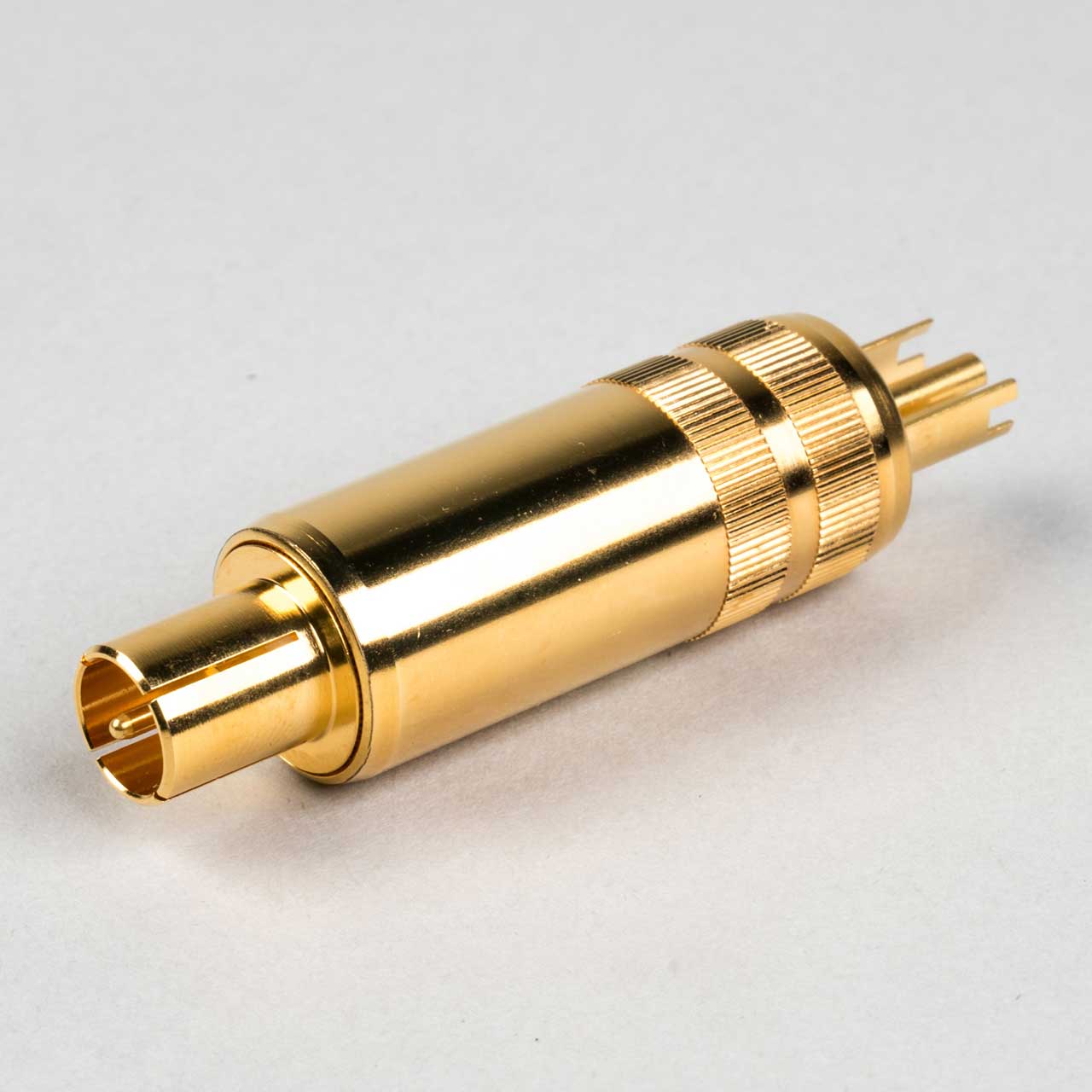

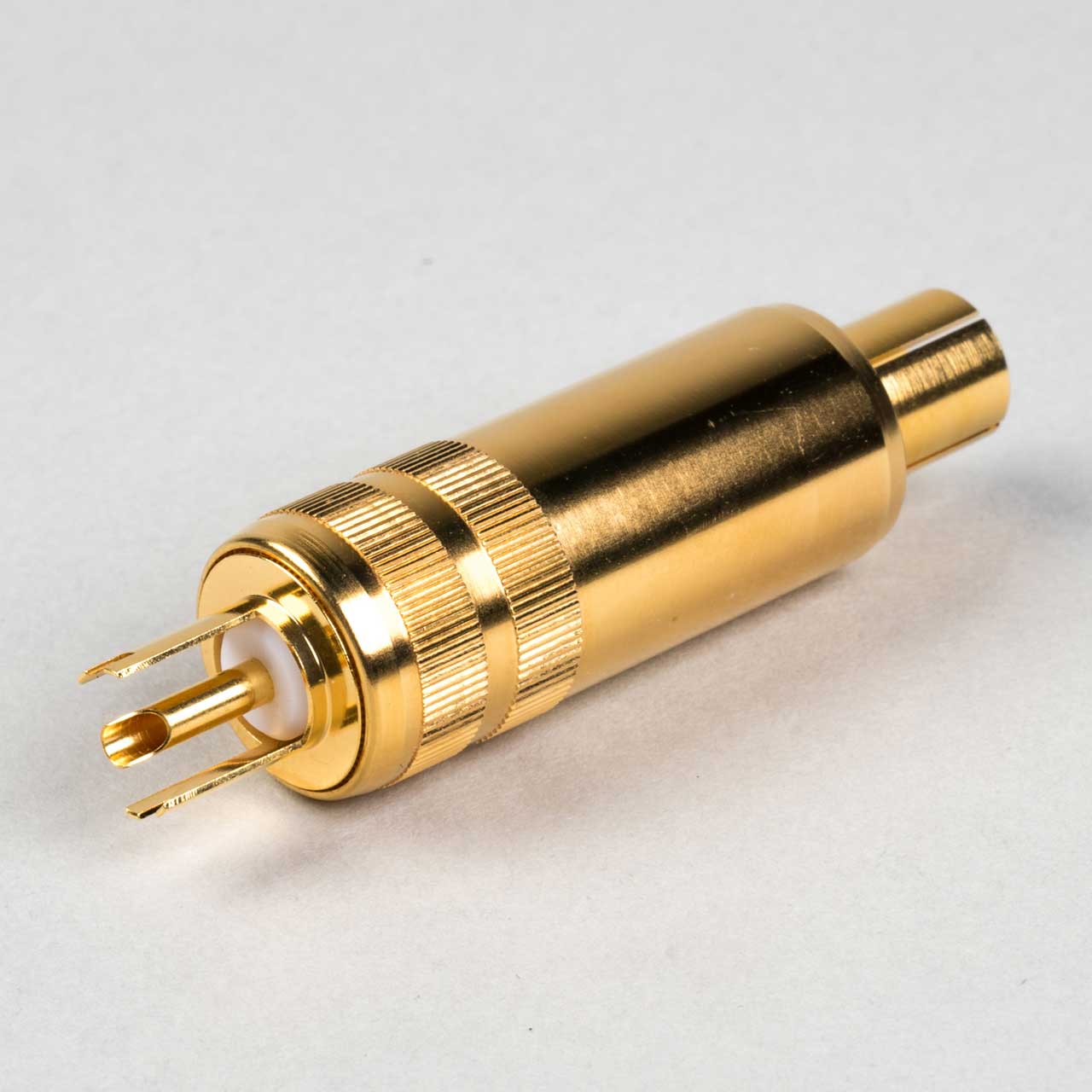

Lemo FBF.4A.675.ZTA Triax Insert - 75 Ohm

ITEM #: LMO-FBF4A675ZTA MFG #: FBF4A675ZTA

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Lemo USA
Free Shipping with $49 Minimum Order

List Price:

$208.15

Our Price:

$187.44

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

FBF4A675ZTA - Overview

Fixed plug with round flange and tag, nut fixing.

  • Specifications:

    • Keying: Circular (can rotate), plug has male contact(s)
    • Housing Materia: Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces
    • Cable Fixing: 0 - 0 mm
    • Insert Configuration 4A.675 : 1 Triax (75 Ohm)
    • Insulator T: PTFE
    • Contact Type: Triaxial 75 Ohm (Solder)
    • R (max): mOhm
    • Rated Current (A): 6
    • Vtest: 1200 V (AC), 1690 V (DC)
    • Impedance: 75 Ohm
    • Humidity (max): <=95% [at 60 deg C /140 F]
    • Salt Spray Corrosion: >144 hr
    • Climatical Category: 55/175/21
    • IP Rating 61
