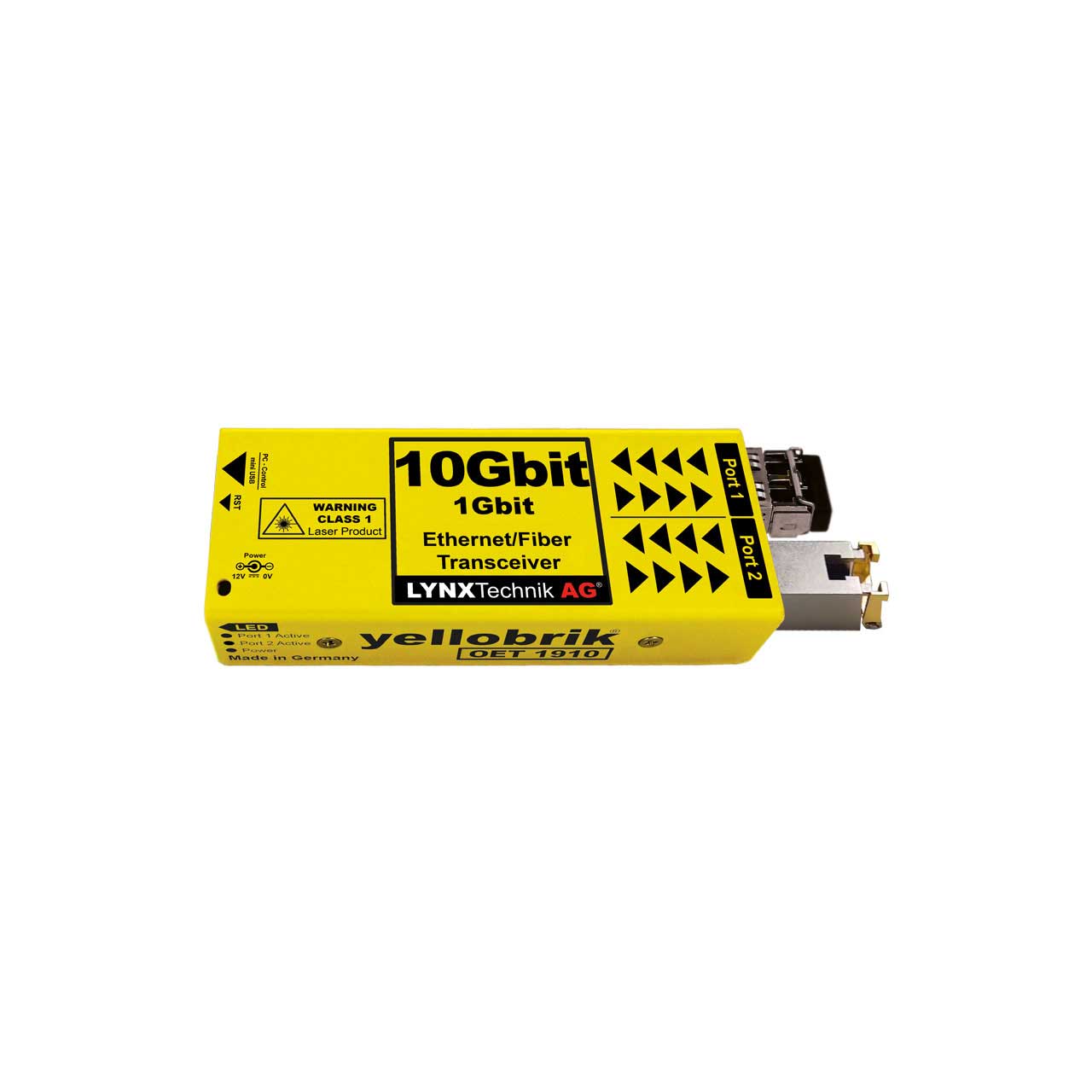

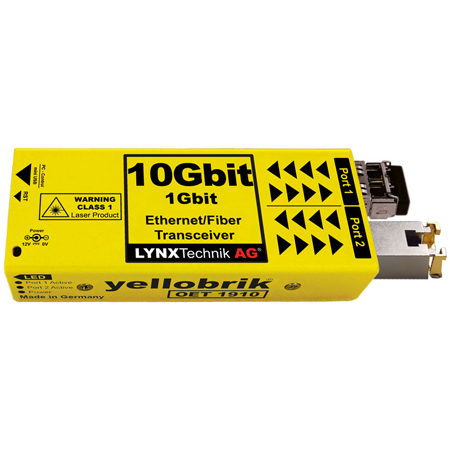

LYNX Technik OET 1910 10G/1G Ethernet/Fiber Optic Transceiver (Singlemode/1310nm/LC Connectors/20km)

O ET 1910 - Overview

• Features:

  • Supports standard Ethernet/Optical signals of 10Gbit/s or 1Gbit/s
  • Allows Fiber to Copper and Copper to Fiber conversion
  • Singlemode and Multimode versions available
  • 2x 10Gbit/s transceiver ports (Electrical/Optical) per module
  • Maximum throughput of 20Gbit/s (full duplex)

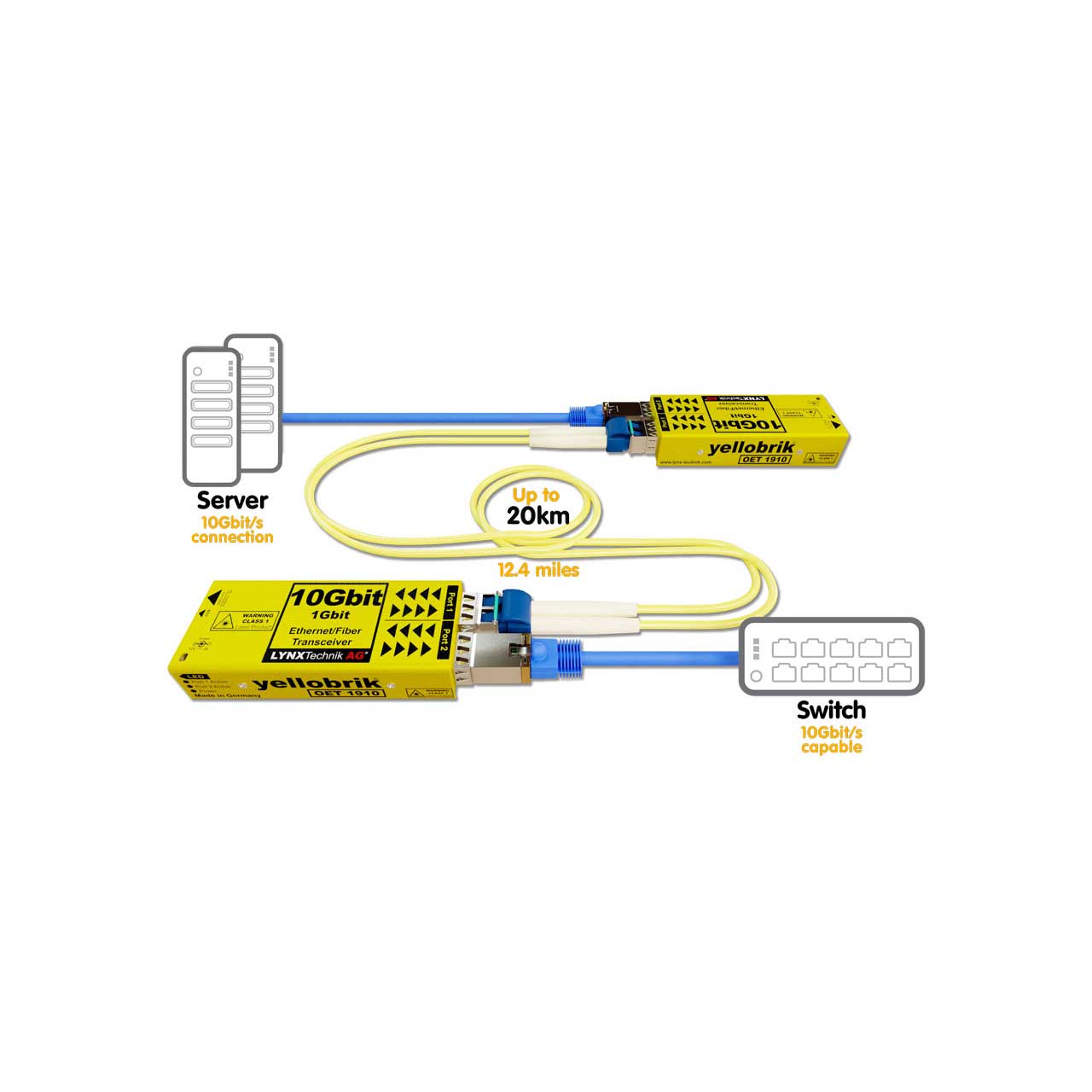

  • Distances up to 20km (12.4 miles) over singlemode fiber
  • Power and signal present LED indication
  • Supports hot swapping and hot plugging


• Specifications:

  • SFP Slots
  • 2x 10 Gigabit SFP+ slots (Port 1 & 2)
  • Supports 10GBase-T SFP, 10GBase-X, 1000Base-T
  • IEEE 802.3ae

    Port 1
  • 10Gbit/s Base Optical Long Reach+ Transceiver SFP
    1310nm wavelength - singlemode
    Duplex LC connector
    TX Optical Power: -3 to +1dBm / RX Sensitivity: -14.4dBm
    Max. distance up to 20km (~12.4 ml)
    10Gbit/s
  • Base Optical Multimode Transceiver SFP
    850nm wavelength - multimode
    Duplex LC connector
    TX Optical Power: -6 to -1dBm / RX Sensitivity: -11dBm
    Max. distance up to 300m (~984.2 ft) - 50/125µ OM3

    Port 2
  • 10Gbit/s Base Electrical I/O SFP
    10 Gigabit Ethernet via Cat6a/Cat7 cable
    RJ-45 connector
    Max. distance up to 30m (~98.4ft)

    General
  • LED
    3x LED
    1x Power LED
    2x Signal present LED
  • Power: +12V DC @ 4W with SFPs ( supports 7 - 15V DC input range )
  • Physical Size: 4.73 x 1.65 x 0.86" (120 x 42 x 22mm) including connectors
  • Weight: 125g (4.4oz)
  • Ambient Temperature: 5° to 40°C (41° to 104°F) 90% humidity (non condensing)


• Item Includes:

  • 1x OET 1910 Module
  • 1x Power Supply
  • 1x Quick Reference Guide


• Warranty:

  • 3 YEARS


• GTIN:

  4250479328358
