Thor Fiber F-GET-TRS-A Enhanced 10/100/100Base-T to 1000 Base-FX Single Fiber Media Converter - Transmitter

ITEM #: THR-F-GET-TRS-A MFG #: F-GET-TRS-A

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$238.80

Our Price:

$199.00

Availability: In Stock
iAvailability Description Popup


F-GET-TRS-A - Overview

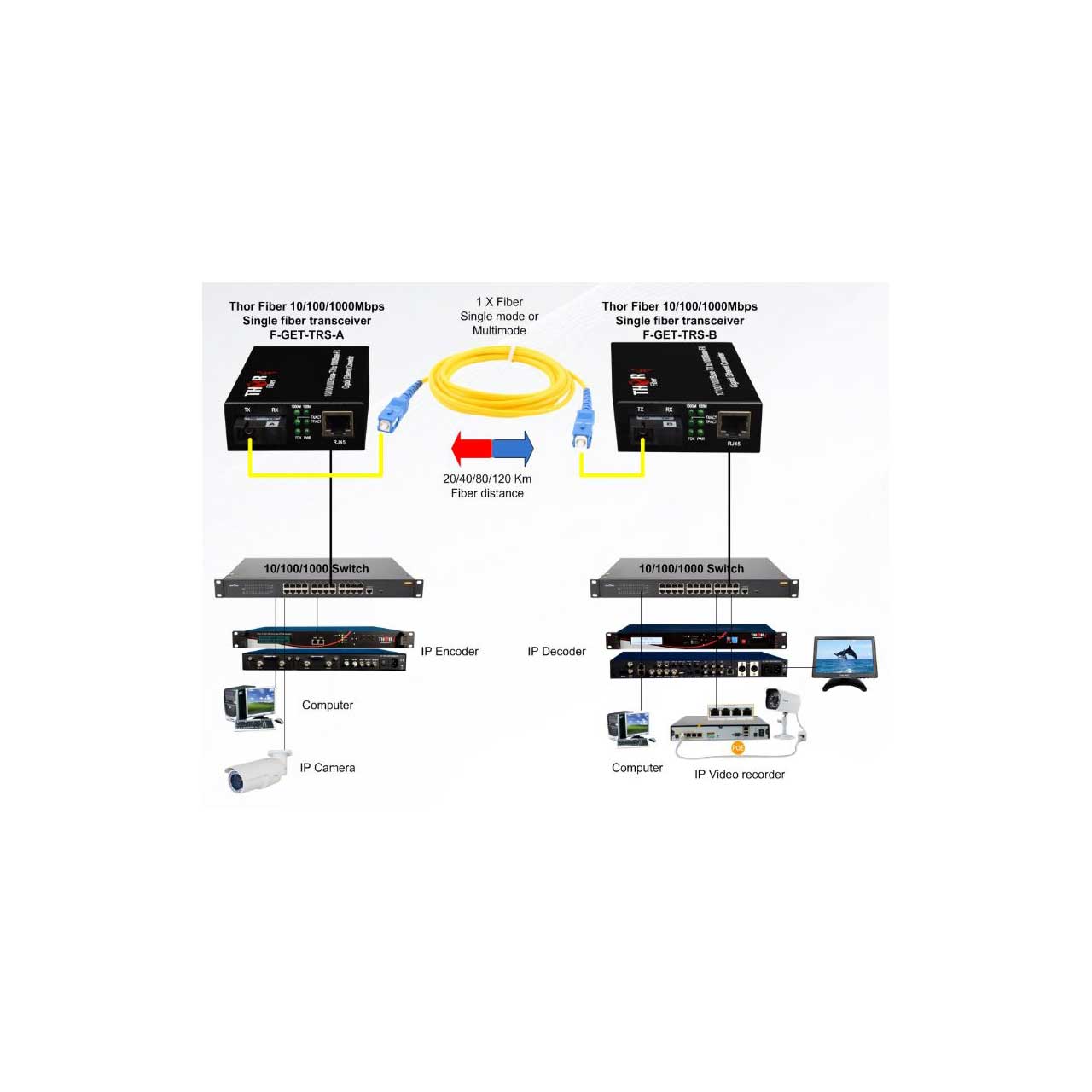

Thor Fiber's F-GET-TRS-A Gigabit and Fast Ethernet Converters now allow you to use a single fiber for full duplex Ethernet over Glass conversions. Advanced Fiber transmission technology allows Thor to encompass all Data to be transmitted and received simultaneously in full duplex over a single fiber, multimode or singlemode. This means less cabling, more spare fibers, less cost on new projects and simple wiring means that you can launch full gigabit bi-directional data over a fiber using a simplex SC/PC connector. Each model is labeled as A or B; you need both to make a set. You can not connect two A models or 2 B models together; by creating the A and B model system we're now able to use 2 wavelengths, 1310nm to send and 1550nm to receive information in a full duplex environment utilizing one fiber.

  • Features:

    • Enhanced 10/100/100Base-T to 1000Base-FX Single Fiber
    • Single fiber Media Converter, Transmitter (WDM TX1310nm/ RX1550nm)

  • Specifications:

    • Connector: SC/PC SIMPLEX Connector
    • IEEE: IEEE 802.3 10BaseT, 802.3u 100BaseTX/FX
    • Mac Address Table: 1 K
    • Rate 10M: 14,880pps
    • Rate 1000M: 148,800pps
    • Transfer Rate: 2000 Mbps - Full Duplex
    • Wave length: 1310 nm for A side and 1550nm for B Side
    • Fiber: 1000BaseFX: 1 x SC Simplex Connector
    • Typical Distance: 3000 feet for multimode version 20km for singlemode; (optional 40 or 80km add)
    • Min Tx Power: -8 dBm for 20km version
    • Max Tx Power: -0 dBm for 80/120Km version
    • Power: DC 5V, 1.6A
    • Ethernet: 10/100BaseT: 1 x RJ45 Connector
    • Sensitivity: -30.0 dBm for 80/120Km , -25dBm for 40Km version, -18 dBm for 20Km version
    • Power Consumption: 5 W
    • Operating Temperature: 0° ~ 50° C
    • Humidity: 5% ~ 90% non-condensing
    • Dimensions: 70 x 95 x 26 mm(2.75 x 3.74 x 1.02 inches)
    • Weight: 0.6 Kg
    • Approvals: FCC Class A, CE
    • Link Budget: 10.0 dB /20Km 15db/40Km, 27db/80Km 35db/120Km
    • Storage Temperature: -20° ~ 60° C
