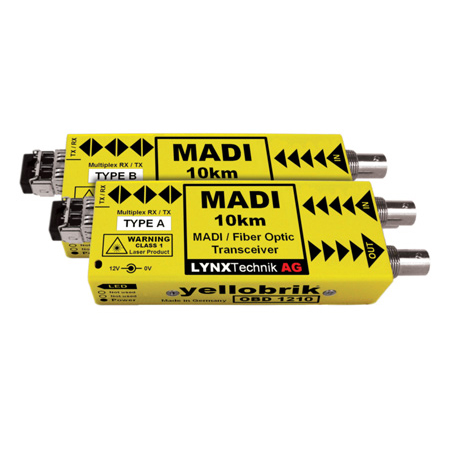

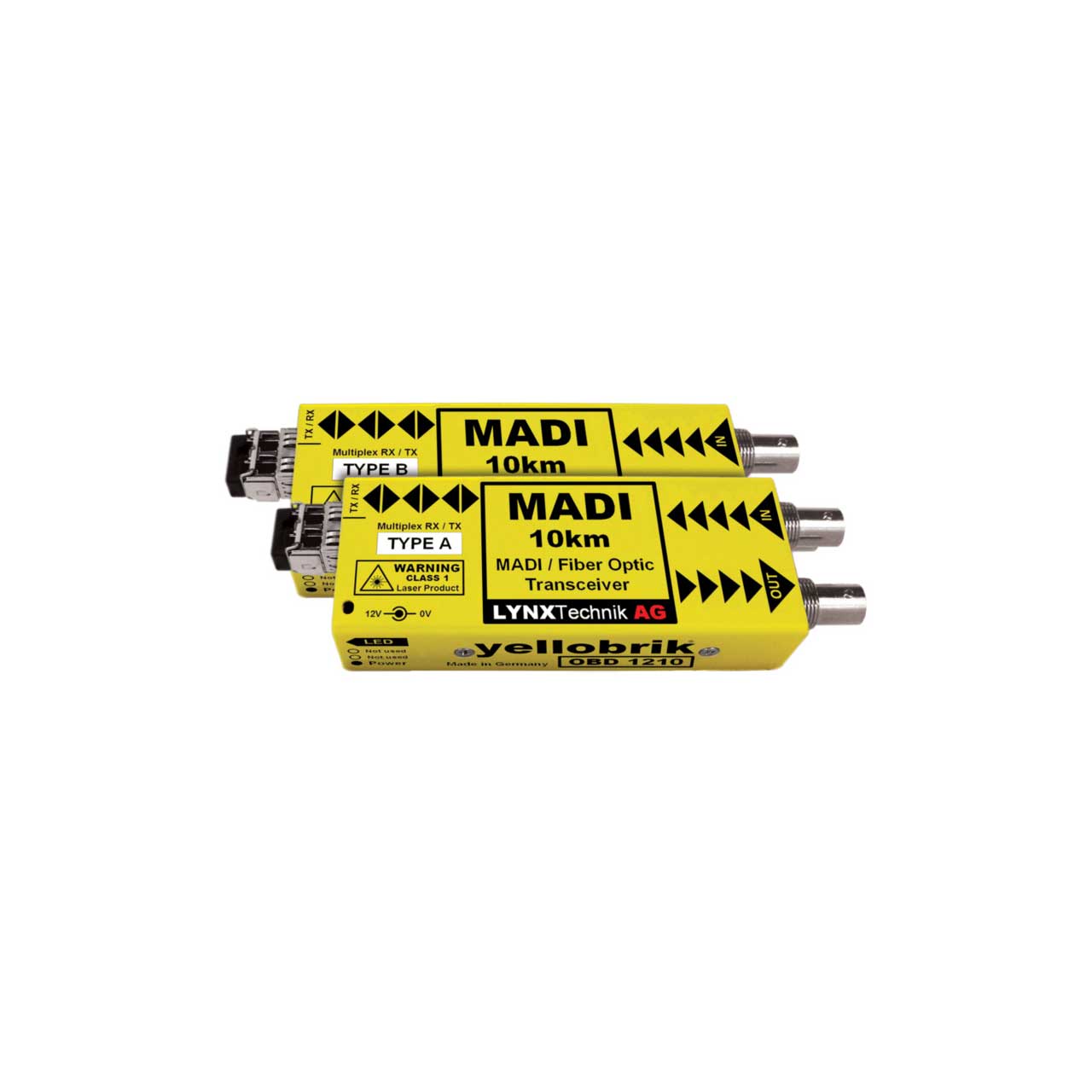

LYNX Technik Yellobrik OBD 1210 MADI Coax to MADI Bidirectional Fiber Transceivers (PAIR A & B) - LC Connectors

OBD 1210 - Overview

• Features:

  • Bidirectional MADI send and receive over single fiber link
  • MADI Optical to MADI Coaxial converters
  • Supports up to 64 channels of audio (IN and OUT)
  • Real time conversion with no degradation of signal quality
  • Closed loop WDM fiber system
  • Distances up to 10km (6.2 miles) over SMF fiber
  • Supplied as matched pair (A and B version)
  • Simplex LC singlemode optical connection
  • Supports hot swapping and hot plugging


• Specifications:

  • Coax Input
  • 1 x 75 Ohm BNC connector
  • Supported standards: AES10-2008
  • Cable length 250m (Belden 1694A)

    Coax Output
  • 1 x 75 Ohm BNC connector
  • Amplitude: 750mV P/P
  • Cable length 250m (Belden 1694A)

    Fiber Optic
  • 1 x LC Bidirectional Fiber Connection (Singlemode)
  • 1310nm and 1550nm (WDM)
  • 18 dBm Optical Budget
  • Max. Distance approx. 10km (6.2 miles - Singlemode)

    Physical
  • Power: +12VDC @ 2.6W nominal each module - (supports 7 - 16VDC input range) LED power present indicator
  • Size: 140 x 42 x 22mm (5.51 x 1.65 x 0.86") including connectors
  • Weight: 125g (4.4oz) - each module
  • Ambient: 41 - 104°F 90% Humidity (non condensing)


• Item Includes:

  • 2 x 1210 Modules ( Type A + Type B )
  • 2 x AC power supplies


• GTIN:

  4250479324640
