LYNX Technik OET 1514 MM yellobrik 1 Gbit Ethernet to Fiber Transceiver - Distances up to 1800 Feet - Multimode LC 850nm

ITEM #: LNX-OET-1514-MM MFG #: OET 1514 MM

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$522.00

Our Price:

$495.90

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


OET 1514 MM - Overview

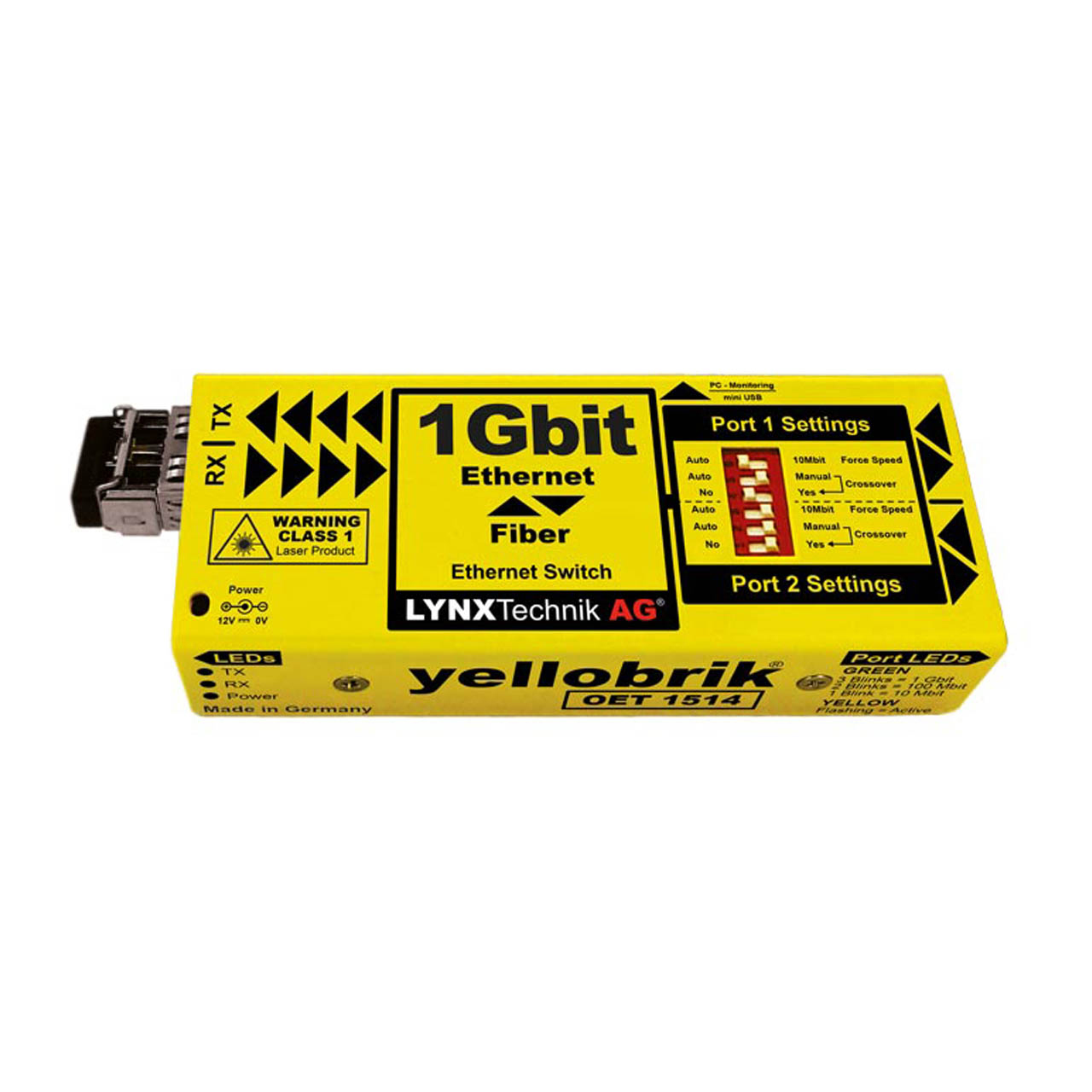

The LYNX Technik OET 1514 is a compact 3 port unmanaged ethernet switch, designed to extend the reach of electrical ethernet signals over long distances using a constant (fixed) high speed 1 Gbit/s optical transceiver speed.

When paired with another OET 1514 at the receiving end (using two fiber links) you have a cost effective Ethernet extender system for distances up to 10km providing a stable, high speed 1Gbit/s error free optical connection between locations.

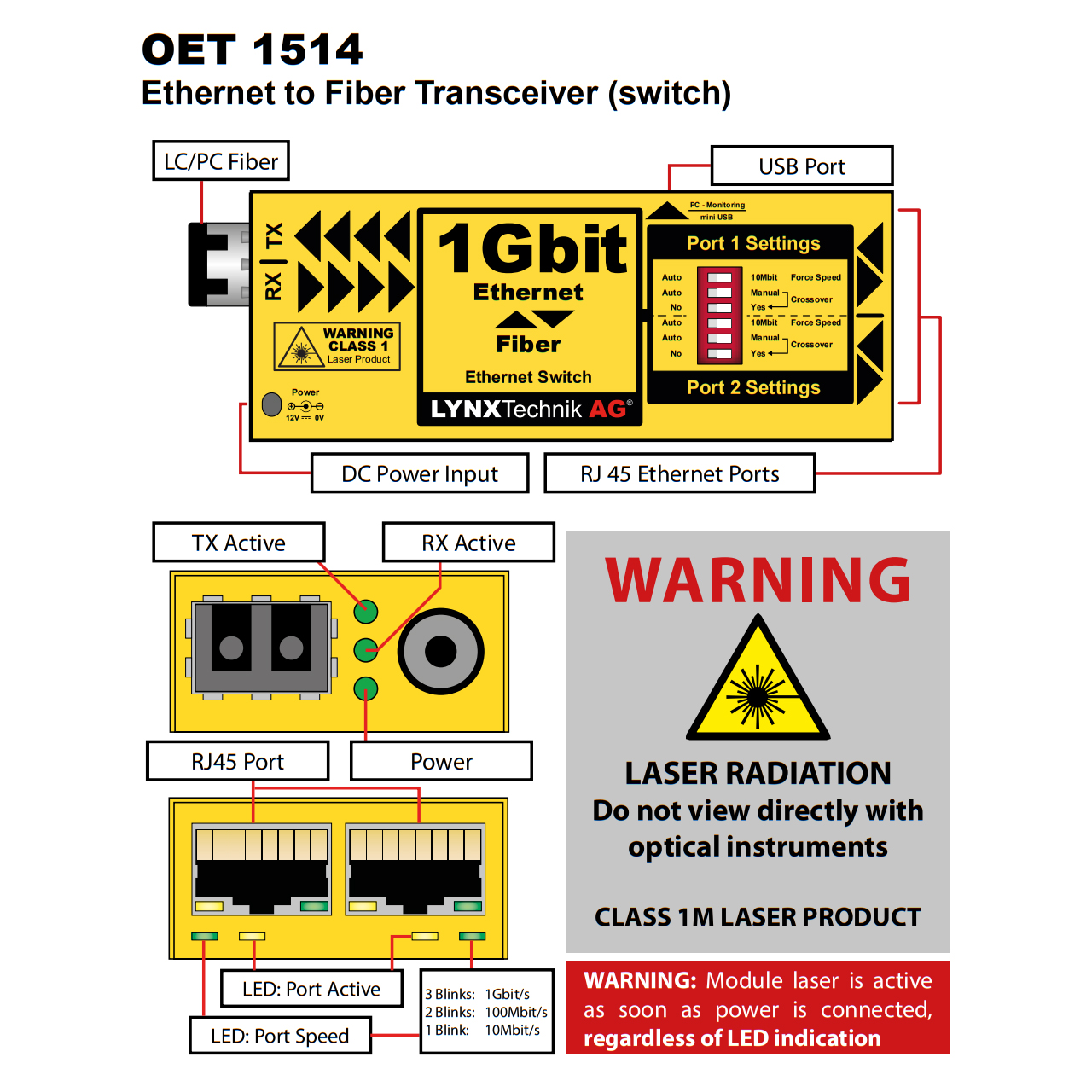

The OET 1514 has two standard RJ45 electrical ethernet ports plus fiber I/O and functions as a 3 port ethernet switch. For legacy system use: each electrical ethernet port can be set for automatic speed detection (10/100/1000) or forced to 10Mbit/s, and each port can use auto crossover detection or be forced manually if needed. These functions are available using the dip switch.

*Distance is an approximation. Actual distances achieved can be longer or shorter depending on the type of cable. Determine link losses and perform optical budget calculations to ensure correct operation.

  • Features:

    • Sony 1/1.18 type CMOS sensor STARVIS II
    • 30x zoom range
    • Resolution 1080i59.94, 1080p60
    • IP Video Resolution: Up to 1080p60
    • Video Output: Simultaneous 3G-SDI, HDMI, IP
    • SFP Optical SDI video output
    • RTSP. RTMP, SRT Supported
    • Visca Over IP, Onvif, FreeD, Serial Control Supported
    • Extreme Low Light Performance
    • Super Image Stabilizer

  • Specifications:

      Ethernet
    • 2x Ethernet ports, RJ 45 Connectors.
    • 10 BaseTUTP category 3,4 or 5 cable up to 328ft (100m)(2 pairs)
    • 100 BaseTXUTP category 5 cable up to 328ft (100m)(2 pairs)
    • 1000 BaseTXUTP category 5 cable up to 328ft (100m)(4 pairs)
    • Auto detect bit rate (10/100/1000), or force to 10Mbit for each port (selectable)
    • Automatic crossover detection or force manually for each port (selectable)
    • Port speed/activity LED indication (next to Ethernet port)

      Fiber Optic
    • 1x fiber optic input (Range 1270nm - 1610nm, Sensitivity -3dBm to -23dBm)
    • 1x fiber optic output Duplex (Single mode) using LC/PC Connections
    • IEEE 802.3z (1000BASE-X Gbit/s Ethernet over Fiber at 1 Gbit/s (125 MB/s)
    • TX and RX active LEDs on side of module
    • Max. distance approx. 10km* (6.2 miles - Singlemode)

      Power
    • +12V DC @ 1.7W nominal without SFP (supports 7V - 22V DC input range)
    • Physical Size: 4.73" x 1.65" x 0.86" (120mm x 42mm x 22mm) including connectors
    • Weight: 4.4oz (125g)
    • Ambient: 41°F - 104°F (5°C - 40°C) 90% Humidity (non condensing)

  • Item Includes:

    • 1x Module
    • 1x AC power supply
    • 1x OH-TR-50-850-MM SFP module

  • Warranty:

    • 3 Year Warranty

  • GTIN:

    0425047932948
