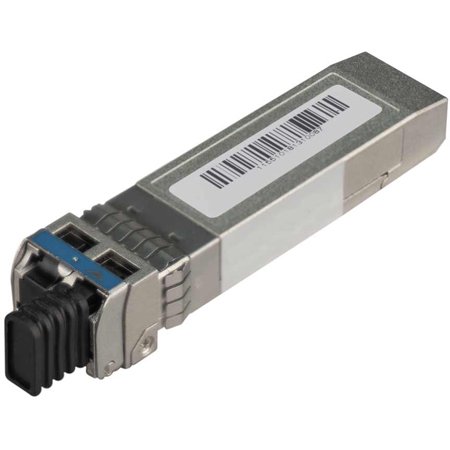

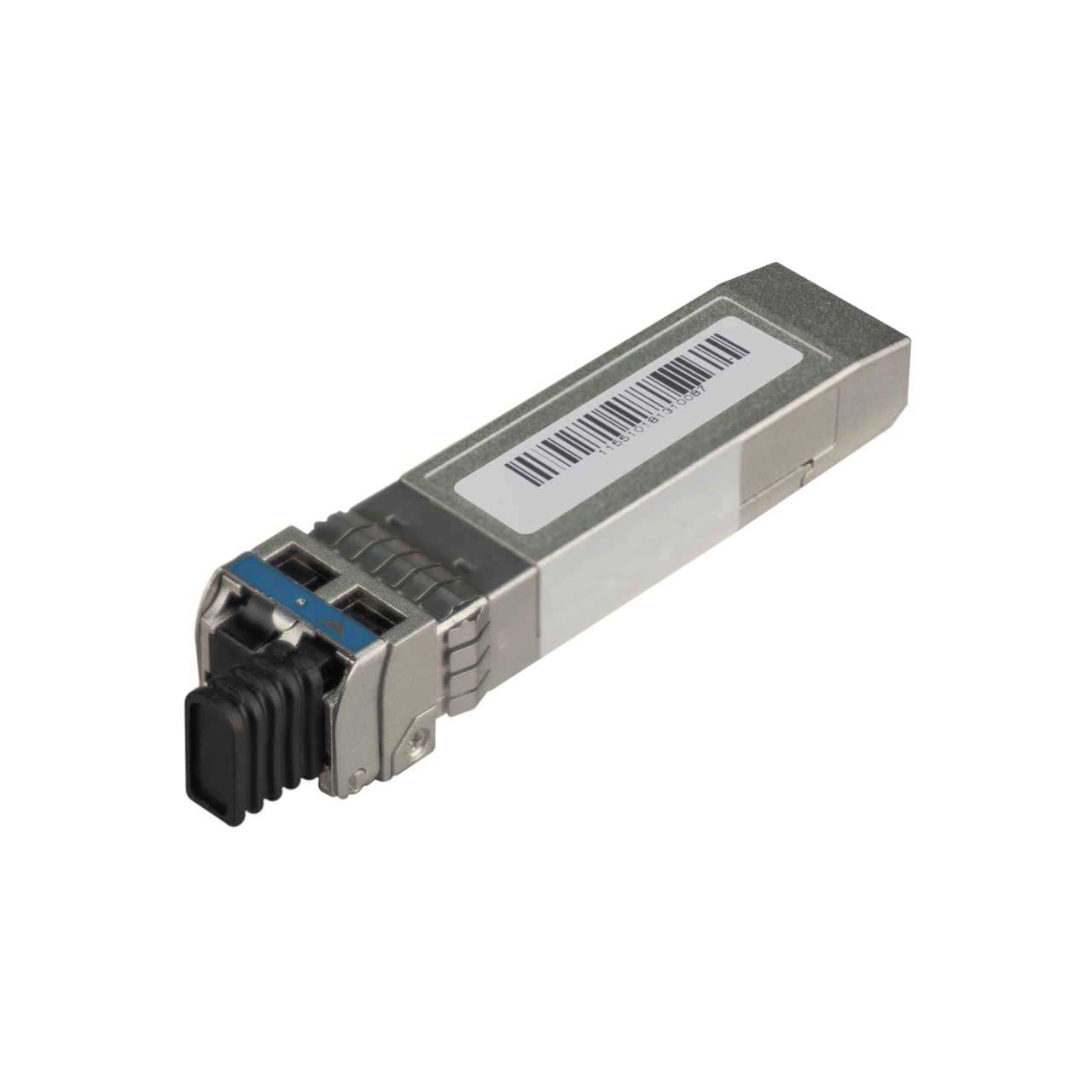

LYNX Technik OH-RX-0-850-MM SDI Multimode Simplex LC fiber RX SFP (850nm)

ITEM #: LNX-OH-RX-0850MM MFG #: OH-RX-0-850-MM

Primary Image
LYNX Technik Inc
Free Shipping with $49 Minimum Order

List Price:

$298.00

Our Price:

$283.10

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

OH-RX-0-850-MM - Overview

The LYNX Technik OH-RX-0-850-MM SDI optical receiver is an integrated part or plug in option for select LYNX Technik yellobrik and Series 5000 products. This module facilitates the conversion of the SDI optical signal into an electrical signal for further processing within these products. This module if for use with Multimode fiber and wavelengths of 850nm. The module accommodates 270Mbit / 1.485Gbit and 2.97Gbit SDI signals conforming to SMPTE 424M, 292M, 259M and DVB-ASI.

A socket, or "cage" is provided for the SFP in the supporting LYNX product for easy installation or upgrade. The SFP is hot swappable.

  • Features:

    • SDI multi-rate optical receiver for 3G-SDI, HD-SDI and SD-SDI signals
    • Support for SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
    • Supports Multimode fiber @ 850nm wavelength
    • LC Simplex fiber connector
    • For use with yellobrik and Series 5000 product lines
    • Pluggable and hot swappable
    • Lead free and RoHS compliant


  • Specifications:

    • Receiver Sensitivity
    • 2.97 Gb/s -15 dBm
    • 1.485 Gbit/s -16 dBm
    • 270 Mbit/s -16 dBm

      Wavelength
    • Min: 780nm
    • Typ: 850nm
    • Max: 880nm

      Overload: 0dBm
    • Loss of Signal Asserted: -28 dBm
    • Loss of Signal De-Asserted: -16 dBm
    • Optical Hysteresis Range: 1 dBm - 6 dBm
    • Operating Temperature Range: 41° to 104°F (5° to 40°C)
    • Power Supply Voltage:
      Min: 3.13VDC
      Typ: 3.3VDC
      Max: 3.47VDC
    • Power Consumption:
      Typ: 120mA
      Max: 160mA
    • Humidity: 90% (non-condensing)

      Mechanical
    • Size (not including connector - typ): 2.24 x 0.53 x 0.49" (57 x 13.4 x 12.4mm)
    • Weight: 0.11Lbs (50g)
    • SFP Connector Pinning: MSA
    • Fiber Connections: LC / Simplex - Multimode


  • GTIN:

    4250479318274
