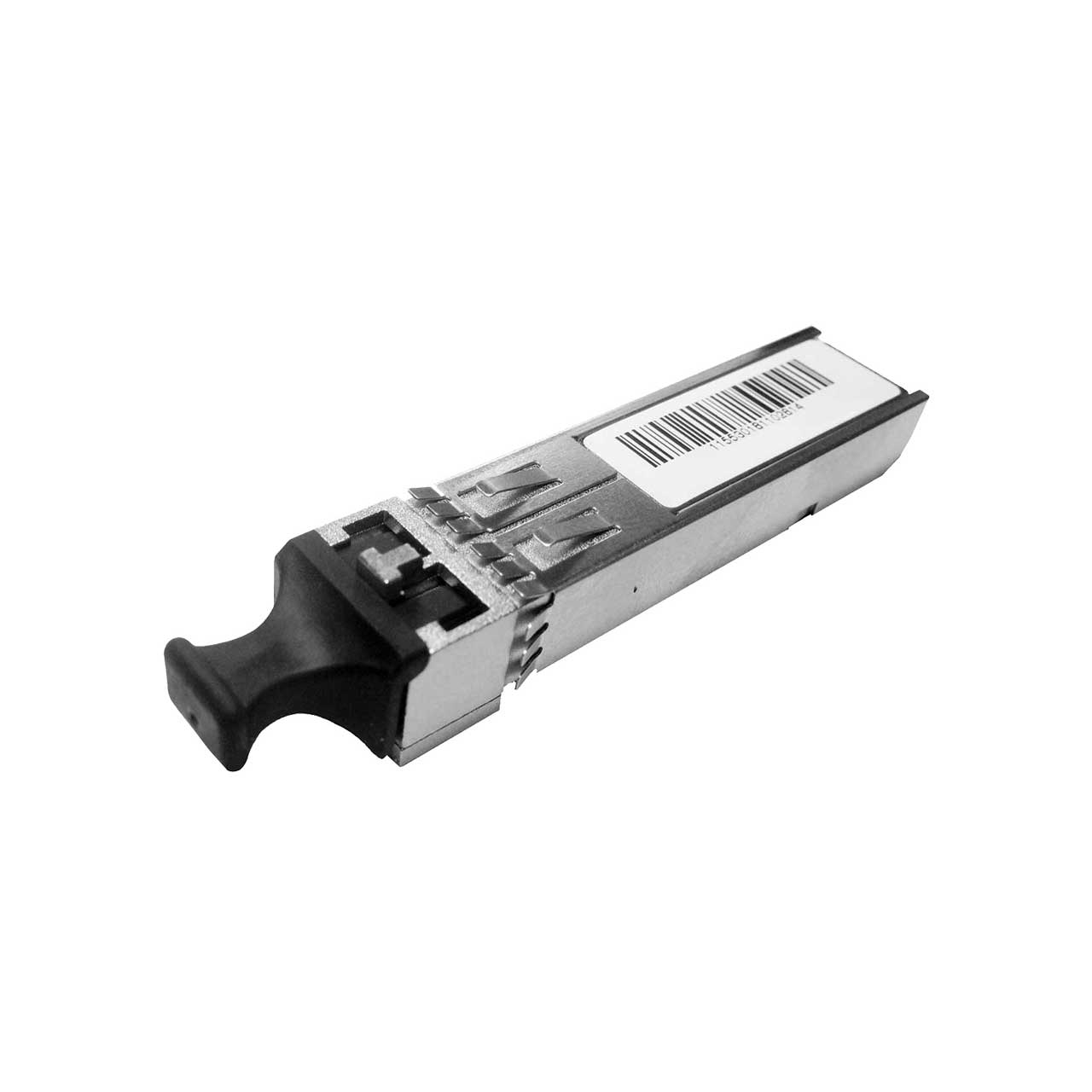

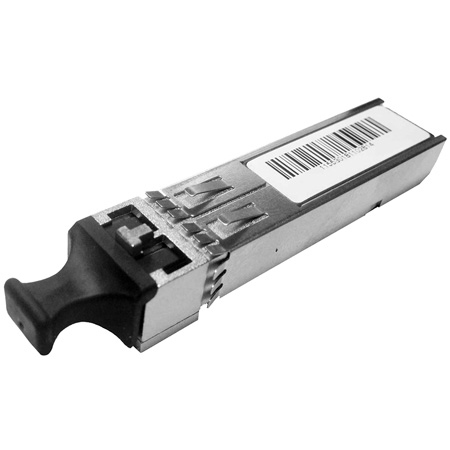

LYNX Technik OH RX 8 Single Channel Fiber Optic SFP Receiver with High-Sensitivity Long-haul LC Fiber Connectors

Name: LYNX Technik OH RX 8 Single Channel Fiber Optic SFP Receiver with High-Sensitivity Long-haul LC Fiber Connectors
Brand: LYNX Technik Inc
SKU: LNX-OH-RX-8
Price: 361.00 USD
Availability: PreSale

ITEM #: LNX-OH-RX-8 MFG #: OH-RX-8

LYNX Technik Inc

List Price:

$380.00

Our Price:

$361.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

OH-RX-8 - Overview

The LYNX Technik OH-RX-8 high sensitivity SDI optical receiver is a plug-in option for select LYNX Technik yellobrik and Series 5000 products. This module facilitates the conversion of the SDI optical signal into an electrical signal for further processing within these products. Support is provided for all wavelengths between 1260 and 1620nm according to ITU-T G694.2 (18 wavelengths). High sensitivity provides a much wider operational headroom than the standard OH-RX-1-LC receiver for long haul applications.

The module accommodates 270Mbit / 1.485Gbit and 2.97Gbit SDI signals conforming to SMPTE 424M, 292M, 259M and DVB-ASI.

A socket, or "cage" is provided for the SFP in the supporting LYNX product for easy installation or upgrade. The SFP is hot swappable.

Features:
- SDI multi-rate optical receiver for 3G-SDI, HD-SDI and SD-SDI signals
- Support for SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
- Support for all wavelengths between 1260nm and 1620nm
- LC Simplex fiber connector
- High sensitivity for long haul applications (single mode)
- For use with yellobrik and Series 5000 product lines
- Pluggable and hot swappable
- Lead free and RoHS compliant

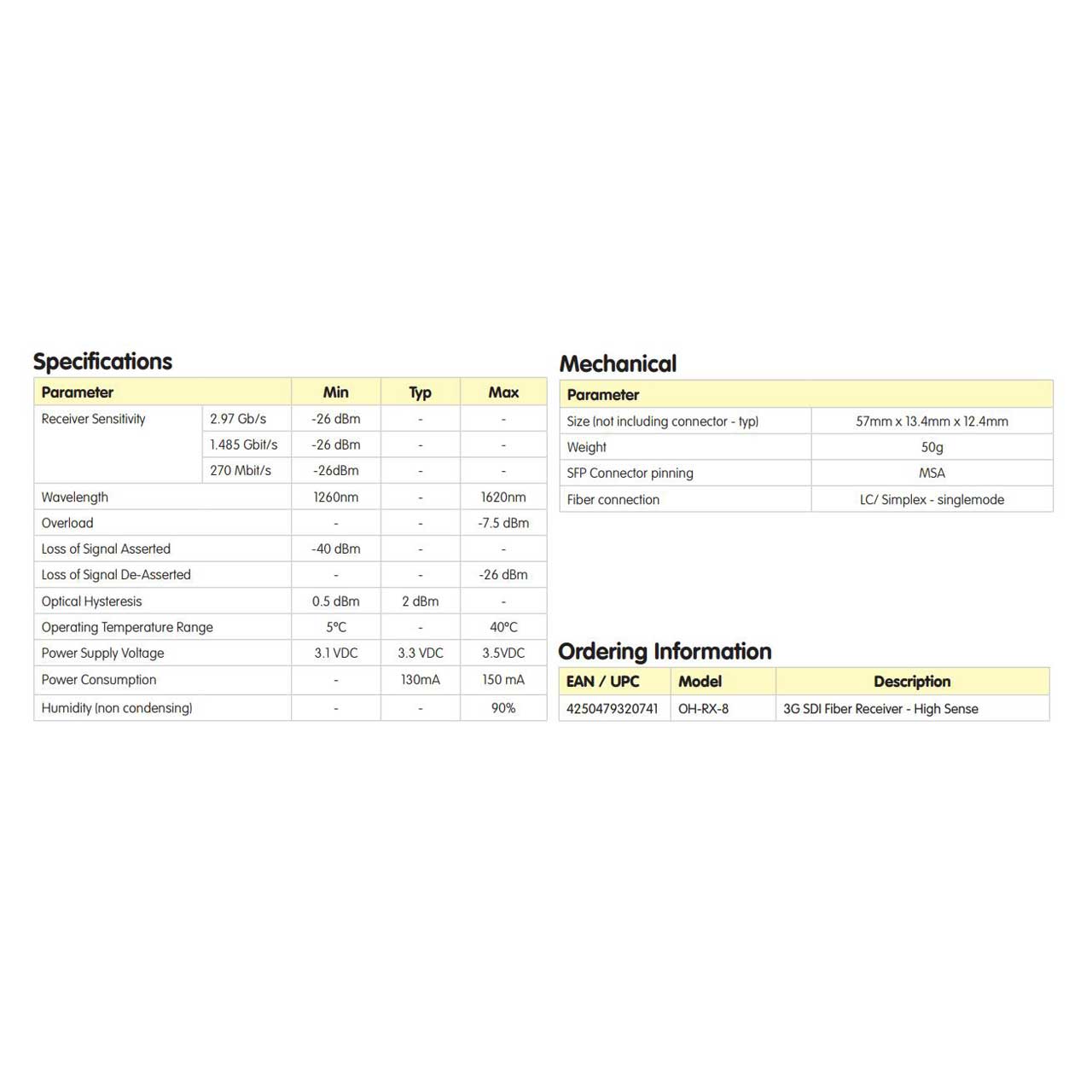

Specifications:
- General Specifications
- Receiver Sensitivity:
  2.97 Gb/s -18 dBm / Min: -26dBm
  1.485 Gbit/s -18 dBm / Min: -26dBm
  270 Mbit/s -18 dBm / Min: -26dBm
- Wavelength: Min: 1260nm Max: 1620nm
- Overload: Max: -7.5 dBm
- Loss of Signal Asserted: Min: -40 dBm
- Loss of Signal De-Asserted: Max: -26 dBm
- Optical Hysteresis: Min: 0.5 dBm Typ: 2 dBm
- Operating Temperature Range: Min: 41°F Max: 104°F
- Power Supply Voltage: Min: 3.1 VDC Typ: 3.3 VDC Max: 3.5 VDC
- Power Consumption: Typ: 130 mA Max: 150 mA
- Humidity (non condensing): Max: 90%

  Mechanical
- Size (not including connector - typ): 57 x 13.4 x 12.4mm (2.24 x 0.53 x 0.49")
- Weight: 0.11 lbs
- SFP Connector pinning: MSA
- Fiber connections: LC/ Simplex - singlemode
GTIN:
4250479320741
