LYNX Technik Yellobrik OTX 1812 SC - 3Gbit SDI to Fiber Optic Transmitter with looped SDI input - 10km - 1310nm with SC

ITEM #: LNX-OTX-1812-SC MFG #: OTX-1812-SC

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
LYNX Technik Inc
Free Shipping with $49 Minimum Order

List Price:

$550.00

Our Price:

$522.50

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

OTX-1812-SC - Overview

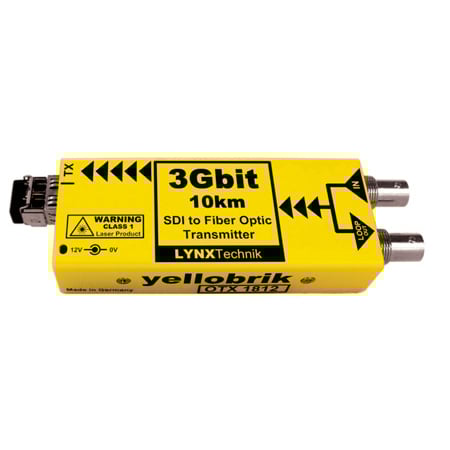

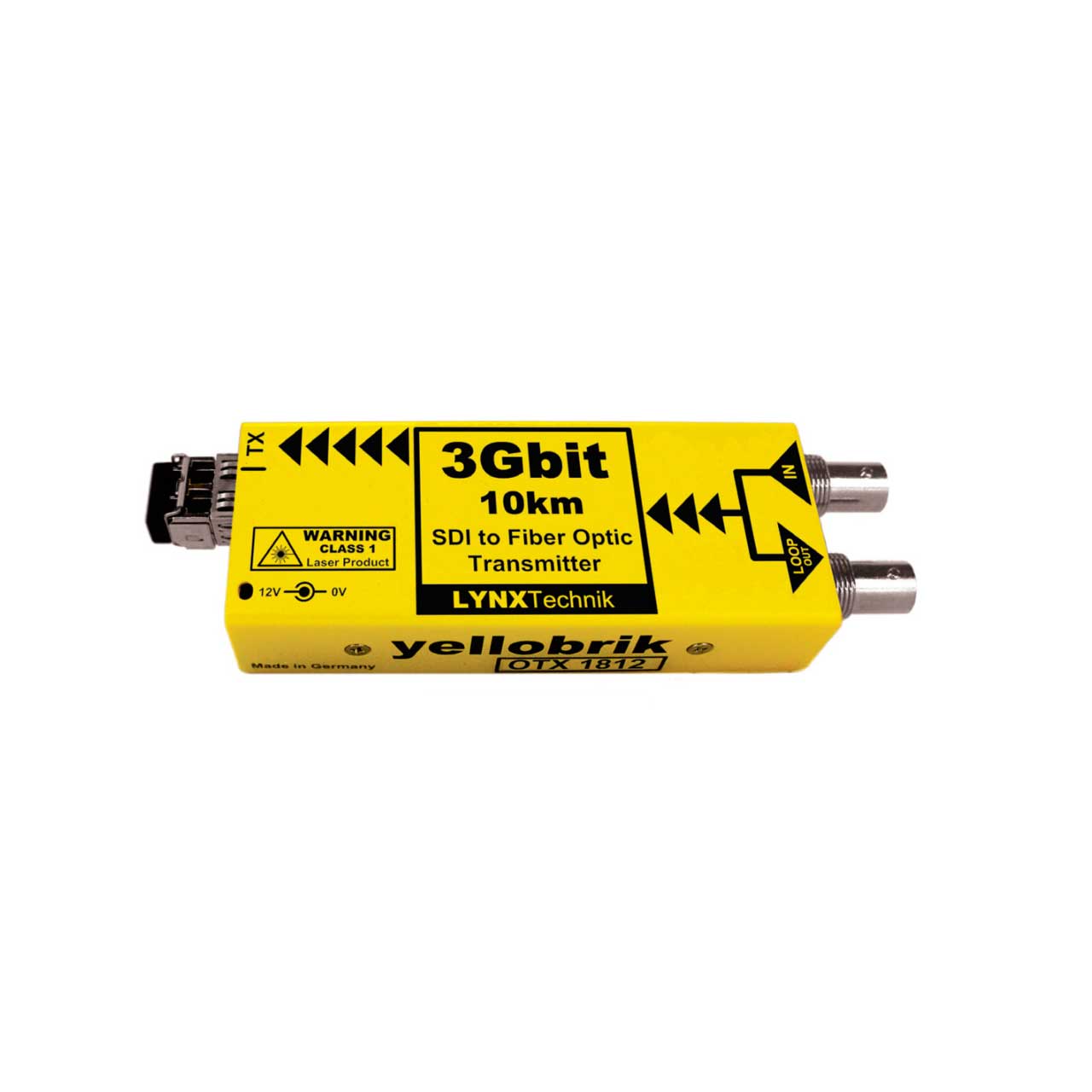

The LYNX Technik OTX 1812-SC is a compact SDI to fiber optic transmitter designed to combat the restrictions involved with the distribution of uncompressed broadcast quality video signals over long distances.

When paired with the fiber optic to SDI receiver (e.g. yellobrik ORX 1802) you have a very cost-effective optical transmission / receiver system for signals up to 1080p60 (3Gbit/s), while preserving full uncompressed quality.

The OTX 1812 provides a looping SDI input and support for LC, ST or SC singlemode fiber connections as well as anLC version suitable for multimode fiber.

The OTX 1812 will auto-detect and re-clock any 270Mbit / 1.5Gbit and 3Gbit SDI source prior to optical transmission. The module is fully compatible with 3Gbit Level A and Level B formats.

  • Features:

    • Supports SDI video inputs up to 3Gbit/s (1080p60)
    • 3Gbit Level A and Level B support (all formats)
    • Auto reclocking 270Mbit / 1.5Gbit / 2.97Gbit
    • Error free optical transmission
    • Reclocked SDI loop out connection

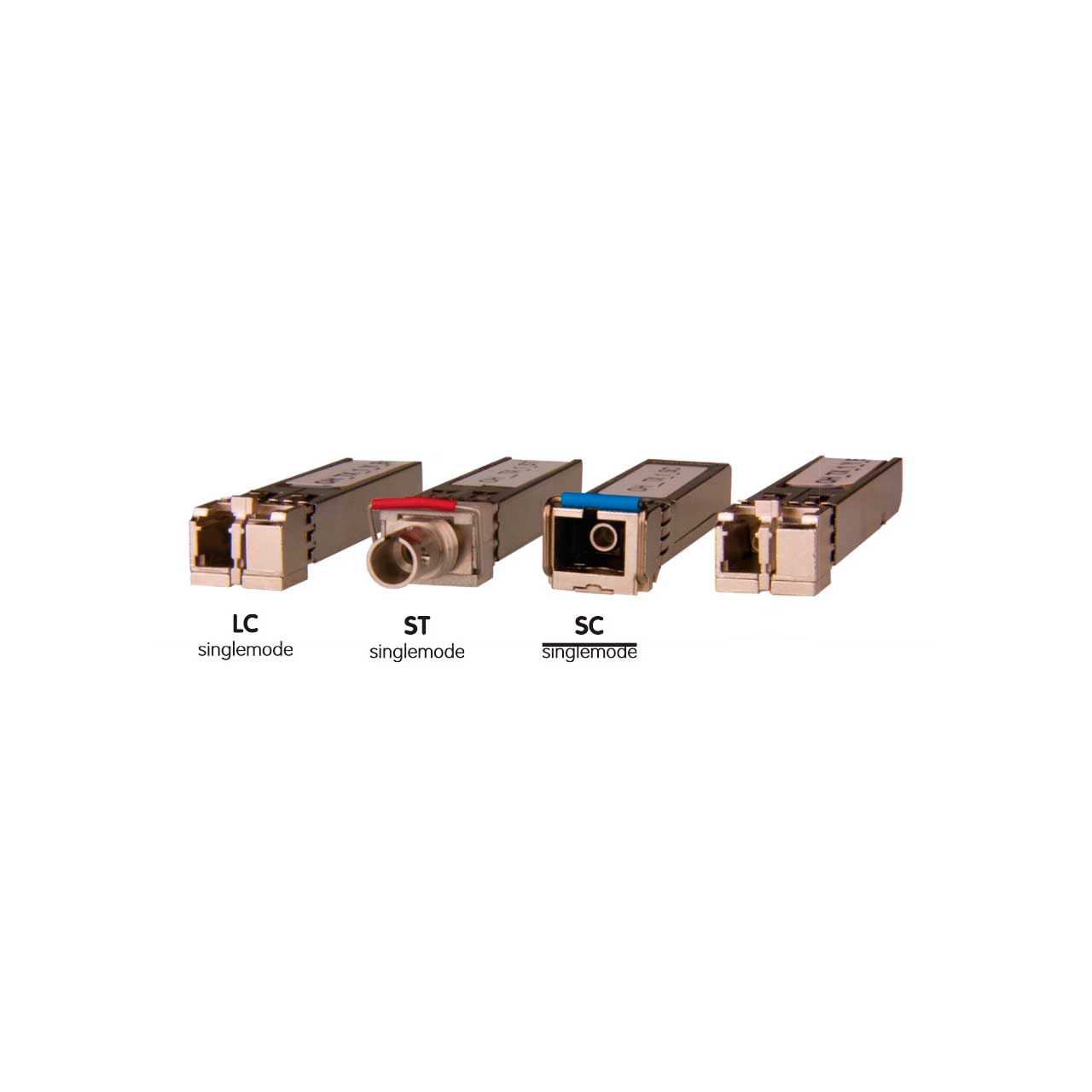

    • Versions for LC, ST or SC fiber connections
    • Multimode version available
    • Up to 10km (6.2 miles) @ 3Gbit/s (singlemode)
    • Up to 300m (984 feet) @ 3Gbit/s (multimode)
    • Supports hot swapping and hot plugging


  • Specifications:

    • SDI Input
    • 1 x SDI video input and 1 x SDI reclocked loop output
    • 75 Ohm BNC connectors
    • SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
    • Multi-standard operation from 270Mbit/s to 3Gbit/s
    • Multi-rate reclocking : 270Mbit/s - 1.5Gbit/s - 3Gbit/s
    • Electrical Return Loss: >15dB from 5MHz to 1.5GHz, >10dB from 1.5GHz to 3GHz
    • Automatic cable EQ (Belden 1694A cable)
    • 340m @ 270Mbit/s, 150m @ 1.5Gbit/s, 120m @ 3Gbit/s

      Fiber out Singlemode
    • 1 x fiber optic singlemode output
    • LC, ST or SC connection
    • SMPTE 297M - 2006
    • Wavelength 1310nm, Optical power -5dBm
    • TX active LED on side of module
    • Max. distance approx. 10km (6.2 miles) @ 3Gbit/s (Singlemode)

      Fiber out Multimode
    • 1 x fiber optic multimode output.
    • LC connection
    • SMPTE 297M - 2006
    • Wavelength 850nm, Optical power -5dBm
    • TX active LED on side of module
    • Max. distance approx. 300m (984feet) @ 3Gbit/s (Multimode)

      Physical
    • Power: +12VDC @ 1.7W nominal - ( supports 7 - 16VDC input range )
    • Size: 140 x 42 x 22mm (5.51 x 1.65 x 0.86") including connectors
    • Weight: 125g (4.4oz)
    • Ambient: 41 - 104°F 90% Humidity (non condensing)


  • GTIN:

    4250479359659
