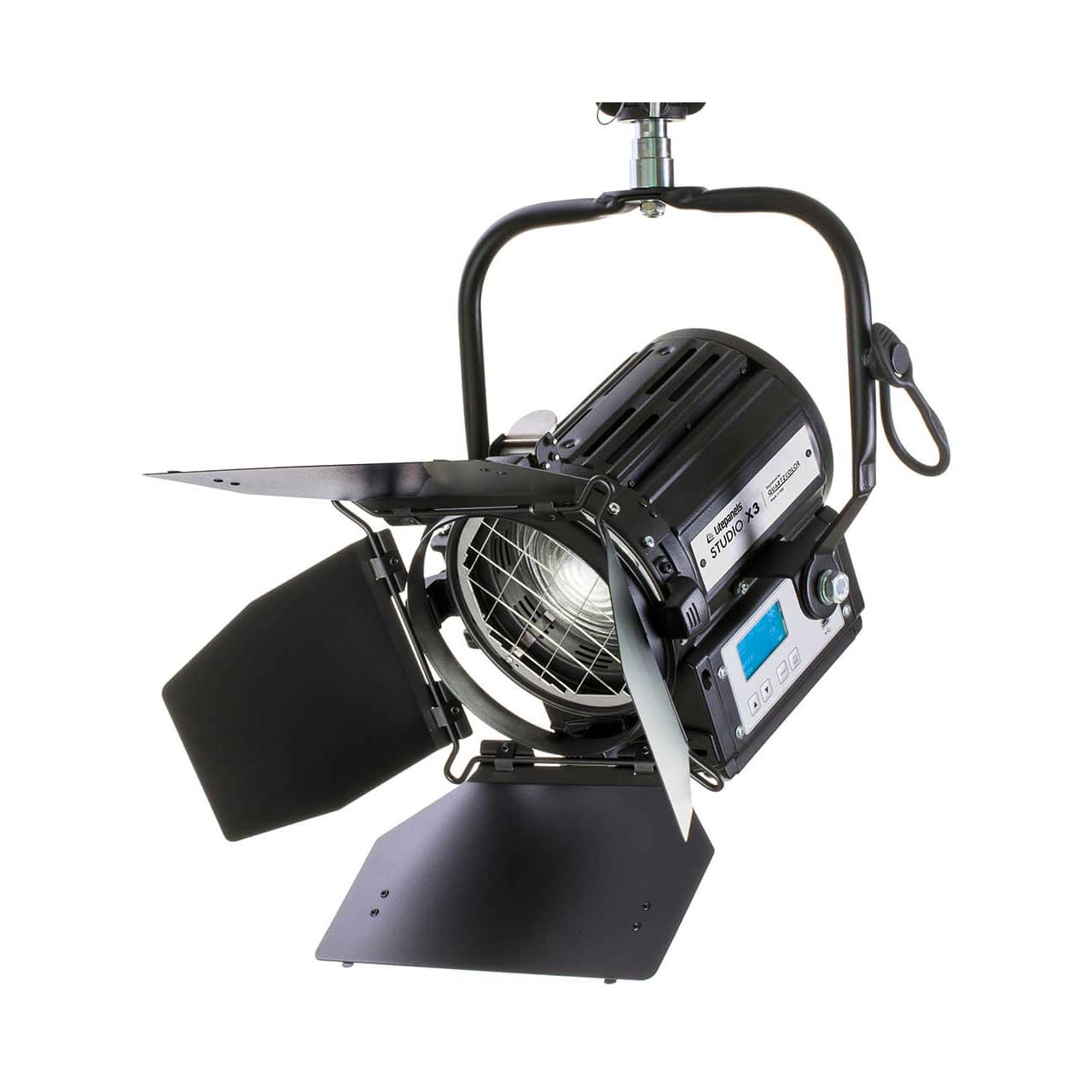

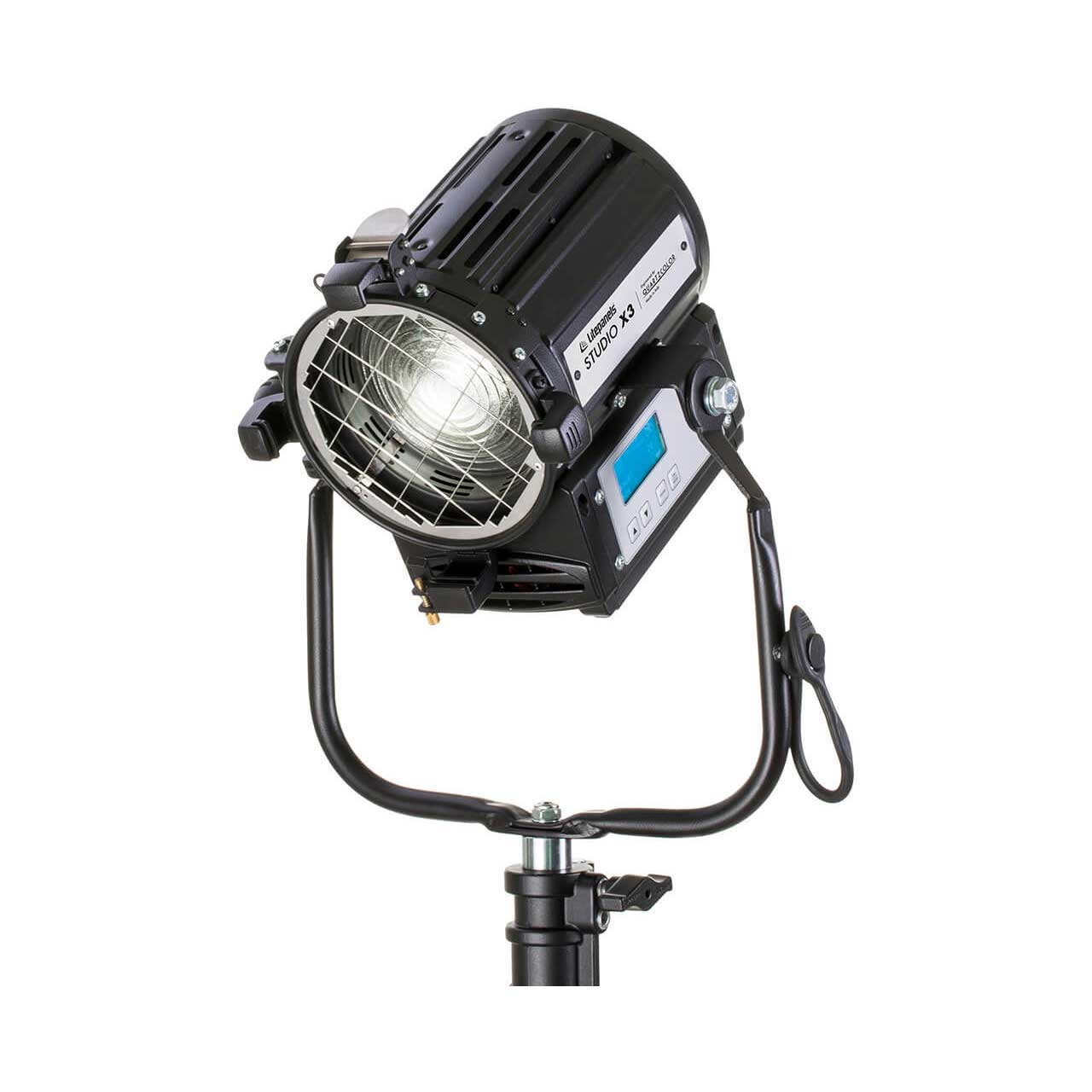

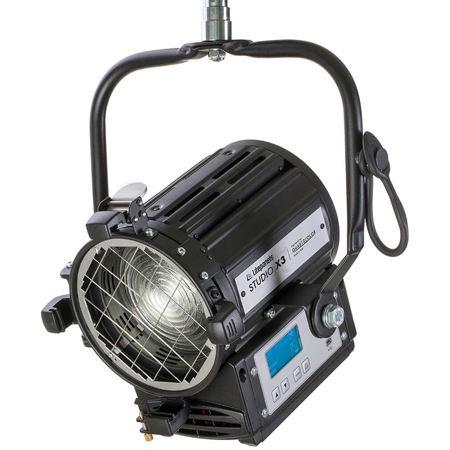

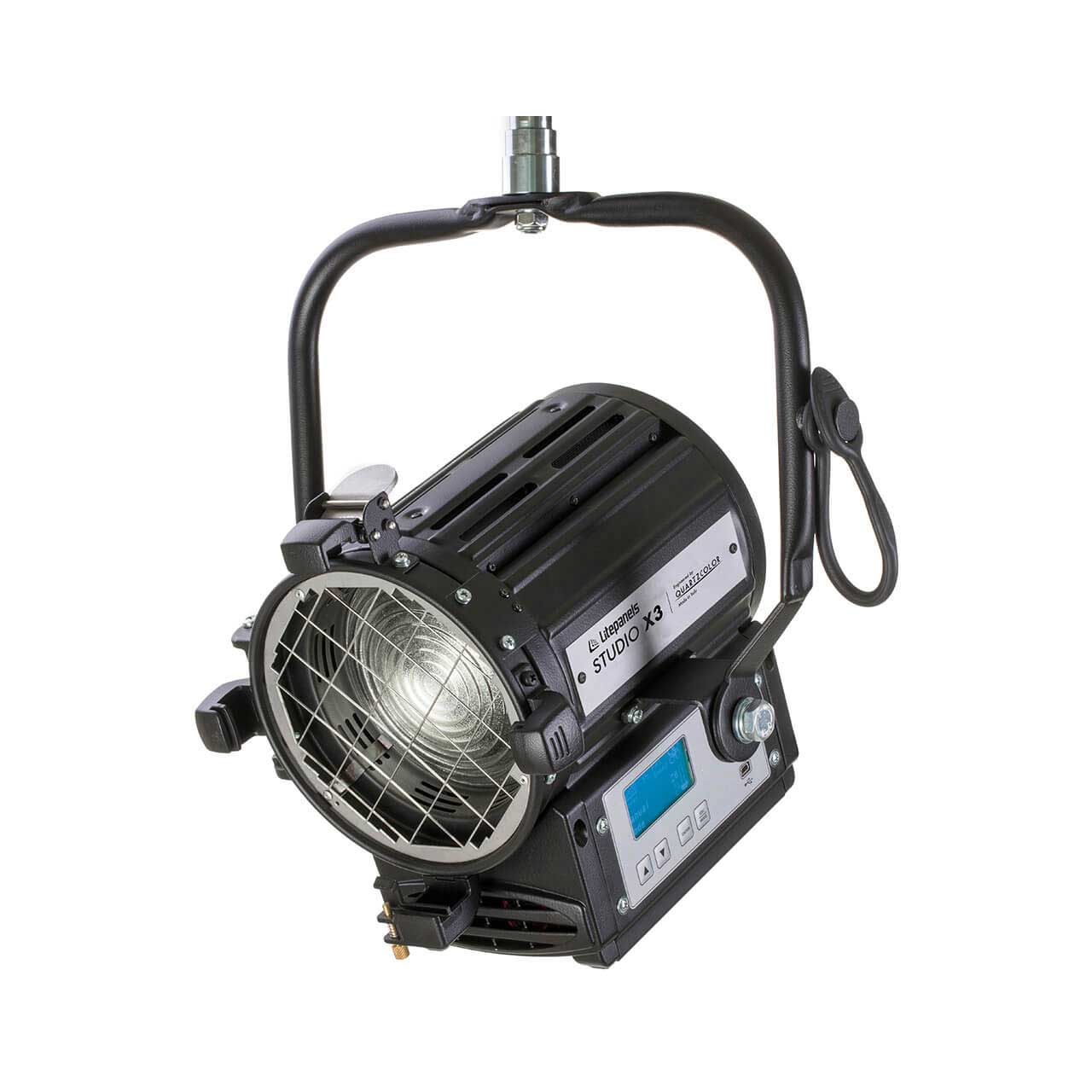

Litepanels 960-3312 Studio X3 Tungsten 100 Watt LED Fresnel (Pole Operated / US Power Cable)

ITEM #: LPAN-960-3312 MFG #: 960-3312

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$2,900.00

Our Price:

$2,755.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


960-3312 - Overview

Litepanels Studio X LED Fresnels, engineered by world renowned broadcast lighting professionals Quartzcolor, deliver high-performance, directional, bright white light with precision spot to flood beam control and consistent quality.

Natural talent light with perfect skin tone rendering is achieved with high output COB LEDs to produce superior white light. With no variation in quality at any dimming level from 0-100%, Studio X Fresnels perfectly match ambient and practical set lighting to show talent in a naturally realistic light.

The Studio X3 Tungsten (3,200K) 100W Fresnel has a 5" lens with a wide spot-to-flood beam angle range of 16°-56°. The fixture output is similar to a 500W traditional tungsten Fresnel. Advanced thermal management ensures 50,000+ hours of LED engine life, while individual burn-in and calibration tests ensure quality and consistency.

With high-quality, single source wrap-around illumination, Studio X is the perfect choice to light your talent - naturally.

  • Features:

    • Perfect talent light
    • Pure, bright, and consistent white light
    • Perfect skin tone rendering
    • Flawless fresnel beam
    • Even field throughout the zoom range
    • Effective light control with barndoors Complete control
    • DMX, RDM, and local control
    • Accurate, fine dimming curve
    • Enduring performance
    • Installed in leading broadcast studios
    • Advanced thermal managment

  • Specifications:

    • Optical Data
    • LED engine: Tungsten COB
    • Lens: Fresnel 130mm / 5" Ø, low expansion borosilicate
    • Beam angle: 16° - 56°
    • Correlated Color Temperature: 3,200K
    • Tungsten (3,200K) lux @16ft/5m, Spot 16°: 1,048
    • Tungsten (3,200K) lux @16ft/5m, Flood 56°: 364

      Operational Data
    • Focus adjustment: Wire focus mechanism on Teflon bushing
    • Dimming control: Constant Current 0-100% Continuous
    • Local control: Single dial (dimming) and keypad controller with backlit LCD display
    • Control connections: 5-Pin XLR in and through, Mini-USB
    • DMX control: Dimming, 8-bit and 16-bit
    • RDM control: DMX setup, hour counter, temperature
    • Fan: High efficiency convection, super silent fan with 3 speed presets
    • Software [Mini-USB]: Fixture status, firmware upgrade through PC
    • Ambient operating temperature: 0° - 40°C / 32°-104°F
    • Estimated LED lifetime: 50,000 hrs

      Mechanical Data
    • Mounting: Pole operated yoke, Jr Pin [28 mm / 1 1/8"]
    • Weight: 6.4kg / 14.1lb
    • Tilt angle: +/- 90°
    • Barndoor diameter: 200mm / 7.9"
    • Safety mesh: Stainless steel 25x25mm / 1x1"

      Electrical
    • Nominal power draw: 100W maximum
    • Power supply: Integrated, universal
    • Mains input: 90 - 260 Vac, 50/60 Hz, autosensing
    • Power connection: powerCON TRUE 1, in and through
    • IP rating: IP20

  • Item Includes:

    • 1x LCD graphic display and on-board control panel
    • 1x 5-pin RDM-DMX in/out connectors
    • 1x pole operated yoke with 1 1/8" (28mm) Jr Pin
    • 1x PowerCON in/out connectors
    • 1x Built-in universal power supply
    • 1x 4-leaf rotating barndoor Ø 7.9" (200mm)
    • 1x 10ft (3m) US powerCON True 1 cable
    • 1x gel frame Ø 7.8" (198mm)

  • Warranty:

    • 2 Years

  • GTIN:

    5060896402970
