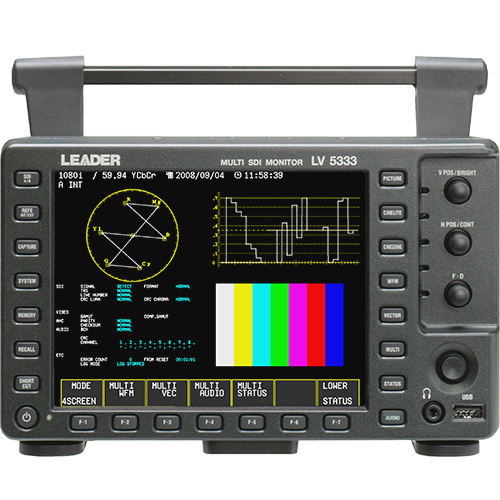

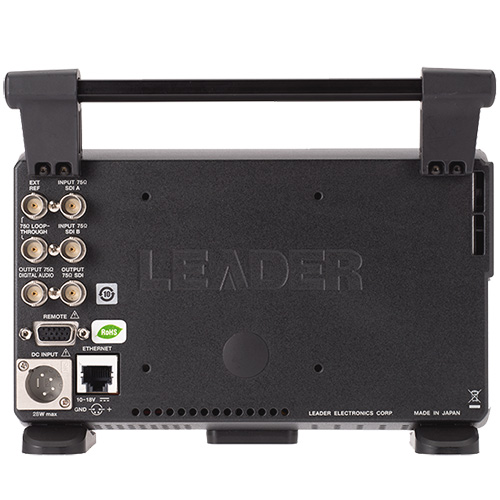

Leader LV-5333 3G-SDI Portable Waveform Monitor with Histogram & Embedded Audio

ITEM #: LR-LV5333 MFG #: LV5333

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the LR-LV5333

LV5333 - Overview

The LV5333 is a great and powerful tool in a compact and portable product. Just like its predecessor, the LV5333 boasts a 6.5 Inch high-fidelity TFT LCD screen for high quality picture images. Waveform, Vectorscope, Audio, 5-bar Display, and Status analysis are all possible in this instrument. Just like the previous waveform monitors from LEADER, various multi-display combinations allow for complete and easy monitoring wihle full-screen presentations provide a wealth of information and enable detailed review of the material. It also offers an embedded audio signal display allowing level-meter measurements.

Plus new features like Cable Length, External Phase Difference, and Field Frequency Deviation measurements are added to the list of characteristics. CINELITE II and other software options come included for this specific product, making it not only an attractive technical instrument but also a creative one at the same time.

Please Note: AC Adapter is NOT included, sold separately.

  • Features:

    • Supports 3G-SDI, HD-SDI and SD-SDI signals.
    • Built-in 6.5" TFT LCD XGA Display (1024 x768) for superb, crisp waveforms and picture representations.
    • CINELITE II & CINELITE ADVANCED come standard with this product.
    • Histogram, User Gamma Display, Gamut and Level
    • Error functions are also now standard.
    • Line Selector - selects any line of the video signal to be displayed and provides waveform, vector and 5-bar representations of the selected line.
    • Cable Length, EXT Phase, and Field Frequency
    • Deviation Display.
    • Detects Closed-Captions EIA608 and EIA708.
    • Supports up to 16 channels of embedded audio signals.
    • Includes an AES/EBU output connector for two audio channels.
    • Extracts embedded audio signals and sends two user-selectable audio channels to the headphone jack.
    • Audio shortcut button located on the front panel.
    • Includes "Screen Capture" to capture the displayed image and save it to the internal memory (RAM) or in to an USB memory device.
    • The internal memory holds up to 30 presets allowing quick access to favorite instrument setups.
    • Instrument can be remote controlled from a PC over an Ethernet network.
    • Can be mounted on a tripod for on-camera fitting.
    • Universal AC Power Supply allows for worldwide use (sold Separately).


  • Warranty:

    • 2 year
