Livestream Studio LS-HD1710-S8I/S8O/H1O/N25I/N5O Video Switcher 8 x HDSDI plus 25 x NDI in 8 x HDSDI plus 5 x NDI out

LS-HD1710-S8I/S8O/H1O/N25I/N5O - Overview

• Features:

  • Built-in Multiview
  • Seeing all your cameras in real-time is the key to making the best editorial decisions. Livestream Studio™ has a built-in multiview with all the features you'd expect from a live production control room, including full field-rate display (no matter how many inputs), tally, input labels and audio levels.

    External Multi-Screen
  • Extend the multiview on additional screens to let the full team engage and participate in your production. Easily build a state of the art, master control room with up to four large multi-view screens, complete with customizable layouts and logos. Livestream Studio™ HD1710 supports up to 4 monitors via Mini DisplayPort.

    Transitions
  • Cut, dissolve or select from our collection of wipe transitions when producing your live show.

    Built-in Audio Mixer
  • Studio's all-encompassing audio tools cater to producers of all sizes from a one man band to a full production team. Our intelligent audio mixer features mix automation, SDI & HDMI embedded audio, level monitoring, peak warnings as well as our innovative channel grouping. External audio mixers are welcome too!

    Audio Input Options
  • Embed your audio via HD-SDI, bring in your analog audio via any USB audio device or use the built-in 1/4" or 1/8" analog audio input.

    Built-in Graphics Editor
  • Our fully featured two channel graphics generator allows you to create templates and dynamically change sport scores, lower third text or other graphic elements on the fly. The editor is built right into the user interface and supports text, transparent images, live picture-in-picture video, countdowns and a range of graphic effects including drop shadows, borders, crops and more.

    Downstream Key Overlays
  • Overlays graphics as layers on top your program mix with transparency. Ideal for corner bugs, sport cording, lower thirds, picture-in-picture and other broadcast graphics needs.

    Picture-in-Picture
  • Composite up to 5 live audio/video sources together within the graphics editor; Ideal for a simple second camera angle, a scoreboard cam or a broadcast network 4-person live chat over animated background video.


• Specifications:

  • Live Inputs: 19 (17 x HDMI/SDI plus 2 x Remote Cameras)
  • SDI (HD/SD) or HDMI Inputs: 17
  • SDI (HD/SD) or HDMI Output: 1
  • Full size connectors for SDI (BNC) and HDMI on all inputs and output
  • Embedded Audio Input: 5 Stereo or 40 Mono Inputs
  • Analog Audio Input (1/8"): 1
  • Audio Monitoring (1/8"): 1
  • Analog Audio Input (1/4"): 4
  • Analog Audio Output (1/4"): 2
  • AES/EBU Input: 2
  • AES/EBU Output: 2

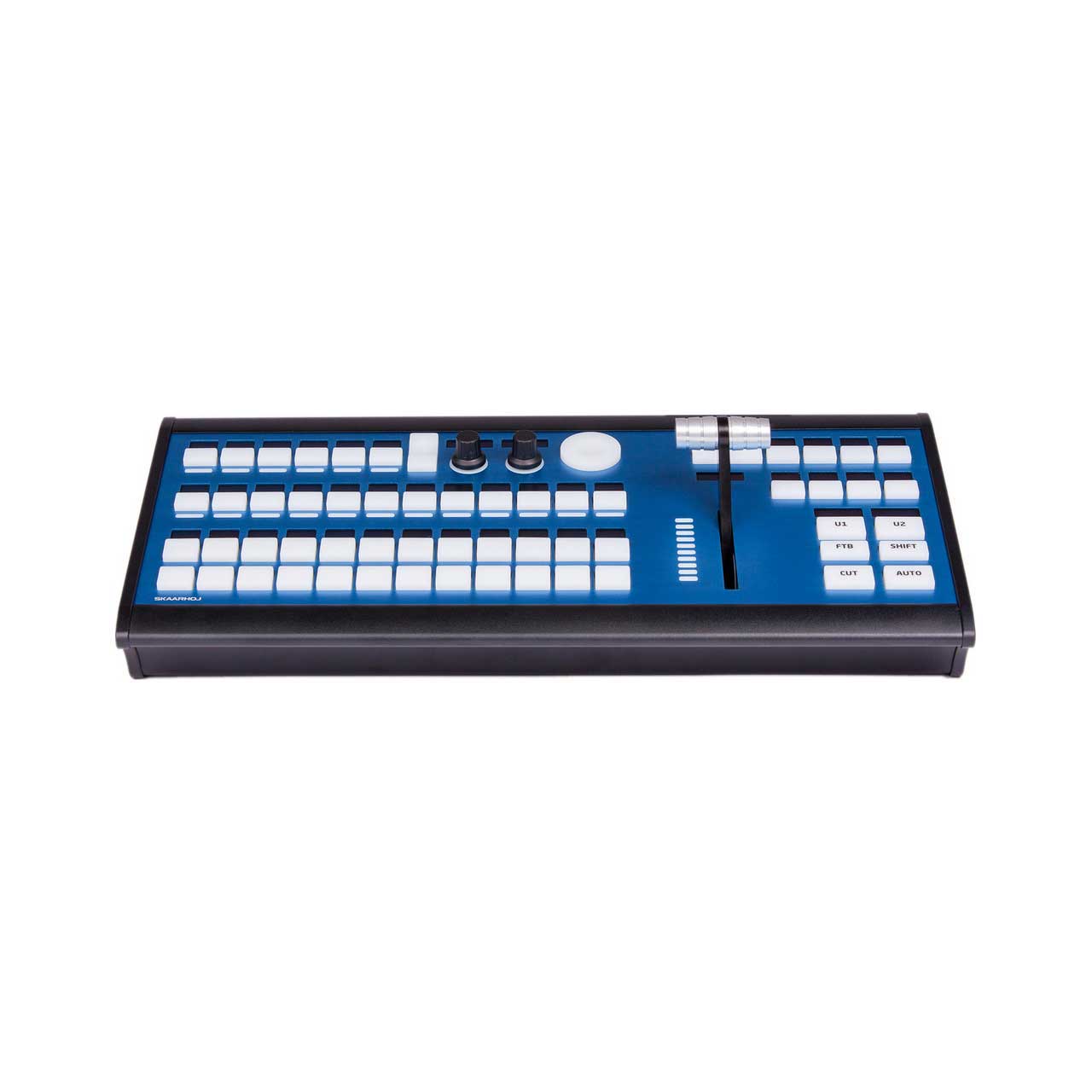

  • Livestream Studio™ Keyboard: Included
  • Livestream Mousepad: Included
  • System Physical: 3RU 20.83" (D) x 5.25" (H) x 16.50" (W) ~20.4 lbs
  • Processing Video: 4:2:2, 10 bit Color (REC 601, REC 709) Audio: 48 kHz
  • Playback Media Formats GFX: JPEG or PNG image files with transparency support - DDR: AVI MJPEG with uncompressed audio,
    DV Video, WMV (7/8/9), H.264 (.mov &.avi), MPEG4 Part 2 (.mov & .avi), MPEG4 V1/V2 (.mov & .avi), AAC, MP3
  • Supported Formats HD: 720p50, 720p59.94, 720p60, 1080PsF23.98, 1080p23.98, 1080PsF24, 1080p24, 1080PsF25, 1080p25,
    1080PsF29.97, 1080p29.97, 1080PsF30, 1080p30, 1080i50, 1080i59.94 and 1080i60 SD: 625/25 PAL, 525/29.97 NTSC, 525/23.98 NTSC.
  • Recording Capacity: ~120 hours at 1080i (Using 3 1TB built-in Hard Drive with recorder set to record at 100Mbps MJPEG
    AVI).


• Item Includes:

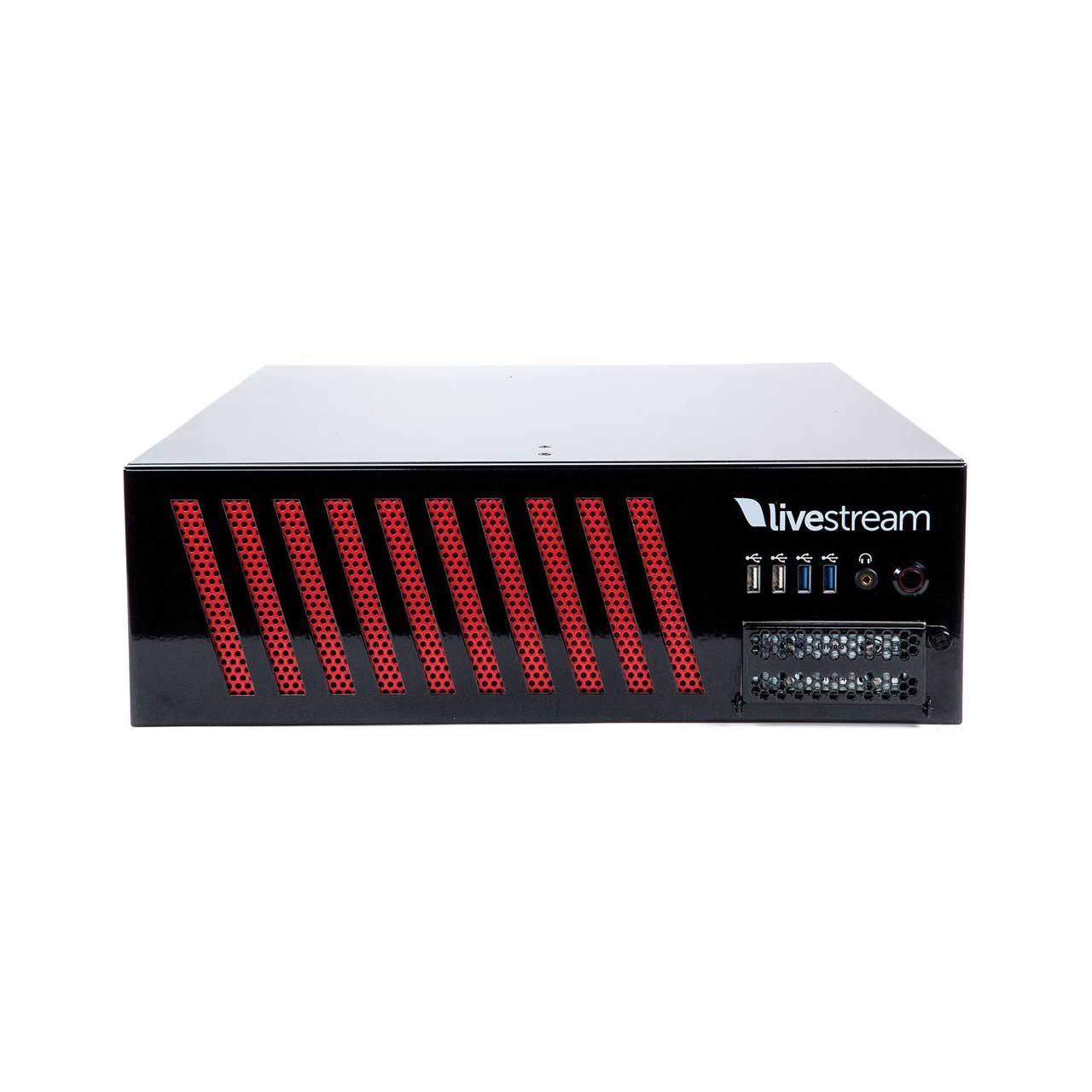

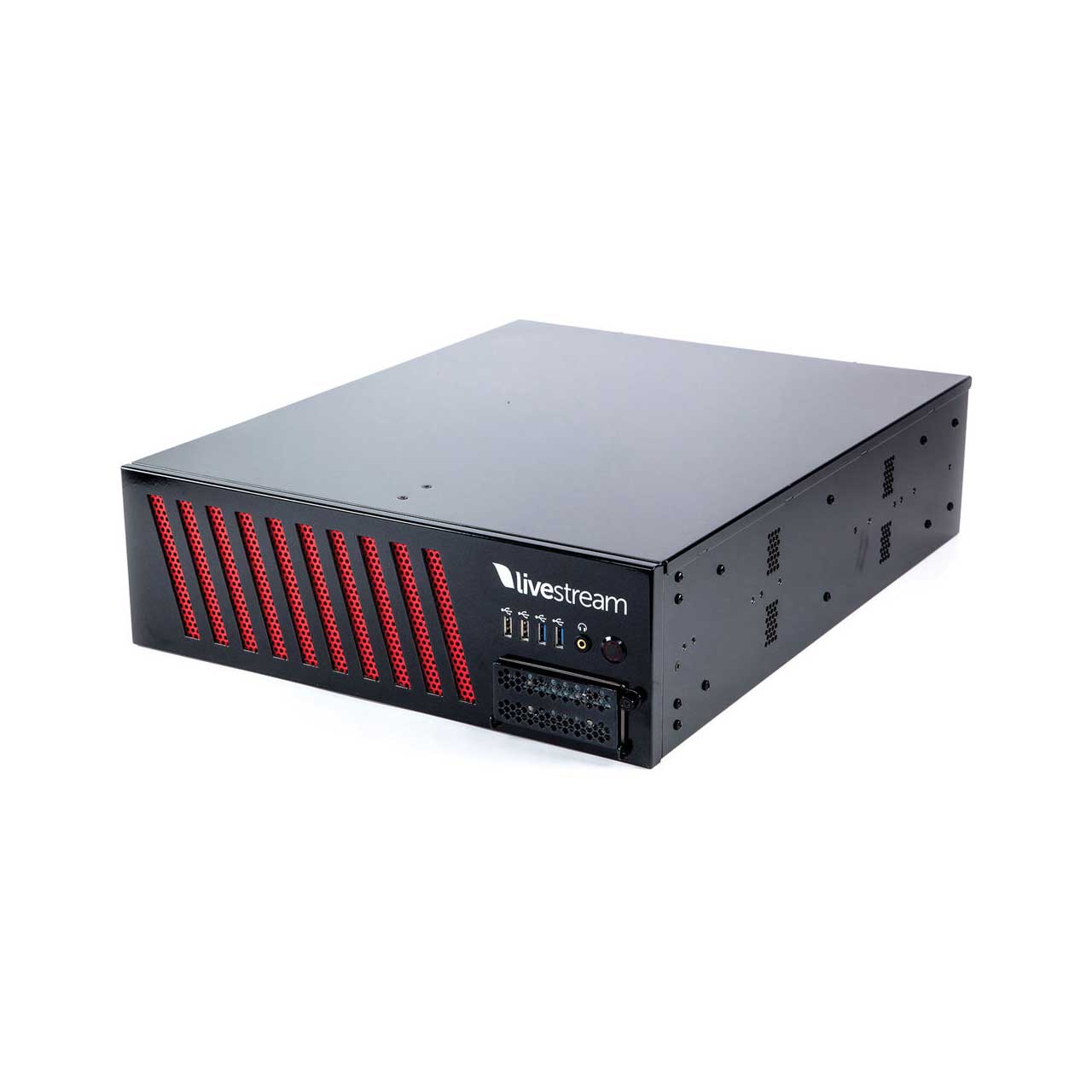

  • 1x Livestream Studio HD1710
  • 1x Livestream Studio Keyboard
  • 1x Mouse
  • 1x Mousepad
  • 1x Power Cord
  • 1x Rack Ears
  • 1x PIN for 1 year of Premium Telephone Support (7 Days / Week)


• Warranty:

  • 1 Year


• GTIN:

  0858064007424
