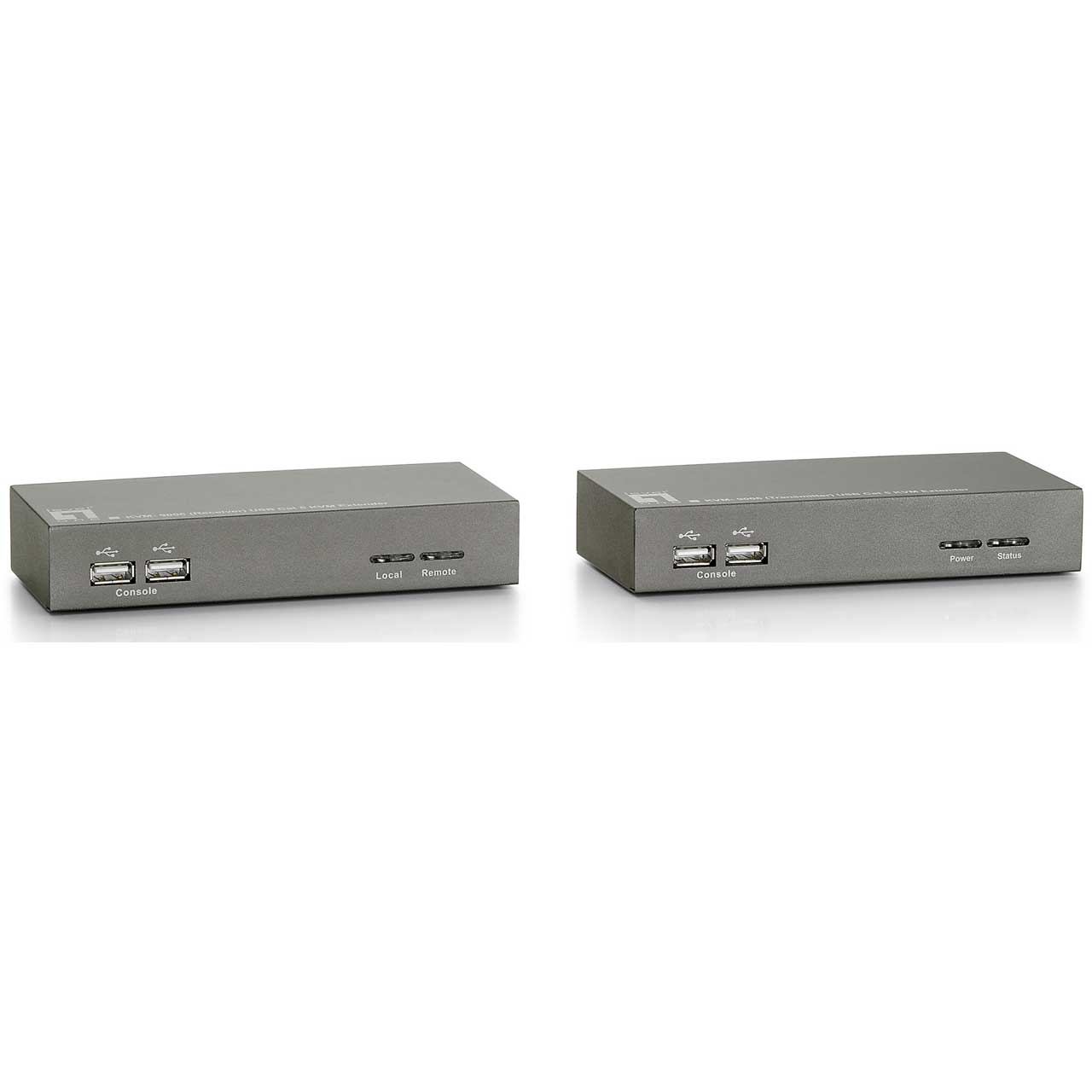

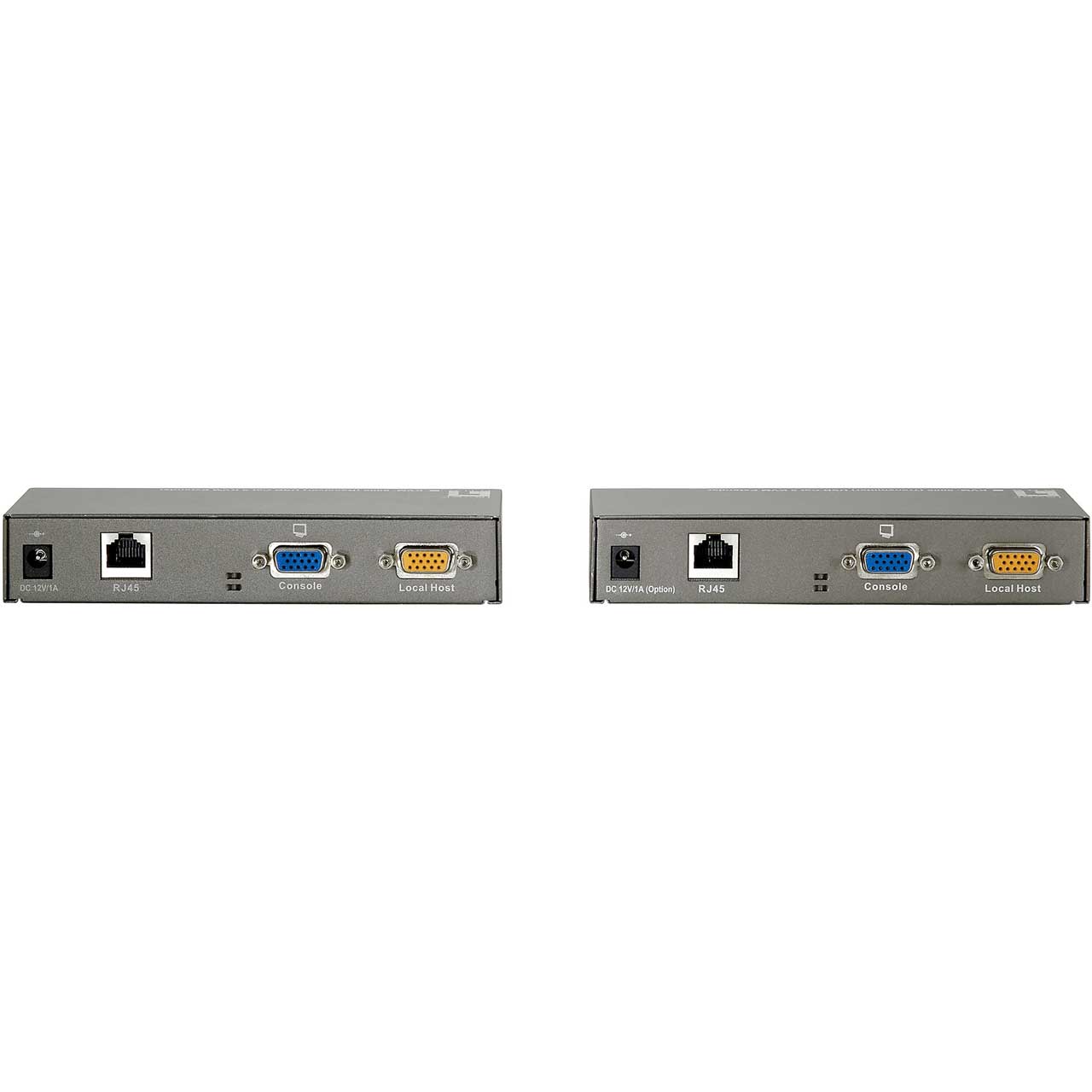

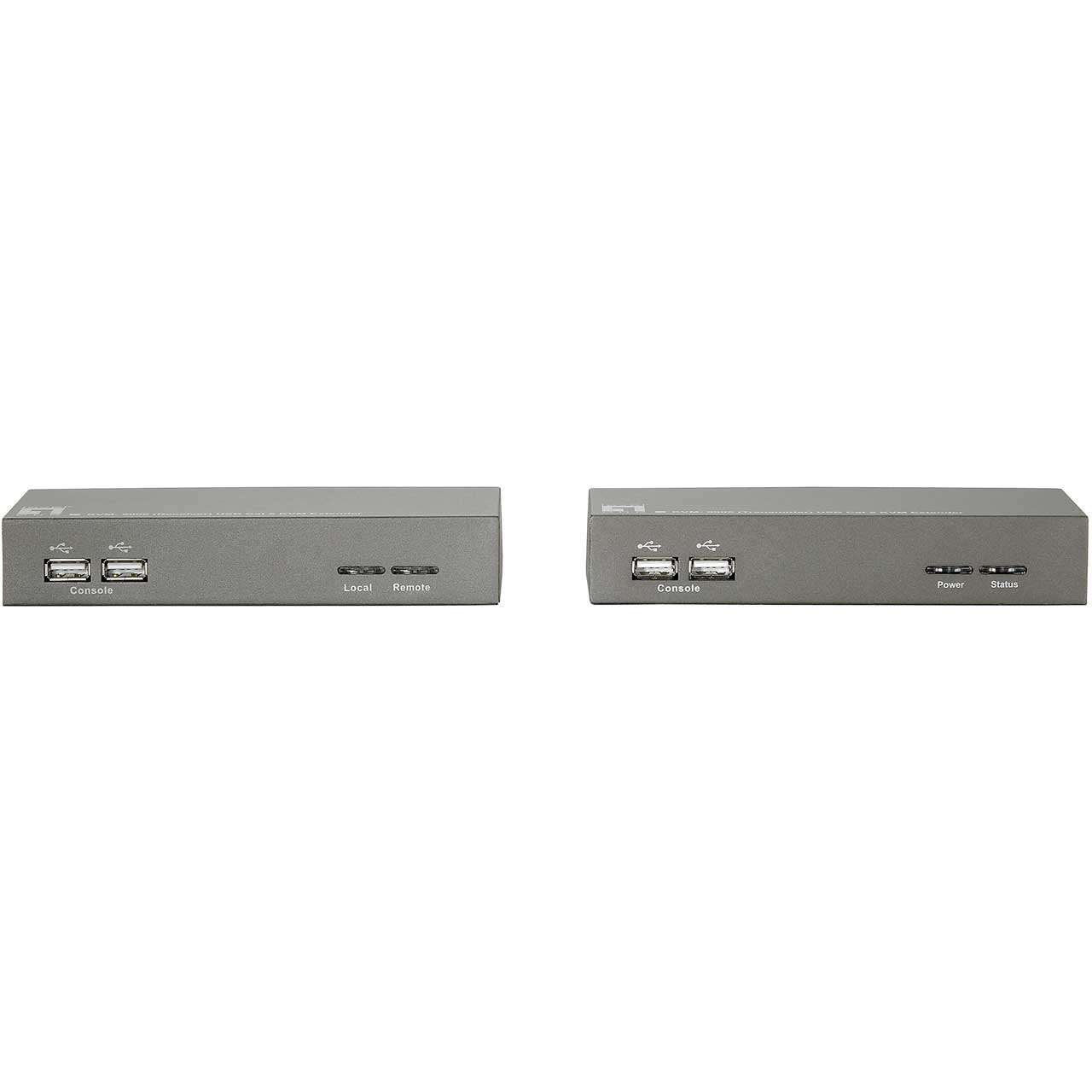

LevelOne KVM-9006 KVM over Cat.5 Extender - VGA - USB

KVM-9006 - Overview

• Features:

  • A single, inexpensive Cat.5 or above UTP cable replaces bulky KVM cables

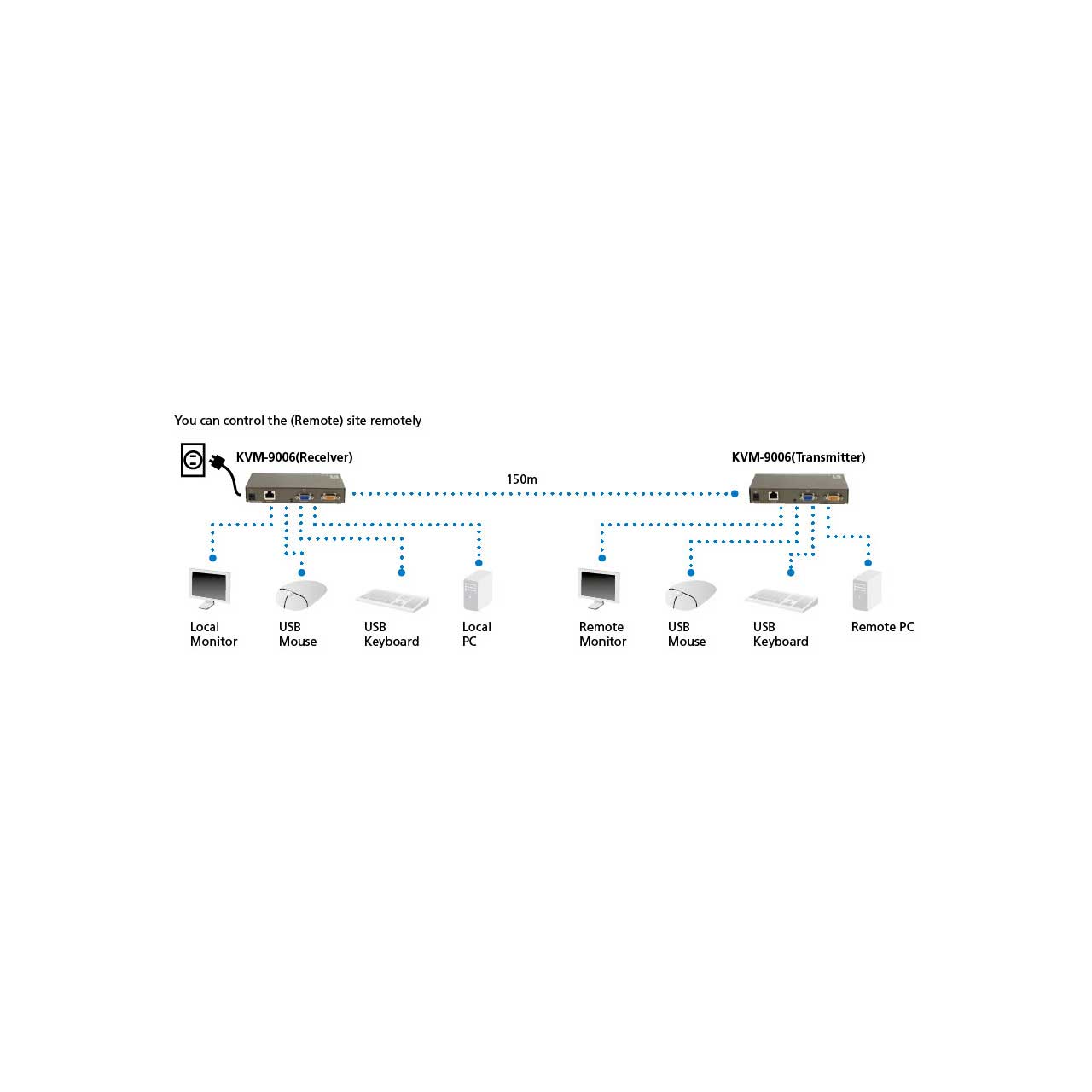

  • Locate Cat.5 console up to 150m away from the KVM switch with superior auto-adjust RGB signals capability
  • Collocate computers and servers on one location, ideal for hazardous or unsecured environments
  • Switch computers by push button or hotkey commands
  • Audible feedback when switching
  • LED indicators for computer status or data transmission
  • 3-in-1 space saving design
  • Work with PS/2 or USB computer
  • Easy to install and use with plug-and play functionality


• Specifications:

  • KVM-9006 T (Transmitter)
  • Connector: 2 USB2.0 connectors for keyboard and mouse
  • VGA Connector: 2 HDDB 15 connectors (one for VGA monitor , one for connecting 3-in-1 VGA cables to local computer)
  • RJ-45: 8P8C
  • LEDs: 2 (Power and Status)
  • Port selection: N/A
  • Keyboard Emulation: USB2.0
  • Mouse Emulation: USB2.0
  • VGA Resolution (Local Host): 1920 x 1440
  • VGA Resolution (Remote Host): 1280 x 1024
  • Housing: Metal
  • Power Adapter: DC 12V, 1A
  • Operation Temp.: 0~50°C
  • Storage Temp.: -20°C~60°C
  • Humidity: 0~80%, Non-Condensing
  • Dimension: 157.5 x 71.6 x 29mm
  • Weight (g): 390g

    KVM-9006 R (Receiver)
  • Connector: 2 USB connectors for keyboard and mouse
  • VGA Connector: 2 HDDB 15 connectors (one for VGA monitor , one for connecting 3-in-1 VGA cables to local computer)
  • RJ-45: 8P8C
  • LEDs: 2 (Local and Remote)
  • Port selection: Hotkey, Push Buttom
  • Keyboard Emulation: USB2.0
  • Mouse Emulation: USB2.0
  • VGA Resolution (Local Host): 1920 x 1440
  • VGA Resolution (Remote Host): 1280 x 1024
  • Housing: Metal
  • Power Adapter: DC 12V, 1A
  • Operation Temp.: 0~50°C
  • Storage Temp.: -20°C~60°C
  • Humidity: 0~80%, Non-Condensing
  • Dimension: 157.5 x 71.6 x 29mm
  • Weight (g): 390g


• Item Includes:

  • x1 KVM-9006


• GTIN:

  0878742007294
