LevelOne POS-1002 5-12V DC PoE Splitter

POS-1002 - Overview

• Features:

  • IEEE 802.3af compliant
  • Converts non-PoE devices with Power over Ethernet support

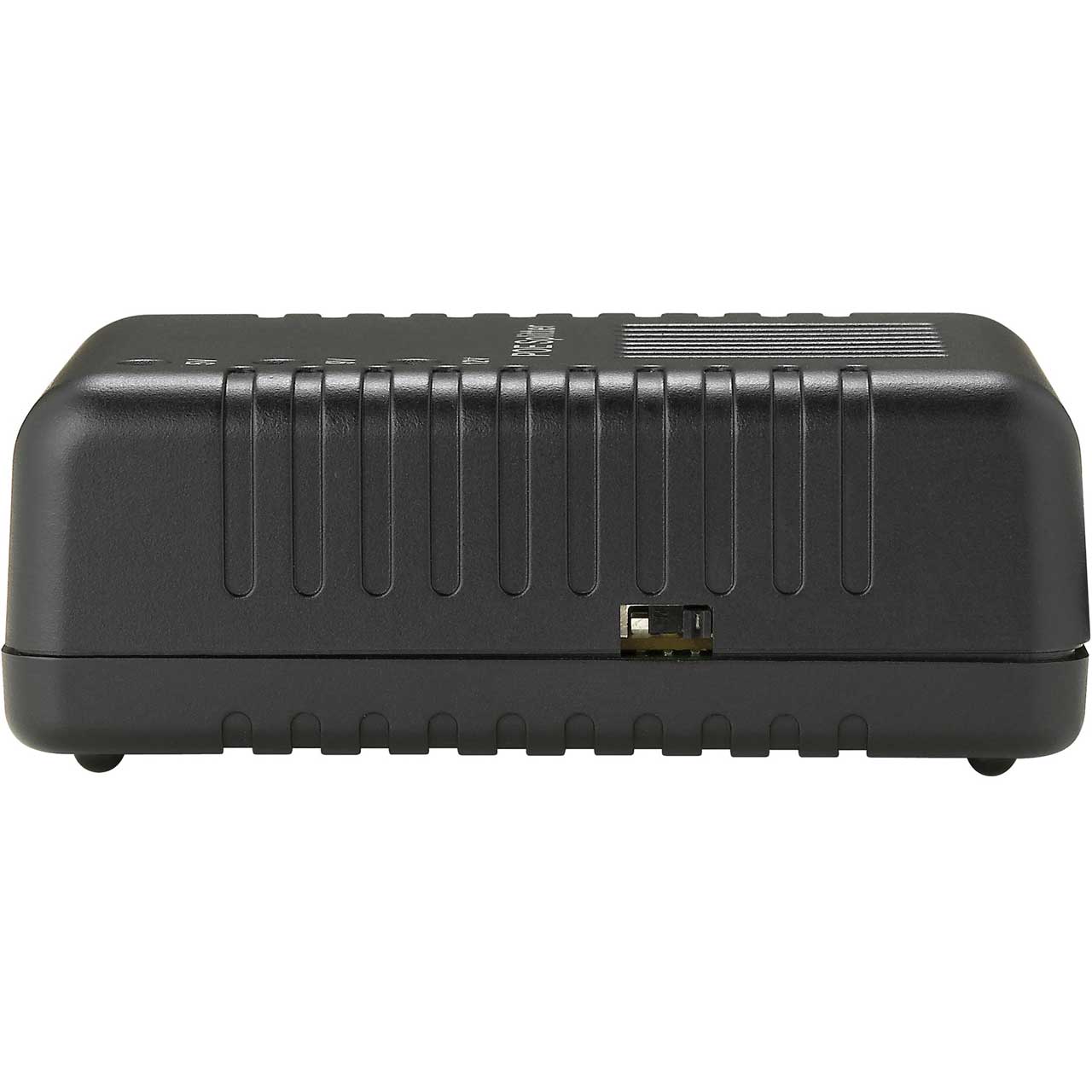

  • DIP switch for 5V, 9V, and 12V adjustable output power
  • Delivers power and data via a single Ethernet cable
  • Eliminates the need for a bulky power adapter and powerline
  • Compatible with Wireless Router, AP, Network Camera, Print Server, Converter
  • Light weight and compact size

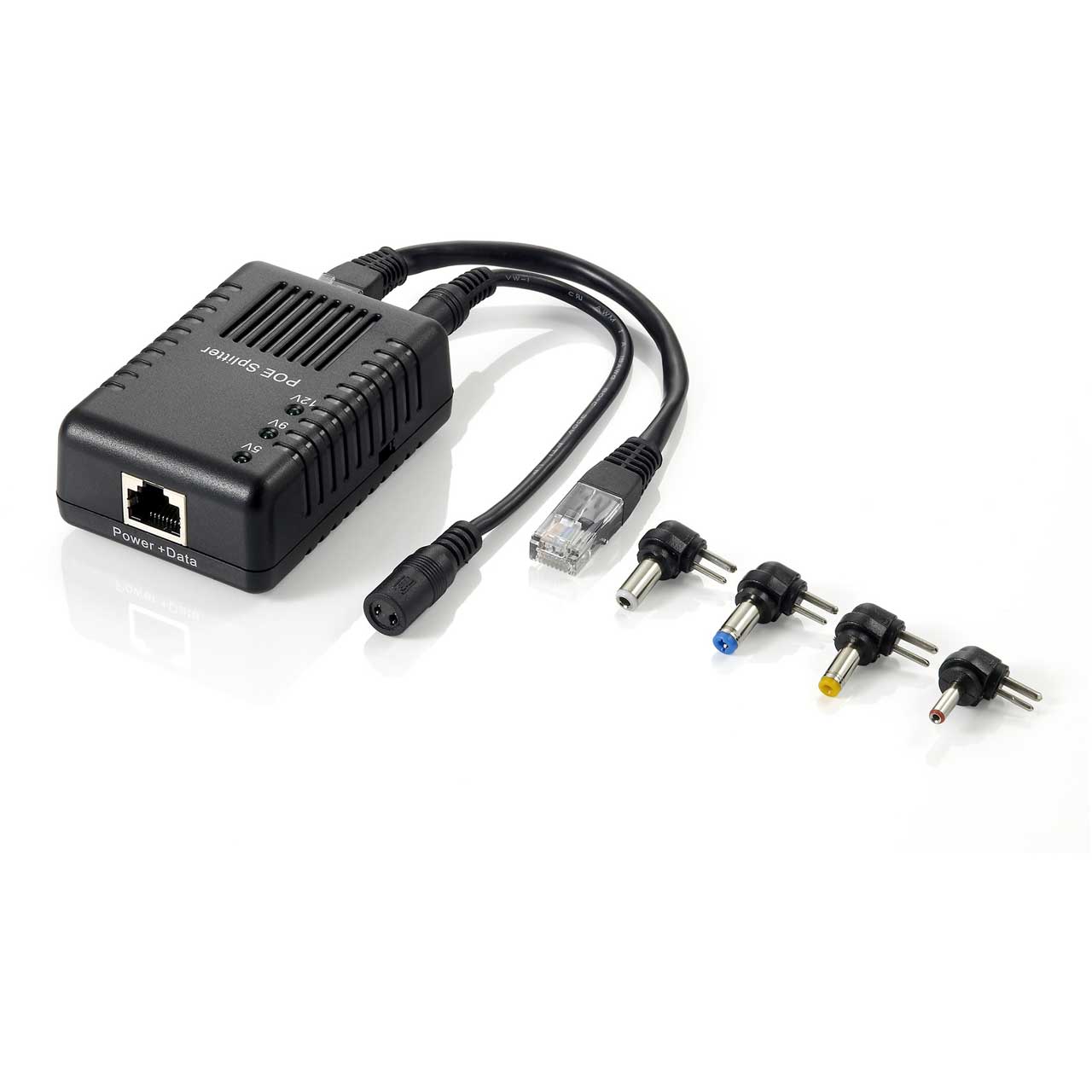

  • Provides interchangeable tips


• Specifications:

  • Standards & Protocols:
  • IEEE 802.3 10Base-T, Ethernet
  • IEEE 802.3u 100Base-TX, Fast Ethernet
  • IEEE 802.3af Power over Ethernet (PoE)


  • Power Input: Output Power Voltage: 5V (2A), 9V (1.1A), 12V (1A)
  • DC Pin: 5.5*2.5*12 mm (White) / 5.5*2.1*12 mm (Blue) / 4.8*1.7*12 mm (Yellow)/3.5*1.3*12(Red)mm, (L-300mm)
  • Input Power Requirement: Pin Assignment and Polarity: 1/2(+), 3/6 (-) or 4/5(+), 7/8(-)
  • Data Rate: 10/100 Mbps
  • Operating Temperature (°C): 0°C ~ 45°C
  • Operating Humidity (Non-condensing): 5% ~ 95%
  • Indicator: DC Power (Green)


• Item Includes:

  • 1x POS-1002
  • 1x Quick Installation Guide


• GTIN:

  0846359002346
