LevelOne POS-3000 Gigabit PoE Splitter - 802.3at/af PoE - 5-12V DC Output

POS-3000 - Overview

• Features:

  • Compact splitter supports Gigabit speeds
  • Automatically detects PoE terminals and supplies inline power

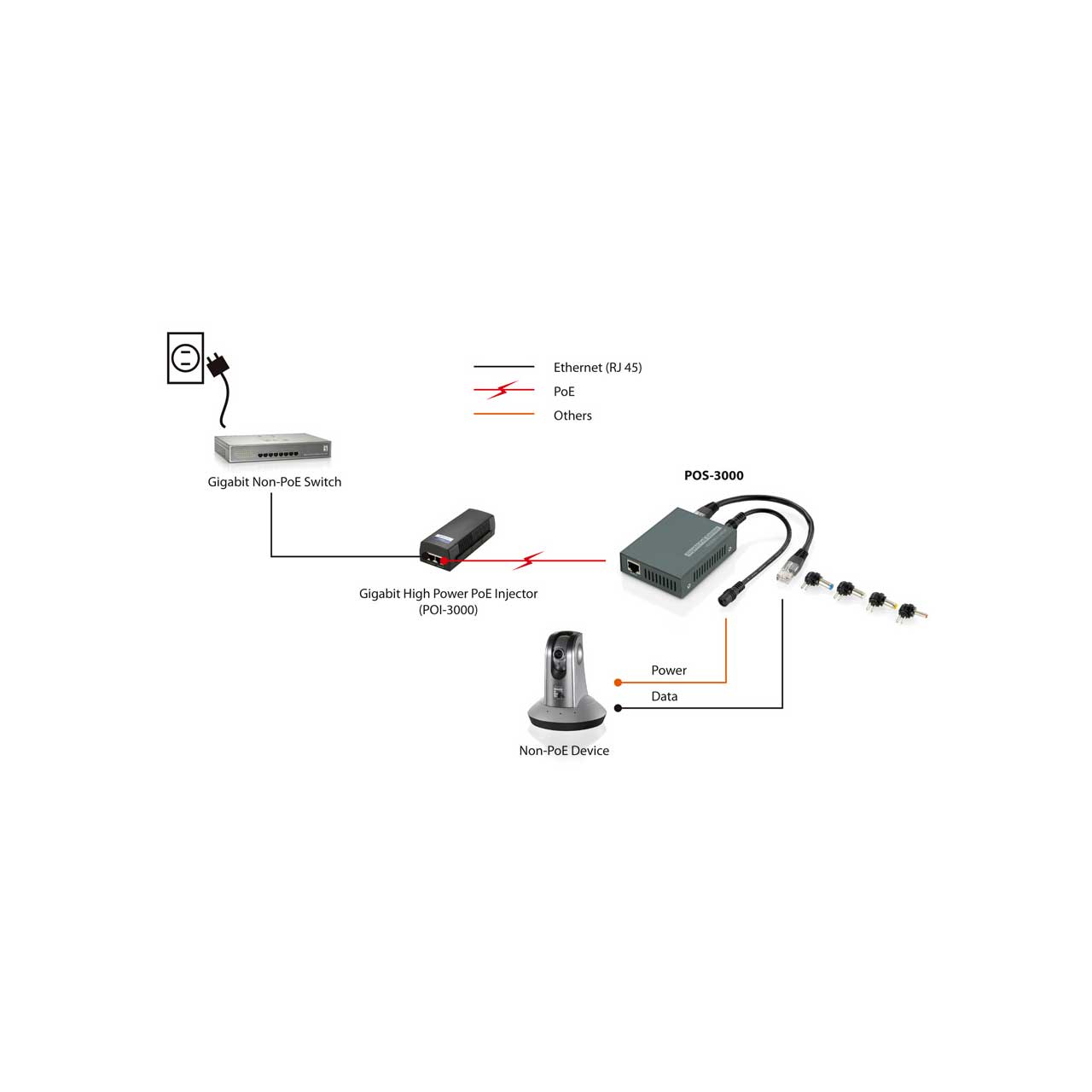

  • Easily install non-PoE devices where a power outlet is not available
  • Reduce installation and network equipment costs
  • Safeguards network device with short circuit protection

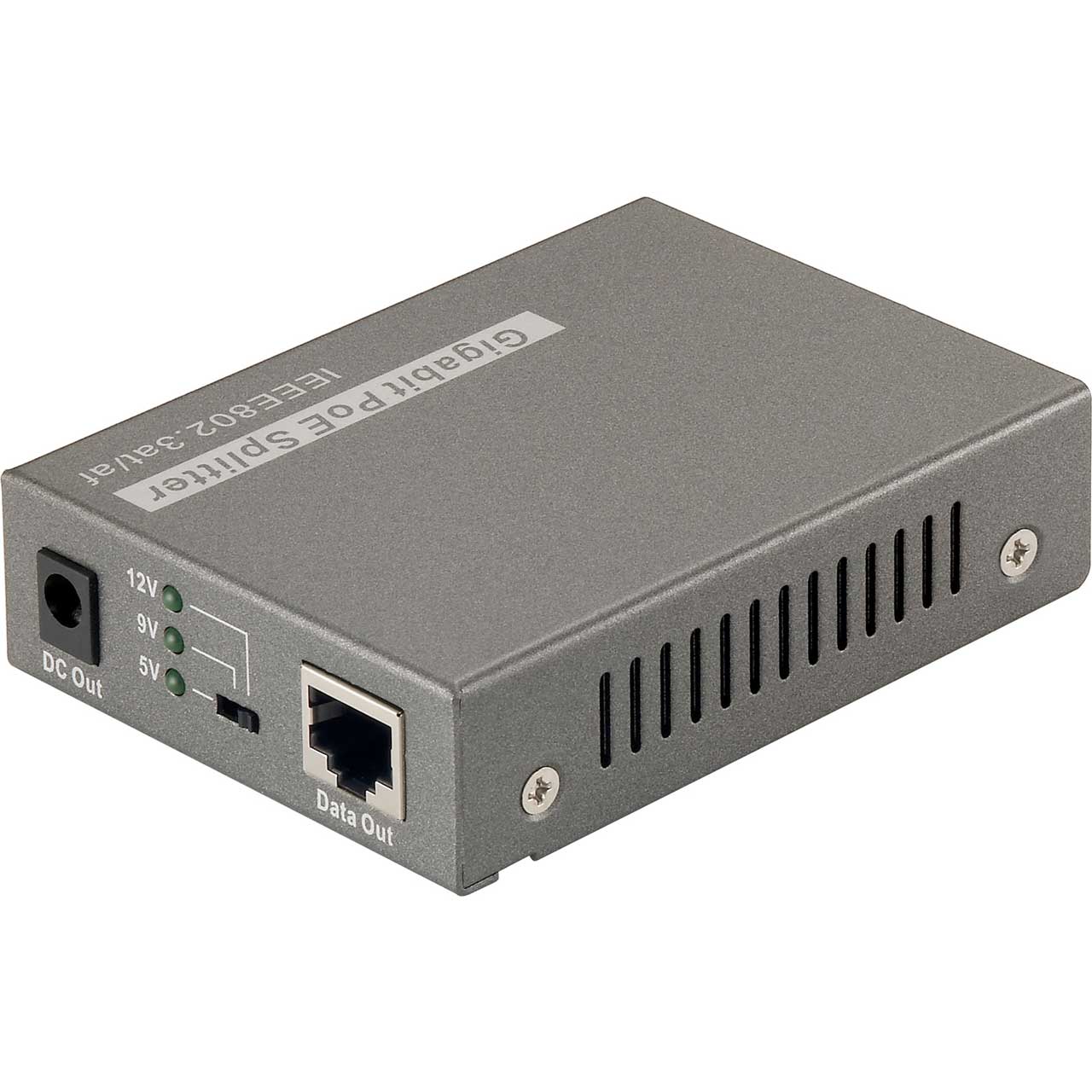

  • Adjustable DIP switch for 5V, 9V, or 12V output
  • Intergrates Non-PoE devices with Power Over Ethernet support
  • Auto-sensing power drawn from 802.3af / 802.3at power source equipment(PSE) devices
  • Supplies power up to 25 watts

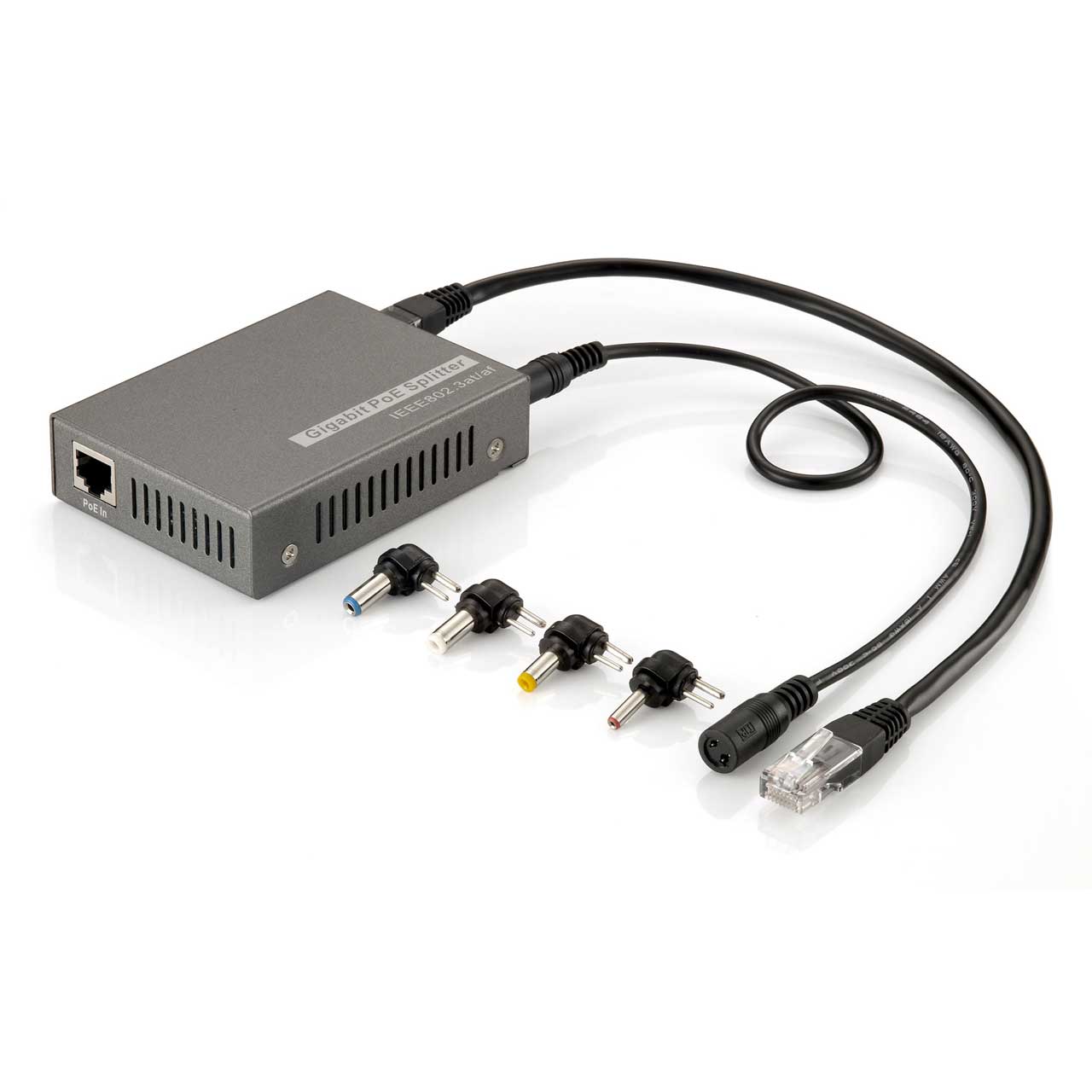

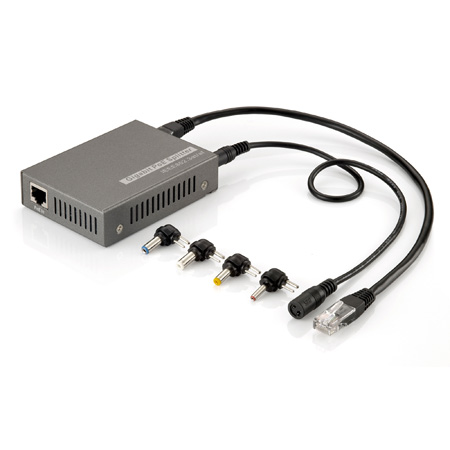

  • Provides Interchangeable tips


• Specifications:

  • Standards & Protocols
  • IEEE 802.3 10-BASE-T, Ethernet
  • IEEE 802.3u 100-BASE-TX, Fast Ethernet
  • IEEE 802.3ab 1000BASE-T, Gigabit Ethernet
  • IEEE 802.3af Power over Ethernet (PoE)
  • IEEE 802.3at Power over Ethernet (PoE+)


  • Pin Assignment and Polarity: 1/2(+), 3/6 (-) or 4/5(+), 7/8(-)

    Power Input
  • Output Power Voltage: 24watts (12V), 18Watts (9V), 10watts (5V)
  • DC Pin:5.5*2.5*12 mm (White), 5.5*2.1*12 mm (Blue), 4.8*1.7*12 mm (Yellow), 3.5*1.3*12(Red)mm, (L-300mm)


  • Data Rate: 10/100/1000Mbps
  • Operating Temperature (°C): Operating: 0°C ~ 45°C
  • Operating Humidity (Non-condensing): Operating: 5% ~ 95%

    Physical Specifications
  • Dimensions (W x D x H mm): 60 x 92 x 27 mm
  • Weight (g): 85 g

    Approval and Compliance
  • EMI/EMS: CE, FCC, EN 60950:2006, RoHS


• Item Includes:

  • x1 POS-3000
  • x1 Quick Installation Guide


• GTIN:

  0846359001448
