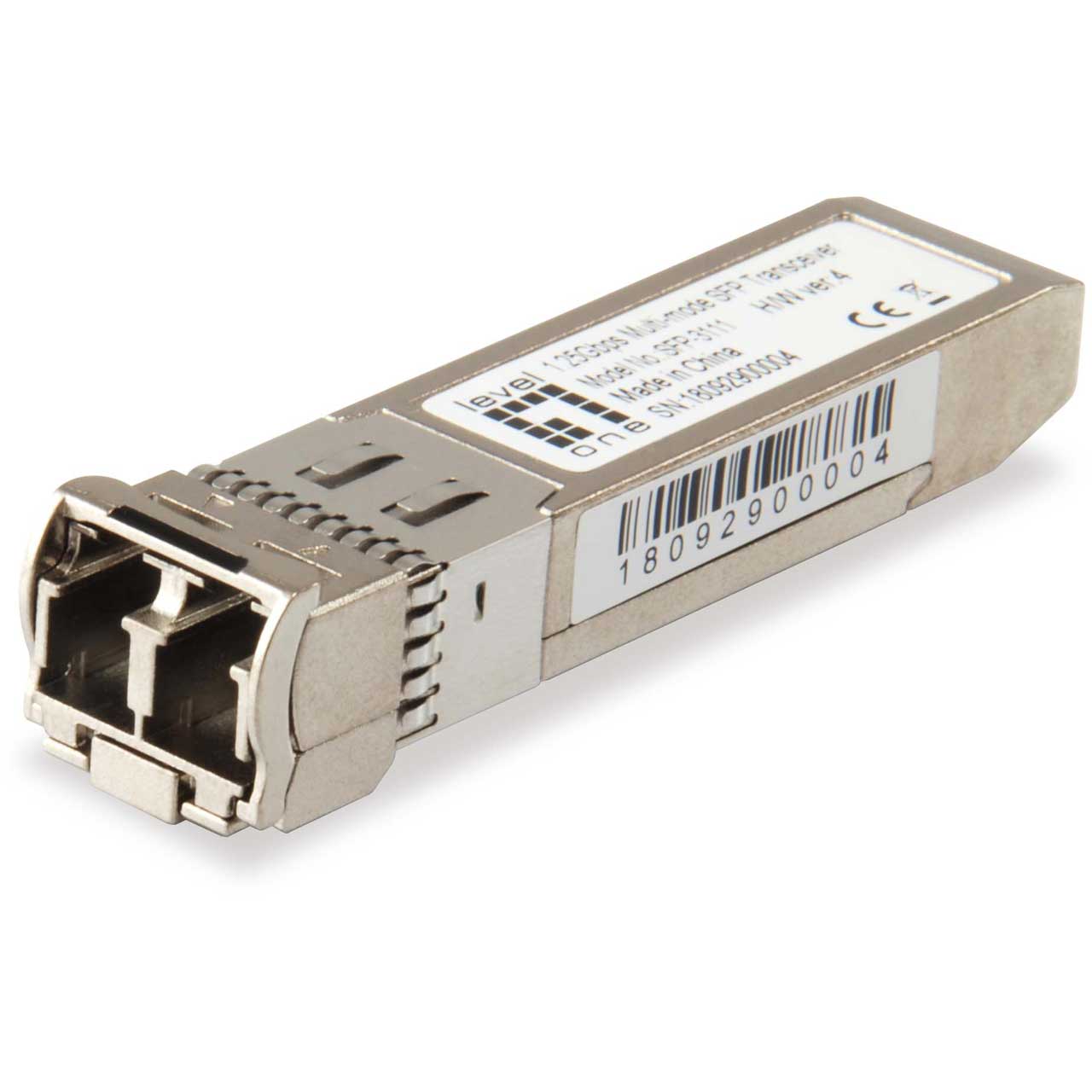

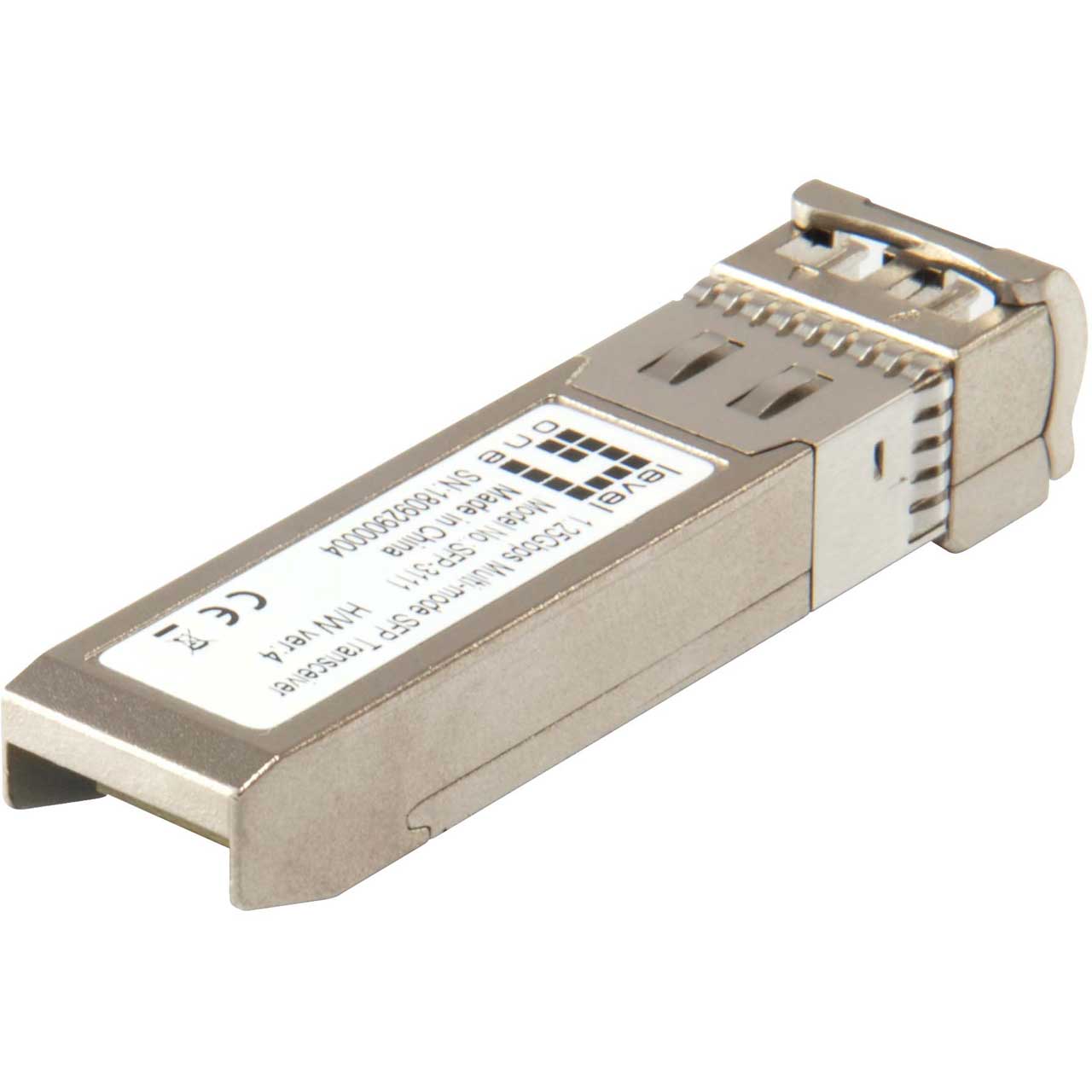

LevelOne SFP-3111 1.25Gbps Multi-mode SFP Transceiver - 2km - 1310nm

SFP-3111 - Overview

• Features:

  • 1.25Gbps Bi-directional single fiber link
  • Provides duplex LC connector
  • Compatible with SFP Multi-Sourcing Agreement (MSA) standards
  • Hot-swappable providing non-stop service
  • RoHS compliant and Lead Free
  • Supports Digital Diagnostics Monitoring Interface (DDMI) for easy status monitoring


• Specifications:

  • Standards: IEEE802.3z 1000BASE-LX

    Port:
  • Duplex LC Connector,
  • 9/125 µm Multi-mode fiber
  • Support Single-mode fiber cable (9/125 µm)
  • Support Multi-mode fiber cable (50/125 µm, 62.5/125 µm)


  • Wavelength (nm): 1310nm
  • Optical Receive Sensitivity: -22dBm
  • Optical Link Power Budget: 7dB
  • Power Input: 3.3V / 250mA
  • Power Consumption: 800mW (0°C~70°C), 1000mW (-40°C~85°C)
  • Data Rate: Up to 1.25Gb/s data links
  • Optical Transmission Power: -15 to -8 dBm
  • Operating Temperature (°C): 0°~70°C
  • Operating Humidity (Non-condensing): 0~85%
  • Storage Temperature (°C): -40°~85°C

    Features
  • General: Hot-swappable
  • Management: DDMI (Digital Diagnostics Monitoring Interface)
  • Operating Distance: 2km

    Physical Specifications
  • Dimensions (W x D x H mm): 13.7 x 47.5 x 8.5 mm
  • Weight (g): 50g

    Approval and Compliance
  • EMI/EMS:
    EMC Directive 2014/53/EU
    IEC 61000-4-3 / IEC 61000-4-2 , MIL-STD-883 Method 3015
  • Safety:
    EMI compatible with FCC Part 15 Class B EN55022 Class B (CISPR 22B) VCCI Class B.
    Class 1 Laser Eye Safety compatible with FDA 21CFR 1040.10 and 1040.11 EN60950, EN (IEC)60825-1,2


  • Environmental Test: RoHS Directive 2011/65/EU

    Others:
  • SFP Multi-Sourcing Agreement(MSA)
  • SFP MSA SFF-8074i Compliant


• Item Includes:

  • x1 SFP-3111


• GTIN:

  0878742008611
