Liberty 22-1P-CMP-EZ-BLU High-Performance EZ-Strip Broadcast Audio 22 AWG 1 Pair Shielded Plenum Cable Blue 1000 Feet

ITEM #: LWC-22-1PCMPEZBE MFG #: 22-1P-CMP-EZ-BLU

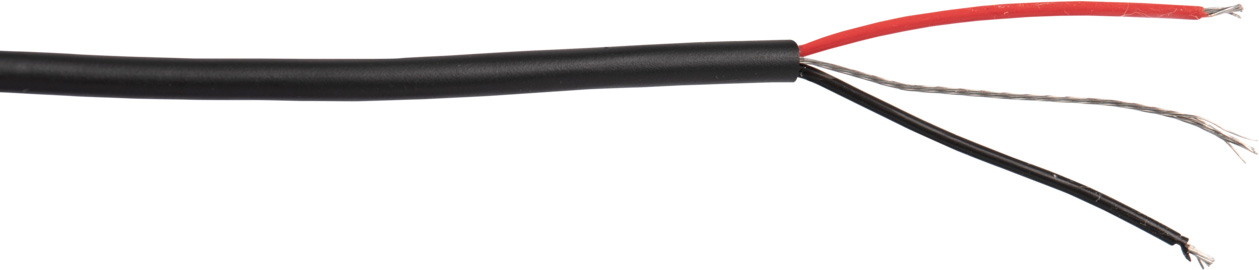

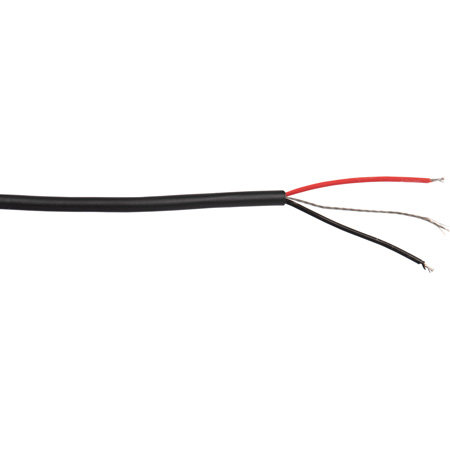

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the LWC-22-1PCMPEZBE

22-1P-CMP-EZ-BLU - Overview

Liberty's 22-1P-CMP-EZ-BLUis 1 pair 22 AWG stranded, twisted, and shielded cable NEC type CMP and CEC type CMP FT6. Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725 and 800.

Applications include:
Line level, microphone audio
Balanced and unbalanced audio formats
Infrared (IR), RS-232C signaling
Class 2 and Class 3 low voltage power
Instrumentation and control

  • Features:

    • 7-strand annealed tinned copper conductors
    • Cellular fluoropolymer dielectric insulation
    • Tightly twisted and shielded
    • Semi-pressure extruded plenum PVC jacket
    • Low capacitance broadcast audio
    • NEC CMP, CEC CMP FT6, RoHS compliant
    • 1000 foot spools


  • Specifications:

    • Conductor: 22 AWG; 7-strand tinned annealed copper conductors; Diameter - 0.030" / 0.76mm
    • Electrical: DC resistance - 16.88 Ω / 1000' / 55.36 Ω/KM
    • Mutual capacitance: 15.5 pF/FT / 50.84 pF/M; Impedance - 65 Ω/ Velocity of Propagation - 76%; Voltage rating - 300V; Maximum current - 2.8A@25°C
    • Insulation: Foam fluorinated ethylene propylene; Wall thickness - 0.010" / 0.25mm; Diameter - 0.050" / 1.27mm
    • Regulatory: NEC - CMP 75°C; CEC - CMP FT6 60°C; EU RoHS-2 2011/65/EU Compliant
    • Color Code: Black, Red
    • Packages: Reel - 1000' / 305M
    • Weight: 14 Lbs/1000' / 21 Kg/KM
    • Assembly: 2 conductors twisted; Pair lay length - 2.0" / 51.0mm; 6.0 twists per foot / 19.6 twists per meter
    • Installation: Pull Tension - 14 Lbs / 62 N; Bend radius - 1.31" / 34mm unloaded; Bend radius - 2.62" / 68mm loaded; Plenum cable should be conditioned at room temperature for 24 hours prior to installation and never installed below 32°F / 0°C ambient temperature
    • Construct: N/A
    • Applications: Plenum broadcast quality line level balanced audio; Plenum low voltage control and RS-232C signaling
    • Shield: 100% aluminum/polyester tape foil in 24 AWG 7-strand tinned copper drain
    • Performance: Assuming 600 Ω source impedance - Line level balanced audio 450 feet
    • Jacket: Pressure extruded plenum rated polyvinyl chloride; Colors - Black, Blue, Brown, Green, Cool Gray, Orange, Red, Violet, Tan, White, Yellow ; Wall thickness: 0.015" / 0.38mm
    • Diameter: 0.131" / 3.33mm; Final Outside Diameter (inches) 0.11
