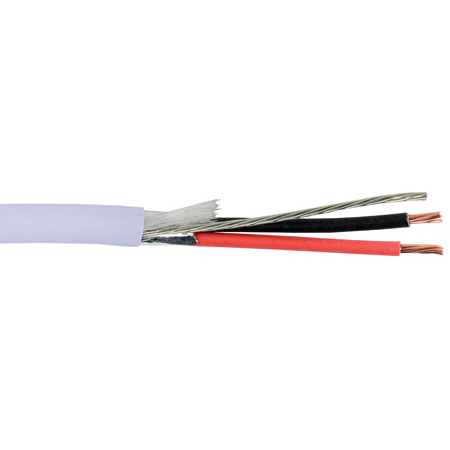

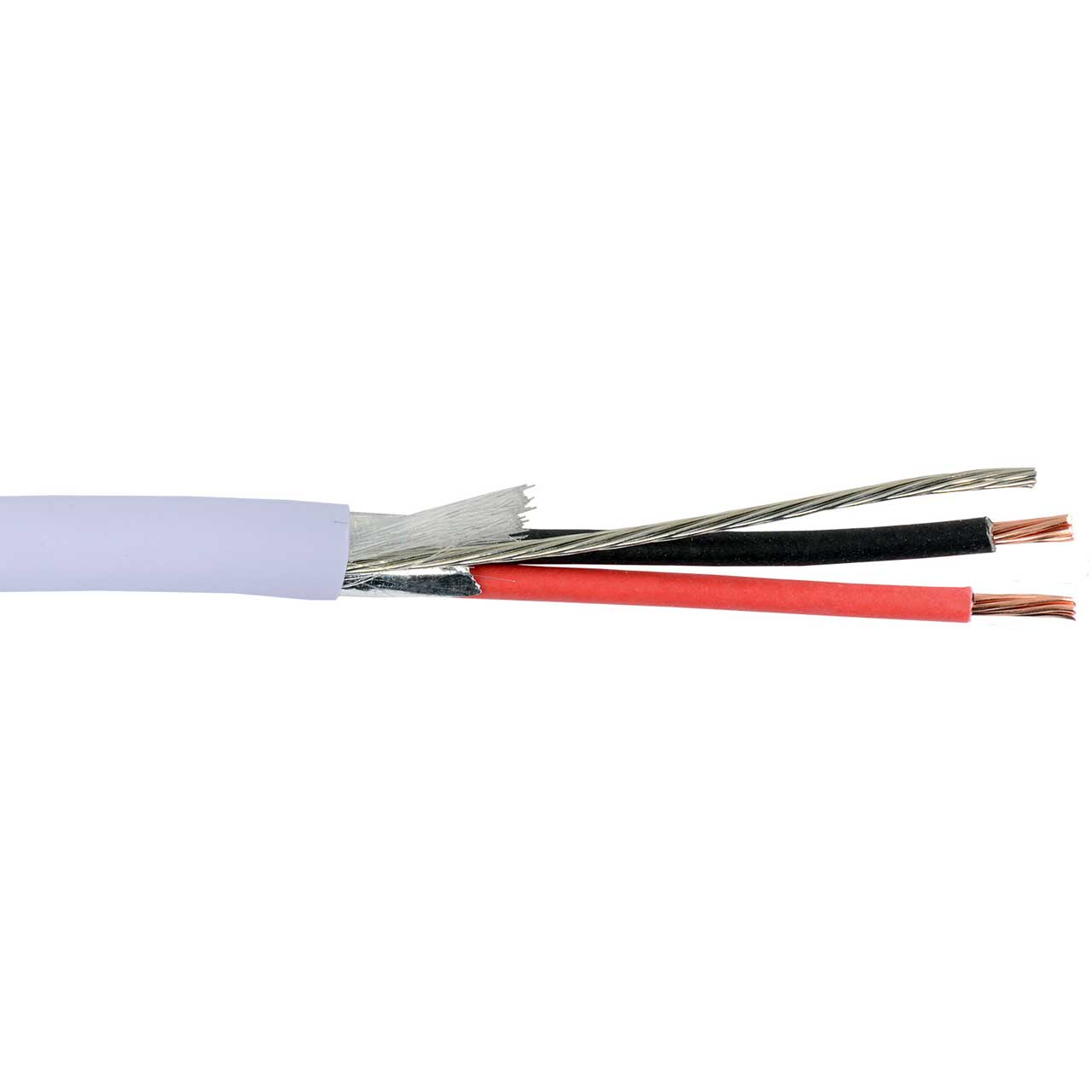

Liberty 22-2C-PSH-WHT Audio and control 22 AWG 1 Pair Shielded Plenum Reel - White

22-2C-PSH-WHT - Overview

• Features:

  • 7-strand annealed bare copper conductors
  • Plenum rated PVC alloy insulation
  • Twisted, shielded with drain out
  • Plenum rated PVC alloy jacket
  • NEC CMP, CEC CMP FT6, RoHS compliant
  • 1000 foot spools


• Specifications:

  • Conductor: 22 AWG - 7-strand annealed bare copper conductors
  • Diameter: 0.029" | 0.73mm
  • Insulation: Plenum rated polyvinyl chloride
  • Wall thickness: 0.008" | 0.20mm
  • Diameter: 0.044" | 1.13mm
  • Color Code: Black, Red
  • Assembly: 2 conductors twisted
  • Lay length: 3.0" / 80mm
  • 4 twists/ft. - 12.5 twists/meter
  • Construct: ripcord under jacket
  • Shield: 100% aluminum/polyester tape foil out
  • 24 AWG 7-strand tinned copper drain
  • Jacket: Plenum rated polyvinyl chloride
  • Colors: Natural White
  • Wall thickness: 0.014" / 0.36mm
  • Diameter: 0.118" / 3.00mm
  • Electrical: DC resistance: 16.4 Ω / 1000' | 53.79 Ω/KM
  • Mutual capacitance: 39.7 pF/FT | 130.22 pF/M
  • Impedance: 47 Ω
  • Velocity of Propagation: 55%
  • Voltage rating: 300V
  • Maximum current: 2.8A@25°C
  • Regulatory: NEC: CMP 75°C
  • CEC: CMP FT6 60°C
  • EU RoHS 2002/95/EC Compliant
  • Reel: 1000' | 305M
  • Weight: 13 Lbs/1000' | 20 Kg/KM
  • Installation: Pull Tension: 11 Lbs | 49 N
  • Bend radius: 1.18" / 30mm unloaded
  • Bend radius: 2.36" / 60mm loaded
  • Plenum cable should be conditioned at room temperature for 24 hours prior to installation and never installed below 32°F / 0°C ambient temperature
