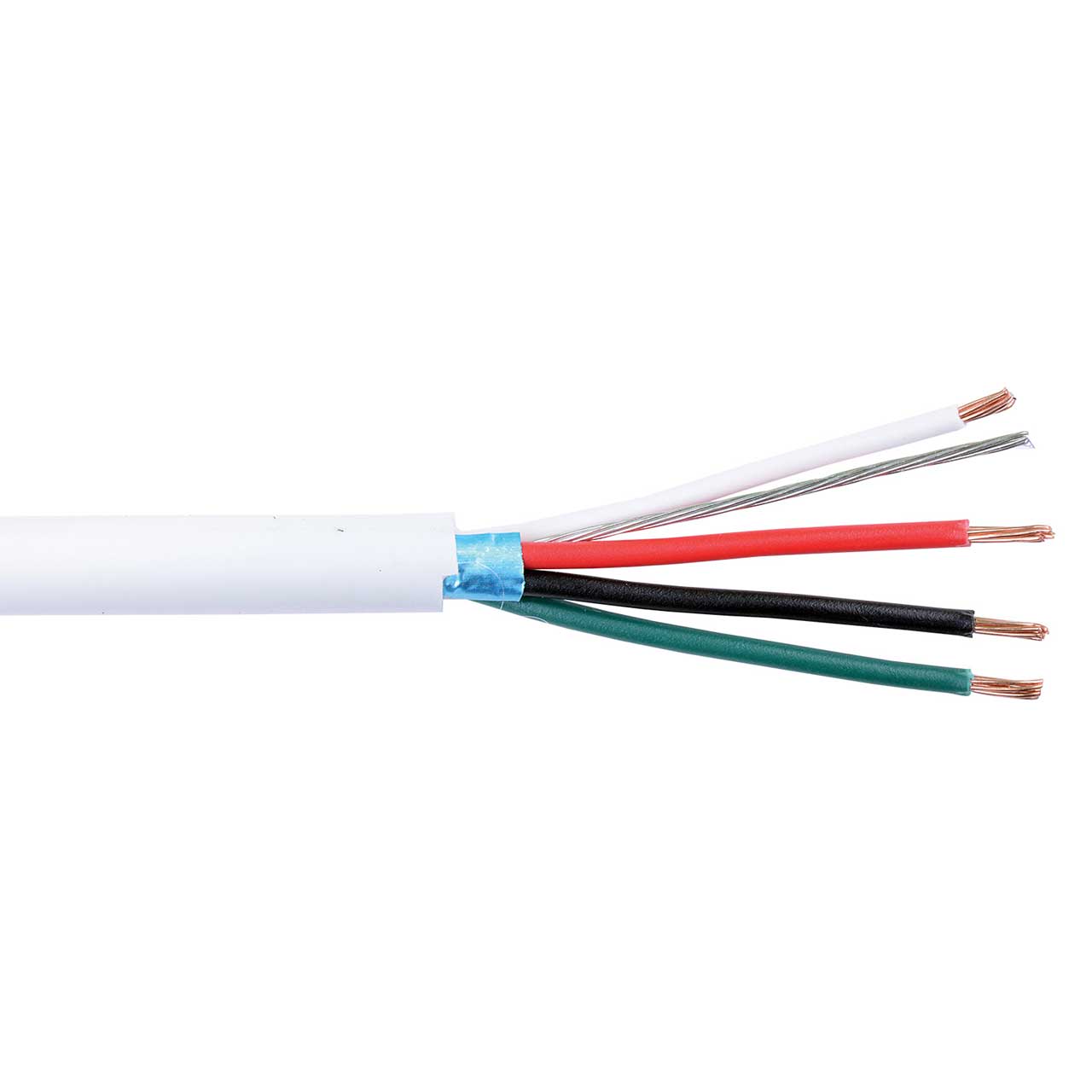

Liberty 22-2P-PSH/UN-WHT Intercom 22 AWG 2 Pair with One Pair Shielded Plenum Cable Reel - White

22-2P-PSH/UN-WHT - Overview

• Features:

  • Stranded Annealed Bare Copper Conductors
  • Plenum rated PVC Alloy insulation
  • 1 Pair twisted, shielded. 1 Pair twisted, unshielded
  • Plenum rated PVC jacket
  • NEC CMP, CEC CMP FT6, RoHS Compliant
  • Standard package 1000 foot spool


• Specifications:

  • Conductor: 22 AWG 7-strand annealed bare copper conductors (0.030" Diameter)
  • DC resistance: 17.5 Ω / 1000'
  • Mutual capacitance: 39.7 pF/FT
  • Shield capacitance: 72.0 pF/FT
  • Impedance: 72.7 Ω
  • Velocity of Propagation: 55%
  • Voltage rating: 300V
  • Maximum current: 2.3A@25° C
  • Insulation: Plenum rated polyvinyl chloride
  • Wall thickness: 0.008"
  • Diameter: 0.046"
  • Construct: Ripcord under jacket
  • Pull Tension: 26 Lbs
  • Bend radius: 1.48" unloaded
  • Bend radius: 2.96" loaded

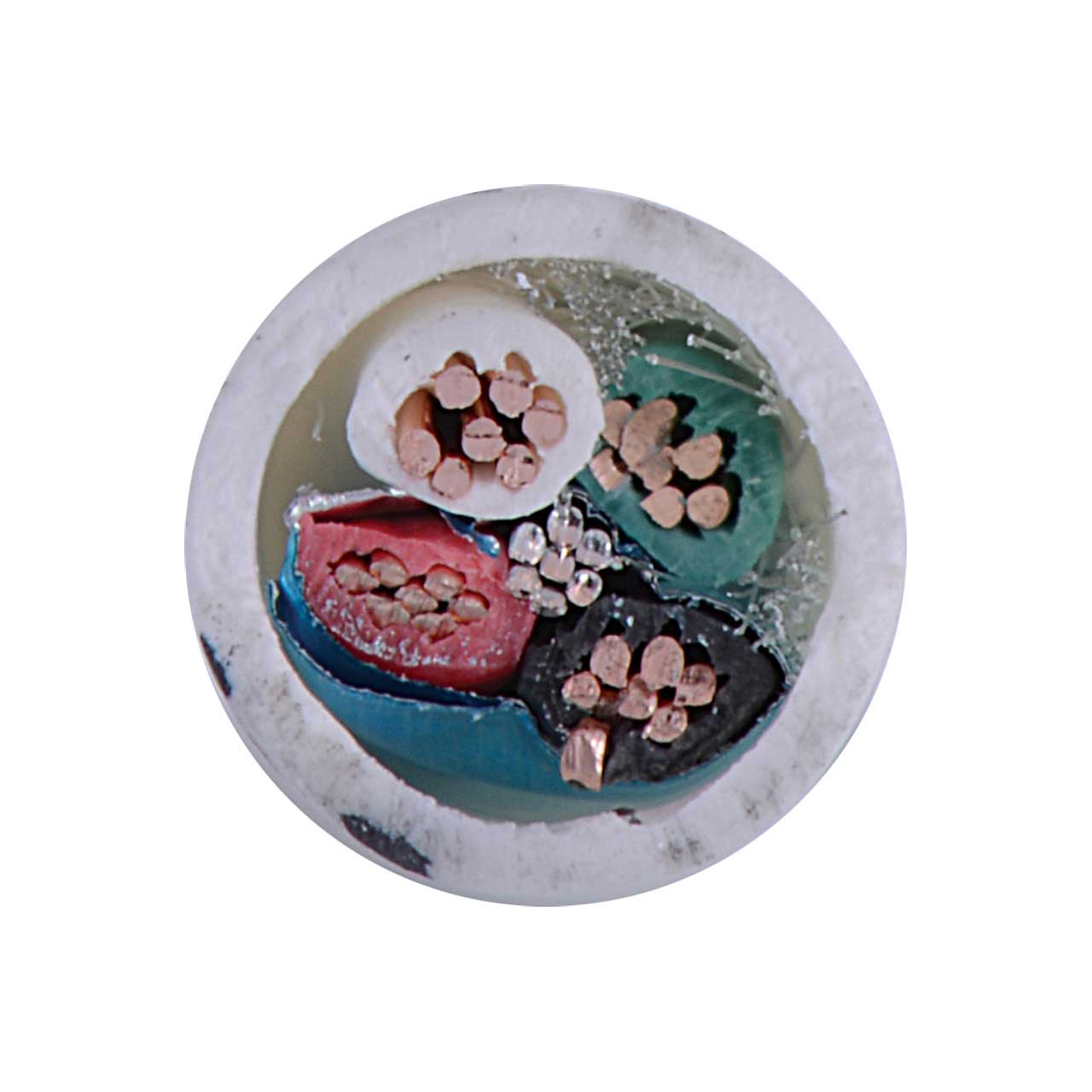

  • Shield Performance: Pair 1: 100% aluminum/polyester tape foil in 22 AWG 7-strand tinned copper drain; Pair 2: Unshielded
  • Jacket: Plenum rated polyvinyl chloride
  • Colors: Natural White
  • Wall thickness: 0.015"
  • Diameter: 0.137"
  • Final Outside Diameter (inches): 0.137
