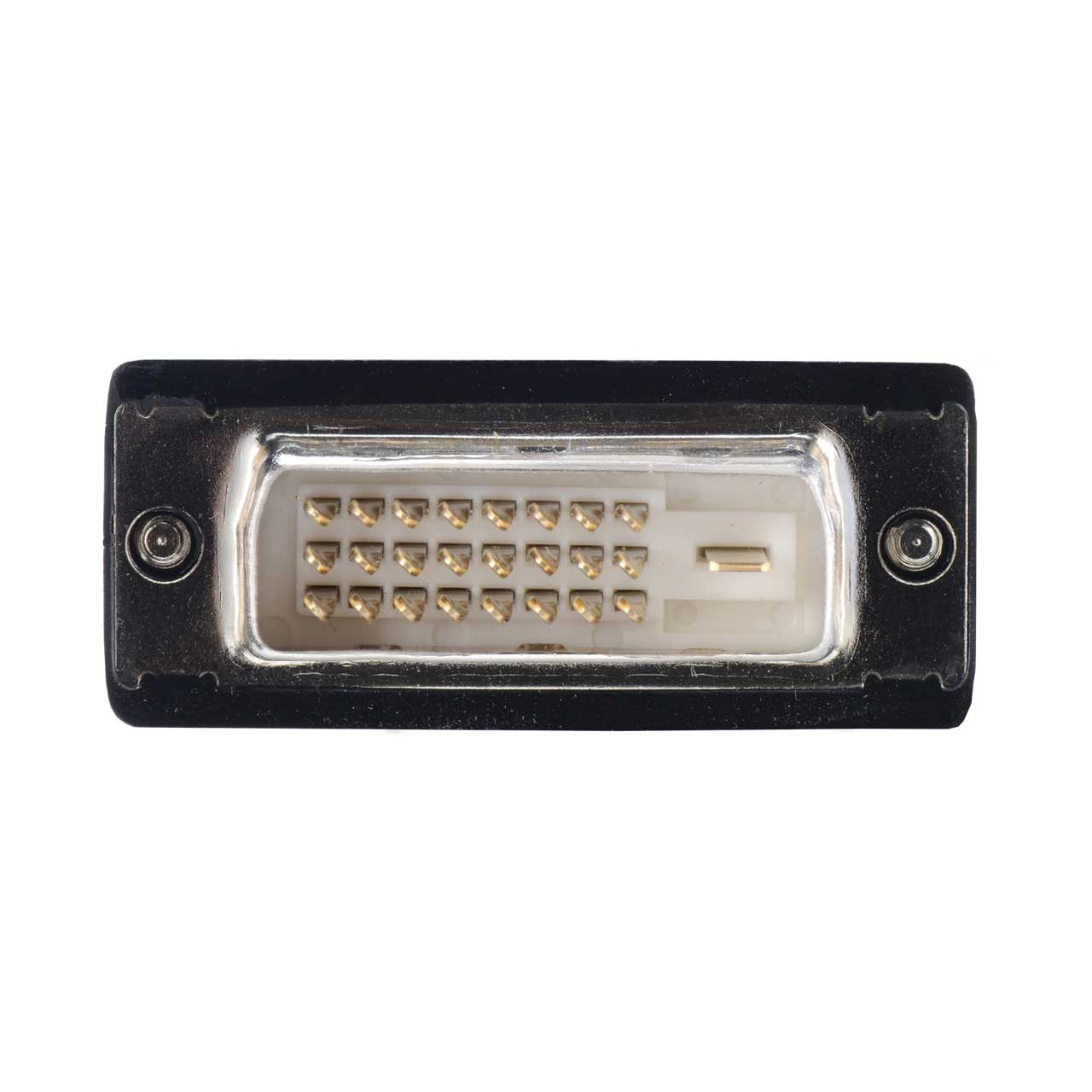

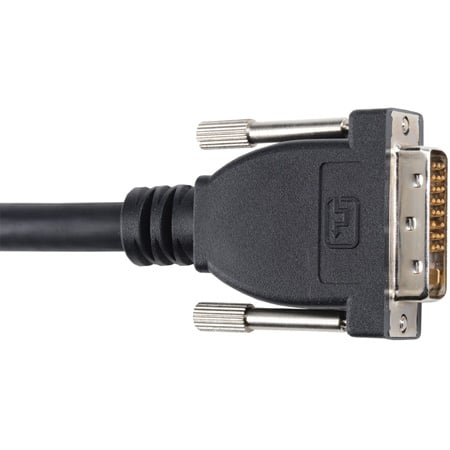

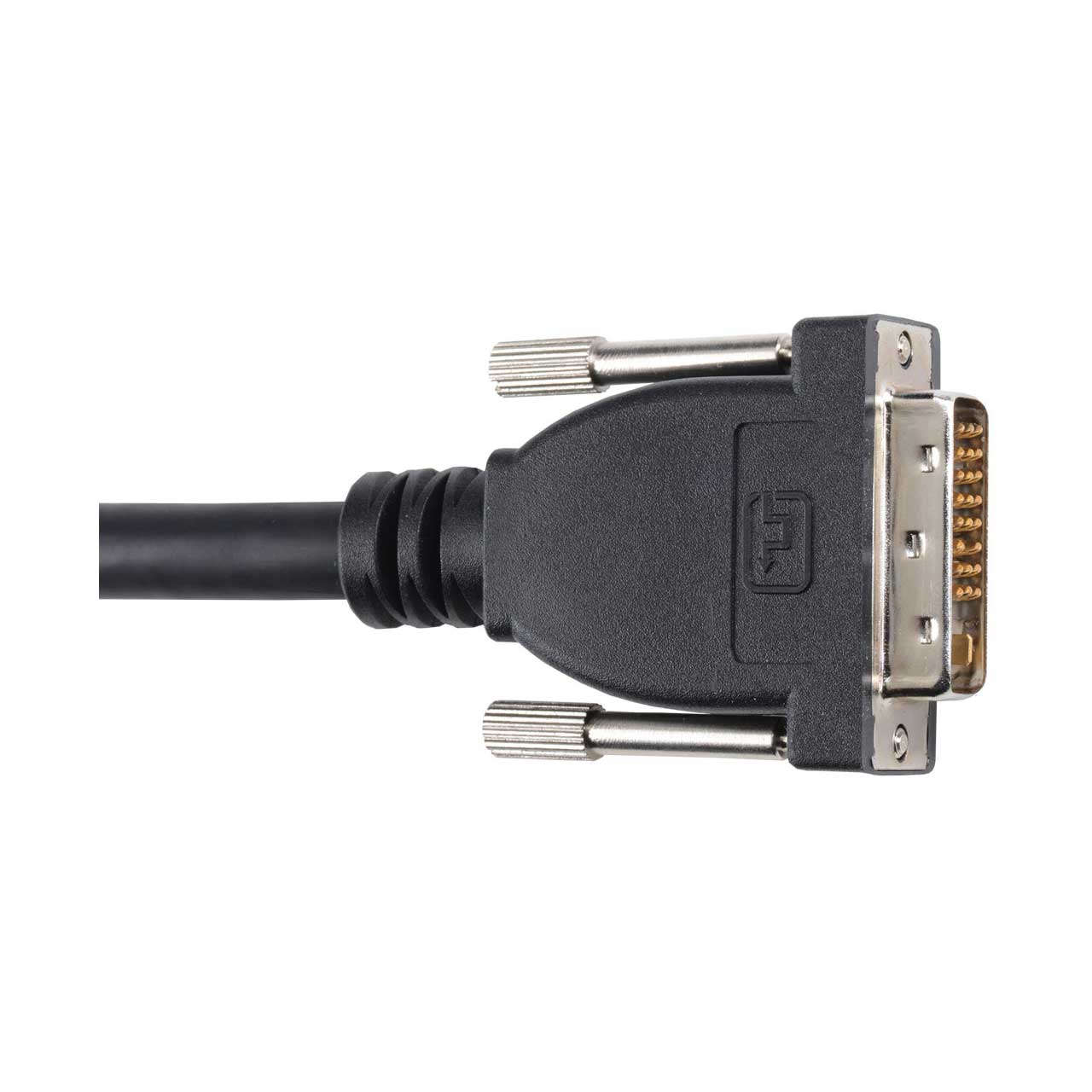

Liberty's E-DVIDDL-01 Molded DVI Dual Link cables are high quality Digital Video cables made to meet and exceed DVI specification requirements. The latest revision on this product was a molded head reduction in size to permit high density video source patching in video wall and other commercial applications. This lower profile also permits the DVI head to fit into smaller spaces and clearances.
Liberty has staggered the gauge of the TMDS pairs on this product offering to offer the best value for performance. Lengths 10 meters (32.8 feet) and shorter use 28 AWG wiring For the TMDS pairs. Lengths above 10m use 24 AWG TMDS pairs for lower attenuation and longer distance runs. All Liberty DVI Dual Link cables are designed to offer the best performance per length. Lengths up to 6m support the DVI Maximum Dual Link Resolution of 2560x1600 WQXGA@60Hz. Distance applications above 6m should be tested prior to pulling cables, as the sensitivity of the sink and strength of the source play key roles in determining distance. Any passive junctions will reduce the distance. The use of a booster/equalizer is recommended for lengths over 10m.
The E-DVIDDL series is safety and fire rated CL2 for the US market and CSA FT4 rated for the Canadian market. The product is RoHS-2 and REACH Compliant. The available lengths on this product are 1, 2, 4, 6, 8, 10, 12 and 15 meters.
Applications:
High Density Video Processor Connections
In-wall routing of DVI Video
Computer Monitor, CAD Station
