Liberty LLINX-U PVC Control Cable 22 AWG 1 Pair Shielded and 2 Cond. Composite - 1000 Ft.

ITEM #: LWC-LLINXU MFG #: LLINX-U 500 FT.

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Liberty AV Solutions
Free Shipping with $49 Minimum Order

List Price:

$600.36

Our Price:

$540.33

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

LLINX-U 500 FT. - Overview

Grey OEM systems Universal Control 22 AWG 1 pair shielded and 18 AWG 2 conductor composite cable.


Applications;
OEM RS-232C, RS-422, and RS-485 data control
Power pair for up to 300 watts
Class 2 and Class 3 low voltage power
Systems instrumentation and Control

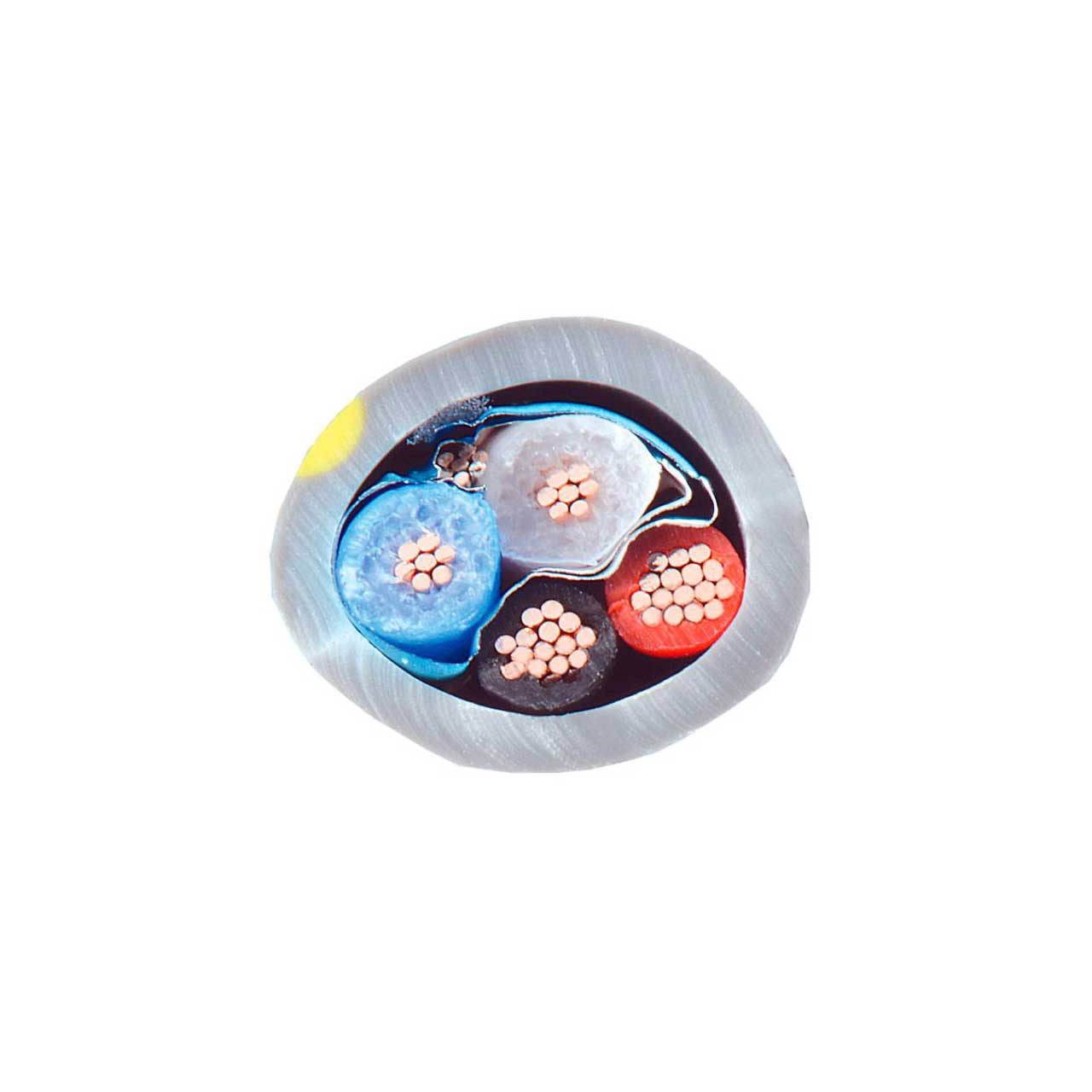

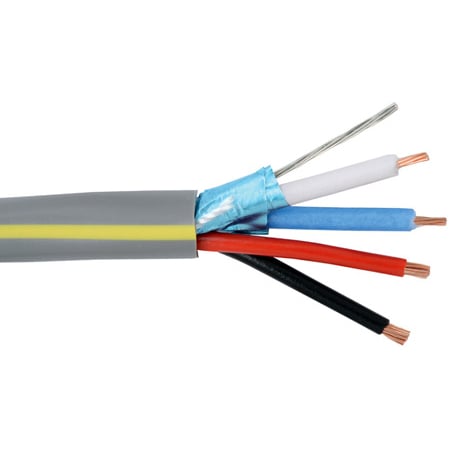

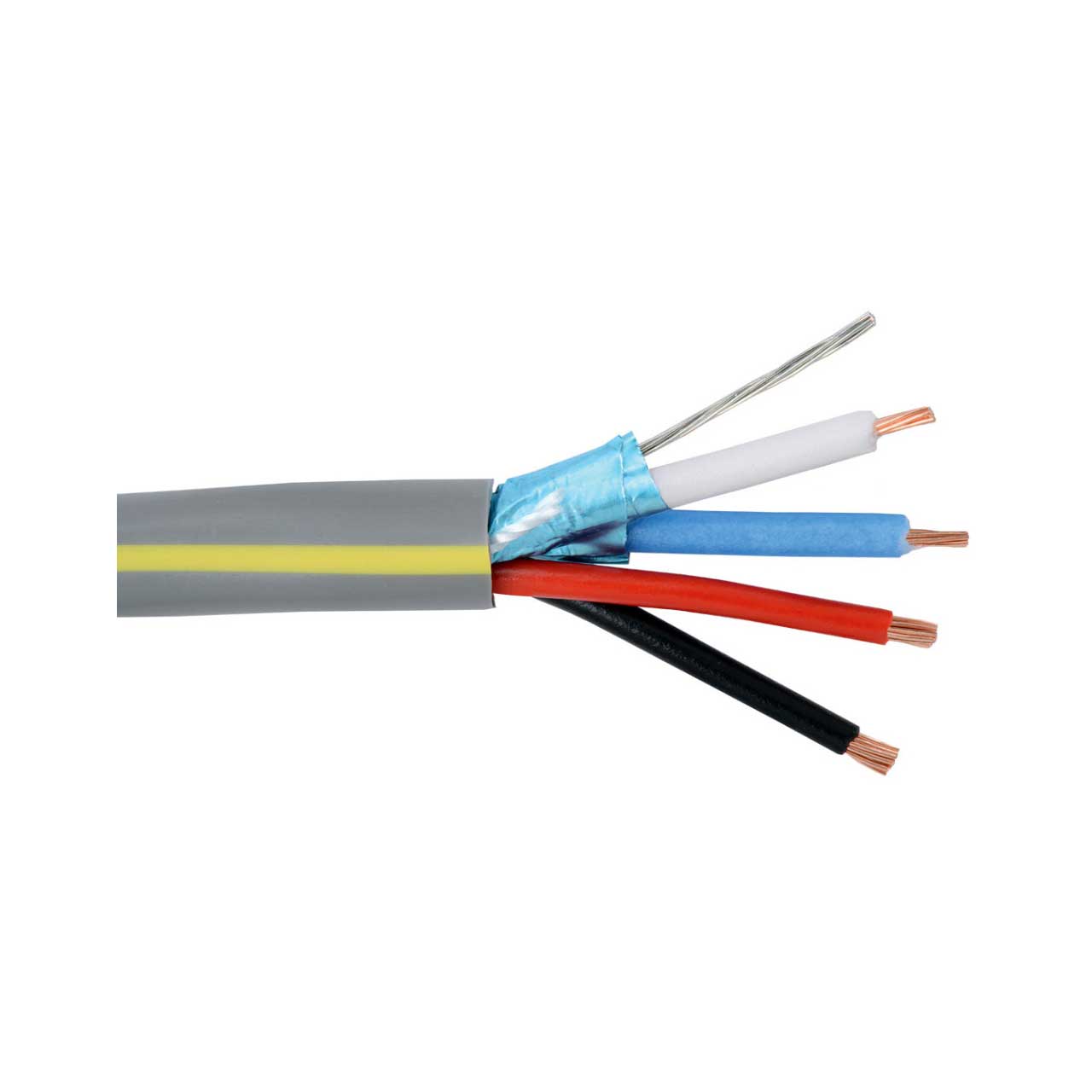

Composite cable consisting of a 22 AWG stranded, twisted and shielded data pair and an 18 AWG stranded, twisted, and unshielded power pair overall jacketed
NEC type CM and CEC type CMG FT4. Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725 and 800.

  • Features:

    • LibertyLinx Universal control and power cable
    • Twisted, shielded 22 AWG data pair
    • Twisted, unshielded 18 AWG power pair
    • 12.5 pF/FT 105 Ohm digital data pair
    • Flame rated PVC jacket
    • NEC CM, CEC CMG FT4, RoHS compliant
    • 1000 foot spools


  • Specifications:

    • Component 1:
    • 22 AWG data pair
    • 7-strand annealed bare copper conductors
    • Foam polyethylene insulation
    • Wall thickness: 0.025" | 0.64mm
    • Diameter: 0.074" | 1.88mm
    • 100% aluminum/poly shield foil in
    • 24 AWG 7-strand tinned copper drain wire
    • Componenent 2:
    • 18 AWG power pair
    • 16-strand annealed bare copper conductors
    • Polyvinyl chloride insulation
    • Wall thickness: 0.010" | 0.25mm
    • Diameter: 0.072" | 1.83mm
    • Color Code:
    • Data pair: Blue, White
    • Power pair: Red, Black
    • Jacket Color - Grey
